Palm-Grip Handles (Thermoplastic)

Hand Knobs

Save to My Project

What is this?

Product Information

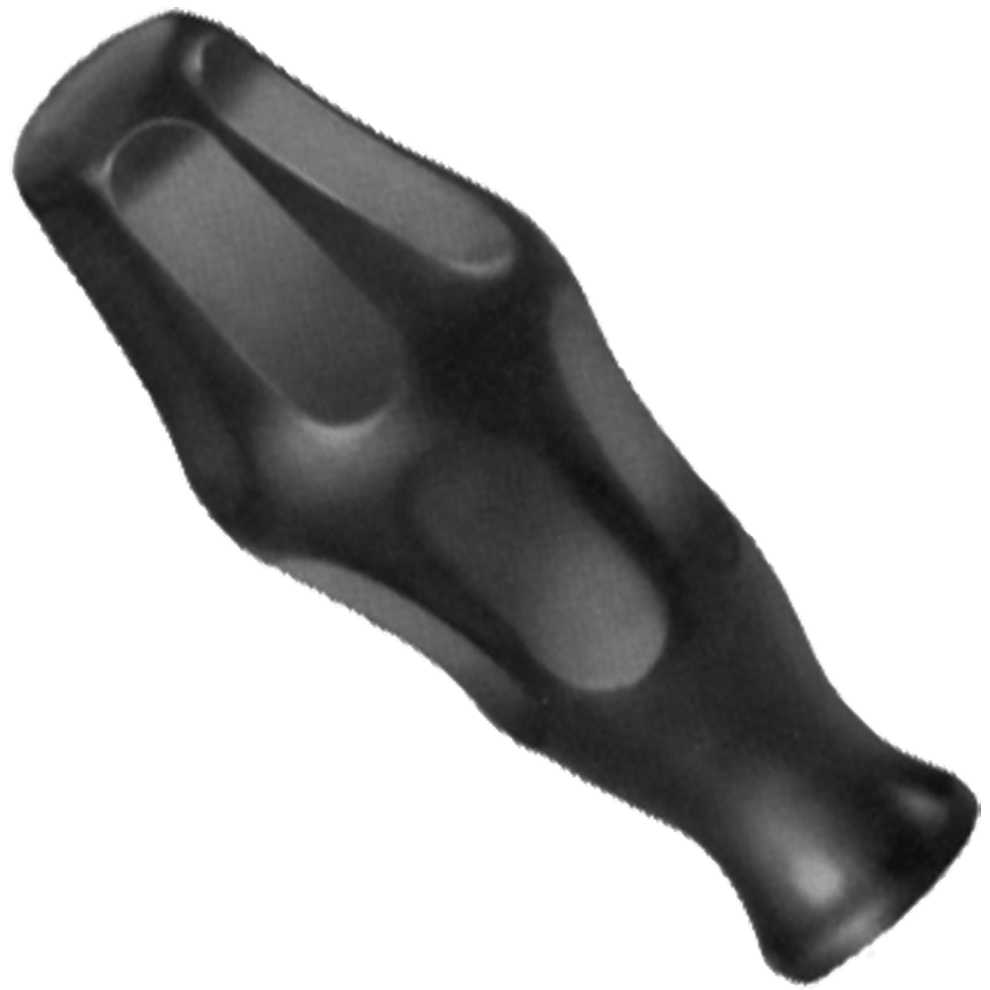

Palm-Grip Handles (Thermoplastic) Part # CL-652-PGH Carr Lane Mfg.®

This unique, ergonomically designed handle provides an extremely comfortable grip. Greatly reduces stress on hands, wrists, and arms, to help eliminate the risk of repetitive-motion disorders. Textured non-slip, non-glare finish. Available in one handle size, with tapped-hole sizes from 1/4-20 to 3/8-16. Molded-in brass insert provides superior thread strength. Non-standard thread sizes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150°F)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Palm-Grip Handles (Thermoplastic)

Inch

PART NO.	A DIA	B	C DIA	D DIA	E THREAD	F
CL-632-PGH	1-3/8	3-3/4	7/8	7/8	1/4-20	7/8
CL-642-PGH	1-3/8	3-3/4	7/8	7/8	5/16-18	5/8
CL-652-PGH	1-3/8	3-3/4	7/8	7/8	3/8-16	5/8
