Fluted Knobs – Tapped (Thermoplastic)

Hand Knobs

Save to My Project

What is this?

Product Information

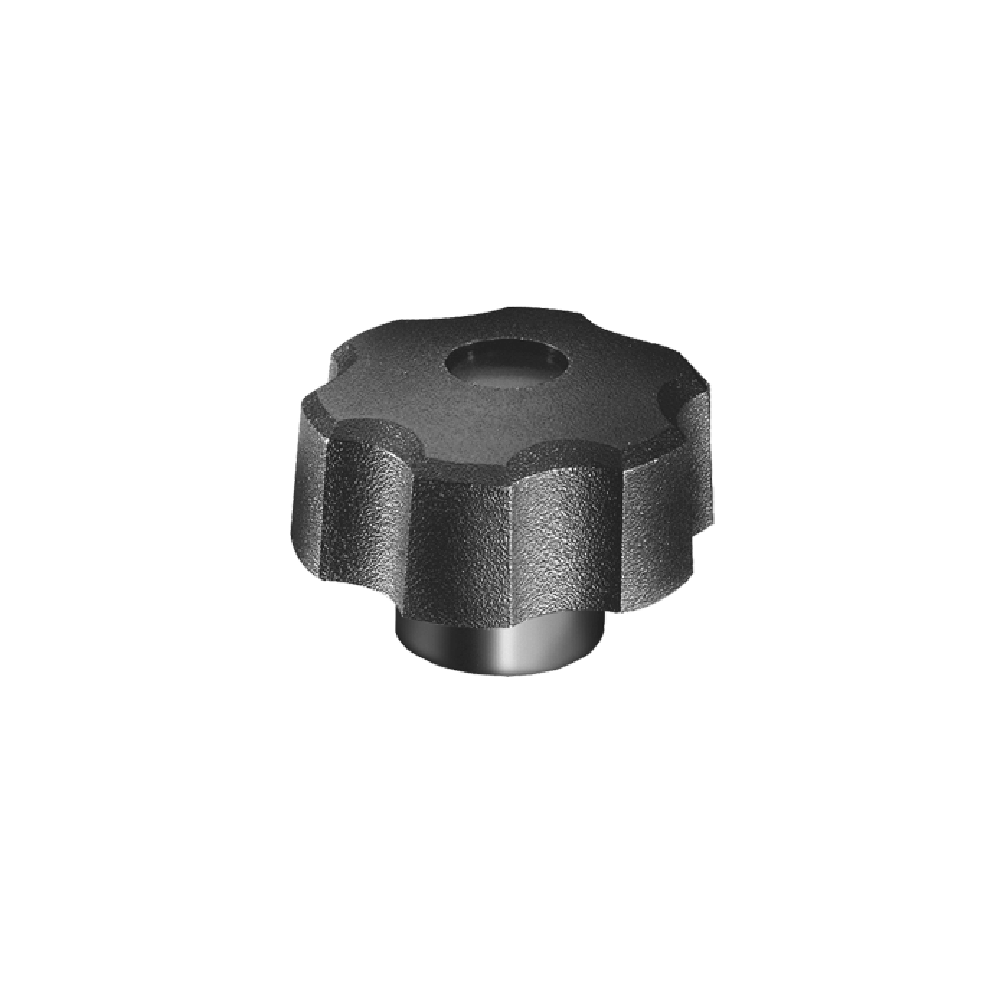

Fluted Knobs – Tapped (Thermoplastic) Part # CL-340-PFK Carr Lane Mfg.®

Thermoplastic knob with a textured non-slip, non-glare finish. Large easy-grip knob that is excellent for either fine-adjustment or high-torque applications. Molded-in brass insert provides superior thread strength. Choice of three knob sizes, with tapped-hole sizes from 1/4-20 to 3/8-16. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Available Sizes

Diagram showcasing the application of Fluted Knobs Tapped Thermoplastic

5/16-18

3/8-16

5/16-18

3/8-16

1/4-20

5/16-18

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Fluted Knobs – Tapped (Thermoplastic)	Black Thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150°F)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Fluted Knobs – Tapped (Thermoplastic)

Inch

PART NO.	A DIA	B	C DIA	D	E THREAD	F THREAD DEPTH
CL-340-PFK	1-1/2	1	3/4	3/8	1/4-20	5/8
CL-750-PFK-PACKOF2	3-1/4	1-5/8	2	3/4	5/16-18	3/4
CL-760-PFK	3-1/4	1-5/8	2	3/4	3/8-16	7/8
