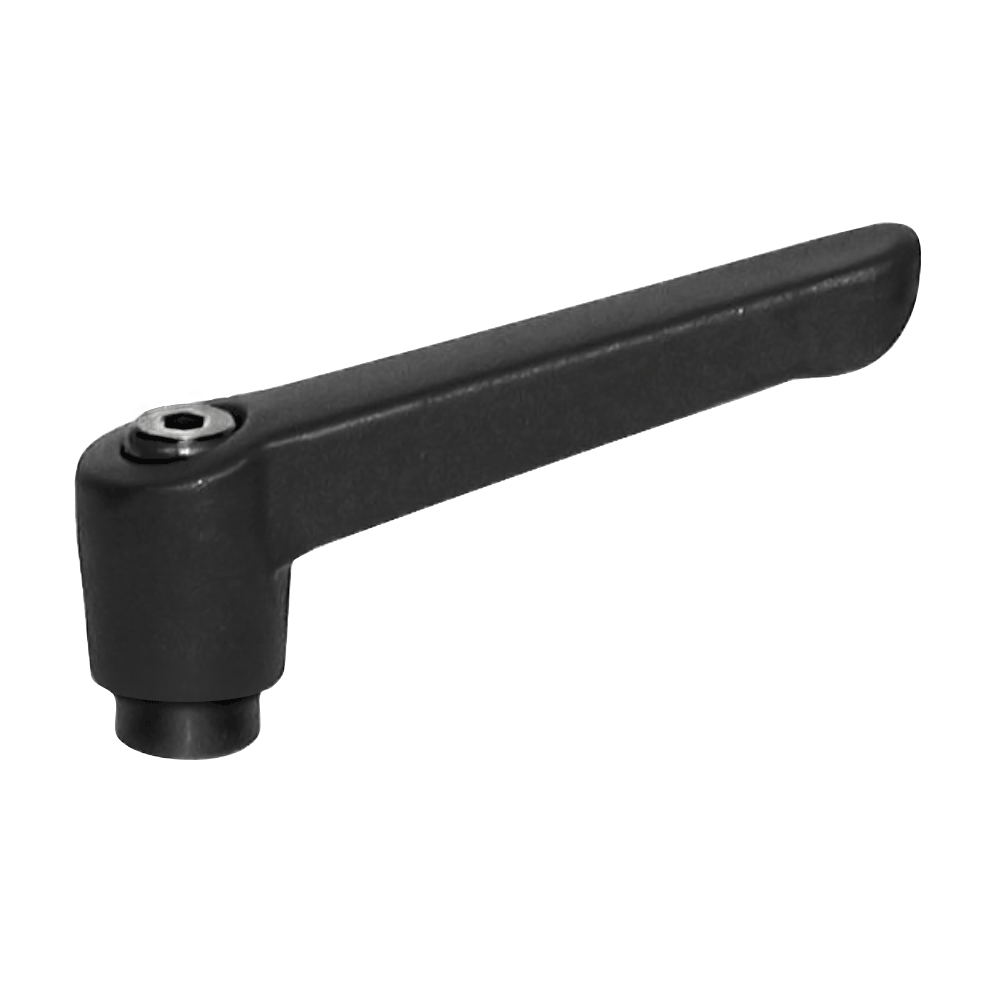

Adjustable Handles – Tapped (Steel Body, Thermoplastic Handle) Part # CL-3-AHP-1 Carr Lane Mfg.®

Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. These handles are incredibly strong, featuring a unique stainless steel spline inlay molded into the plastic handle. This provides positive metal-to-metal mating with the serrated body, for high clamping torque.

Adjustable Handles are available in a total of six sizes. This version, with a steel body and thermoplastic handle, is available in the smallest four of the six sizes, with tapped holes from #10-32 to 1/2-13 (M6 to M12 in metric):

Size 1

Size 2

Size 3

Size 4

Application Information

Estas manijas ajustables son increíblemente fuertes! Cuentan con una incrustación única de acero inoxidable spline, moldeado en el mango de plástico. Esto proporciona acoplamiento positivo de metal a metal con el cuerpo dentado, para alto par de apriete.

Operation

Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handle	Black fiber-reinforced thermoplastic	-	300-series stainless insert	✔	✔
Body,Screw & Spring	Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Adjustable Handles – Tapped (Steel Body, Thermoplastic Handle)

General Dimensions

SIZE	A	B DIA	C	D	G DIA	H	K	L	M
1	1-3/4	19/32	5/16	31/32	3/8	5/32	7/16	1-3/8	1-1/2
2	2-1/2	3/4	13/32	1-7/32	17/32	1/4	13/16	1-25/32	1-15/16
3	3-1/16	7/8	17/32	1-7/16	5/8	5/16	7/8	2-5/32	2-5/16
4	3-5/8	1	9/16	1-11/16	3/4	7/16	1-3/16	2-9/16	2-23/32
