HI-VIZ No-Rebound Hammers (Steel Handle)

Hammers & Tools

Product Information

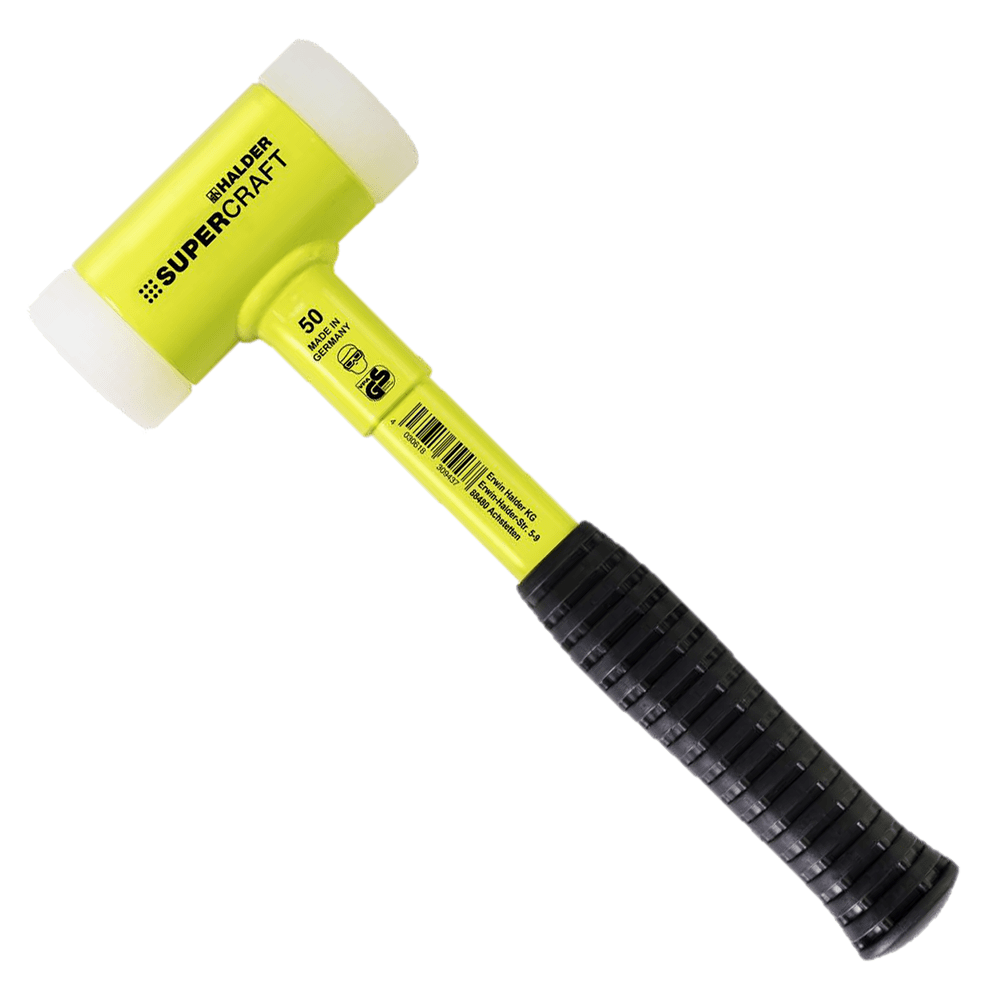

HI-VIZ No-Rebound Hammers (Steel Handle) Part # CL-3377-160-NRH Carr Lane Mfg.®

New High-Visibility Hammers!

Our No-Rebound Hammers are now optionally available with a high-visibility yellow fluorescent finish, ideal for locating your hammer in dim lighting conditions. No-Rebound Hammers deliver full impact, about 50% greater than a standard hammer. The housing is filled with special steel pellets that transfer momentum to the impact point. Ideal for assembling machine parts without damage. Speeds up work while reducing fatigue. Allows better hammer control by absorbing the bounce. The rugged steel tube handle is completely robot welded, with a fluorescent powder-coated finish and ergonomic rubber grip. Made in Germany.

Available in four sizes (face diameters), in the following weights:

30mm (1.18") 1.2 lbs

40mm (1.57") 1.9 lbs

50mm (1.96") 2.6 lbs

60mm (2.36") 3.9 lbs

Application Information

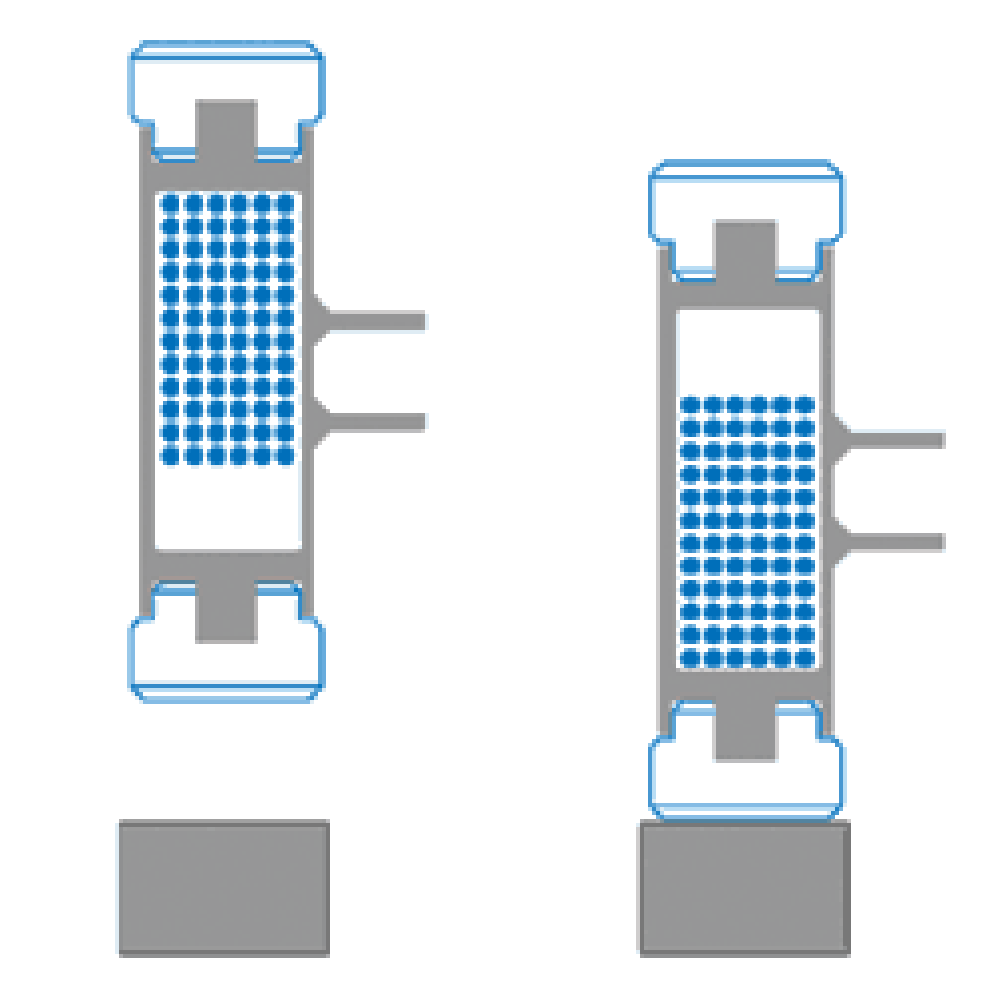

No-Rebound Hammers are filled with special steel pellets that transfer momentum to the impact point.

Inserts

Diagram showcasing the application of Hi Viz No Rebound Hammers Steel Handle

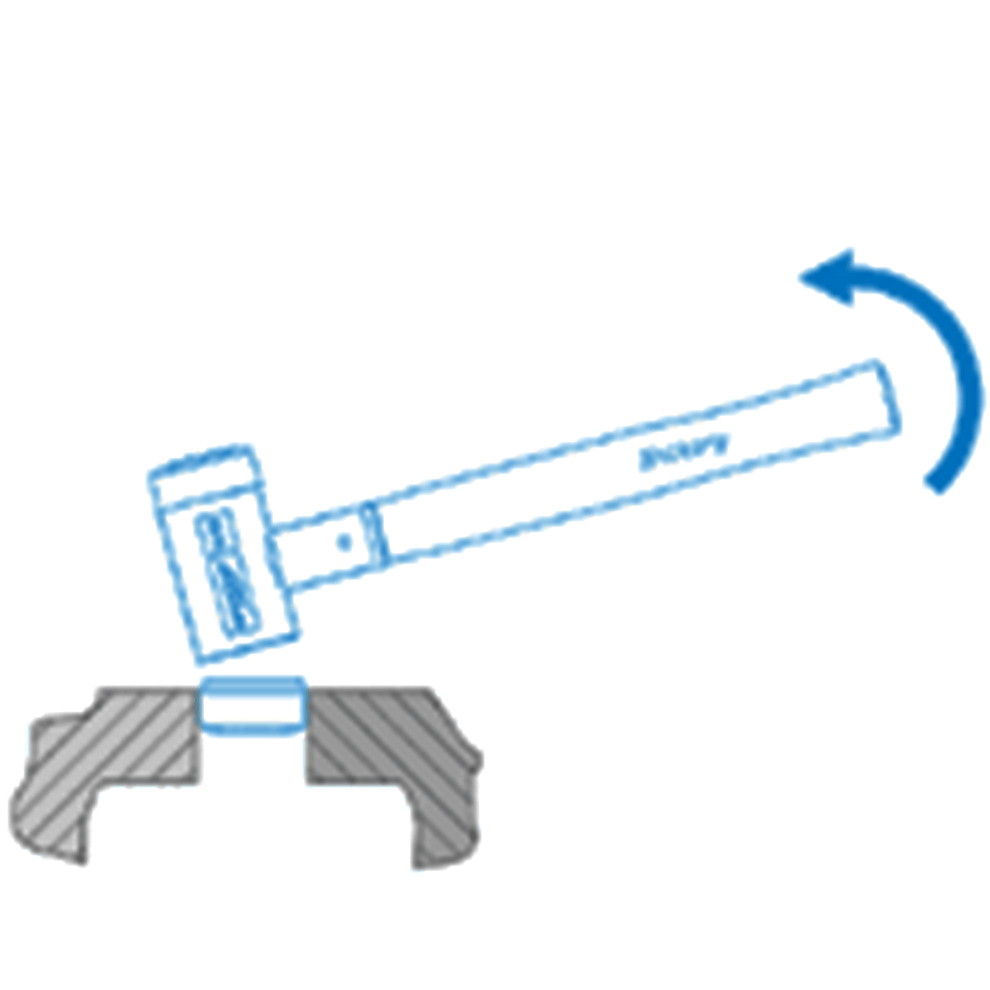

Using a vise to remove old inserts

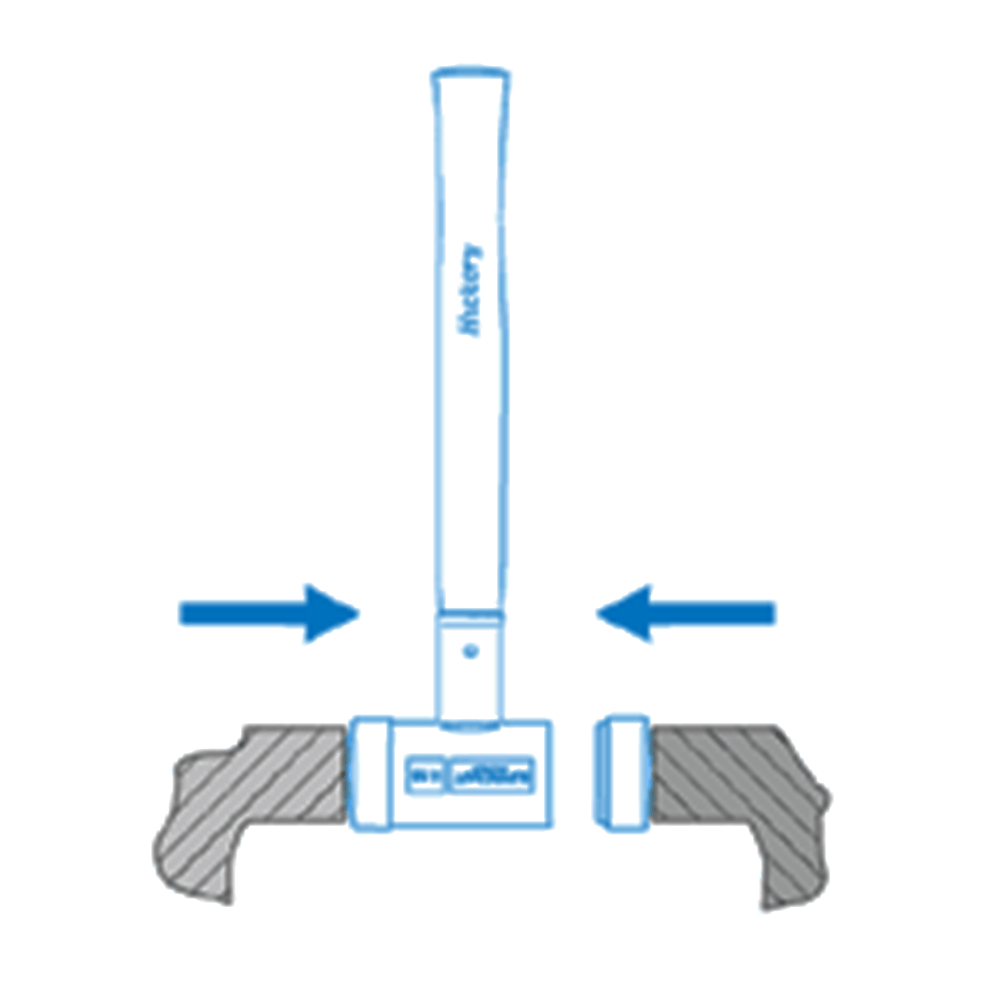

Using a vise to install new inserts

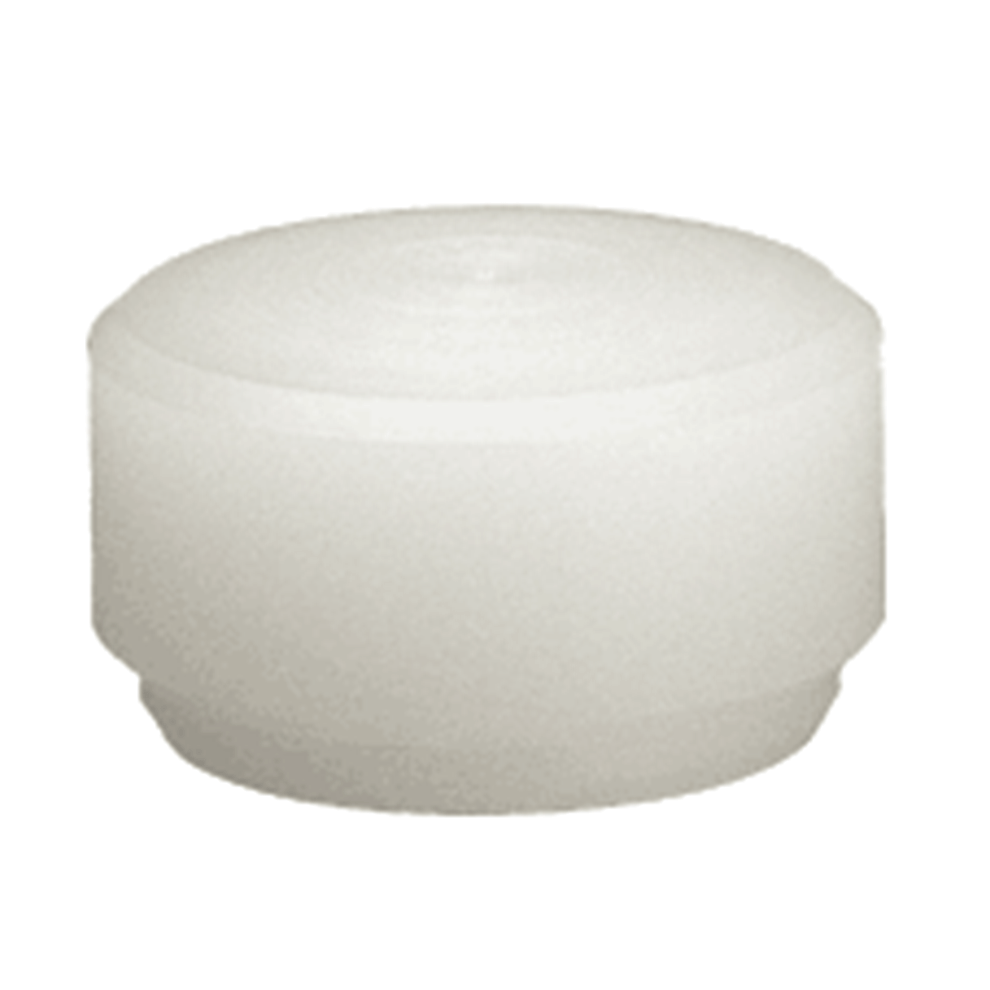

Supercraft No-Rebound Hammers have replaceable nylon inserts. These nylon inserts are hard, grease and oil resistant, highly elastic, and have superior strike effectiveness. Applications include assembly operations, metalworking, tooling, positioning of workpieces, automotive assembly and repair work, joining of workpieces, sheet metal working, dent removal, mold construction, assembly of sharp-edged workpieces, and scaffold construction.

Safety Precautions

Never allow the hammer's striking faces to wear down to the point where the hammer housing makes contact with the work surface, as irreparable damage could result. Always wear safety goggles when using a hammer or any striking tool. Bystanders must also wear safety goggles. Never strike the hammer with or against another striking tool, hardened nail, or any other hard object that could cause damage. Chipping could occur, resulting in possible eye or other injury. Discard any chipped or damaged hammer.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Housing	Steel assembly containing steel pellets	-	-	✔	✔
Handle	integral steel tube handle with ergonomic rubber grip	-	-	✔	✔
Insert	Nylon	-	natural white color, hardness 68-78 Shore D	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.
