Simplex Hammers – Type E Inserts: Red Plastic (Hard)

Hammers & Tools

Save to My Project

What is this?

Product Information

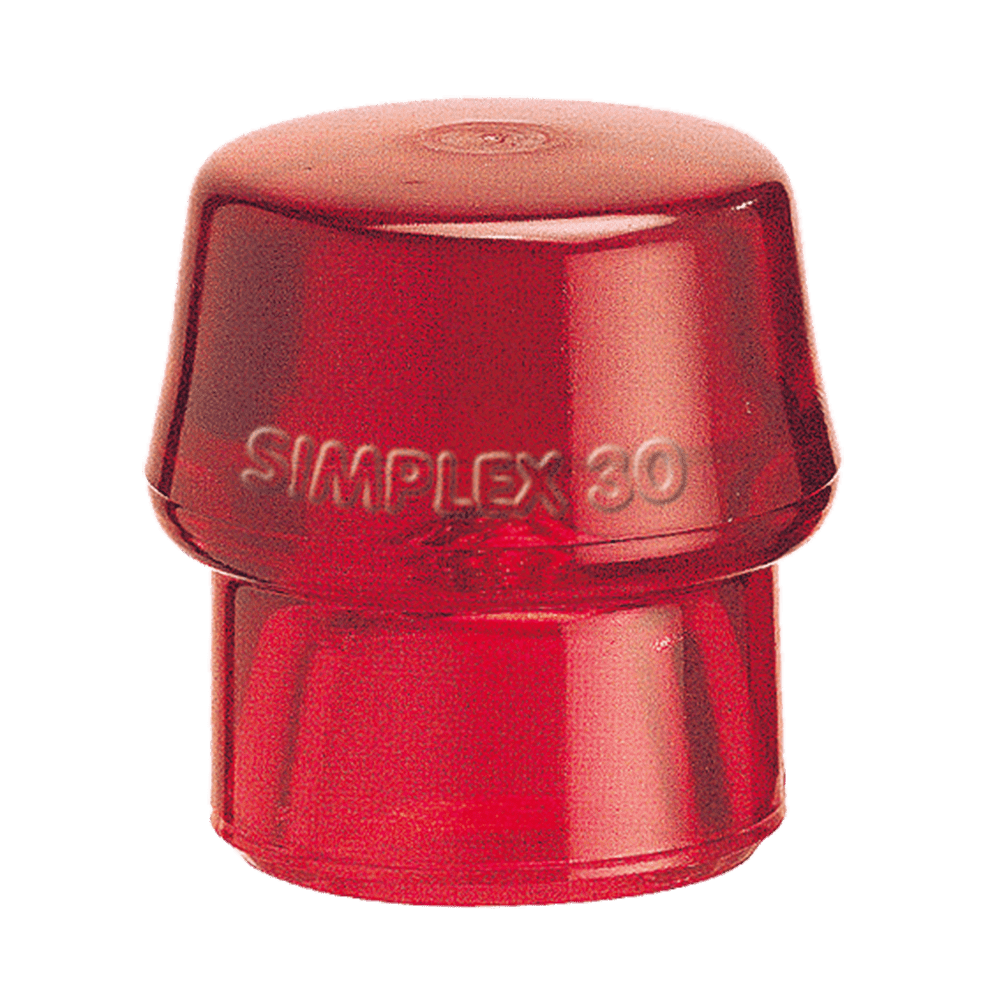

Simplex Hammers – Type E Inserts: Red Plastic (Hard)

Red plastic inserts for Simplex Hammers are hard, semi-transparent, and grease & oil resistant. Applications include automotive assembly and repair work, sheet metal working, dent removal, concrete-form setup, and scaffold construction. Available in four sizes (hammer face diameters):

30mm (1.18")

40mm (1.57")

50mm (1.96")

60mm (2.36")

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

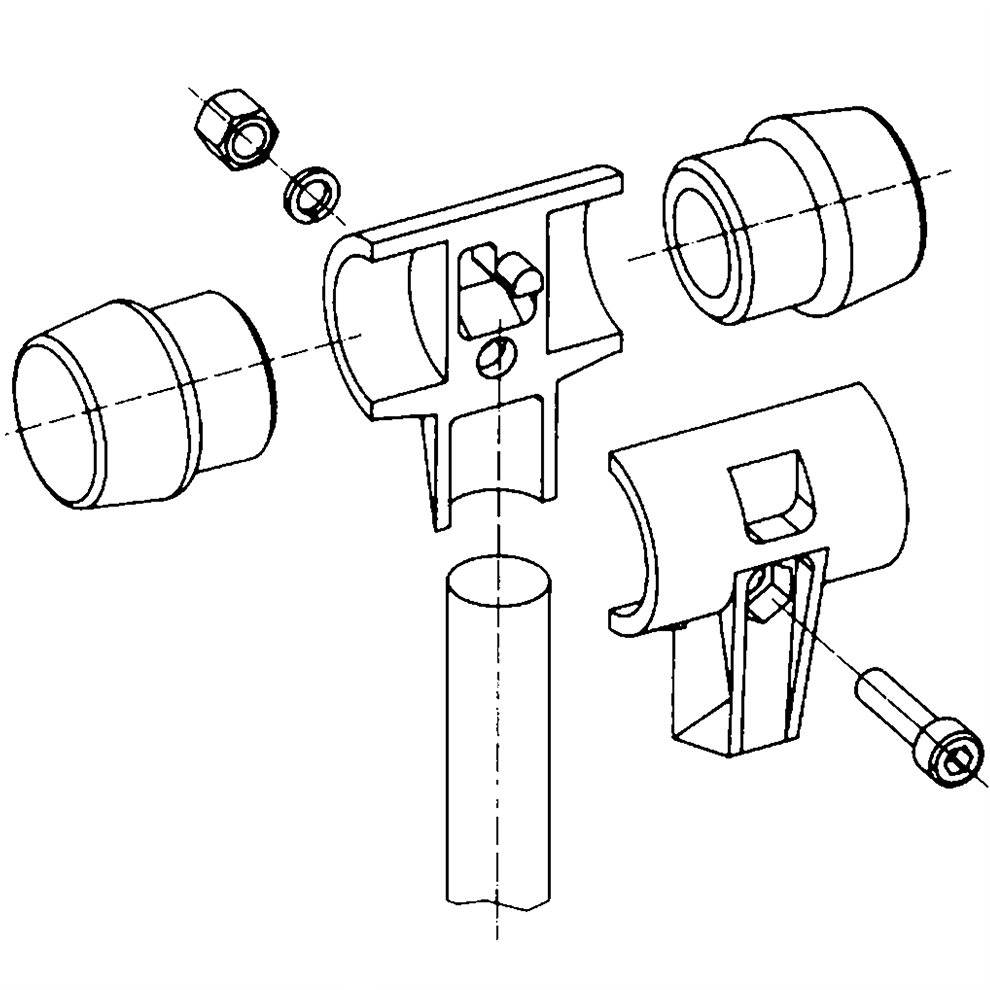

Simplex Hammer System

Design your own custom hammers. Simplex soft-face mallets can be customized for specific applications by selecting the proper hammer inserts. Choose the same type of insert for both sides, or build a multi-purpose hammer with a different type of insert for each face. The Simplex system uses a patented hammer housing with 3-point clamping that ensures a safe hammer assembly.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Type E Inserts	Cellulose acetate	-	red color, hard, hardness 65-75 Shore D	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Simplex Hammers – Type E Inserts: Red Plastic (Hard)

PART NO.	HAMMER SIZE (FACE DIA)	TIGHTENING TORQUE WITH WOODEN HANDLE (ft-lbs)	TIGHTENING TORQUE WITH FIBERGLASS HANDLE (ft-lbs)
CL-30-SPH-E	30mm (1.18)	11	18
CL-40-SPH-E	40mm (1.57)	18	22
CL-50-SPH-E	50mm (1.96)	22	30
CL-60-SPH-E	60mm (2.36)	30	44
