Installation Tools for Threaded Template Bushings

Drill Bushings

Save to My Project

What is this?

Product Information

Installation Tools for Threaded Template Bushings Part # TTBT-48 Carr Lane Mfg.®

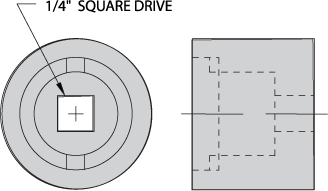

Handy socket-type tool for installing Retainer Rings on Threaded Template Bushings. This tool fits standard 1/4" square drives. Available in five sizes, to fit each bushing OD.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Installation of Threaded Template Bushings

Drill hole in jig plate to nominal bushing OD (B diameter). Countersink 90° to allow bushing to seat flush to .015" below surface of plate (standard version only, not flanged version). Install and tighten Retainer Ring with Installation Tool to secure.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Installation Tools for Threaded Template Bushings

QUANTITY	PART NO.	FOR INSTALLING RETAINER RINGS
	TTBT-24	TTR-24-3 TTR-24-5 TTR-24-6
	TTBT-32	TTR-32-3 TTR-32-5 TTR-32-6
	TTBT-40	TTR-40-3 TTR-40-5 TTR-40-6
	TTBT-48	TTR-48-3 TTR-48-5 TTR-48-6
	TTBT-64	TTR-64-3 TTR-64-5 TTR-64-6

Check Price & Availability
