Quick-Ship Slip/Fixed Renewable Bushings (SF)

Drill Bushings

Product Information

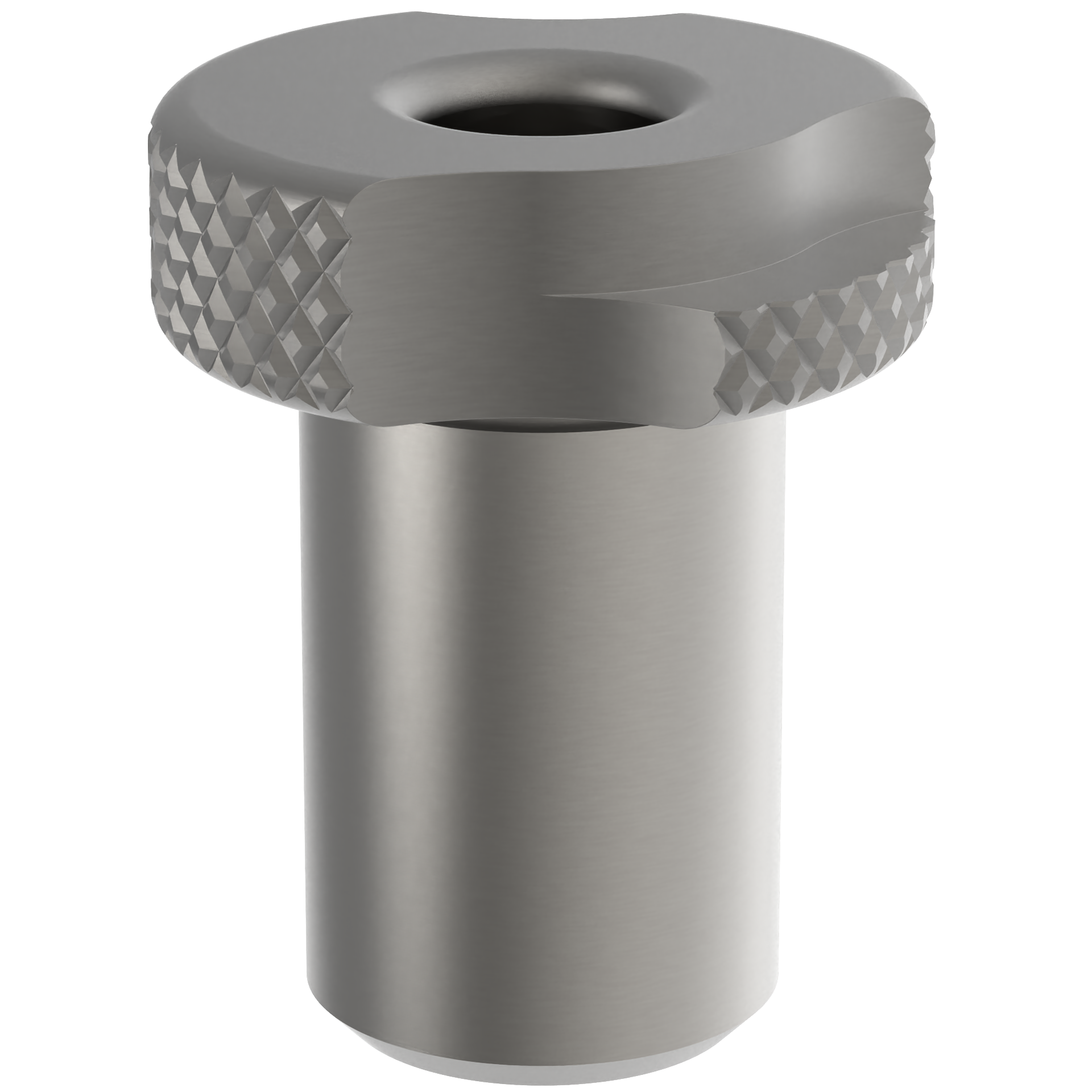

Quick-Ship Slip/Fixed Renewable Bushings (SF) Part # SF-40-16-.3750 Carr Lane Mfg.®

SF drill bushings are replaceable bushings generally used with a liner bushing and lockscrew. Use SF bushings when you expect to replace bushings during the tooling's lifetime, or to switch bushings to perform multi-step operations with the same tooling. SF bushings combine the benefits of older S-type slip-renewable and F-type fixed renewable bushings: one side of SF drill bushings feature a lockscrew recess for fixed mounting; the other has a locking recess that allows the bushing to slip down, then rotate to lock in place.

Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship P bushings are listed in the tables below.

Technical Information

Click here for Standard Drill Sizes

Application Information

These replaceable bushings are generally used with a liner bushing and lockscrew.

ID Tolerance

Standard ID Tolerance:

From #80 to 1/4" +.0001/+.0004

Over 1/4 to 3/4" +.0001/+.0005

Over 3/4 to 1-1/2" +.0002/+.0006

Over 1-1/2 an up +.0003/+.0007

Reamer ID Tolerance (Special):

From #80 to 1/4" +.0005/+.0008

Over 1/4 to 3/4" +.0006/+.0010

Over 3/4 to 1-1/2" +.0008/+.0012

Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:

SF-20-16-.1250-REAMER (Special)

OD Tolerance

Standard OD Tolerance:

3/16 to 1" 0/-.0002

1-3/8 to 1-3/4" 0/-.0003

2-1/4 to 3-1/2" 0/-.0004

No-Counterbore Option on Long Bushings*

Extremely long bushings with a small ID size (marked with an asterisk * in the tables below) are counterbored according to ANSI standards for proper drill-bearing length to eliminate binding and heat buildup. Add "-NCB" for applications that require these bushings without a counterbore:

SF-20-16-.1250-NCB (Special)

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat-treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order
