Quick-Ship Serrata-Groove Bushings (SG)

Drill Bushings

Product Information

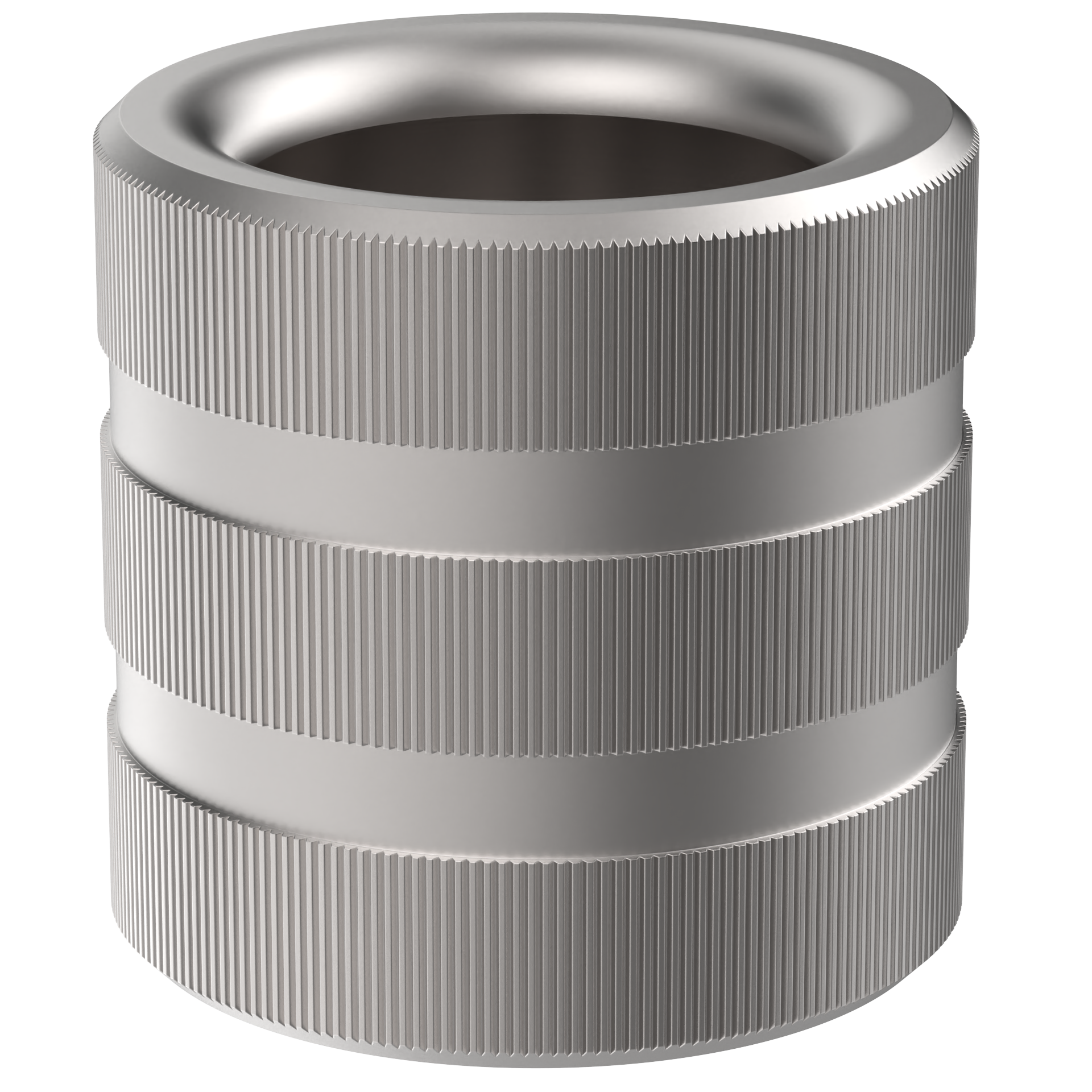

Quick-Ship Serrata-Groove Bushings (SG) Part # SG-48-8-.5000 Carr Lane Mfg.®

This bushing can be cast in place or potted, just like a Diamond-Groove Bushing, or can be pressed into an installation hole. The straight knurl provides excellent resistance to rotation, but provides less resistance to axial forces than a diamond knurl. Since the bushing's OD is not ground, the ID must be accurately located during casting or potting to ensure accuracy in the finished tool.

Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship P bushings are listed in the tables below.

Technical Information

Click here for Standard Drill Sizes

Application Information

This bushing can be cast in place or potted, just like a Diamond-Groove Bushing, or can be pressed into an installation hole. The straight knurl provides excellent resistance to rotation, but provides less resistance to axial forces than a diamond knurl.

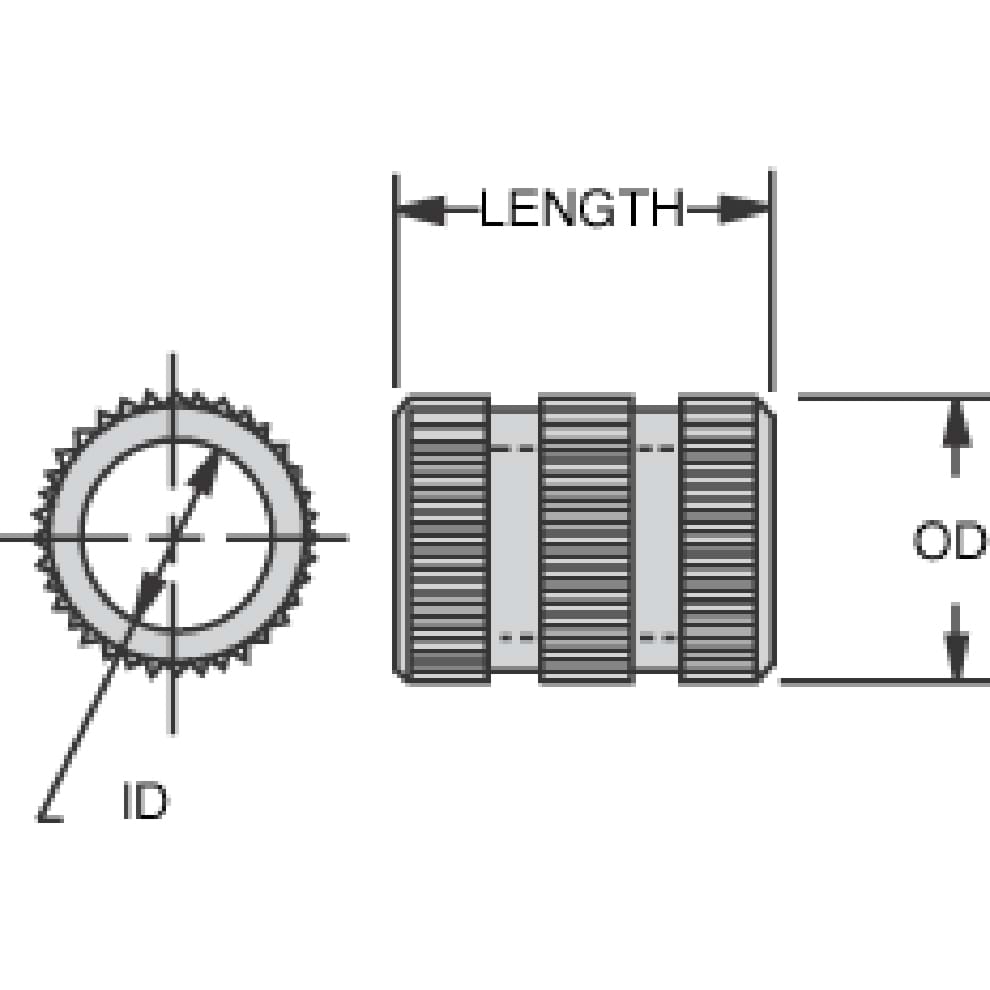

ID Tolerance

Standard ID Tolerance:

From #80 to 1/4" +.0001/+.0004

Over 1/4 to 3/4" +.0001/+.0005

Over 3/4 to 1-1/2" +.0002/+.0006

Over 1-1/2 to 2-3/4" +.0003/+.0007

Reamer ID Tolerance (Special):

From #80 to 1/4" +.0005/+.0008

Over 1/4 to 3/4" +.0006/+.0010

Over 3/4 to 1-1/2" +.0008/+.0012

Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:

SG-26-16-.1875-REAMER (Special)

OD Tolerance

Standard OD Tolerance:

13/64" +.020/+.010

1/4 to 7/8" +.025/+.010

1" +.035/+.010

No-Counterbore Option on Long Bushings*

Extremely long bushings with a small ID size (marked with an asterisk * in the tables below) are counterbored according to ANSI standards for proper drill-bearing length to eliminate binding and heat buildup. Add "-NCB" for applications that require these bushings without a counterbore:

SG-26-16-.1875-NCB (Special)

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat-treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order
