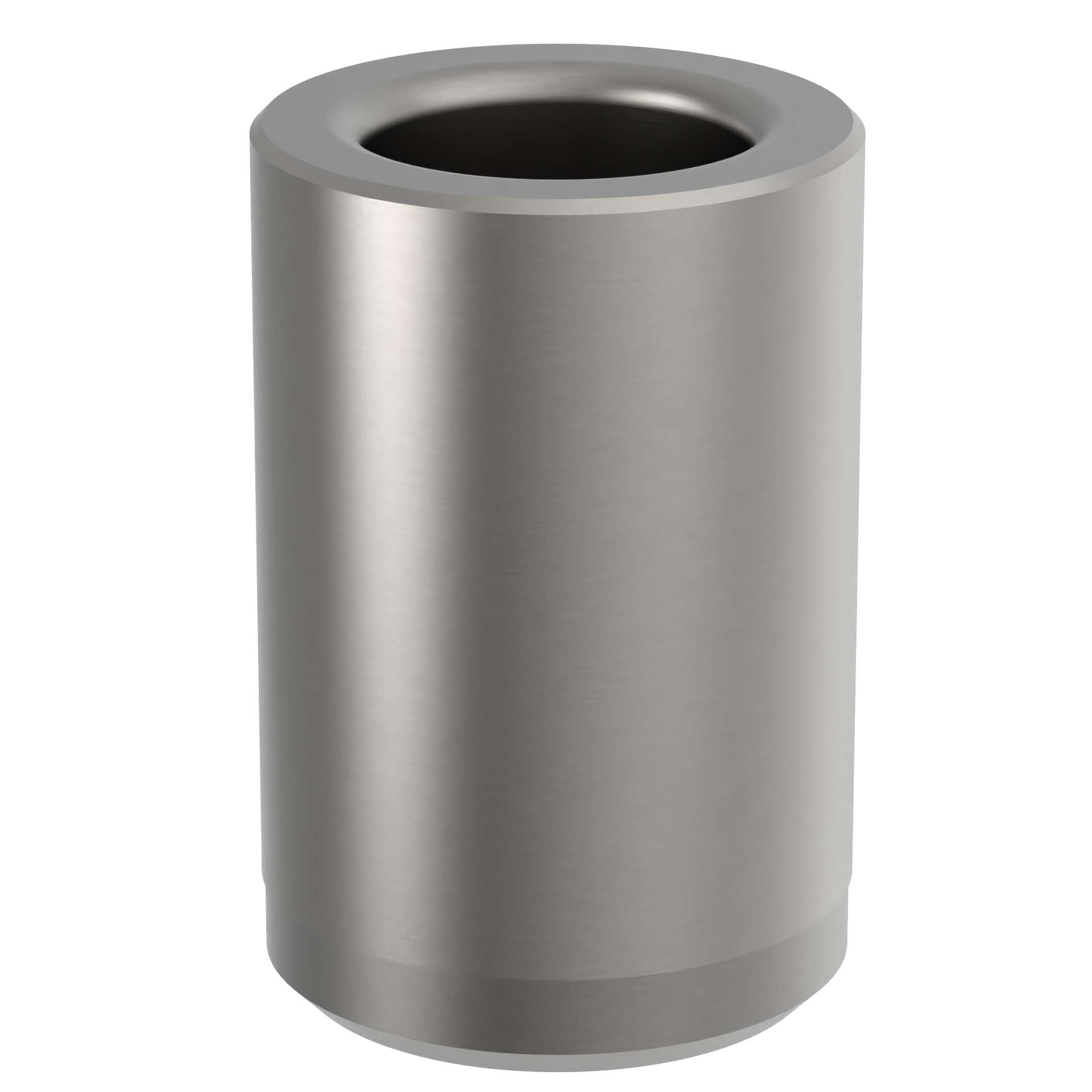

Quick-Ship Press-Fit Bushings (P) Part # P-32-12-.2210 Carr Lane Mfg.®

P bushings are the most-popular and least-expensive type of drill bushing. P bushings are permanently pressed into the jig plate, usually flush with the top surface. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. P bushings can be mounted closer together than headed bushings, but offer less resistance to heavy axial loads.

Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship P bushings are listed in the tables below.

Application Information

P bushings are permanently pressed into the jig plate, usually flush with the top surface.

ID Tolerance

Standard ID Tolerance:

From #80 to 1/4" +.0001/+.0004

Over 1/4 to 3/4" +.0001/+.0005

Over 3/4 to 1-1/2" +.0002/+.0006

OD Tolerance

Standard OD Tolerance:

5/32 to 13/64" +.0016/+.0012

1/4 to 13/32" +.0016/+.0013

7/16 to 5/8" +.0017/+.0014

3/4 to 1" +.0018/+.0015

1-1/8 to 1-1/4" +.0020/+.0017

1-3/8 to 1-1/2" +.0022/+.0018

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 or 52100 steel	Heat Treated to achieve Rc 62-64 ID Hardness	-	-	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Quick-Ship Press-Fit Bushings (P)

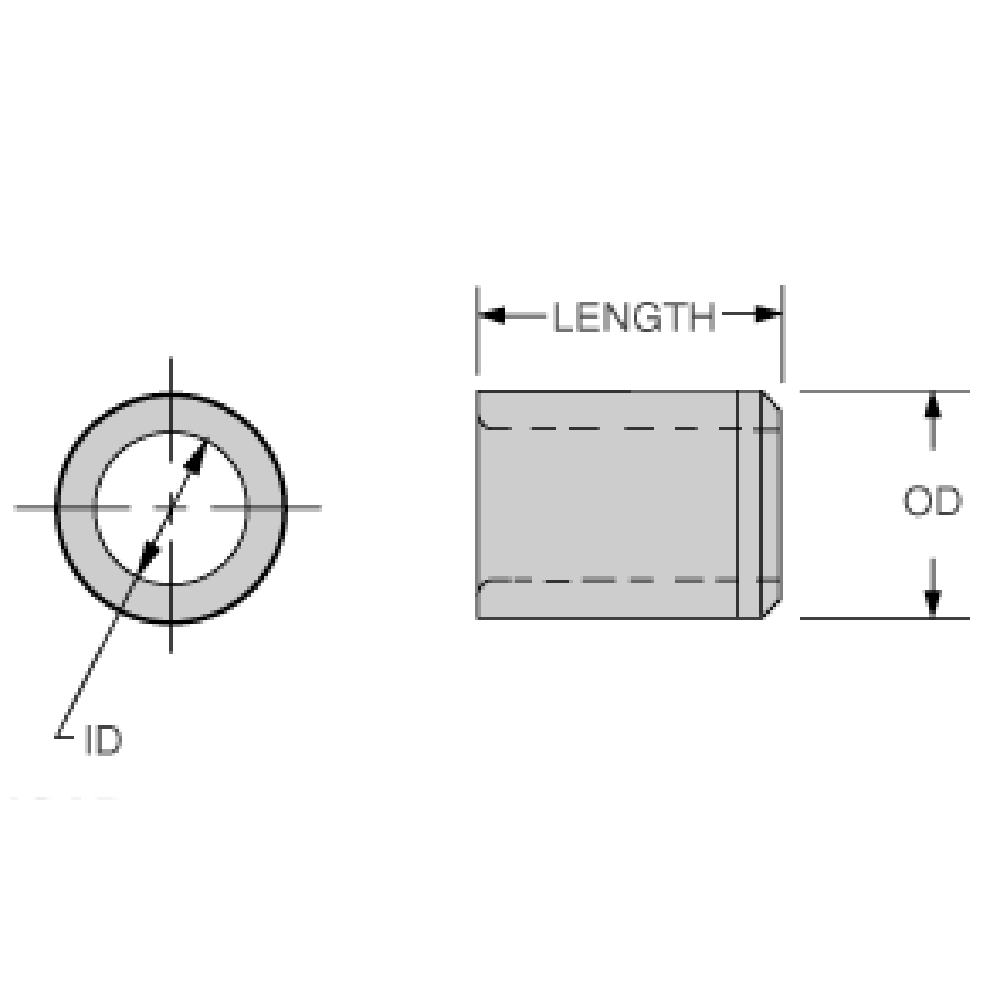

QUANTITY	PART NO.	ID	OD	LENGTH
	P-13-4-.0980	#40 (.0980)	13/64	1/4
	P-13-8-.0980	#40 (.0980)	13/64	1/2
	P-16-4-.0980	#40 (.0980)	1/4	1/4
	P-16-6-.0980	#40 (.0980)	1/4	3/8
	P-16-8-.0980	#40 (.0980)	1/4	1/2
	P-16-16-.0980	#40 (.0980)	1/4	1
	P-16-8-.0995	#39 (.0995)	1/4	1/2
	P-16-8-.1065	#36 (.1065)	1/4	1/2
	P-16-8-.1094	7/64 (.1094)	1/4	1/2
	P-16-8-.1110	#34 (.1110)	1/4	1/2
	P-16-8-.1130	#33 (.1130)	1/4	1/2
	P-16-8-.1200	#31 (.1200)	1/4	1/2
	P-16-4-.1250	1/8 (.1250)	1/4	1/4
	P-16-8-.1250	1/8 (.1250)	1/4	1/2
	P-20-4-.1250	1/8 (.1250)	5/16	1/4
	P-20-6-.1250	1/8 (.1250)	5/16	3/8
	P-20-8-.1250	1/8 (.1250)	5/16	1/2
	P-20-12-.1250	1/8 (.1250)	5/16	3/4
	P-16-4-.1285	#30 (.1285)	1/4	1/4
	P-16-8-.1285	#30 (.1285)	1/4	1/2
	P-20-4-.1285	#30 (.1285)	5/16	1/4
	P-20-8-.1285	#30 (.1285)	5/16	1/2
	P-16-8-.1360	#29 (.1360)	1/4	1/2
	P-16-8-.1405	#28 (.1405)	1/4	1/2
	P-16-8-.1406	9/64 (.1406)	1/4	1/2
	P-20-8-.1406	9/64 (.1406)	5/16	1/2
	P-20-12-.1406	9/64 (.1406)	5/16	3/4
	P-20-8-.1440	#27 (.1440)	5/16	1/2
	P-20-6-.1470	#26 (.1470)	5/16	3/8
	P-20-8-.1470	#26 (.1470)	5/16	1/2
	P-20-6-.1495	#25 (.1495)	5/16	3/8
	P-20-8-.1495	#25 (.1495)	5/16	1/2
	P-20-10-.1495	#25 (.1495)	5/16	5/8
	P-20-6-.1520	#24 (.1520)	5/16	3/8
	P-20-6-.1562	5/32 (.1562)	5/16	3/8
	P-20-8-.1562	5/32 (.1562)	5/16	1/2
	P-20-12-.1562	5/32 (.1562)	5/16	3/4
	P-20-4-.1570	#22 (.1570)	5/16	1/4
	P-20-6-.1590	#21 (.1590)	5/16	3/8
	P-20-8-.1590	#21 (.1590)	5/16	1/2
	P-20-12-.1590	#21 (.1590)	5/16	3/4
	P-20-6-.1610	#20 (.1610)	5/16	3/8
	P-20-8-.1610	#20 (.1610)	5/16	1/2
	P-20-5-.1660	#19 (.1660)	5/16	5/16
	P-20-8-.1660	#19 (.1660)	5/16	1/2
	P-20-6-.1719	11/64 (.1719)	5/16	3/8
	P-20-8-.1719	11/64 (.1719)	5/16	1/2
	P-20-12-.1719	11/64 (.1719)	5/16	3/4
	P-20-6-.1730	#17 (.1730)	5/16	3/8
	P-20-8-.1730	#17 (.1730)	5/16	1/2
	P-20-8-.1770	#16 (.1779)	5/16	1/2
	P-20-6-.1800	#15 (.1800)	5/16	3/8
	P-20-8-.1800	#15 (.1800)	5/16	1/2
	P-26-6-.1865	.1865	13/32	3/8
	P-20-4-.1875	3/16 (.1875)	5/16	1/4
	P-20-5-.1875	3/16 (.1875)	5/16	5/16
	P-20-6-.1875	3/16 (.1875)	5/16	3/8
	P-20-8-.1875	3/16 (.1875)	5/16	1/2
	P-20-10-.1875	3/16 (.1875)	5/16	5/8
	P-20-12-.1875	3/16 (.1875)	5/16	3/4
	P-20-16-.1875	3/16 (.1875)	5/16	1
	P-26-4-.1875	3/16 (.1875)	13/32	1/4
	P-26-8-.1875	3/16 (.1875)	13/32	1/2
	P-26-12-.1875	3/16 (.1875)	13/32	3/4
	P-26-16-.1875	3/16 (.1875)	13/32	1
	P-32-6-.1875	3/16 (.1875)	1/2	3/8
	P-32-8-.1875	3/16 (.1875)	1/2	1/2
	P-32-12-.1875	3/16 (.1875)	1/2	3/4
	P-32-16-.1875	3/16 (.1875)	1/2	1
	P-20-4-.1890	#12 (.1890)	5/16	1/4
	P-20-6-.1890	#12 (.1890)	5/16	3/8
	P-20-8-.1890	#12 (.1890)	5/16	1/2
	P-20-4-.1910	#11 (.1910)	5/16	1/4
	P-20-6-.1910	#11 (.1910)	5/16	3/8
	P-20-8-.1910	#11 (.1910)	5/16	1/2
	P-20-12-.1910	#11 (.1910)	5/16	3/4
	P-20-16-.1910	#11 (.1910)	5/16	1
	P-26-4-.1910	#11 (.1910)	13/32	1/4
	P-26-6-.1910	#11 (.1910)	13/32	3/8
	P-26-8-.1910	#11 (.1910)	13/32	1/2
	P-32-8-.1910	#11 (.1910)	1/2	1/2
	P-20-5-.1935	#10 (.1935)	5/16	5/16
	P-20-8-.1935	#10 (.1935)	5/16	1/2
	P-26-8-.1935	#10 (.1935)	13/32	1/2
	P-32-6-.1935	#10 (.1935)	1/2	3/8
	P-32-8-.1935	#10 (.1935)	1/2	1/2
	P-26-8-.1960	#9 (.1960)	13/32	1/2
	P-32-6-.1960	#9 (.1960)	1/2	3/8
	P-32-12-.1960	#9 (.1960)	1/2	3/4
	P-24-8-.2010	#7 (.2010)	3/8	1/2
	P-26-8-.2010	#7 (.2010)	13/32	1/2
	P-32-6-.2010	#7 (.2010)	1/2	3/8
	P-32-8-.2010	#7 (.2010)	1/2	1/2
	P-32-12-.2010	#7 (.2010)	1/2	3/4
	P-32-6-.2031	13/64 (.2031)	1/2	3/8
	P-32-8-.2031	13/64 (.2031)	1/2	1/2
	P-32-12-.2031	13/64 (.2031)	1/2	3/4
	P-32-6-.2130	#3 (.2130)	1/2	3/8
	P-32-8-.2130	#3 (.2130)	1/2	1/2
	P-32-16-.2130	#3 (.2130)	1/2	1
	P-26-6-.2188	7/32 (.2188)	13/32	3/8
	P-26-8-.2188	7/32 (.2188)	13/32	1/2
	P-32-6-.2188	7/32 (.2188)	1/2	3/8
	P-32-8-.2188	7/32 (.2188)	1/2	1/2
	P-32-12-.2188	7/32 (.2188)	1/2	3/4
	P-32-16-.2188	7/32 (.2188)	1/2	1
	P-26-16-.2210	#2 (.2210)	13/32	1
	P-32-6-.2210	#2 (.2210)	1/2	3/8
	P-32-8-.2210	#2 (.2210)	1/2	1/2
	P-32-12-.2210	#2 (.2210)	1/2	3/4
	P-32-8-.2280	#1 (.2280)	1/2	1/2
	P-32-12-.2280	#1 (.2280)	1/2	3/4
	P-28-12-.2344	15/64 (.2344)	7/16	3/4
	P-26-6-.2490	.2490	13/32	3/8
	P-24-8-.2500	1/4 (.2500)	3/8	1/2
	P-26-4-.2500	1/4 (.2500)	13/32	1/4
	P-26-5-.2500	1/4 (.2500)	13/32	5/16
	P-26-6-.2500	1/4 (.2500)	13/32	3/8
	P-26-8-.2500	1/4 (.2500)	13/32	1/2
	P-26-12-.2500	1/4 (.2500)	13/32	3/4
	P-26-16-.2500	1/4 (.2500)	13/32	1
	P-28-4-.2500	1/4 (.2500)	7/16	1/4
	P-28-5-.2500	1/4 (.2500)	7/16	5/16
	P-28-6-.2500	1/4 (.2500)	7/16	3/8
	P-28-8-.2500	1/4 (.2500)	7/16	1/2
	P-28-10-.2500	1/4 (.2500)	7/16	5/8
	P-28-12-.2500	1/4 (.2500)	7/16	3/4
	P-28-16-.2500	1/4 (.2500)	7/16	1
	P-32-4-.2500	1/4 (.2500)	1/2	1/4
	P-32-6-.2500	1/4 (.2500)	1/2	3/8
	P-32-8-.2500	1/4 (.2500)	1/2	1/2
	P-32-12-.2500	1/4 (.2500)	1/2	3/4
	P-32-16-.2500	1/4 (.2500)	1/2	1
	P-26-8-.2510	.2510	13/32	1/2
	P-26-12-.2510	.2510	13/32	3/4
	P-28-8-.2510	.2510	7/16	1/2
	P-32-8-.2520	6.40mm (.2520)	1/2	1/2
	P-26-4-.2570	F (.2570)	13/32	1/4
	P-26-5-.2570	F (.2570)	13/32	5/16
	P-26-8-.2570	F (.2570)	13/32	1/2
	P-28-16-.2570	F (.2570)	7/16	1
	P-32-8-.2570	F (.2570)	1/2	1/2
	P-32-12-.2570	F (.2570)	1/2	3/4
	P-32-8-.2610	G (.2610)	1/2	1/2
	P-28-8-.2656	17/64 (.2656)	7/16	1/2
	P-32-6-.2656	17/64 (.2656)	1/2	3/8
	P-32-8-.2656	17/64 (.2656)	1/2	1/2
	P-32-12-.2656	17/64 (.2656)	1/2	3/4
	P-32-16-.2656	17/64 (.2656)	1/2	1
	P-28-5-.2660	H (.2660)	7/16	5/16
	P-32-16-.2660	H (.2660)	1/2	1
	P-32-8-.2720	I (.2720)	1/2	1/2
	P-32-12-.2770	J (.2770)	1/2	3/4
	P-28-8-.2812	9/32 (.2812)	7/16	1/2
	P-28-12-.2812	9/32 (.2812)	7/16	3/4
	P-32-6-.2812	9/32 (.2812)	1/2	3/8
	P-32-8-.2812	9/32 (.2812)	1/2	1/2
	P-32-12-.2812	9/32 (.2812)	1/2	3/4
	P-32-16-.2812	9/32 (.2812)	1/2	1
	P-32-12-.2969	19/64 (.2969)	1/2	3/4
	P-32-8-.3020	N (.3020)	1/2	1/2
	P-32-12-.3020	N (.3020)	1/2	3/4
	P-32-6-.3115	.3115	1/2	3/8
	P-32-6-.3125	5/16 (.3125)	1/2	3/8
	P-32-8-.3125	5/16 (.3125)	1/2	1/2
	P-32-12-.3125	5/16 (.3125)	1/2	3/4
	P-32-16-.3125	5/16 (.3125)	1/2	1
	P-40-8-.3125	5/16 (.3125)	5/8	1/2
	P-40-16-.3125	5/16 (.3125)	5/8	1
	P-40-22-.3125	5/16 (.3125)	5/8	1-3/8
	P-32-6-.3160	O (.3160)	1/2	3/8
	P-32-8-.3160	O (.3160)	1/2	1/2
	P-32-12-.3160	O (.3160)	1/2	3/4
	P-32-16-.3160	O (.3160)	1/2	1
	P-40-8-.3281	21/64 (.3281)	5/8	1/2
	P-40-8-.3438	11/32 (.3438)	5/8	1/2
	P-32-6-.3750	3/8 (.3750)	1/2	3/8
	P-32-8-.3750	3/8 (.3750)	1/2	1/2
	P-40-6-.3750	3/8 (.3750)	5/8	3/8
	P-40-8-.3750	3/8 (.3750)	5/8	1/2
	P-40-12-.3750	3/8 (.3750)	5/8	3/4
	P-40-16-.3750	3/8 (.3750)	5/8	1
	P-48-8-.3750	3/8 (.3750)	3/4	1/2
	P-48-10-.3750	3/8 (.3750)	3/4	5/8
	P-48-12-.3750	3/8 (.3750)	3/4	3/4
	P-48-16-.3750	3/8 (.3750)	3/4	1
	P-48-22-.3750	3/8 (.3750)	3/4	1-3/8
	P-40-12-.3770	V (.3770)	5/8	3/4
	P-40-8-.3770	V (.3770)	5/8	1/2
	P-40-8-.3906	25/64 (.3906)	5/8	1/2
	P-40-16-.3906	25/64 (.3906)	5/8	1
	P-40-8-.4062	13/32 (.4062)	5/8	1/2
	P-40-16-.4062	13/32 (.4062)	5/8	1
	P-40-8-.4219	27/64 (.4219)	5/8	1/2
	P-48-16-.4219	27/64 (.4219)	3/4	1
	P-40-8-.4375	7/16 (.4375)	5/8	1/2
	P-40-12-.4375	7/16 (.4375)	5/8	3/4
	P-40-16-.4375	7/16 (.4375)	5/8	1
	P-48-8-.4375	7/16 (.4375)	3/4	1/2
	P-48-12-.4375	7/16 (.4375)	3/4	3/4
	P-48-16-.4375	7/16 (.4375)	3/4	1
	P-48-22-.4375	7/16 (.4375)	3/4	1-3/8
	P-48-8-.4531	29/64 (.4531)	3/4	1/2
	P-48-12-.4531	29/64 (.4531)	3/4	3/4
	P-48-12-.4990	.4990	3/4	3/4
	P-40-8-.5000	1/2 (.5000)	5/8	1/2
	P-40-12-.5000	1/2 (.5000)	5/8	3/4
	P-40-16-.5000	1/2 (.5000)	5/8	1
	P-48-8-.5000	1/2 (.5000)	3/4	1/2
	P-48-10-.5000	1/2 (.5000)	3/4	5/8
	P-48-12-.5000	1/2 (.5000)	3/4	3/4
	P-48-16-.5000	1/2 (.5000)	3/4	1
	P-48-20-.5000	1/2 (.5000)	3/4	1-1/4
	P-48-22-.5000	1/2 (.5000)	3/4	1-3/8
	P-48-24-.5000	1/2 (.5000)	3/4	1-1/2
	P-56-10-.5000	1/2 (.5000)	7/8	5/8
	P-56-12-.5000	1/2 (.5000)	7/8	3/4
	P-56-16-.5000	1/2 (.5000)	7/8	1
	P-64-8-.5000	1/2 (.5000)	1	1/2
	P-64-12-.5000	1/2 (.5000)	1	3/4
	P-64-16-.5000	1/2 (.5000)	1	1
	P-48-8-.5010	.5010	3/4	1/2
	P-48-10-.5156	33/64 (.5156)	3/4	5/8
	P-48-5-.5312	17/32 (.5312)	3/4	5/16
	P-48-12-.5312	17/32 (.5312)	3/4	3/4
	P-48-22-.5312	17/32 (.5312)	3/4	1-3/8
	P-56-8-.5625	9/16 (.5625)	7/8	1/2
	P-56-10-.5625	9/16 (.5625)	7/8	5/8
	P-56-12-.5625	9/16 (.5625)	7/8	3/4
	P-48-24-.6250	5/8 (.6250)	3/4	1-1/2
	P-56-8-.6250	5/8 (.6250)	7/8	1/2
	P-56-10-.6250	5/8 (.6250)	7/8	5/8
	P-56-12-.6250	5/8 (.6250)	7/8	3/4
	P-56-16-.6250	5/8 (.6250)	7/8	1
	P-56-20-.6250	5/8 (.6250)	7/8	1-1/4
	P-56-22-.6250	5/8 (.6250)	7/8	1-3/8
	P-56-24-.6250	5/8 (.6250)	7/8	1-1/2
	P-64-8-.6250	5/8 (.6250)	1	1/2
	P-64-12-.6250	5/8 (.6250)	1	3/4
	P-64-16-.6250	5/8 (.6250)	1	1
	P-64-22-.6250	5/8 (.6250)	1	1-3/8
	P-56-8-.6406	41/64 (.6406)	7/8	1/2
	P-64-8-.6562	21/32 (.6562)	1	1/2
	P-64-12-.6562	21/32 (.6562)	1	3/4
	P-64-16-.6562	21/32 (.6562)	1	1
	P-64-20-.6719	43/64 (.6719)	1	1-1/4
	P-64-8-.6875	11/16 (.6875)	1	1/2
	P-64-16-.6875	11/16 (.6875)	1	1
	P-64-20-.6875	11/16 (.6875)	1	1-1/4
	P-64-8-.7500	3/4 (.7500)	1	1/2
	P-64-12-.7500	3/4 (.7500)	1	3/4
	P-64-16-.7500	3/4 (.7500)	1	1
	P-64-20-.7500	3/4 (.7500)	1	1-1/4
	P-64-22-.7500	3/4 (.7500)	1	1-3/8
	P-64-24-.7500	3/4 (.7500)	1	1-1/2
