Quick-Ship Liner Bushings – Metric (PM)

Drill Bushings

Save to My Project

What is this?

Product Information

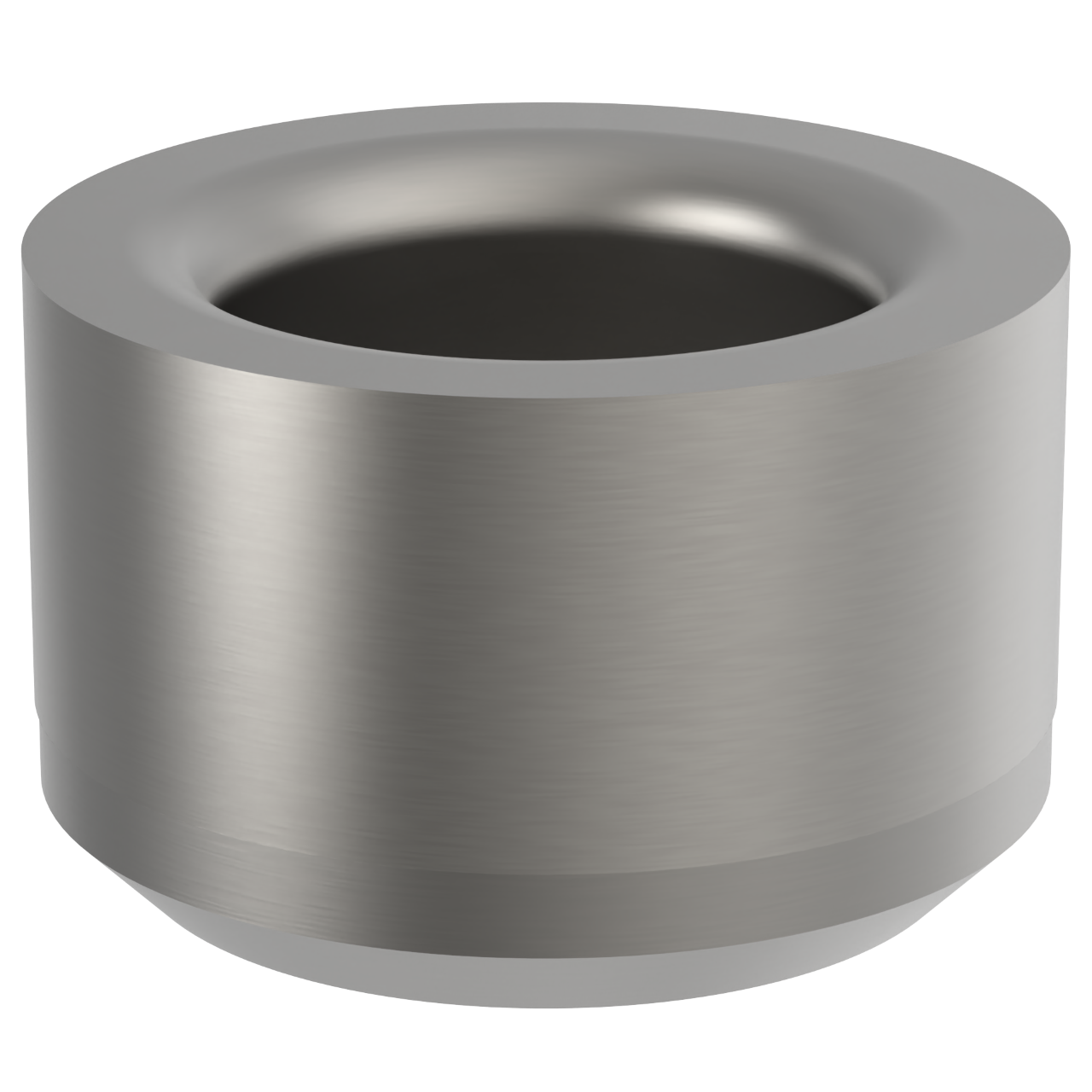

Quick-Ship Liner Bushings – Metric (PM) Part # PM-18-12-12.00 Carr Lane Mfg.®

Metric Liner Bushings are simply specific large ID sizes of PM Press-Fit Bushings. Liners are permanently installed bushings used to hold renewable drill bushings. The liner's ID has a precise sliding fit with the renewable bushing's OD. The liner accurately locates the renewable bushing and protects the jig plate from wear and damage caused by frequent bushing replacement.

Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. Complete part numbers for all Quick-Ship PM Liner Bushings are listed in the tables below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Metric Liners are permanent bushings used to hold renewable drill bushings.

ID Tolerance

Standard Liner ID Tolerance (G6):

From 8 to 10mm +.005/+.014mm

Over 10 to 18mm +.006/+.017mm

Over 18 to 30mm +.007/+.020mm

Over 30 to 50mm +.009/+.025mm

OD Tolerance

Standard OD Tolerance (s6):

12 to 18mm +.039/+.028

22 to 30mm +.048/+.035

35 to 48mm +.059/+.043

55 to 62mm +.072/+.053

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 or 52100 steel	Heat Treated to achieve Rc 62-64 ID Hardness	-	-	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Quick-Ship Liner Bushings – Metric (PM)

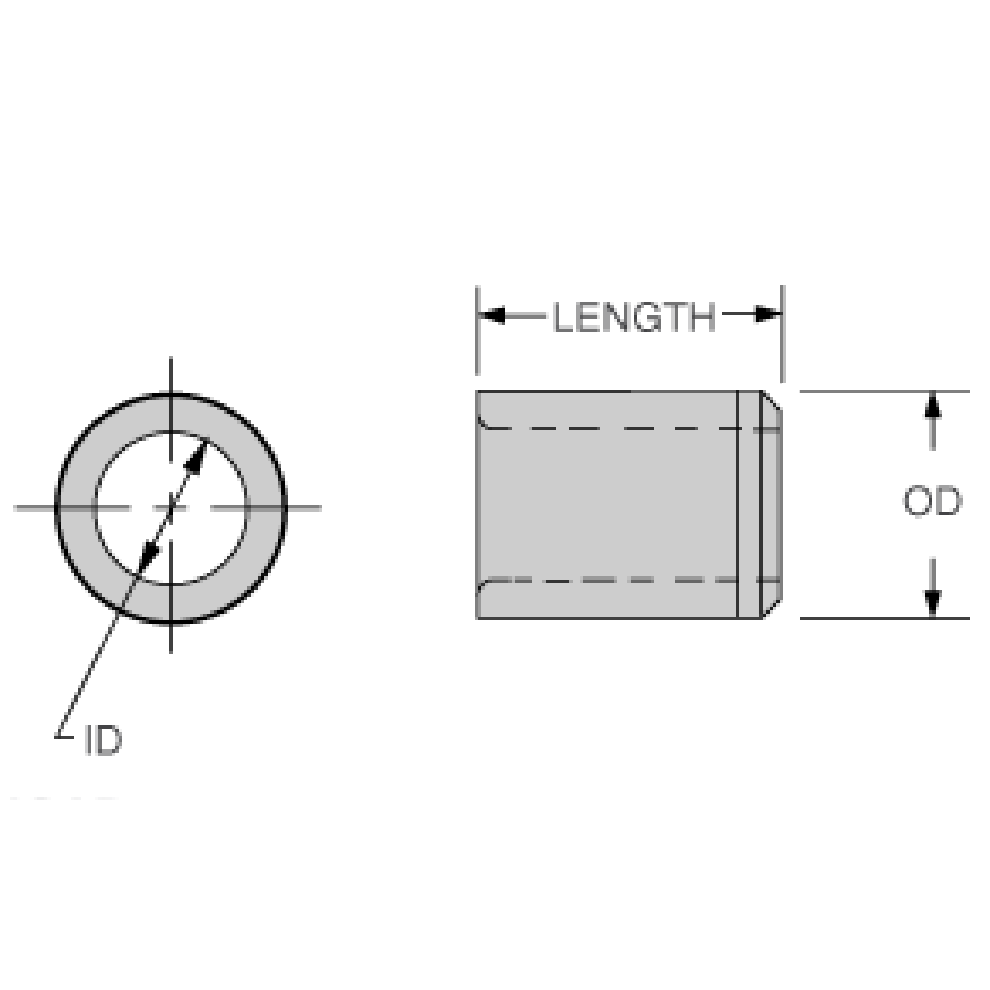

PART NO.	ID	OD	LENGTH
PM-12-10-8.00	8mm	12mm	10mm
PM-12-16-8.00	8mm	12mm	16mm
PM-15-12-10.00	10mm	15mm	12mm
PM-18-12-12.00	12mm	18mm	12mm
PM-22-16-15.00	15mm	22mm	16mm
PM-42-25-30.00	30mm	42mm	25mm

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available
