Quick-Ship Head Press-Fit Bushings (H)

Drill Bushings

Product Information

Quick-Ship Head Press-Fit Bushings (H) Part # H-26-6-.2500 Carr Lane Mfg.®

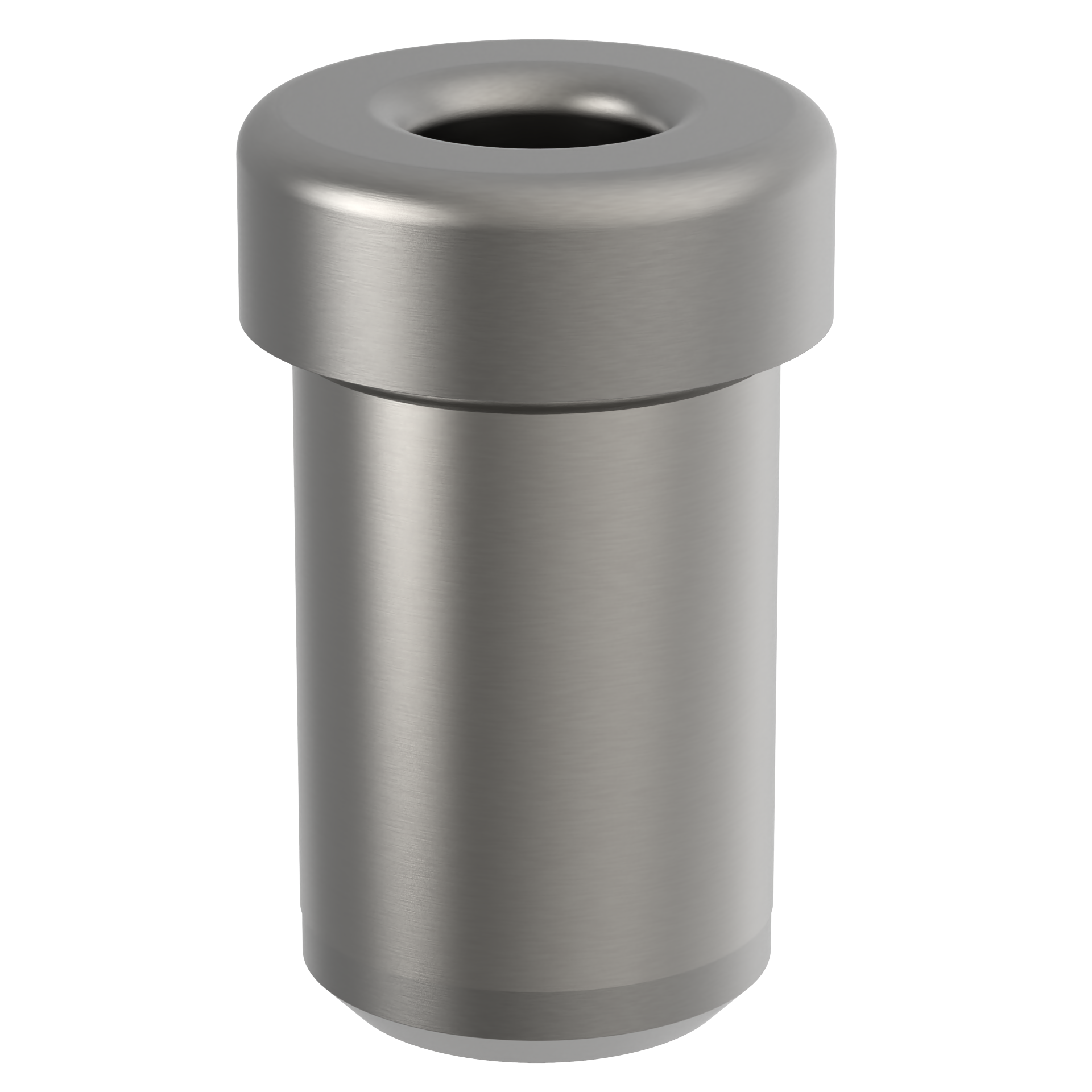

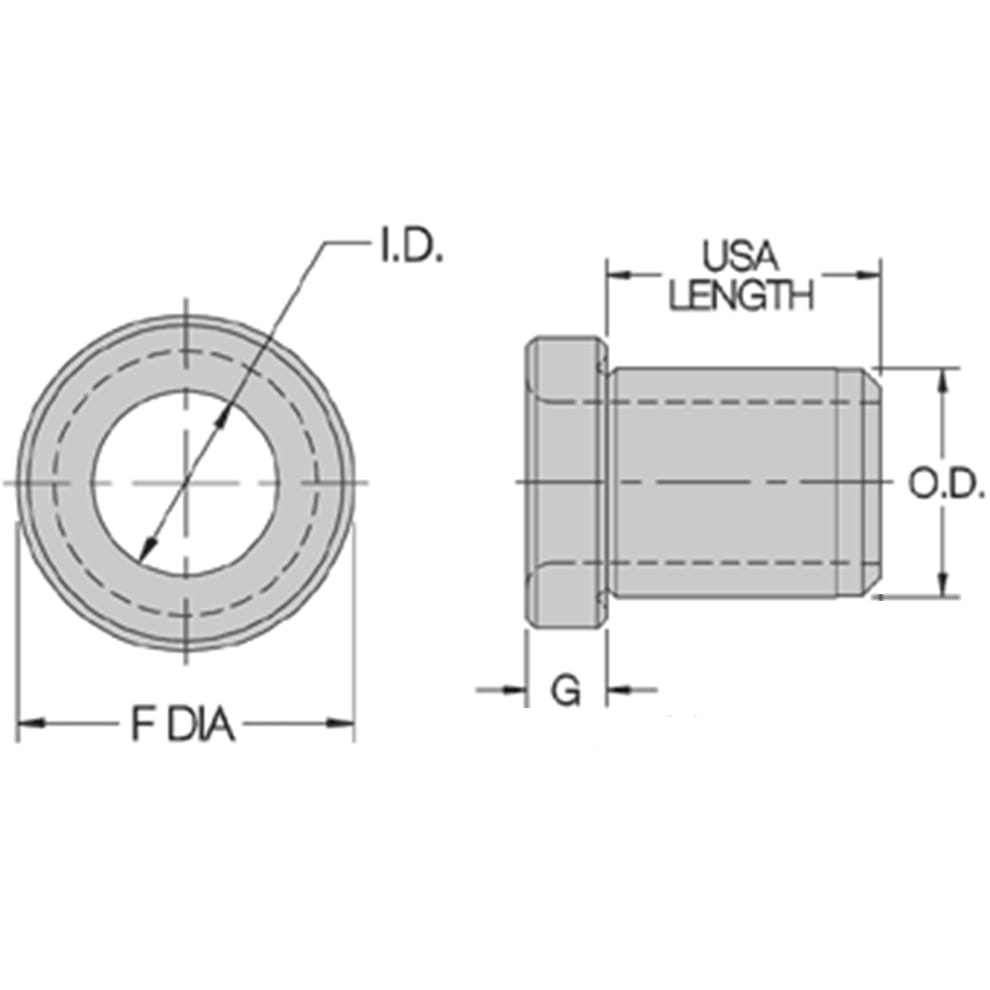

H Bushings are similar to P bushings, but with a head to resist heavy axial loads. H bushings are permanently pressed into the jig plate. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. The head can be left exposed, or recessed by counterboring the installation hole.

Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship H bushings are listed in the tables below.

Application Information

H bushings are permanently pressed into the jig plate. The head can be left exposed, or recessed by counterboring the installation hole.

ID Tolerance

Standard ID Tolerance:

From #80 to 1/4" +.0001/+.0004

Over 1/4 to 3/4" +.0001/+.0005

Over 3/4 to 1-1/2" +.0002/+.0006

OD Tolerance

Standard OD Tolerance:

5/32 to 13/64" +.0016/+.0012

1/4 to 13/32" +.0016/+.0013

7/16 to 5/8" +.0017/+.0014

3/4 to 1" +.0018/+.0015

1-1/8 to 1-1/4" +.0020/+.0017

1-3/8 to 1-1/2" +.0022/+.0018

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 or 52100 steel	Heat Treated to achieve Rc 62-64 ID Hardness	-	-	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.
