Press-Fit Oil-Groove Bushings – Type 2 (P, PM)

Drill Bushings

Product Information

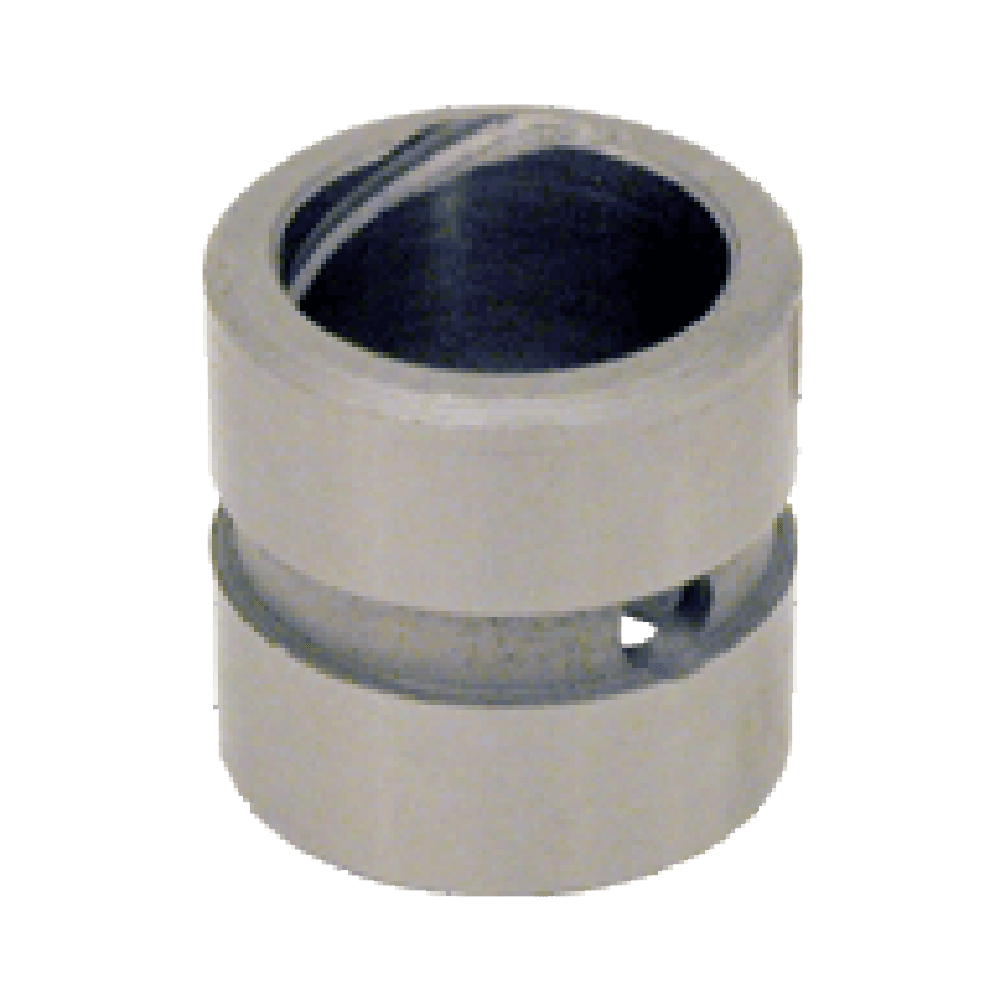

Type 2 – With Oil Hole & External Groove

Oil grooves are specially designed coolant passageways in a bushing's ID wall. Oil grooves are available on almost any bushing type, including press fit, head press fit, and renewable. Use when you need complete drill lubrication and cooling, such as when drilling hardened steel, or when bushings are used as bearings.

The Type 2 oil groove shown here is our most popular. The OD groove allows coolant to flow around the bushing, then through the radial hole in the bushing's wall, to the internal oil grooves. This allows installing the bushing at any orientation, and mounting several bushings in series using a single manifold passage.

Application Information

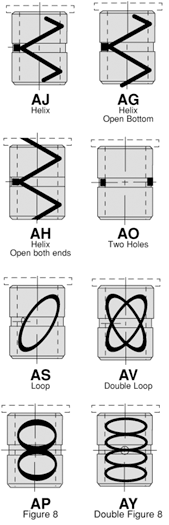

Oil Groove Styles

Type 2 Oil-Groove Bushings (with Oil Hole & External Groove) are available in eight styles, to suit different operating conditions, lubrication requirements, and individual preferences:

AJ Helix

AG Helix, Open Bottom

AH Helix, Open Both Ends

AO Two Holes

AS Loop

AV Double Loop

AP Figure 8

AY Double Figure 8

Ordering example:

P-48-16-.5000-AJ P bushing with AJ-style oil groove (1/2" ID)

Optional Wiper

Diagram showcasing the application of Press Fit Oil Groove Bushings Type 2 P Pm

To guard against dirt and chips entering the bushing ID (usually from the drill-entrance end), order oil-groove bushings with a wiper end. Order style AAA for headless bushings, style ABB or ACC for head-type bushings.

P-48-16-.5000-AJ-AAA

Sizes & Technical Data

Oil grooves are available for bushings with ID sizes from 3/8" to 8", and lengths from 1/2" to 8" (oil grooves stop 1/8" short of each end). Oil grooves are 1/16" wide x 1/32" deep. Oil holes are 1/4" diameter.
