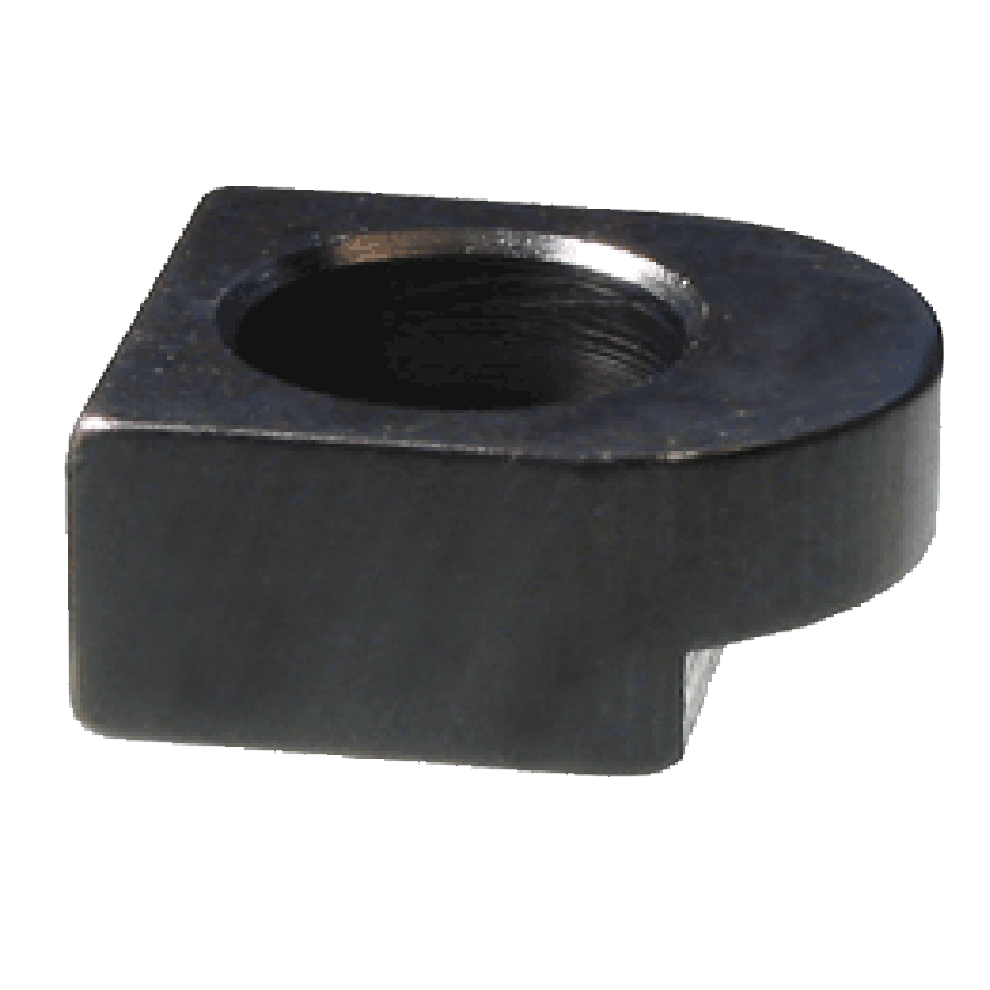

Round End Clamps (RK)

Drill Bushings

Standard Mounting

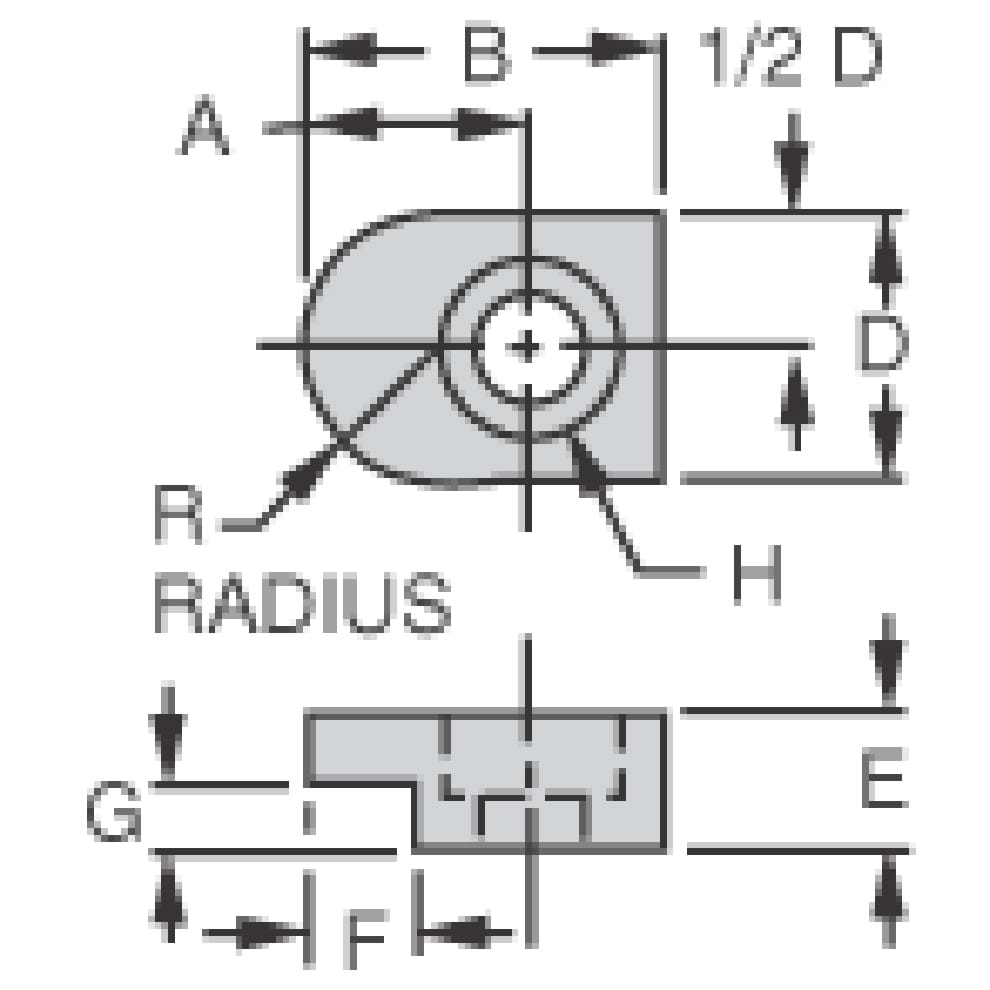

QUANTITY PART NO. A B D E F G H
SOCKET-HEAD
CAP SCREW
R
RK-01 7/16 3/4 5/8 5/16 3/16 1/8 1/4-20 5/16
RK-02 1/2 3/4 5/8 3/8 1/4 3/16 1/4-20 5/16
RK-03 5/8 1 3/4 3/8 5/16 3/16 5/16-18 3/8
RK-04 11/16 1-1/8 3/4 7/16 5/16 7/32 3/8-16 3/8
RK-05 11/16 1-1/8 3/4 1/2 5/16 1/4 3/8-16 3/8
Projected Mounting
QUANTITY PART NO. A B D E F G H
SOCKET-HEAD
CAP SCREW
R
RK-10 7/16 3/4 5/8 3/8 3/16 7/32 1/4-20 5/16
RK-11 7/16 3/4 5/8 3/8 3/16 1/4 1/4-20 5/16
RK-12 1/2 3/4 5/8 1/2 1/4 5/16 1/4-20 5/16
RK-13 1/2 3/4 5/8 1/2 1/4 3/8 1/4-20 5/16
RK-14 5/8 1 3/4 1/2 5/16 3/8 3/8-16 3/8
