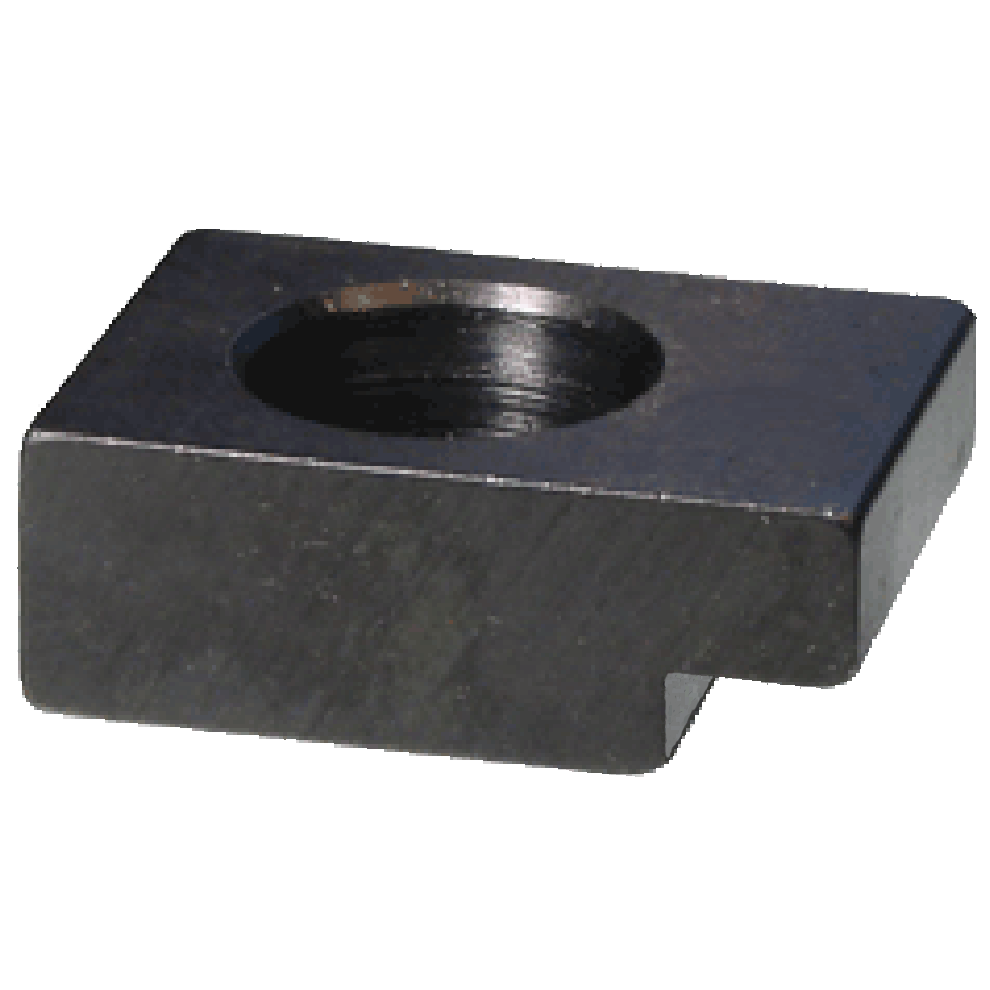

Flat Clamps (FC)

Drill Bushings

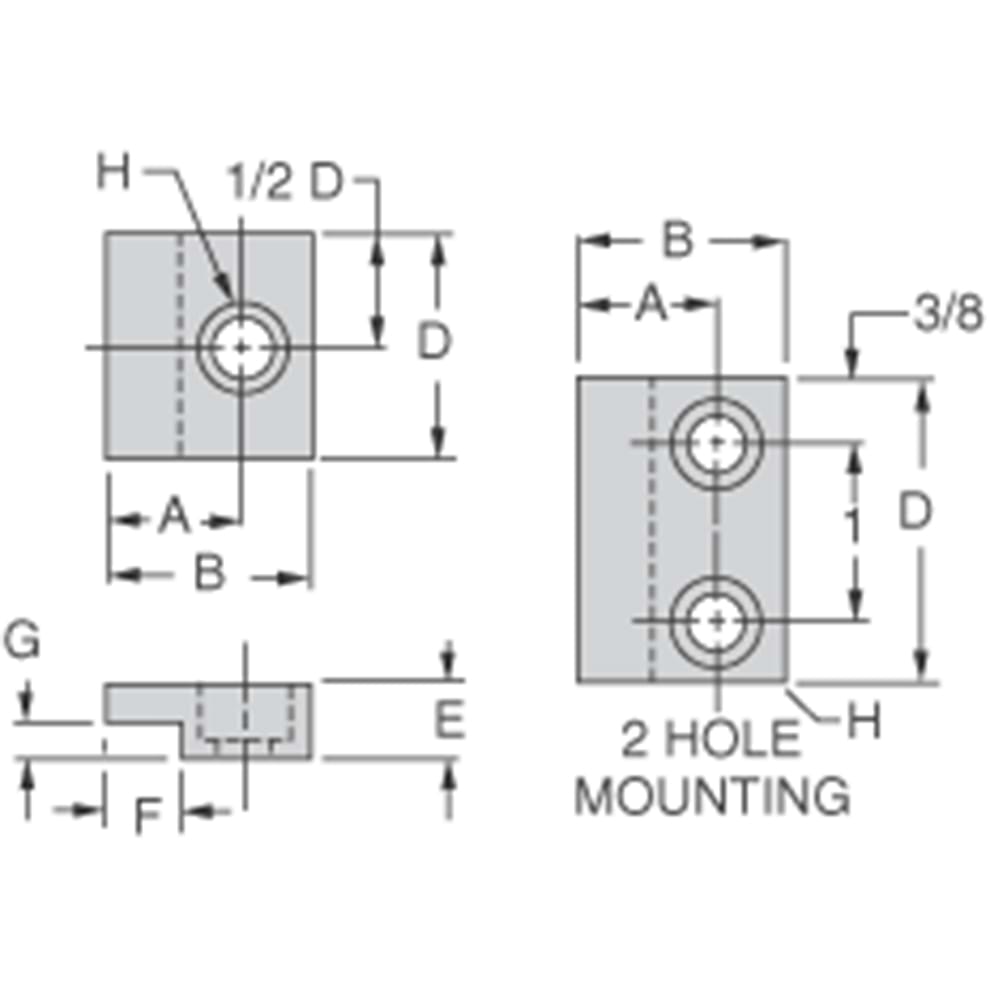

Standard Mounting
QUANTITY PART NO. NUMBER OF
MOUNTING
HOLES
A B D E F G H
SOCKET-HEAD
CAP SCREW
FC-01 1 1/2 7/8 5/8 5/16 3/16 1/8 1/4-20
FC-02 1 5/8 1 1 3/8 1/4 3/16 5/16-18
FC-03 1 5/8 1-1/8 1 3/8 5/16 3/16 5/16-18
FC-04 1 51/64 1-11/64 1-1/4 3/8 27/64 7/32 3/8-16
FC-05 2 51/64 1-11/64 1-3/4 3/8 27/64 7/32 3/8-16
FC-06 1 51/64 1-11/64 1-1/4 1/2 27/64 1/4 3/8-16
FC-07 2 51/64 1-11/64 1-3/4 1/2 27/64 1/4 3/8-16
Projected Mounting
QUANTITY PART NO. NUMBER OF
MOUNTING
HOLES
A B D E F G H
SOCKET-HEAD
CAP SCREW
FC-10 1 1/2 7/8 5/8 3/8 3/16 7/32 1/4-20
FC-11 1 1/2 7/8 5/8 3/8 3/16 1/4 1/4-20
FC-12 1 5/8 1 1 1/2 1/4 5/16 5/16-18
FC-13 1 5/8 1 1 1/2 1/4 3/8 5/16-18
FC-14 1 5/8 1-1/8 1-1/4 1/2 5/16 3/8 3/8-16
FC-15 2 5/8 1-1/8 1-3/4 1/2 5/16 3/8 3/8-16
