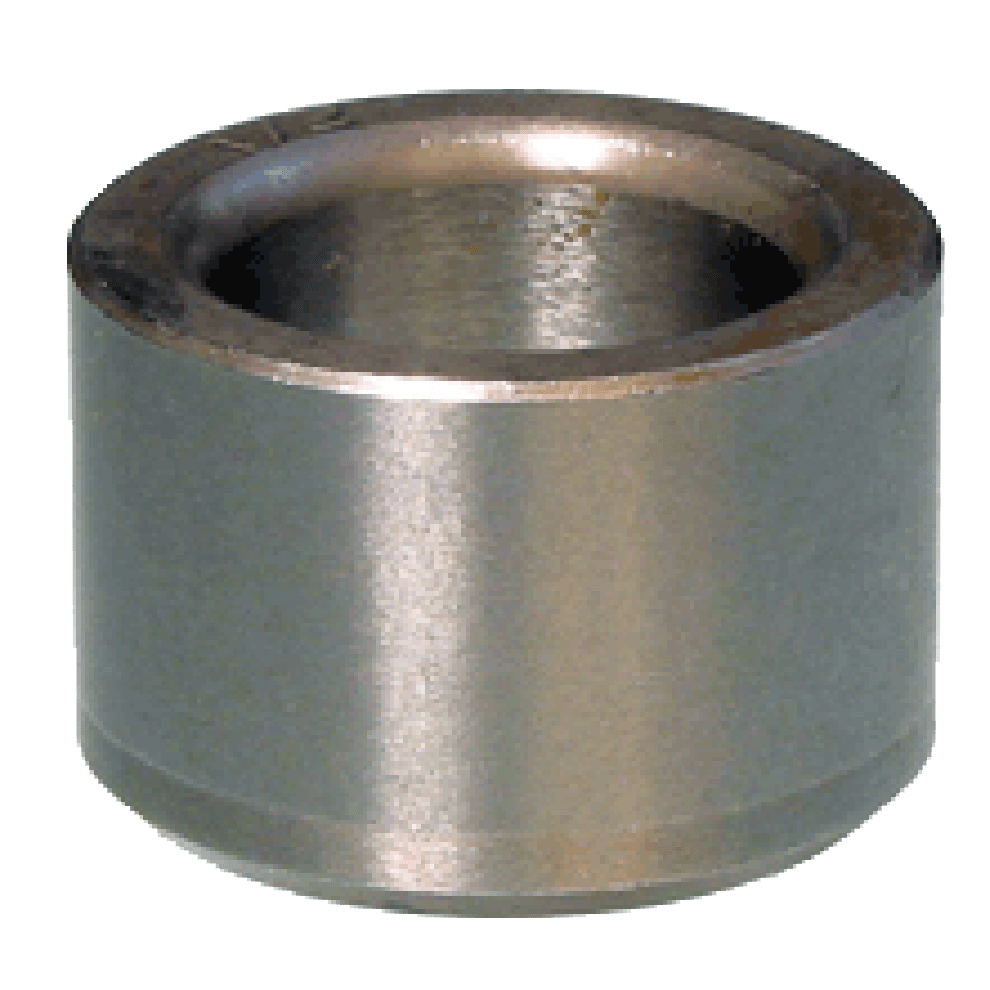

Liner Bushings (L)

Drill Bushings

 Save to My Project
What is this?

Standard Sizes

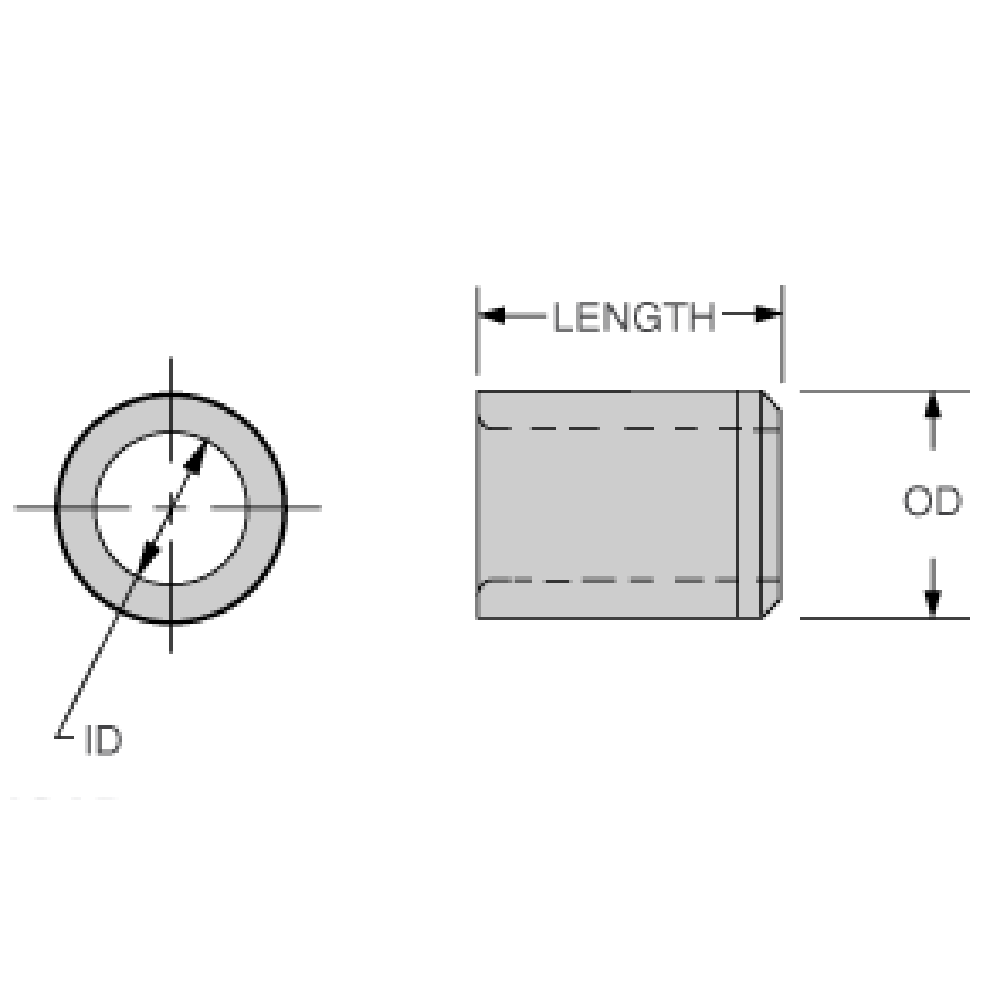

QUANTITY PART NO. ID OD LENGTH
L-20-4 3/16 5/16 1/4
L-20-5 3/16 5/16 5/16
L-20-6 3/16 5/16 3/8
L-20-8 3/16 5/16 1/2
L-20-10 3/16 5/16 5/8
L-20-12 3/16 5/16 3/4
L-28-4 1/4 7/16 1/4
L-28-5 1/4 7/16 5/16
L-28-6 1/4 7/16 3/8
L-28-8 1/4 7/16 1/2
L-28-10 1/4 7/16 5/8
L-28-12 1/4 7/16 3/4
L-32-4 5/16 1/2 1/4
L-32-5 5/16 1/2 5/16
L-32-6 5/16 1/2 3/8
L-32-8 5/16 1/2 1/2
L-32-10 5/16 1/2 5/8
L-32-12 5/16 1/2 3/4
L-32-16 5/16 1/2 1
L-32-22 5/16 1/2 1-3/8
L-36-4 5/16 9/16 1/4
L-36-5 5/16 9/16 5/16
L-36-6 5/16 9/16 3/8
L-36-8 5/16 9/16 1/2
L-36-10 5/16 9/16 5/8
L-36-12 5/16 9/16 3/4
L-36-16 5/16 9/16 1
L-40-4-24 3/8 5/8 1/4
L-40-5-24 3/8 5/8 5/16
L-40-6-24 3/8 5/8 3/8
L-40-8-24 3/8 5/8 1/2
L-40-10-24 3/8 5/8 5/8
L-40-12-24 3/8 5/8 3/4
L-40-16-24 3/8 5/8 1
L-40-4-28 7/16 5/8 1/4
L-40-5-28 7/16 5/8 5/16
L-40-6-28 7/16 5/8 3/8
L-40-8-28 7/16 5/8 1/2
L-40-10-28 7/16 5/8 5/8
L-40-12-28 7/16 5/8 3/4
L-40-16-28 7/16 5/8 1
L-48-5 1/2 3/4 5/16
L-48-6 1/2 3/4 3/8
L-48-8 1/2 3/4 1/2
L-48-12 1/2 3/4 3/4
L-48-16 1/2 3/4 1
L-48-22 1/2 3/4 1-3/8
L-48-24 1/2 3/4 1-1/2
L-48-28 1/2 3/4 1-3/4
L-48-34 1/2 3/4 2-1/8
L-56-5-36 9/16 7/8 5/16
L-56-6-36 9/16 7/8 3/8
L-56-8-36 9/16 7/8 1/2
L-56-10-36 9/16 7/8 5/8
L-56-12-36 9/16 7/8 3/4
L-56-16-36 9/16 7/8 1
L-56-20-36 9/16 7/8 1-1/4
L-56-5-40 5/8 7/8 5/16
L-56-6-40 5/8 7/8 3/8
L-56-8-40 5/8 7/8 1/2
L-56-10-40 5/8 7/8 5/8
L-56-12-40 5/8 7/8 3/4
L-56-16-40 5/8 7/8 1
L-56-20-40 5/8 7/8 1-1/4
L-64-8 3/4 1 1/2
L-64-12 3/4 1 3/4
L-64-16 3/4 1 1
L-64-22 3/4 1 1-3/8
L-64-24 3/4 1 1-1/2
L-64-28 3/4 1 1-3/4
L-64-34 3/4 1 2-1/8
L-64-40 3/4 1 2-1/2
L-64-48 3/4 1 3
L-80-8 7/8 1-1/4 1/2
L-80-10 7/8 1-1/4 5/8
L-80-12 7/8 1-1/4 3/4
L-80-16 7/8 1-1/4 1
L-80-20 7/8 1-1/4 1-1/4
L-80-24 7/8 1-1/4 1-1/2
L-88-8 1 1-3/8 1/2
L-88-12 1 1-3/8 3/4
L-88-16 1 1-3/8 1
L-88-22 1 1-3/8 1-3/8
L-88-24 1 1-3/8 1-1/2
L-88-28 1 1-3/8 1-3/4
L-88-34 1 1-3/8 2-1/8
L-88-40 1 1-3/8 2-1/2
L-88-48 1 1-3/8 3
L-112-12 1-3/8 1-3/4 3/4
L-112-16 1-3/8 1-3/4 1
L-112-22 1-3/8 1-3/4 1-3/8
L-112-24 1-3/8 1-3/4 1-1/2
L-112-28 1-3/8 1-3/4 1-3/4
L-112-34 1-3/8 1-3/4 2-1/8
L-112-40 1-3/8 1-3/4 2-1/2
L-112-48 1-3/8 1-3/4 3
L-144-12 1-3/4 2-1/4 3/4
L-144-16 1-3/4 2-1/4 1
L-144-22 1-3/4 2-1/4 1-3/8
L-144-24 1-3/4 2-1/4 1-1/2
L-144-28 1-3/4 2-1/4 1-3/4
L-144-34 1-3/4 2-1/4 2-1/8
L-144-40 1-3/4 2-1/4 2-1/2
L-144-48 1-3/4 2-1/4 3
L-176-12 2-1/4 2-3/4 3/4
L-176-16 2-1/4 2-3/4 1
L-176-22 2-1/4 2-3/4 1-3/8
L-176-24 2-1/4 2-3/4 1-1/2
L-176-28 2-1/4 2-3/4 1-3/4
L-176-34 2-1/4 2-3/4 2-1/8
L-176-40 2-1/4 2-3/4 2-1/2
L-176-48 2-1/4 2-3/4 3
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Extended Range (Large Sizes)
QUANTITY PART NO. ID OD LENGTH
L-160-12 2 2-1/2 3/4
L-160-16 2 2-1/2 1
L-160-20 2 2-1/2 1-1/4
L-160-24 2 2-1/2 1-1/2
L-160-28 2 2-1/2 1-3/4
L-160-32 2 2-1/2 2
L-160-34 2 2-1/2 2-1/8
L-160-36 2 2-1/2 2-1/4
L-160-40 2 2-1/2 2-1/2
L-160-44 2 2-1/2 2-3/4
L-160-48 2 2-1/2 3
L-160-52 2 2-1/2 3-1/4
L-160-56 2 2-1/2 3-1/2
L-160-60 2 2-1/2 3-3/4
L-160-64 2 2-1/2 4
L-160-68 2 2-1/2 4-1/4
L-160-72 2 2-1/2 4-1/2
L-160-76 2 2-1/2 4-3/4
L-160-80 2 2-1/2 5
L-192-12 2-1/2 3 3/4
L-192-16 2-1/2 3 1
L-192-20 2-1/2 3 1-1/4
L-192-24 2-1/2 3 1-1/2
L-192-28 2-1/2 3 1-3/4
L-192-32 2-1/2 3 2
L-192-34 2-1/2 3 2-1/8
L-192-36 2-1/2 3 2-1/4
L-192-40 2-1/2 3 2-1/2
L-192-44 2-1/2 3 2-3/4
L-192-48 2-1/2 3 3
L-192-52 2-1/2 3 3-1/4
L-192-56 2-1/2 3 3-1/2
L-192-60 2-1/2 3 3-3/4
L-192-64 2-1/2 3 4
L-192-68 2-1/2 3 4-1/4
L-192-72 2-1/2 3 4-1/2
L-192-76 2-1/2 3 4-3/4
L-192-80 2-1/2 3 5
L-216-12 2-3/4 3-3/8 3/4
L-216-16 2-3/4 3-3/8 1
L-216-20 2-3/4 3-3/8 1-1/4
L-216-24 2-3/4 3-3/8 1-1/2
L-216-28 2-3/4 3-3/8 1-3/4
L-216-32 2-3/4 3-3/8 2
L-216-34 2-3/4 3-3/8 2-1/8
L-216-36 2-3/4 3-3/8 2-1/4
L-216-40 2-3/4 3-3/8 2-1/2
L-216-44 2-3/4 3-3/8 2-3/4
L-216-48 2-3/4 3-3/8 3
L-216-52 2-3/4 3-3/8 3-1/4
L-216-56 2-3/4 3-3/8 3-1/2
L-216-60 2-3/4 3-3/8 3-3/4
L-216-64 2-3/4 3-3/8 4
L-216-68 2-3/4 3-3/8 4-1/4
L-216-72 2-3/4 3-3/8 4-1/2
L-216-76 2-3/4 3-3/8 4-3/4
L-216-80 2-3/4 3-3/8 5
L-232-12 3 3-5/8 3/4
L-232-16 3 3-5/8 1
L-232-20 3 3-5/8 1-1/4
L-232-24 3 3-5/8 1-1/2
L-232-28 3 3-5/8 1-3/4
L-232-32 3 3-5/8 2
L-232-36 3 3-5/8 2-1/4
L-232-40 3 3-5/8 2-1/2
L-232-44 3 3-5/8 2-3/4
L-232-48 3 3-5/8 3
L-232-52 3 3-5/8 3-1/4
L-232-56 3 3-5/8 3-1/2
L-232-60 3 3-5/8 3-3/4
L-232-64 3 3-5/8 4
L-232-68 3 3-5/8 4-1/4
L-232-72 3 3-5/8 4-1/2
L-232-76 3 3-5/8 4-3/4
L-232-80 3 3-5/8 5
L-248-12 3-1/4 3-7/8 3/4
L-248-16 3-1/4 3-7/8 1
L-248-20 3-1/4 3-7/8 1-1/4
L-248-24 3-1/4 3-7/8 1-1/2
L-248-28 3-1/4 3-7/8 1-3/4
L-248-32 3-1/4 3-7/8 2
L-248-36 3-1/4 3-7/8 2-1/4
L-248-40 3-1/4 3-7/8 2-1/2
L-248-44 3-1/4 3-7/8 2-3/4
L-248-48 3-1/4 3-7/8 3
L-248-52 3-1/4 3-7/8 3-1/4
L-248-56 3-1/4 3-7/8 3-1/2
L-248-60 3-1/4 3-7/8 3-3/4
L-248-64 3-1/4 3-7/8 4
L-248-68 3-1/4 3-7/8 4-1/4
L-248-72 3-1/4 3-7/8 4-1/2
L-248-76 3-1/4 3-7/8 4-3/4
L-248-80 3-1/4 3-7/8 5
L-256-12 3-3/8 4 3/4
L-256-16 3-3/8 4 1
L-256-20 3-3/8 4 1-1/4
L-256-24 3-3/8 4 1-1/2
L-256-28 3-3/8 4 1-3/4
L-256-32 3-3/8 4 2
L-256-36 3-3/8 4 2-1/4
L-256-40 3-3/8 4 2-1/2
L-256-44 3-3/8 4 2-3/4
L-256-48 3-3/8 4 3
L-256-52 3-3/8 4 3-1/4
L-256-56 3-3/8 4 3-1/2
L-256-60 3-3/8 4 3-3/4
L-256-64 3-3/8 4 4
L-256-68 3-3/8 4 4-1/4
L-256-72 3-3/8 4 4-1/2
L-256-76 3-3/8 4 4-3/4
L-256-80 3-3/8 4 5
L-256-88 3-3/8 4 5-1/2
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
