Gun-Drill Bushings – One-Piece Eldorado Type (GDE)

Drill Bushings

Product Information

Gun-Drill Bushings – One-Piece Eldorado Type (GDE)

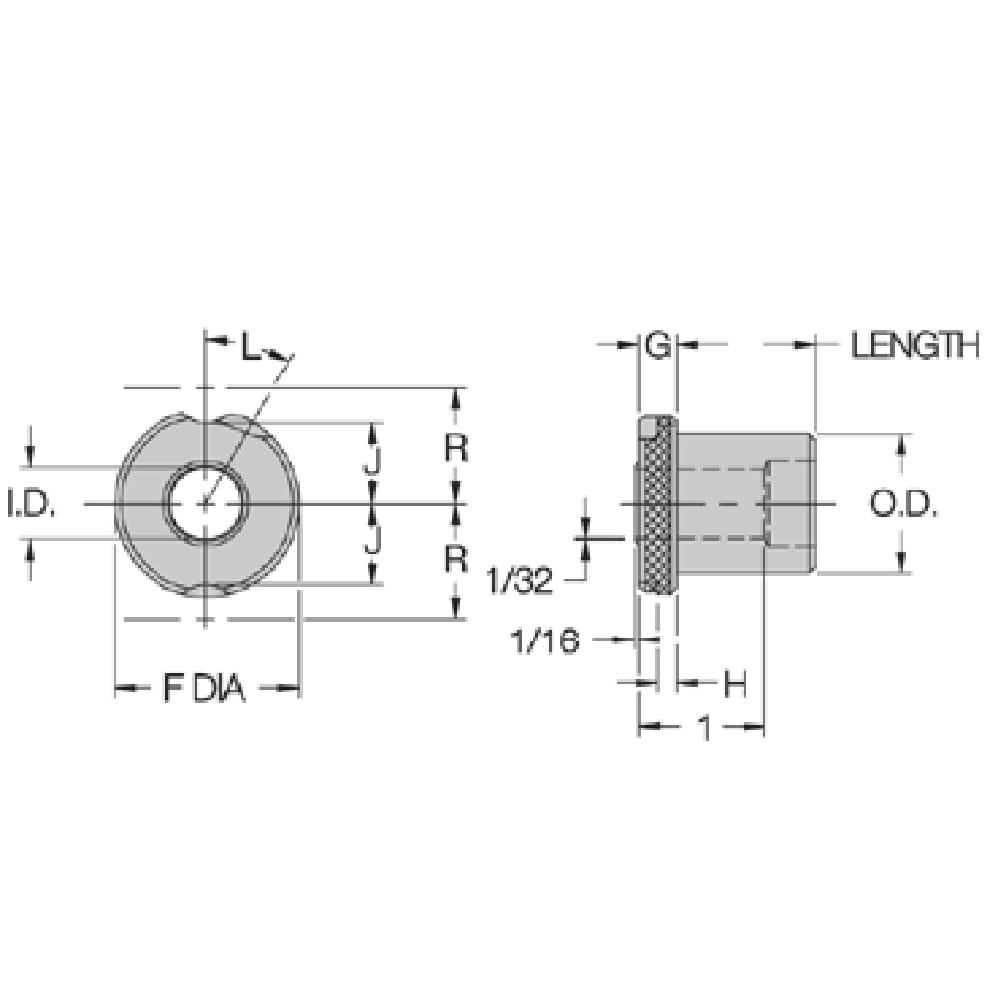

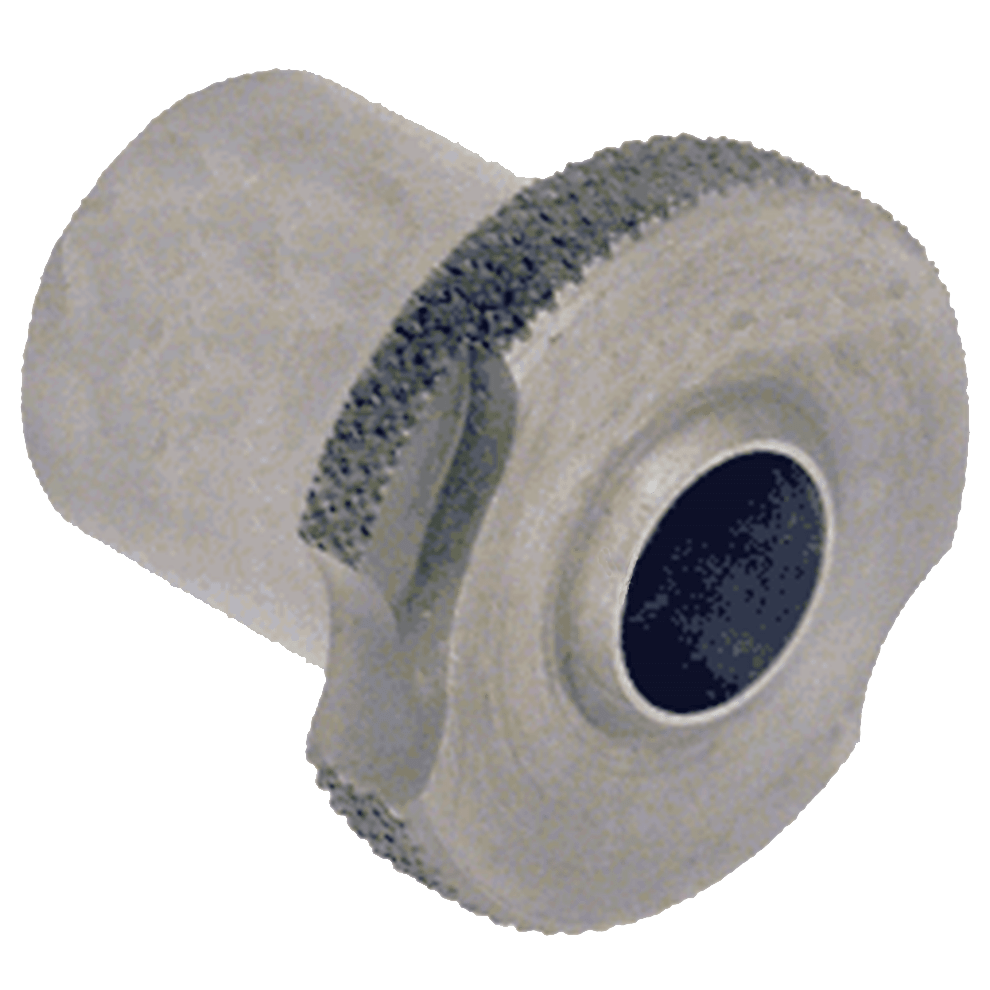

Gun-Drill Bushings are used on gun-drilling machines, such as Eldorado, Drillmation, DeHoff, and Lahr. These bushings are similar to SF renewable bushings, except reversed, with the drill bearing at the bushing's head end, which contacts the workpiece. Gun-Drill Bushings are available in a choice of one-piece construction (shown here) or two-piece construction. One-piece Gun-Drill Bushings offer maximum accuracy and faster installation. One Gun-Drill Bushing is required for each gun-drill size.

The Eldorado type shown here has a standard 1/16" extension beyond the head, to contact the workpiece. Available in 1" and 1-3/8" OD sizes. To order a specific standard bushing, select the basic part number below and add the desired ID drill size (as a 4-place decimal inch) on the Price & Availability screen. See Technical Information tab for Standard Drill Sizes. Standard prices apply only to bushings with a standard inch, number, letter, or metric ID size within the stated range.

Example standard bushings:

GDE-64-12-.1250 Standard bushing with 1" OD and 1/8" ID

GDE-64-12-.1772 Standard bushing with 1" OD and 4.50mm ID (.1772")

Technical Information

Click here for Standard Drill Sizes

ID Tolerance

Standard ID Tolerance:

From 1/8 to 1-1/16" +.0000/+.0002

OD Tolerance

Standard OD Tolerance:

1" 0/-.0002

1-3/8" 0/-.0003

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order
