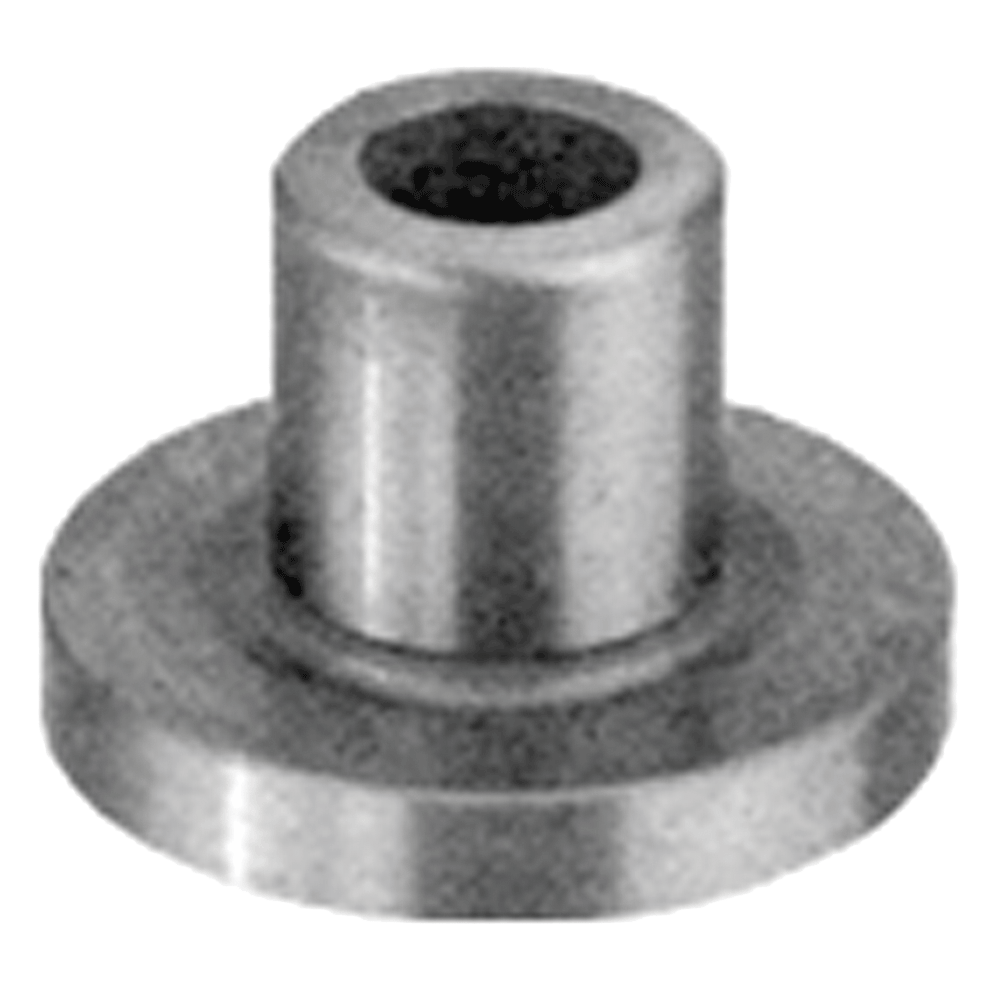

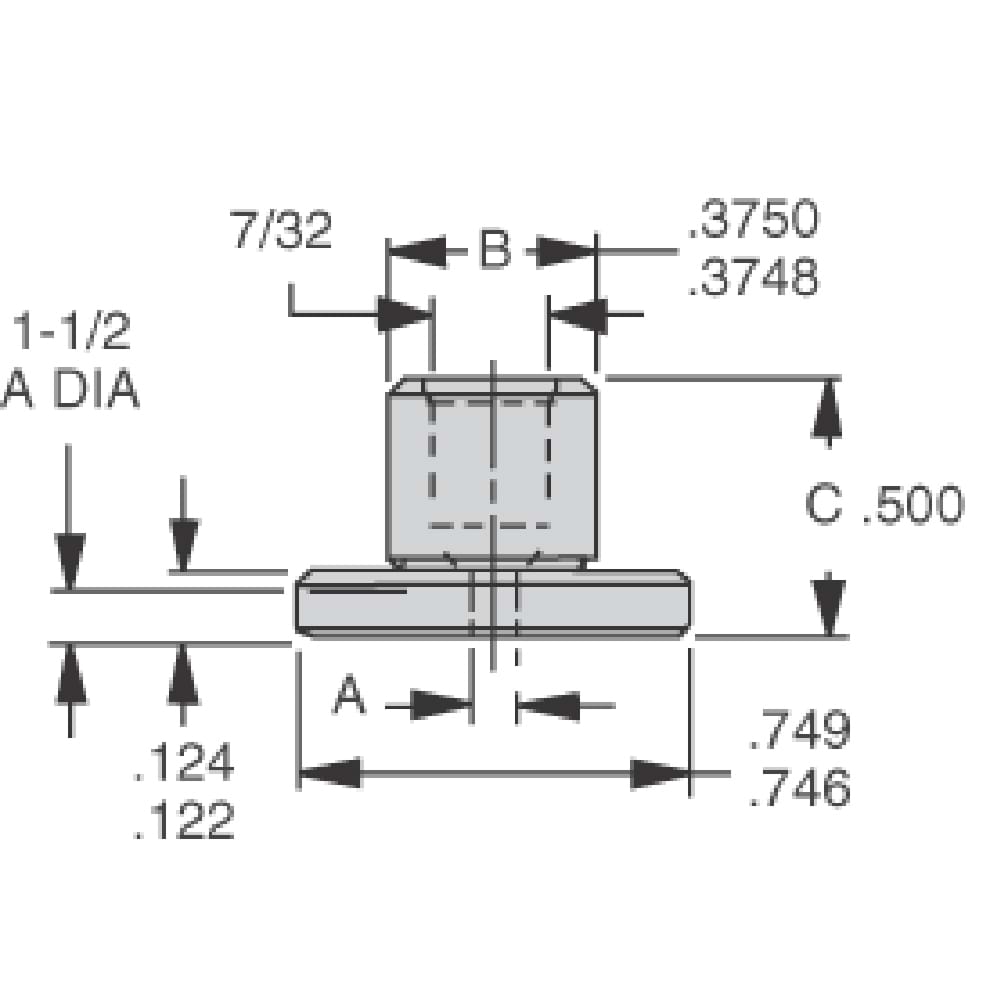

Circuit-Board-Drill Bushings – Palomar (CB-7)

Drill Bushings

Save to My Project

What is this?

Product Information

Circuit-Board-Drill Bushings – Palomar (CB-7) Part # CB-7 Carr Lane Mfg.®

These bushings are designed to accommodate the larger shank diameter of a circuit-board drill. Standard drill bearing length is 1-1/2 times drill diameter on all sizes. CB-7 type bushings are specially designed for Palomar circuit-board drilling machines.

All Circuit-Board-Drill Bushings are manufactured to order. To order a specific bushing, select the basic part number below and add the desired ID drill size (as a 4-place decimal inch). See Technical Information tab for Standard Drill Sizes.

Example:

CB-7-.1250 Bushing for 1/8" drill

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Click here for Standard Drill Sizes

Application Information

These bushings are designed to accommodate the larger shank diameter of a circuit-board drill. Standard drill bearing length is 1-1/2 times drill diameter on all sizes.

ID Tolerance

Standard ID Tolerance:

From #80 to 1/4" +.0001/+.0004

(ID concentric with OD to within .0005" TIR)

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Circuit-Board-Drill Bushings – Palomar (CB-7)

CB bushings are manufactured to order. To request a quotation, use the basic part number below and add the desired ID drill size (as a 4-place decimal inch). Example: CB-7-.0135 (CB-7 with .0135" ID)

QUANTITY	BASIC PART NO.	AVAILABLE ID SIZES	STANDARD DRILL SIZES
	CB-7	.0135-.1406	1/64-9/64, #80-#28, .35-3.50mm

Check Price & Availability
