EZ-Cast Liner Bushings (EZ)

Drill Bushings

Save to My Project

What is this?

Product Information

EZ-Cast Liner Bushings (EZ) Part # EZ-48-8 Carr Lane Mfg.®

Knurled liner with an integral Lockscrew, for cast-in-place or potted installation. EZ-Cast Liners are permanent bushings used to hold renewable drill bushings on either the "slip" side or the "fixed" side. Diamond-knurled OD provides excellent holding strength against both rotational and axial forces. Since the bushing's OD is not ground, the ID must be accurately located during casting or potting to ensure accuracy in the finished tool.

Complete part numbers for all standard EZ bushings are listed in the tables below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Knurled liner with an integral Lockscrew, for cast-in-place or potted installation.

ID Tolerance

Standard Liner ID Tolerance:

5/16" +.0001/+.0004

1/2" +.0002/+.0005

3/4" +.0003/+.0006

1" +.0004/+.0007

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order

EZ-Cast Liner Bushings (EZ)

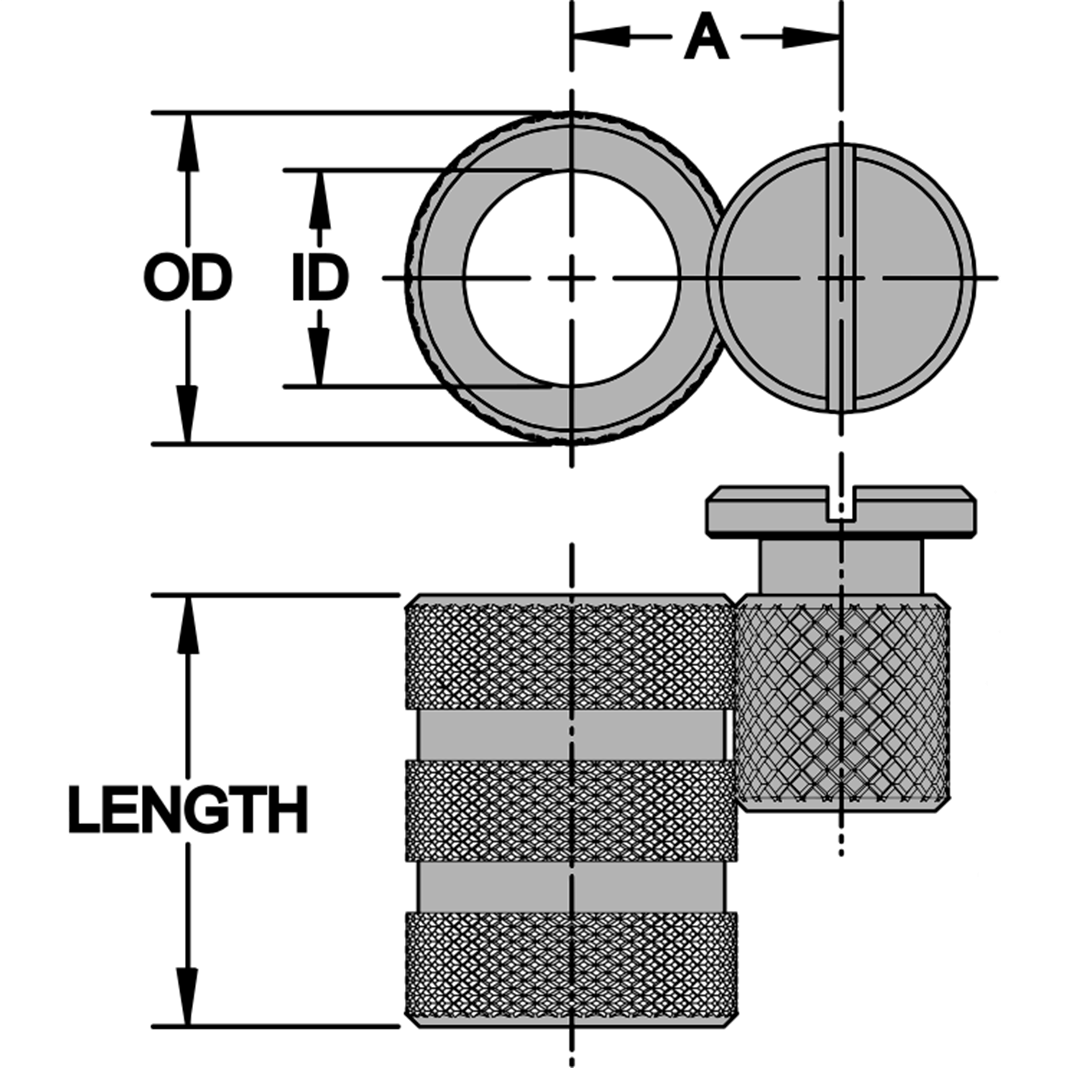

PART NO.	ID	OD	LENGTH	A
EZ-32-8	5/16	1/2	1/2	1/2
EZ-32-12	5/16	1/2	3/4	1/2
EZ-32-16	5/16	1/2	1	1/2
EZ-48-8	1/2	3/4	1/2	5/8
EZ-48-12	1/2	3/4	3/4	5/8
EZ-48-16	1/2	3/4	1	5/8
EZ-48-22	1/2	3/4	1-3/8	5/8
EZ-64-8	3/4	1	1/2	3/4
EZ-64-12	3/4	1	3/4	3/4
EZ-64-16	3/4	1	1	3/4
EZ-64-22	3/4	1	1-3/8	3/4
EZ-88-12	1	1-3/8	3/4	59/64
EZ-88-16	1	1-3/8	1	59/64
EZ-88-22	1	1-3/8	1-3/8	59/64
