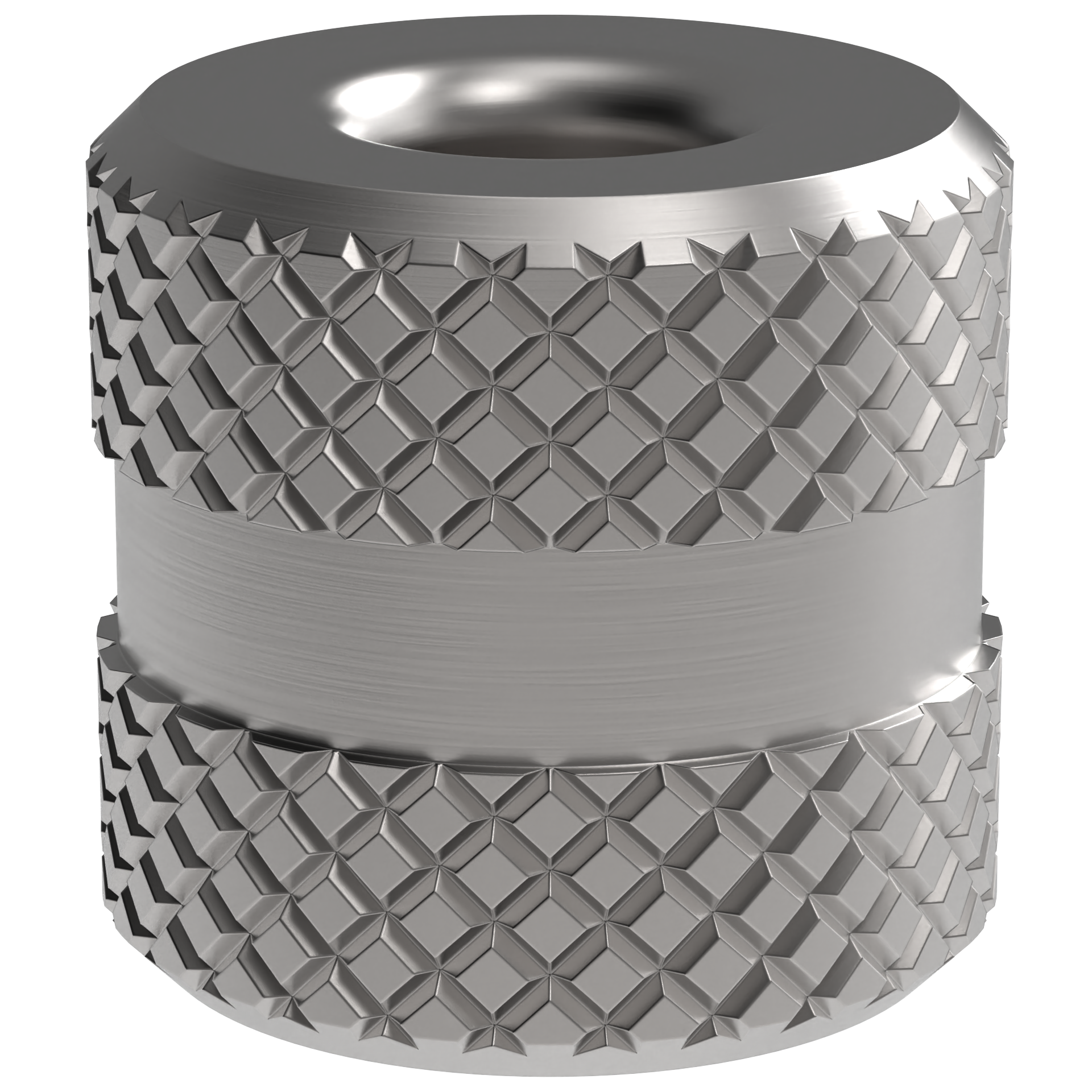

Diamond-Groove Bushings – Metric (DGM)

Metric version of our popular DG bushings, designed for cast-in-place or potted installation. Diamond-knurled OD provides excellent holding strength against both rotational and axial forces. Since the bushing's OD is not ground, the ID must be accurately located during casting or potting to ensure accuracy in the finished tool.

Complete part numbers for all standard DGM bushings (all standard ID, OD, and length combinations) are listed in the tables below.

Application Information

DGM Bushings are designed for cast-in-place or potted installation. Diamond-knurled OD provides excellent holding strength against both rotational and axial forces.

ID Tolerance

Standard ID Tolerance (G6):

From .35 to 3mm +.002/+.008mm

Over 3 to 6mm +.004/+.012mm

Over 6 to 10mm +.005/+.014mm

Over 10 to 18mm +.006/+.017mm

Over 18 to 30mm +.007/+.020mm

Reamer ID Tolerance (F6) (Special):

From 1 to 3mm +.006/+.012mm

Over 3 to 6mm +.010/+.018mm

Over 6 to 10mm +.013/+.022mm

Over 10 to 18mm +.016/+.027mm

Over 18 to 30mm +.020/+.033mm

Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:

DGM-8-12-4.50-REAMER (Special)

OD Tolerance

Standard OD Tolerance:

5mm +.50/+.25

6 to 22mm +.65/+.25

26mm +.90/+.25

Counterbore on Small Drill Sizes

Metric bushings with small drill sizes through .80mm are counterbored 1.00mm diameter with 3mm drill-bearing length, according to ANSI standards, to eliminate binding and heat buildup.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order

Diamond-Groove Bushings – Metric (DGM)

5mm OD

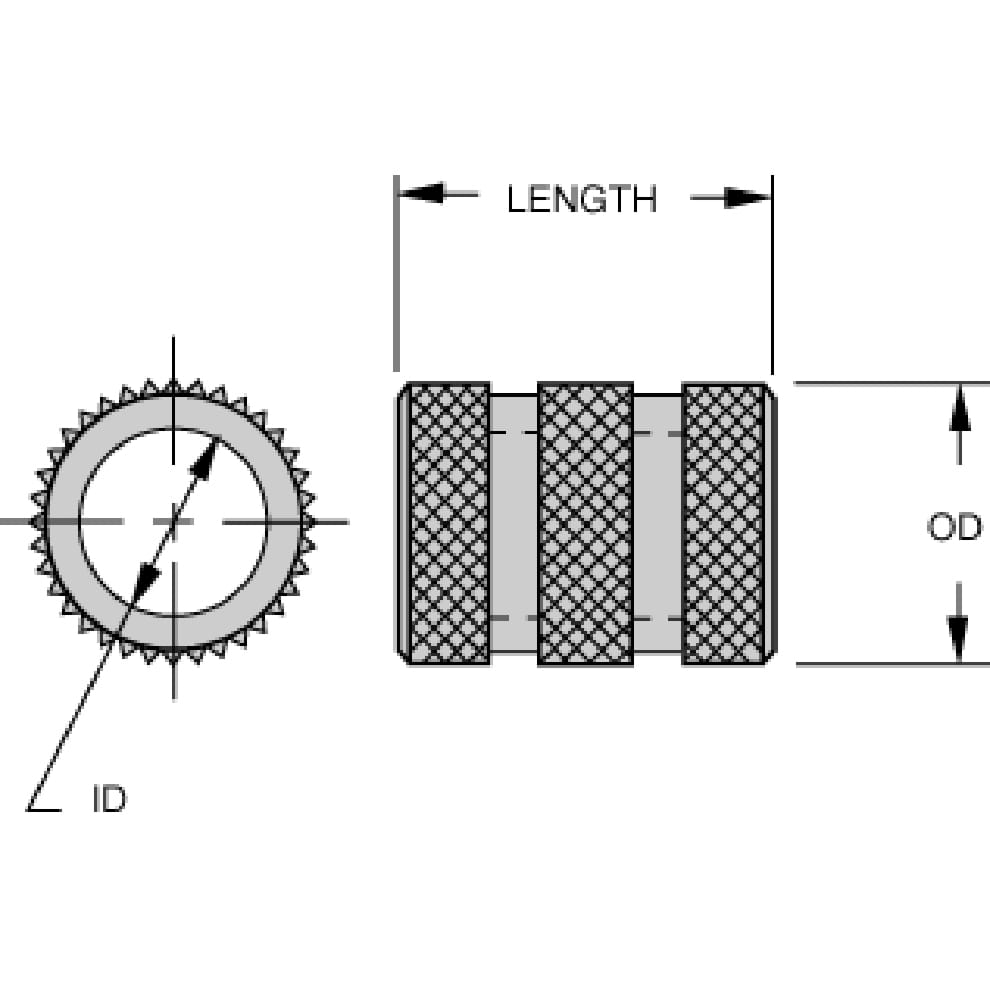

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-5-6-1.00	1.00	5	6
	DGM-5-9-1.00	1.00	5	9
	DGM-5-6-1.05	1.05	5	6
	DGM-5-9-1.05	1.05	5	9
	DGM-5-6-1.10	1.10	5	6
	DGM-5-9-1.10	1.10	5	9
	DGM-5-6-1.15	1.15	5	6
	DGM-5-9-1.15	1.15	5	9
	DGM-5-6-1.20	1.20	5	6
	DGM-5-9-1.20	1.20	5	9
	DGM-5-6-1.25	1.25	5	6
	DGM-5-9-1.25	1.25	5	9
	DGM-5-6-1.30	1.30	5	6
	DGM-5-9-1.30	1.30	5	9
	DGM-5-6-1.35	1.35	5	6
	DGM-5-9-1.35	1.35	5	9
	DGM-5-6-1.40	1.40	5	6
	DGM-5-9-1.40	1.40	5	9
	DGM-5-6-1.45	1.45	5	6
	DGM-5-9-1.45	1.45	5	9
	DGM-5-6-1.50	1.50	5	6
	DGM-5-9-1.50	1.50	5	9
	DGM-5-6-1.55	1.55	5	6
	DGM-5-9-1.55	1.55	5	9
	DGM-5-6-1.60	1.60	5	6
	DGM-5-9-1.60	1.60	5	9
	DGM-5-6-1.65	1.65	5	6
	DGM-5-9-1.65	1.65	5	9
	DGM-5-6-1.70	1.70	5	6
	DGM-5-9-1.70	1.70	5	9
	DGM-5-6-1.75	1.75	5	6
	DGM-5-9-1.75	1.75	5	9
	DGM-5-6-1.80	1.80	5	6
	DGM-5-9-1.80	1.80	5	9
	DGM-5-6-1.85	1.85	5	6
	DGM-5-9-1.85	1.85	5	9
	DGM-5-6-1.90	1.90	5	6
	DGM-5-9-1.90	1.90	5	9
	DGM-5-6-1.95	1.95	5	6
	DGM-5-9-1.95	1.95	5	9
	DGM-5-6-2.00	2.00	5	6
	DGM-5-9-2.00	2.00	5	9
	DGM-5-6-2.05	2.05	5	6
	DGM-5-9-2.05	2.05	5	9
	DGM-5-6-2.10	2.10	5	6
	DGM-5-9-2.10	2.10	5	9
	DGM-5-6-2.15	2.15	5	6
	DGM-5-9-2.15	2.15	5	9
	DGM-5-6-2.20	2.20	5	6
	DGM-5-9-2.20	2.20	5	9
	DGM-5-6-2.25	2.25	5	6
	DGM-5-9-2.25	2.25	5	9
	DGM-5-6-2.30	2.30	5	6
	DGM-5-9-2.30	2.30	5	9
	DGM-5-6-2.35	2.35	5	6
	DGM-5-9-2.35	2.35	5	9
	DGM-5-6-2.40	2.40	5	6
	DGM-5-9-2.40	2.40	5	9
	DGM-5-6-2.45	2.45	5	6
	DGM-5-9-2.45	2.45	5	9
	DGM-5-6-2.50	2.50	5	6
	DGM-5-9-2.50	2.50	5	9
	DGM-5-6-2.55	2.55	5	6
	DGM-5-9-2.55	2.55	5	9
	DGM-5-6-2.60	2.60	5	6
	DGM-5-9-2.60	2.60	5	9

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

6mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-6-8-2.65	2.65	6	8
	DGM-6-12-2.65	2.65	6	12
	DGM-6-16-2.65	2.65	6	16
	DGM-6-8-2.70	2.70	6	8
	DGM-6-12-2.70	2.70	6	12
	DGM-6-16-2.70	2.70	6	16
	DGM-6-8-2.75	2.75	6	8
	DGM-6-12-2.75	2.75	6	12
	DGM-6-16-2.75	2.75	6	16
	DGM-6-8-2.80	2.80	6	8
	DGM-6-12-2.80	2.80	6	12
	DGM-6-16-2.80	2.80	6	16
	DGM-6-8-2.90	2.90	6	8
	DGM-6-12-2.90	2.90	6	12
	DGM-6-16-2.90	2.90	6	16
	DGM-6-8-3.00	3.00	6	8
	DGM-6-12-3.00	3.00	6	12
	DGM-6-16-3.00	3.00	6	16
	DGM-6-8-3.10	3.10	6	8
	DGM-6-12-3.10	3.10	6	12
	DGM-6-16-3.10	3.10	6	16
	DGM-6-8-3.20	3.20	6	8
	DGM-6-12-3.20	3.20	6	12
	DGM-6-16-3.20	3.20	6	16
	DGM-6-8-3.25	3.25	6	8
	DGM-6-12-3.25	3.25	6	12
	DGM-6-16-3.25	3.25	6	16
	DGM-6-8-3.30	3.30	6	8
	DGM-6-12-3.30	3.30	6	12
	DGM-6-16-3.30	3.30	6	16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

7mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-7-8-3.40	3.40	7	8
	DGM-7-12-3.40	3.40	7	12
	DGM-7-16-3.40	3.40	7	16
	DGM-7-8-3.50	3.50	7	8
	DGM-7-12-3.50	3.50	7	12
	DGM-7-16-3.50	3.50	7	16
	DGM-7-8-3.60	3.60	7	8
	DGM-7-12-3.60	3.60	7	12
	DGM-7-16-3.60	3.60	7	16
	DGM-7-8-3.70	3.70	7	8
	DGM-7-12-3.70	3.70	7	12
	DGM-7-16-3.70	3.70	7	16
	DGM-7-8-3.75	3.75	7	8
	DGM-7-12-3.75	3.75	7	12
	DGM-7-16-3.75	3.75	7	16
	DGM-7-8-3.80	3.80	7	8
	DGM-7-12-3.80	3.80	7	12
	DGM-7-16-3.80	3.80	7	16
	DGM-7-8-3.90	3.90	7	8
	DGM-7-12-3.90	3.90	7	12
	DGM-7-16-3.90	3.90	7	16
	DGM-7-8-4.00	4.00	7	8
	DGM-7-12-4.00	4.00	7	12
	DGM-7-16-4.00	4.00	7	16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

8mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-8-8-4.10	4.10	8	8
	DGM-8-12-4.10	4.10	8	12
	DGM-8-16-4.10	4.10	8	16
	DGM-8-8-4.20	4.20	8	8
	DGM-8-12-4.20	4.20	8	12
	DGM-8-16-4.20	4.20	8	16
	DGM-8-8-4.25	4.25	8	8
	DGM-8-12-4.25	4.25	8	12
	DGM-8-16-4.25	4.25	8	16
	DGM-8-8-4.30	4.30	8	8
	DGM-8-12-4.30	4.30	8	12
	DGM-8-16-4.30	4.30	8	16
	DGM-8-8-4.40	4.40	8	8
	DGM-8-12-4.40	4.40	8	12
	DGM-8-16-4.40	4.40	8	16
	DGM-8-8-4.50	4.50	8	8
	DGM-8-12-4.50	4.50	8	12
	DGM-8-16-4.50	4.50	8	16
	DGM-8-8-4.60	4.60	8	8
	DGM-8-12-4.60	4.60	8	12
	DGM-8-16-4.60	4.60	8	16
	DGM-8-8-4.70	4.70	8	8
	DGM-8-12-4.70	4.70	8	12
	DGM-8-16-4.70	4.70	8	16
	DGM-8-8-4.75	4.75	8	8
	DGM-8-12-4.75	4.75	8	12
	DGM-8-16-4.75	4.75	8	16
	DGM-8-8-4.90	4.90	8	8
	DGM-8-12-4.90	4.90	8	12
	DGM-8-16-4.90	4.90	8	16
	DGM-8-8-5.00	5.00	8	8
	DGM-8-12-5.00	5.00	8	12
	DGM-8-16-5.00	5.00	8	16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

10mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-10-10-5.10	5.10	10	10
	DGM-10-16-5.10	5.10	10	16
	DGM-10-20-5.10	5.10	10	20
	DGM-10-10-5.20	5.20	10	10
	DGM-10-16-5.20	5.20	10	16
	DGM-10-20-5.20	5.20	10	20
	DGM-10-10-5.25	5.25	10	10
	DGM-10-16-5.25	5.25	10	16
	DGM-10-20-5.25	5.25	10	20
	DGM-10-10-5.30	5.30	10	10
	DGM-10-16-5.30	5.30	10	16
	DGM-10-20-5.30	5.30	10	20
	DGM-10-10-5.40	5.40	10	10
	DGM-10-16-5.40	5.40	10	16
	DGM-10-20-5.40	5.40	10	20
	DGM-10-10-5.50	5.50	10	10
	DGM-10-16-5.50	5.50	10	16
	DGM-10-20-5.50	5.50	10	20
	DGM-10-10-5.60	5.60	10	10
	DGM-10-16-5.60	5.60	10	16
	DGM-10-20-5.60	5.60	10	20
	DGM-10-10-5.70	5.70	10	10
	DGM-10-16-5.70	5.70	10	16
	DGM-10-20-5.70	5.70	10	20
	DGM-10-10-5.75	5.75	10	10
	DGM-10-16-5.75	5.75	10	16
	DGM-10-20-5.75	5.75	10	20
	DGM-10-10-5.80	5.80	10	10
	DGM-10-16-5.80	5.80	10	16
	DGM-10-20-5.80	5.80	10	20
	DGM-10-10-5.90	5.90	10	10
	DGM-10-16-5.90	5.90	10	16
	DGM-10-20-5.90	5.90	10	20
	DGM-10-10-6.00	6.00	10	10
	DGM-10-16-6.00	6.00	10	16
	DGM-10-20-6.00	6.00	10	20

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

12mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-12-10-6.10	6.10	12	10
	DGM-12-16-6.10	6.10	12	16
	DGM-12-20-6.10	6.10	12	20
	DGM-12-10-6.20	6.20	12	10
	DGM-12-16-6.20	6.20	12	16
	DGM-12-20-6.20	6.20	12	20
	DGM-12-10-6.25	6.25	12	10
	DGM-12-16-6.25	6.25	12	16
	DGM-12-20-6.25	6.25	12	20
	DGM-12-10-6.30	6.30	12	10
	DGM-12-16-6.30	6.30	12	16
	DGM-12-20-6.30	6.30	12	20
	DGM-12-10-6.40	6.40	12	10
	DGM-12-16-6.40	6.40	12	16
	DGM-12-20-6.40	6.40	12	20
	DGM-12-10-6.50	6.50	12	10
	DGM-12-16-6.50	6.50	12	16
	DGM-12-20-6.50	6.50	12	20
	DGM-12-10-6.60	6.60	12	10
	DGM-12-16-6.60	6.60	12	16
	DGM-12-20-6.60	6.60	12	20
	DGM-12-10-6.70	6.70	12	10
	DGM-12-16-6.70	6.70	12	16
	DGM-12-20-6.70	6.70	12	20
	DGM-12-10-6.75	6.75	12	10
	DGM-12-16-6.75	6.75	12	16
	DGM-12-20-6.75	6.75	12	20
	DGM-12-10-6.80	6.80	12	10
	DGM-12-16-6.80	6.80	12	16
	DGM-12-20-6.80	6.80	12	20
	DGM-12-10-6.90	6.90	12	10
	DGM-12-16-6.90	6.90	12	16
	DGM-12-20-6.90	6.90	12	20
	DGM-12-10-7.00	7.00	12	10
	DGM-12-16-7.00	7.00	12	16
	DGM-12-20-7.00	7.00	12	20
	DGM-12-10-7.10	7.10	12	10
	DGM-12-16-7.10	7.10	12	16
	DGM-12-20-7.10	7.10	12	20
	DGM-12-10-7.20	7.20	12	10
	DGM-12-16-7.20	7.20	12	16
	DGM-12-20-7.20	7.20	12	20
	DGM-12-10-7.25	7.25	12	10
	DGM-12-16-7.25	7.25	12	16
	DGM-12-20-7.25	7.25	12	20
	DGM-12-10-7.30	7.30	12	10
	DGM-12-16-7.30	7.30	12	16
	DGM-12-20-7.30	7.30	12	20
	DGM-12-10-7.40	7.40	12	10
	DGM-12-16-7.40	7.40	12	16
	DGM-12-20-7.40	7.40	12	20
	DGM-12-10-7.50	7.50	12	10
	DGM-12-16-7.50	7.50	12	16
	DGM-12-20-7.50	7.50	12	20
	DGM-12-10-7.60	7.60	12	10
	DGM-12-16-7.60	7.60	12	16
	DGM-12-20-7.60	7.60	12	20
	DGM-12-10-7.70	7.70	12	10
	DGM-12-16-7.70	7.70	12	16
	DGM-12-20-7.70	7.70	12	20
	DGM-12-10-7.75	7.75	12	10
	DGM-12-16-7.75	7.75	12	16
	DGM-12-20-7.75	7.75	12	20
	DGM-12-10-7.80	7.80	12	10
	DGM-12-16-7.80	7.80	12	16
	DGM-12-20-7.80	7.80	12	20
	DGM-12-10-7.90	7.90	12	10
	DGM-12-16-7.90	7.90	12	16
	DGM-12-20-7.90	7.90	12	20
	DGM-12-10-8.00	8.00	12	10
	DGM-12-16-8.00	8.00	12	16
	DGM-12-20-8.00	8.00	12	20

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

15mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-15-12-8.10	8.10	15	12
	DGM-15-20-8.10	8.10	15	20
	DGM-15-25-8.10	8.10	15	25
	DGM-15-12-8.20	8.20	15	12
	DGM-15-20-8.20	8.20	15	20
	DGM-15-25-8.20	8.20	15	25
	DGM-15-12-8.25	8.25	15	12
	DGM-15-20-8.25	8.25	15	20
	DGM-15-25-8.25	8.25	15	25
	DGM-15-12-8.30	8.30	15	12
	DGM-15-20-8.30	8.30	15	20
	DGM-15-25-8.30	8.30	15	25
	DGM-15-12-8.40	8.40	15	12
	DGM-15-20-8.40	8.40	15	20
	DGM-15-25-8.40	8.40	15	25
	DGM-15-12-8.50	8.50	15	12
	DGM-15-20-8.50	8.50	15	20
	DGM-15-25-8.50	8.50	15	25
	DGM-15-12-8.60	8.60	15	12
	DGM-15-20-8.60	8.60	15	20
	DGM-15-25-8.60	8.60	15	25
	DGM-15-12-8.70	8.70	15	12
	DGM-15-20-8.70	8.70	15	20
	DGM-15-25-8.70	8.70	15	25
	DGM-15-12-8.75	8.75	15	12
	DGM-15-20-8.75	8.75	15	20
	DGM-15-25-8.75	8.75	15	25
	DGM-15-12-8.80	8.80	15	12
	DGM-15-20-8.80	8.80	15	20
	DGM-15-25-8.80	8.80	15	25
	DGM-15-12-8.90	8.90	15	12
	DGM-15-20-8.90	8.90	15	20
	DGM-15-25-8.90	8.90	15	25
	DGM-15-12-9.00	9.00	15	12
	DGM-15-20-9.00	9.00	15	20
	DGM-15-25-9.00	9.00	15	25
	DGM-15-12-9.10	9.10	15	12
	DGM-15-20-9.10	9.10	15	20
	DGM-15-25-9.10	9.10	15	25
	DGM-15-12-9.20	9.20	15	12
	DGM-15-20-9.20	9.20	15	20
	DGM-15-25-9.20	9.20	15	25
	DGM-15-12-9.25	9.25	15	12
	DGM-15-20-9.25	9.25	15	20
	DGM-15-25-9.25	9.25	15	25
	DGM-15-12-9.30	9.30	15	12
	DGM-15-20-9.30	9.30	15	20
	DGM-15-25-9.30	9.30	15	25
	DGM-15-12-9.40	9.40	15	12
	DGM-15-20-9.40	9.40	15	20
	DGM-15-25-9.40	9.40	15	25
	DGM-15-12-9.50	9.50	15	12
	DGM-15-20-9.50	9.50	15	20
	DGM-15-25-9.50	9.50	15	25
	DGM-15-12-9.60	9.60	15	12
	DGM-15-20-9.60	9.60	15	20
	DGM-15-25-9.60	9.60	15	25
	DGM-15-12-9.70	9.70	15	12
	DGM-15-20-9.70	9.70	15	20
	DGM-15-25-9.70	9.70	15	25
	DGM-15-12-9.75	9.75	15	12
	DGM-15-20-9.75	9.75	15	20
	DGM-15-25-9.75	9.75	15	25
	DGM-15-12-9.80	9.80	15	12
	DGM-15-20-9.80	9.80	15	20
	DGM-15-25-9.80	9.80	15	25
	DGM-15-12-9.90	9.90	15	12
	DGM-15-20-9.90	9.90	15	20
	DGM-15-25-9.90	9.90	15	25
	DGM-15-12-10.00	10.00	15	12
	DGM-15-20-10.00	10.00	15	20
	DGM-15-25-10.00	10.00	15	25

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

18mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-18-12-10.20	10.20	18	12
	DGM-18-20-10.20	10.20	18	20
	DGM-18-25-10.20	10.20	18	25
	DGM-18-12-10.50	10.50	18	12
	DGM-18-20-10.50	10.50	18	20
	DGM-18-25-10.50	10.50	18	25
	DGM-18-12-10.80	10.80	18	12
	DGM-18-20-10.80	10.80	18	20
	DGM-18-25-10.80	10.80	18	25
	DGM-18-12-11.00	11.00	18	12
	DGM-18-20-11.00	11.00	18	20
	DGM-18-25-11.00	11.00	18	25
	DGM-18-12-11.20	11.20	18	12
	DGM-18-20-11.20	11.20	18	20
	DGM-18-25-11.20	11.20	18	25
	DGM-18-12-11.50	11.50	18	12
	DGM-18-20-11.50	11.50	18	20
	DGM-18-25-11.50	11.50	18	25
	DGM-18-12-11.80	11.80	18	12
	DGM-18-20-11.80	11.80	18	20
	DGM-18-25-11.80	11.80	18	25
	DGM-18-12-12.00	12.00	18	12
	DGM-18-20-12.00	12.00	18	20
	DGM-18-25-12.00	12.00	18	25

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

22mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-22-16-12.20	12.20	22	16
	DGM-22-28-12.20	12.20	22	28
	DGM-22-36-12.20	12.20	22	36
	DGM-22-16-12.50	12.50	22	16
	DGM-22-28-12.50	12.50	22	28
	DGM-22-36-12.50	12.50	22	36
	DGM-22-16-13.00	13.00	22	16
	DGM-22-28-13.00	13.00	22	28
	DGM-22-36-13.00	13.00	22	36
	DGM-22-16-13.50	13.50	22	16
	DGM-22-28-13.50	13.50	22	28
	DGM-22-36-13.50	13.50	22	36
	DGM-22-16-14.00	14.00	22	16
	DGM-22-28-14.00	14.00	22	28
	DGM-22-36-14.00	14.00	22	36
	DGM-22-16-14.50	14.50	22	16
	DGM-22-28-14.50	14.50	22	28
	DGM-22-36-14.50	14.50	22	36
	DGM-22-16-15.00	15.00	22	16
	DGM-22-28-15.00	15.00	22	28
	DGM-22-36-15.00	15.00	22	36

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

26mm OD

QUANTITY	PART NO.	ID (mm)	OD (mm)	LENGTH (mm)
	DGM-26-16-15.50	15.50	26	16
	DGM-26-28-15.50	15.50	26	28
	DGM-26-36-15.50	15.50	26	36
	DGM-26-16-16.00	16.00	26	16
	DGM-26-28-16.00	16.00	26	28
	DGM-26-36-16.00	16.00	26	36
	DGM-26-16-16.50	16.50	26	16
	DGM-26-28-16.50	16.50	26	28
	DGM-26-36-16.50	16.50	26	36
	DGM-26-16-17.00	17.00	26	16
	DGM-26-28-17.00	17.00	26	28
	DGM-26-36-17.00	17.00	26	36
	DGM-26-16-17.50	17.50	26	16
	DGM-26-28-17.50	17.50	26	28
	DGM-26-36-17.50	17.50	26	36
	DGM-26-16-18.00	18.00	26	16
	DGM-26-28-18.00	18.00	26	28
	DGM-26-36-18.00	18.00	26	36

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Was this page helpful?

Catalog Feedback

Name

Email

Comments

I would like to receive occasional news and product updates from Carr Lane Manufacturing.
