Quick-Change Bushing Handles

Drill Bushings

Save to My Project

What is this?

Product Information

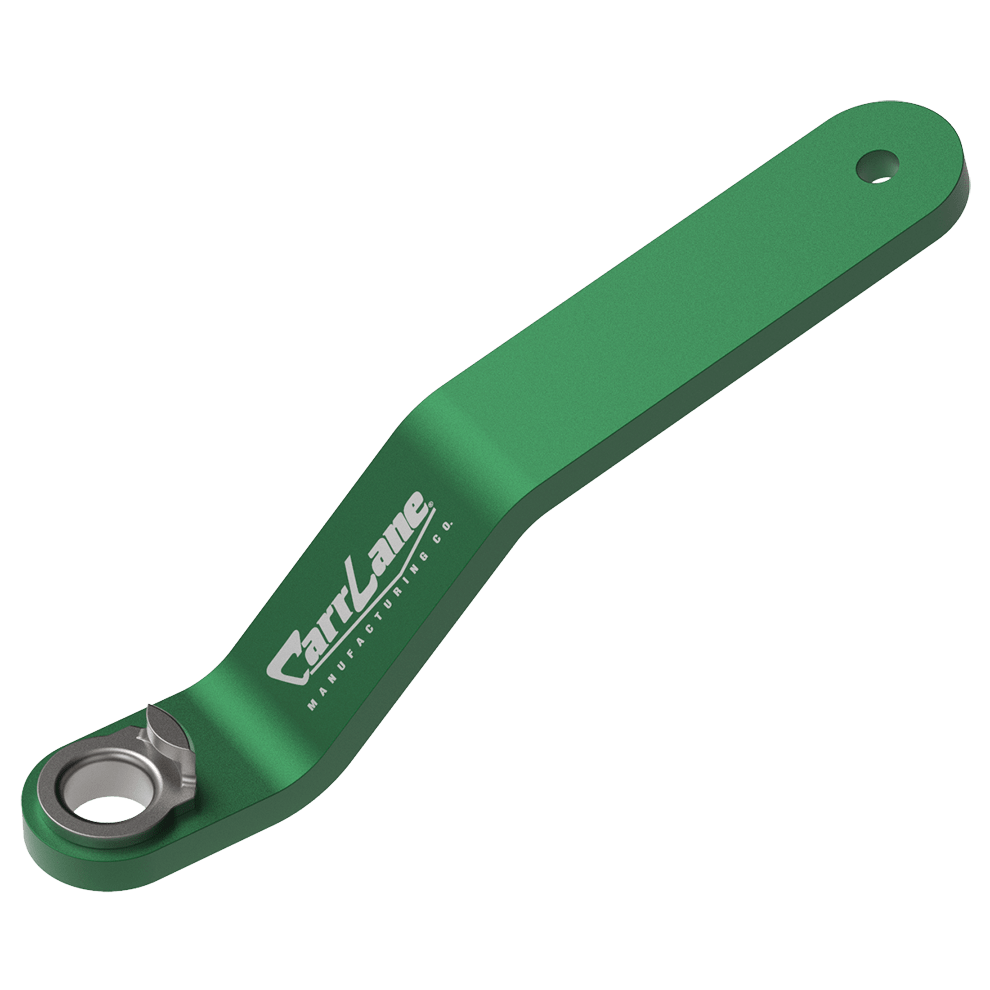

Quick-Change Bushing Handles Part # CL-12-BHQC Carr Lane Mfg.®

New item!

Quick-Change Bushing Handles are ready to hold any Slip/Fixed Renewable Drill Bushing in a choice of three OD sizes – 3/16, 5/16, or 1/2”. These comfortable, high-quality handles provide convenient handling and extra support when using a portable drill motor. A Un-A-Lok liner bushing permanently installed in the handle provides excellent wear resistance and quick bushing changes. The handle is provided with a hole in the end for cable attachment. Carr Lane Quick-Change Bushing Handles are proudly made in the USA and are designed to improve quality and efficiency for your tooling applications.

US Patent# US11,833,647

Original Patent# US11,235,450

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handle	Aluminum	-	Anodized	✔	✔
Un-A-Lok Liner	1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Quick-Change Bushing Handles

QUANTITY	PART NO.	FOR SF BUSHING OD SIZE
	CL-12-BHQC	3/16
	CL-20-BHQC	5/16
	CL-32-BHQC	1/2
