Permanent Bushing Handles

Drill Bushings

Save to My Project

What is this?

Product Information

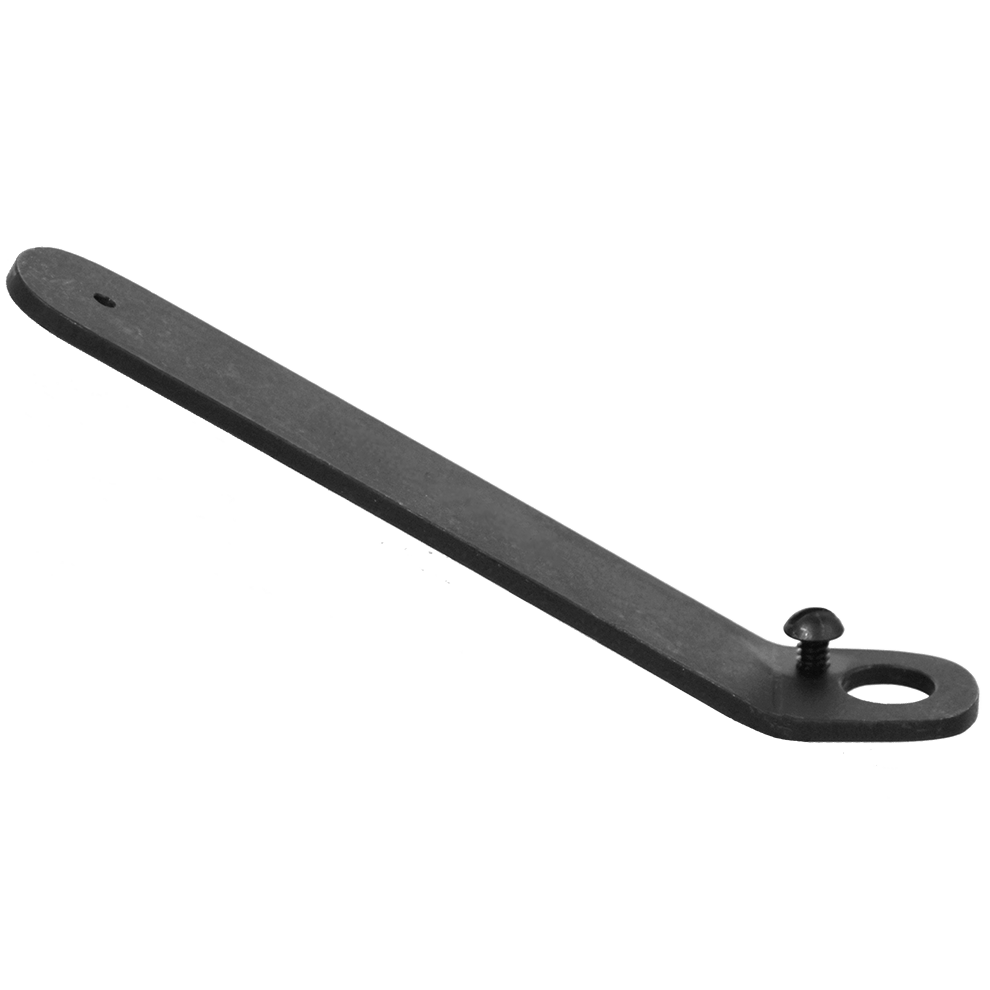

Permanent Bushing Handles Part # CL-32-BH Carr Lane Mfg.®

New item!

Permanent Bushing Handles are designed for one-time installation of a size OD 5/16 – 1/2” Slip/Fixed Bushing directly into the steel handle, where it is fastened with a tamper-resistant one-way screw to create a permanent assembly. The permanent bushings handle also has a tapped hole for accurate drilling without the need for a rigid fixture. Carr Lane Permanent handle bushings are lightweight and have a functional design that facilitates efficient drilling in difficult to reach applications. Permanent bushing handles manufactured by Carr Lane are proudly made in the USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Handle	Mild Steel	-	Black Oxide	✔	✔
Look Screw	Mild Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Permanent Bushing Handles

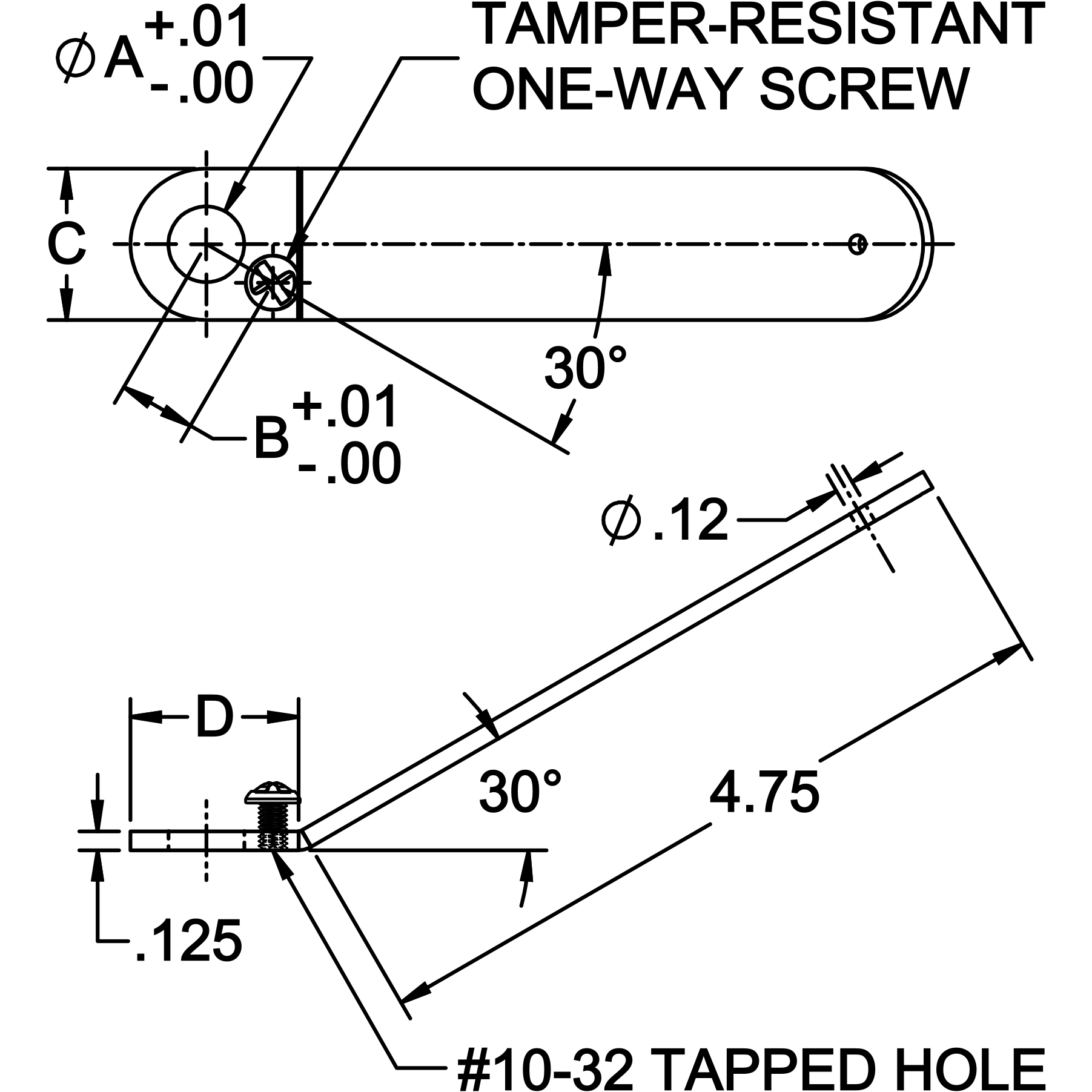

PART NO.	FOR SF BUSHING OD SIZE	A DIA	B	C	D
CL-20-BH	5/16	.313	.383	1	1.12
CL-32-BH	1/2	.501	.508	1	1.12
CL-48-BH	3/4	.751	.633	1	1.12
