Air-Feed-Drill Bushings – Coolant Type (24000 Series)

Drill Bushings

Product Information

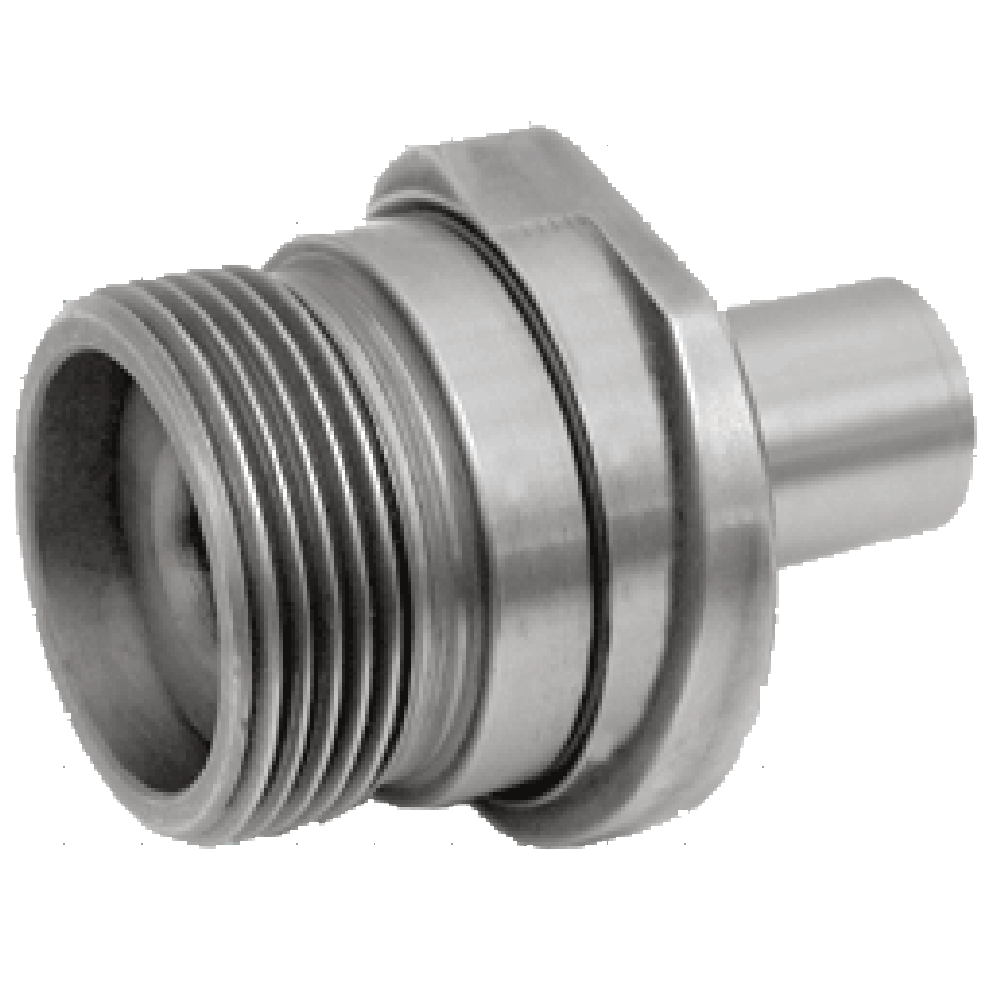

Air-Feed-Drill Bushings – Coolant Type (24000 Series) Part # 14529 Carr Lane Mfg.®

For coolant-inducing air-feed drills, we offer these special shanks, collars, and reducers with internal coolant passages. The coolant-type 24000-series bushings shown here (numbered as 14000 series for coolant type) have 1-1/2"-12 mounting threads. This series is available in seven OD sizes to fit drill diameters from .3125" to .9375". Preferred sizes can be mounted by any method, including the use of Lock Liners, while other sizes have limited mounting options.

5/8" OD

3/4" OD

7/8" OD

1" OD

1-1/8" OD (Preferred size)

1-1/4" OD

1-1/2" OD (Preferred size)

All coolant-type bushings are manufactured to order. To order a specific bushing, select the basic part number below and add the desired ID drill size (as a 4-place decimal inch). See Technical Information tab for Standard Drill Sizes.

Example part numbers:

A-14606-.5000 Adaptor-tip assembly,coolant type, 1/2" ID

14606-.5000 Shank only, coolant type 1/2" ID

14000 Collar only, coolant type

Technical Information

Click here for Standard Drill Sizes

Application Information

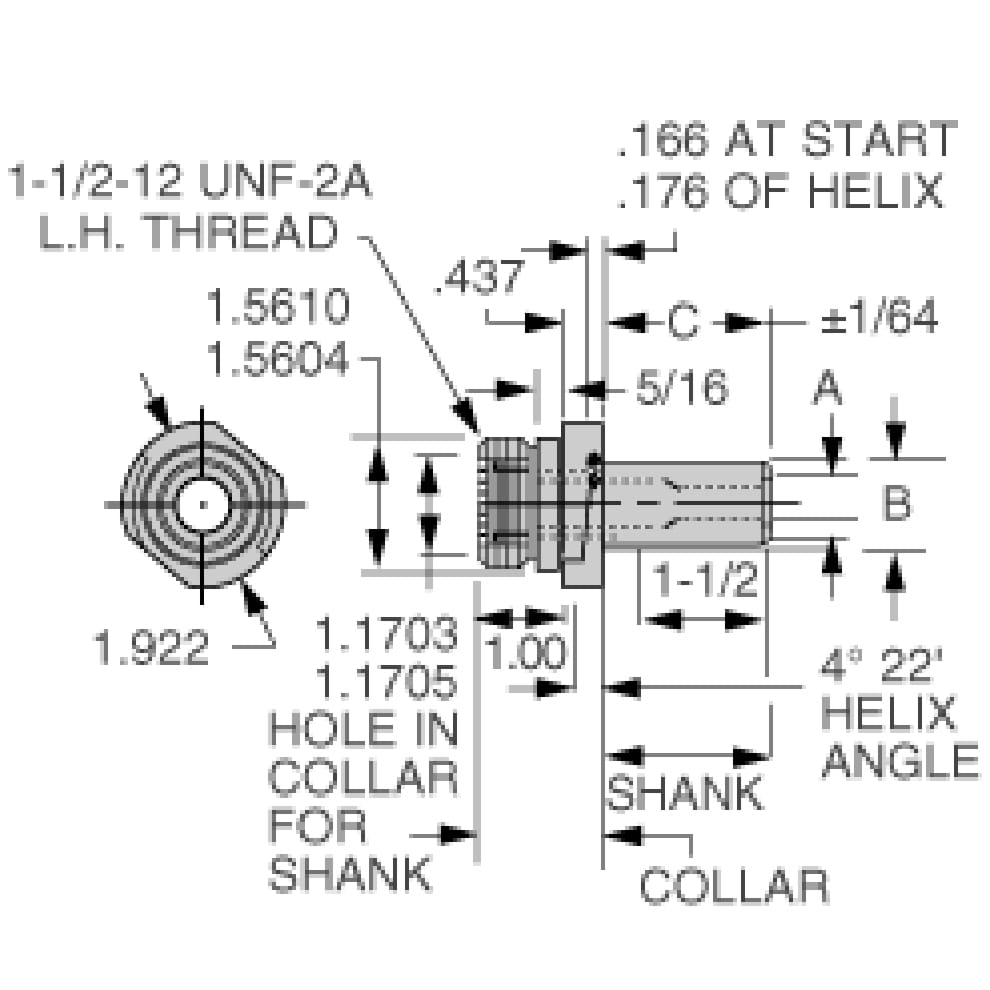

Adaptor-Tip Assemblies are two-piece drill bushings that consist of a precision Shank press-fitted into a threaded Collar.

The coolant-type bushings shown here are for coolant-inducing air-feed drills. All shanks, collars, and reducers have internal coolant passages.

Accessories

Lock Liner
PART NO.	SHANK OD	MATCHING ADAPTOR-TIP ASSEMBLY
-	5/8	-
-	3/4	-
-	7/8	-
-	1	-
A-16525	1-1/8	A-24615
-	1-1/4	-
A-16526	1-1/2	A-24815

Taper-Lok Lock Liner
PART NO.	SHANK OD	MATCHING ADAPTOR-TIP ASSEMBLY
-	5/8	-
-	3/4	-
-	7/8	-
-	1	-
TLL-16525	1-1/8	A-16505
-	1-1/4	-
TLL-16526	1-1/2	A-16506

Lock Nut
PART NO.	SHANK OD
-	5/8
-	3/4
-	7/8
-	1
14446	1-1/8
-	1-1/4
14447	1-1/2

Liner
PART NO.	SHANK OD
19947	5/8
19949	3/4
19950	7/8
19951	1
19946	1-1/8
19952	1-1/4
-	1-1/2

Lockscrew
PART NO.	SHANK OD
16532	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2

Taper-Lok Air-Feed Lockscrew
PART NO.	SHANK OD
CL-11-AFL	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2
CL-13-AFL	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2
CL-14-AFL	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2

Lockstrip
PART NO.	SHANK OD
LSM-12	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2
LSM-24	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2
LSM-36	5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2

ID Tolerance

Standard ID Tolerance:

From #70 to 1/4" +.0001/+.0004

Over 1/4 to 3/4" +.0001/+.0005

Over 3/4 to 1-1/2" +.0002/+.0006

Reamer ID Tolerance (Special):

From #70 to 1/4" +.0005/+.0008

Over 1/4 to 3/4" +.0006/+.0010

Over 3/4 to 1-1/2" +.0008/+.0012

Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:

A-14606-.5000-REAMER (Special)

Optional Contour Nose

Diagram showcasing the application of Air Feed Drill Bushings Coolant Type 24000 Series

Angular nose on shank is ideal for drilling on sloped or curved surfaces. Available on standard and coolant-type shanks. Add "-C" suffix to part number:

A-14606-.5000-C Adaptor-tip assembly with contour nose, 1/2" ID

14606-.5000-C Shank only, with contour nose, 1/2" ID

14000 Collar only (standard)

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order
