Air-Feed-Drill Bushings – Standard (23000 Series)

Drill Bushings

Product Information

Air-Feed-Drill Bushings – Standard (23000 Series) Part # A-23220 Carr Lane Mfg.®

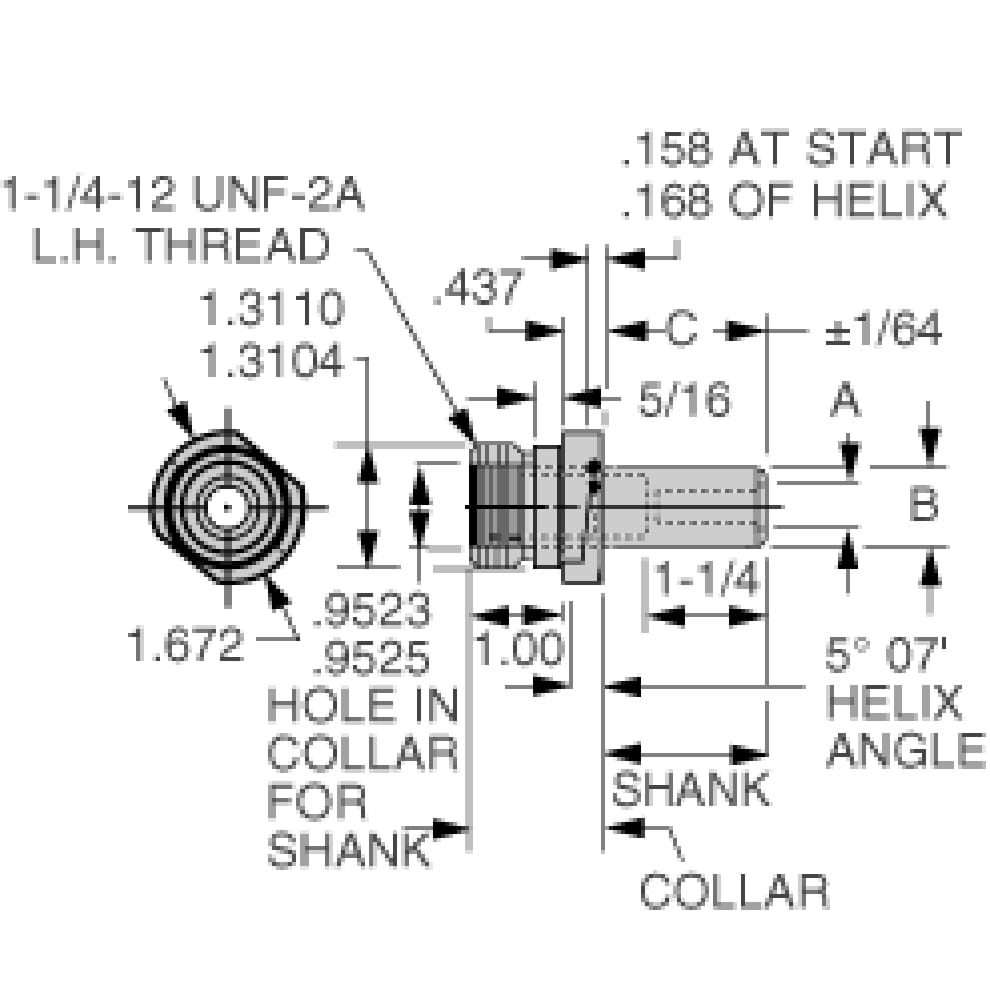

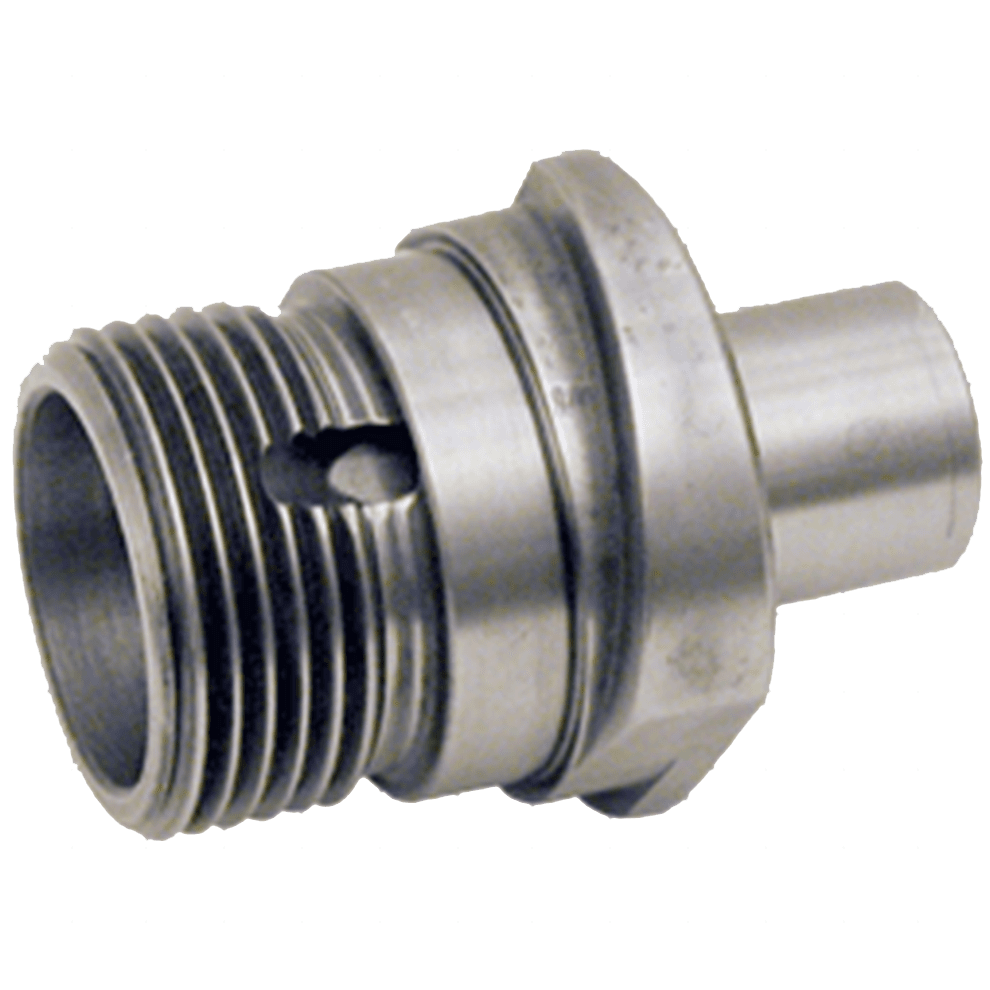

These bushing assemblies are designed for use with air-feed drills, tappers, and back-spotfacers. Adaptor-Tip Assemblies consist of two pieces: a locking collar and a pressed-in shank. The collar screws into the air-feed drill's nosepiece, precisely aligns the shank, and locks the drill in place when rotated 30° counterclockwise after insertion in the liner. Shanks and collars can be ordered separately.

The 23000-series bushings shown here have 1-1/4"-12 mounting threads. This series is available in five OD sizes to fit drill diameters from .2500" to .7188". Preferred sizes can be mounted by any method, including the use of Lock Liners, while other sizes have limited mounting options.

3/4" OD

13/16" OD

7/8" OD (Preferred size)

1" OD

1-1/8" OD (Preferred size)

To order a specific standard bushing, select the basic part number below and add the desired ID drill size (as a 4-place decimal inch) on the Price & Availability screen. See Technical Information tab for Standard Drill Sizes. Standard prices apply only to bushings with a standard inch, number, letter, or metric ID size within the stated range.

Example standard bushings:

A-23304-.3750 Adaptor-Tip Assembly, 3/8" ID

23304-.3750 Shank only, 3/8" ID

23000 Collar only

Technical Information

Click here for Standard Drill Sizes

Application Information

Adaptor-Tip Assemblies are two-piece drill bushings that consist of a precision Shank press-fitted into a threaded Collar.

Accessories

Lock Liner
PART NO.	SHANK OD	MATCHING ADAPTOR-TIP ASSEMBLY
-	3/4	-
-	13/16	-
A-16523	7/8	A-23310
-	1	-
A-16524	1-1/8	A-23515

Taper-Lok Lock Liner
PART NO.	SHANK OD	MATCHING ADAPTOR-TIP ASSEMBLY
-	3/4	-
-	13/16	-
TLL-16523	7/8	A-16504
-	1	-
TLL-16524	1-1/8	A-16504

Lock Nut
PART NO.	SHANK OD
-	3/4
-	13/16
14445	7/8
-	1
14446	1-1/8

Liner
PART NO.	SHANK OD
19942	3/4
19943	13/16
19944	7/8
19945	1
19946	1-1/8

Lockscrew
PART NO.	SHANK OD
16532	3/4, 13/16, 7/8, 1, 1-1/8

Taper-Lok Air-Feed Lockscrew
PART NO.	SHANK OD
CL-11-AFL	3/4, 13/16, 7/8, 1, 1-1/8
CL-13-AFL	3/4, 13/16, 7/8, 1, 1-1/8
CL-14-AFL	3/4, 13/16, 7/8, 1, 1-1/8

Lockstrip
PART NO.	SHANK OD
LSM-12	3/4, 13/16, 7/8, 1, 1-1/8
LSM-24	3/4, 13/16, 7/8, 1, 1-1/8
LSM-36	3/4, 13/16, 7/8, 1, 1-1/8

ID Tolerance

Standard ID Tolerance:

From #70 to 1/4" +.0001/+.0004

Over 1/4 to 3/4" +.0001/+.0005

Over 3/4 to 1-1/2" +.0002/+.0006

Reamer ID Tolerance (Special):

From #70 to 1/4" +.0005/+.0008

Over 1/4 to 3/4" +.0006/+.0010

Over 3/4 to 1-1/2" +.0008/+.0012

Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:

A-23304-.3750-REAMER (Special)

Optional Contour Nose

Diagram showcasing the application of Air Feed Drill Bushings Standard 23000 Series

Angular nose on shank is ideal for drilling on sloped or curved surfaces. Available on standard and coolant-type shanks. Add "-C" suffix to part number:

A-23304-.3750-C Adaptor-tip assembly with contour nose, 3/8" ID

23304-.3750-C Shank only, with contour nose, 3/8" ID

23000 Collar only (standard, no suffix)

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order
