Taper-Lok Air-Feed Lockscrews

Drill Bushings

Save to My Project

What is this?

Product Information

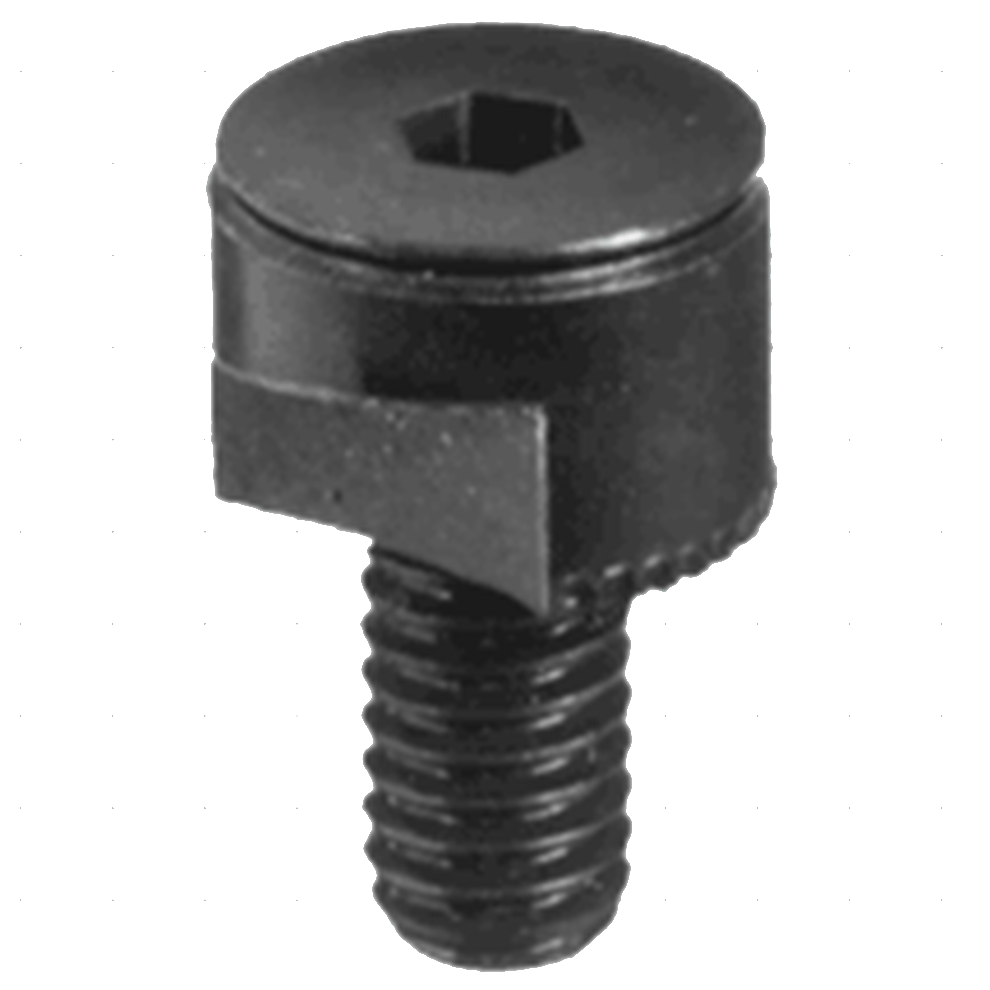

Taper-Lok Air-Feed Lockscrews Part # UT7104-3 Carr Lane Mfg.®

Two-piece Lockscrew, specially designed for air-feed drilling. Angled locking surface mates perfectly with an air-feed collar. Use instead of a standard Lockscrew for greater strength, to eliminate worn, bent, or broken screws. Install two Air-Feed Lockscrews and a liner directly in the jig plate. Serrations at the bottom bite into the jig plate to positively prevent rotation under heavy torque loads. Alloy steel mounting screw furnished. Available for 21000 through 25000 series air-feed drills. Patent No. 3,336,822.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Click here for Lockscrew and Lock Strip Mounting Dimensions

Application Information

Taper-Lok Air-Feed Lockscrews with Liner

Material

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ITEM	MATERIAL	HEAT TREAT	FINISH
Body	4140 steel	-	Black Oxide
Flat-Head Socket Screw	Alloy Steel	-	Black Oxide

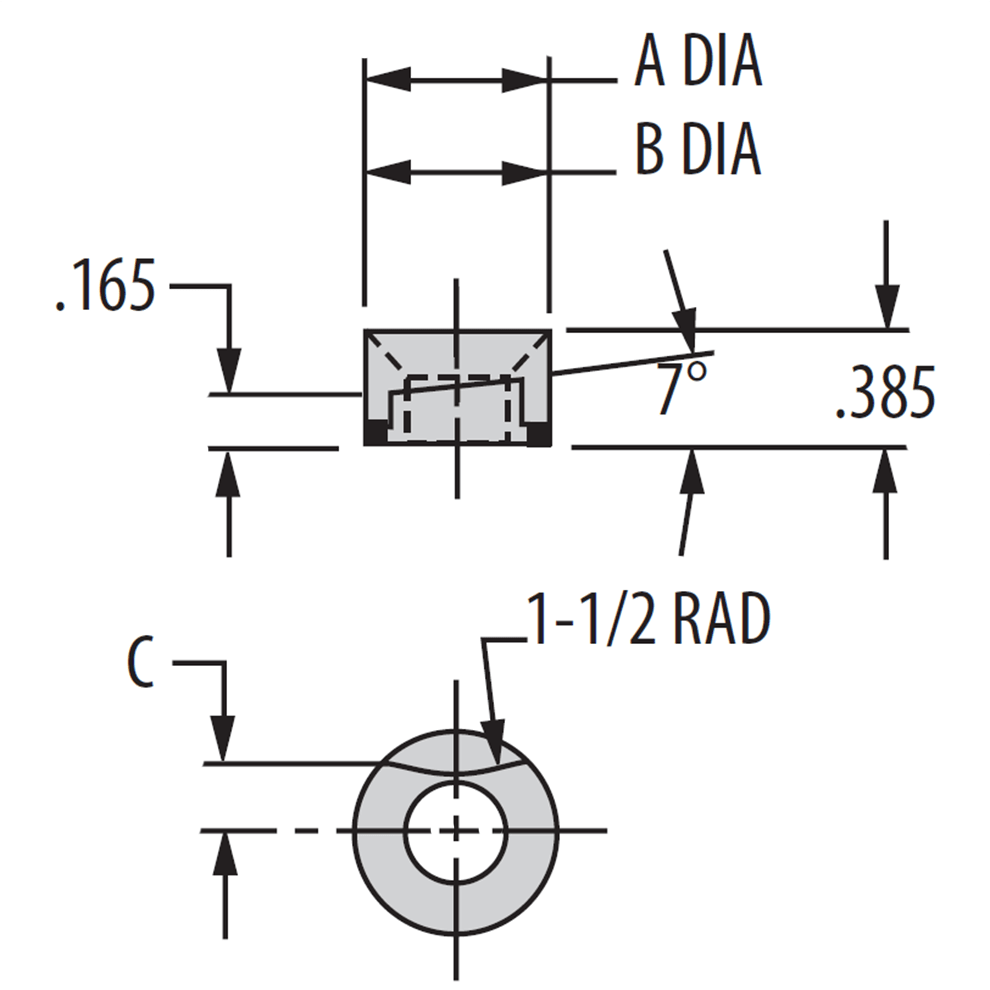

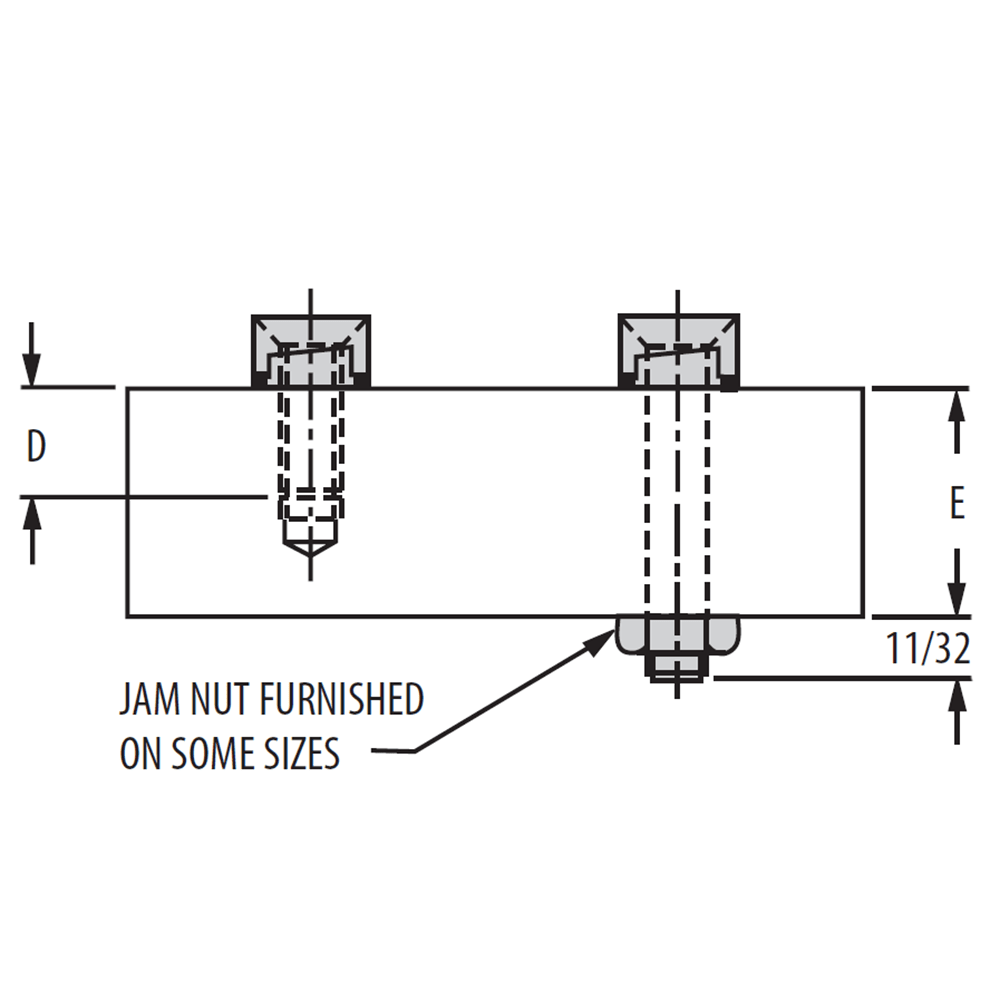

Taper-Lok Air-Feed Lockscrews

PART NO.	MOUNTING SCREW DIA	MOUNTING SCREW	A DIA	B DIA	C	D	E	REPLACES STANDARD LOCKSCREW
CL-9-AFL	5/16	Not Furnished	5/8	19/32	3/16	—	—	—
CL-11-AFL	5/16	5/16-18x1.00	5/8	19/32	3/16	19/32	—	16531 & 16532
CL-13-AFL	5/16	5/16-18x1.50 w/Jam Nut	5/8	19/32	3/16	1-3/32	3/4	—
CL-14-AFL	5/16	5/16-18x2.00 w/Jam Nut	5/8	19/32	3/16	1-19/32	1-1/4	—
CL-10-AFL	3/8	Not Furnished	3/4	23/32	7/32	—	—	—
CL-12-AFL	3/8	3/8-16x1.00	3/4	23/32	7/32	19/32	—	16530
