Liner Bushings

Drill Bushings

Save to My Project

What is this?

Product Information

Liner Bushings Part # 19949 Carr Lane Mfg.®

These liner bushings are used to align air-feed adaptor tips. The liner's ID has a precise sliding fit with the shank's OD. The liner accurately locates the shank and protects the jig plate from wear and damage caused by frequent insertion. Available for 21000 through 25000 series air-feed drills.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Liner with Lockscrews

Liner with Taper-Lok Air-Feed Lockscrews

Liners with Lock Strips

ID Tolerance

Standard Liner ID Tolerance:

3/8" +.0001/+.0004

7/16 to 5/8" +.0002/+.0005

3/4" +.0003/+.0006

13/16 to 1" +.0004/+.0007

1-1/8 to 1-3/8" +.0006/+.0010

1-1/2 to 1-3/4" +.0008/+.0012

OD Tolerance

Standard OD Tolerance:

5/8" +.0017/+.0014

3/4 to 1" +.0018/+.0015

1-1/4" +.0020/+.0017

1-3/8" +.0022/+.0018

1-3/4" +.0023/+.0019

2-1/4" +.0025/+.0021

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order

Liner Bushings

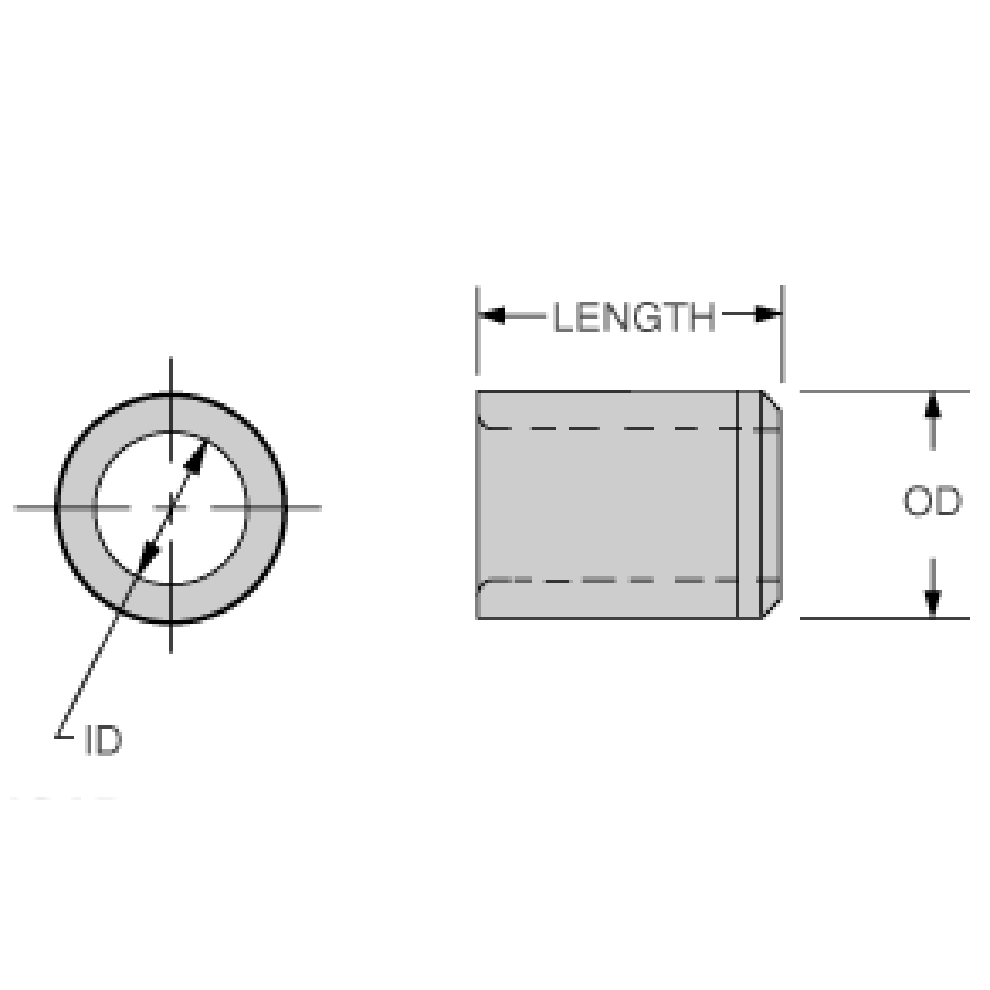

PART NO.	A ID	B OD	C LENGTH
19936	3/8	5/8	1
19937	7/16	3/4	1
19938	1/2	3/4	1
19939	9/16	7/8	1
19940	5/8	7/8	1
19947	5/8	7/8	1-3/4
19941	3/4	1	1
19942	3/4	1	1-3/8
19949	3/4	1	1-3/4
19943	13/16	1-3/8	1-3/8
19944	7/8	1-3/8	1-3/8
19950	7/8	1-3/8	1-3/4
19945	1	1-3/8	1-3/8
19951	1	1-3/8	1-3/4
19946	1-1/8	1-3/4	1-3/4
19952	1-1/4	1-3/4	1-3/4
19953	1-1/4	1-3/4	2-1/2
19954	1-3/8	1-3/4	2-1/2
19955	1-1/2	2-1/4	2-1/2
19956	1-3/4	2-1/4	2-1/2
