AT-Series Lock Liners – Knurled

Drill Bushings

Save to My Project

What is this?

Product Information

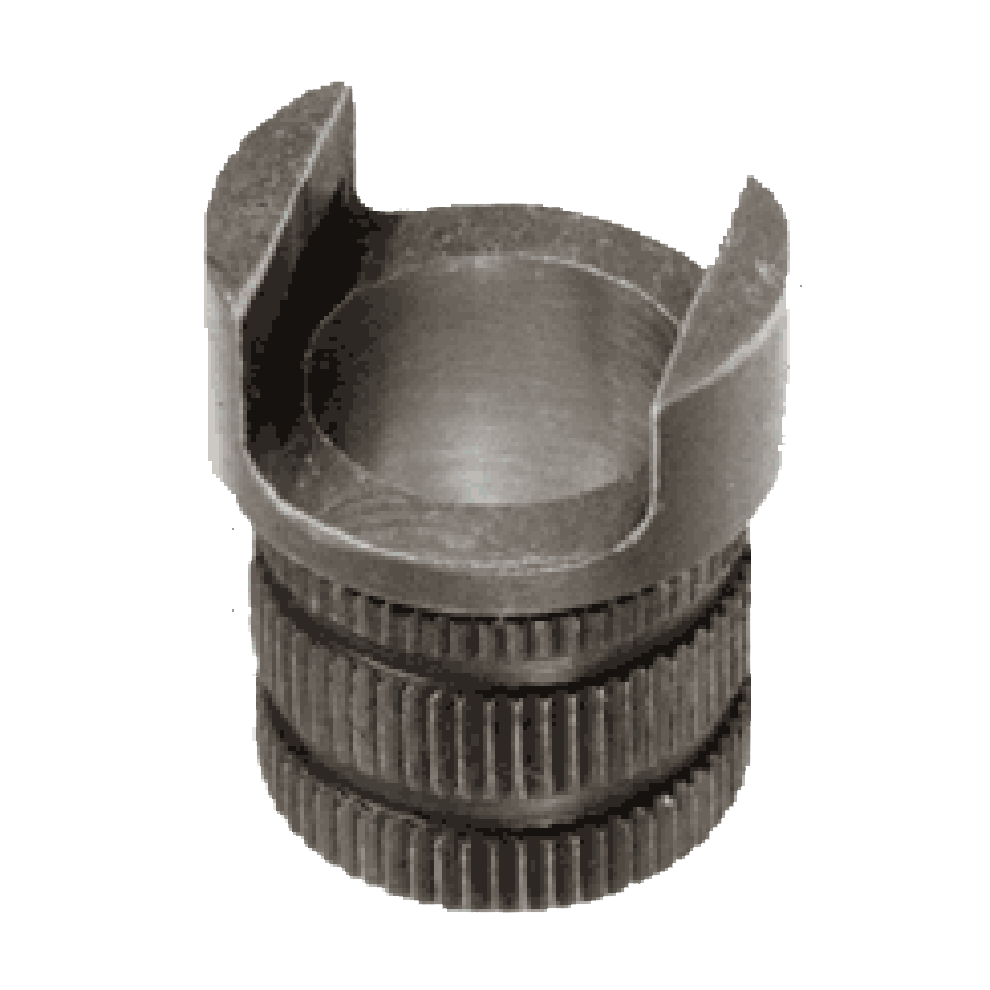

AT-Series Lock Liners – Knurled Part # LL-4 Carr Lane Mfg.®

Precision knurled liner bushing for mounting air-feed drills in fiberglass or plastic tooling. AT-series knurled lock liners are designed especially for AT-series one-piece adaptor tips, and are not compatible with any other liners or air-feed accessories. Available in four sizes, to fit all AT-series adaptor tips.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Stressproof Steel	heat treated to achieve Rc 62-64 ID hardness	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other materials are available by special order

AT-Series Lock Liners – Knurled

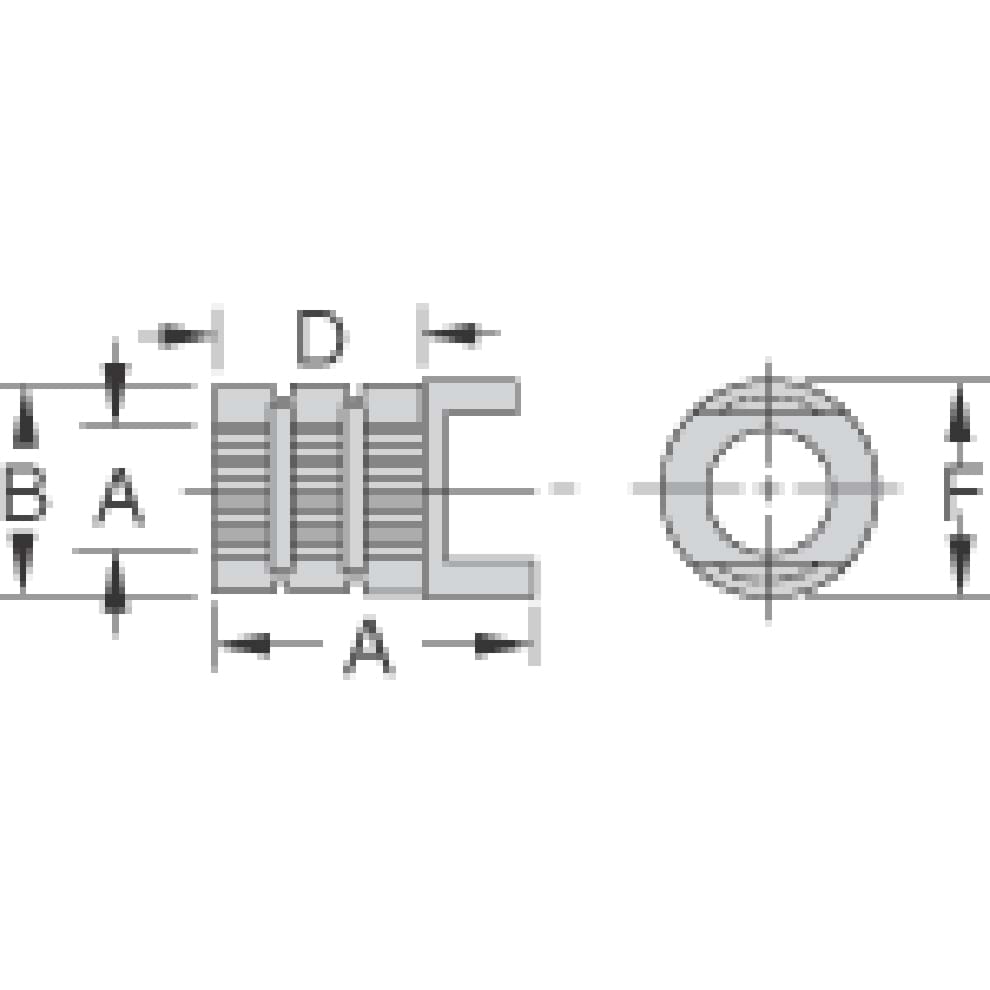

PART NO.	A ID NOMINAL	A ID ACTUAL	B OD	C	D	F DIA
LL-1	11/32	.3440 / .3443	9/16	1-3/8	7/8	11/16
LL-2	7/16	.4377 / .4380	11/16	1-3/8	7/8	13/16
LL-3	9/16	.5627 / .5630	13/16	1-3/8	7/8	15/16
LL-4	3/4	.7503 / .7506	1	1-3/8	7/8	1-1/8

Check Price & Availability
