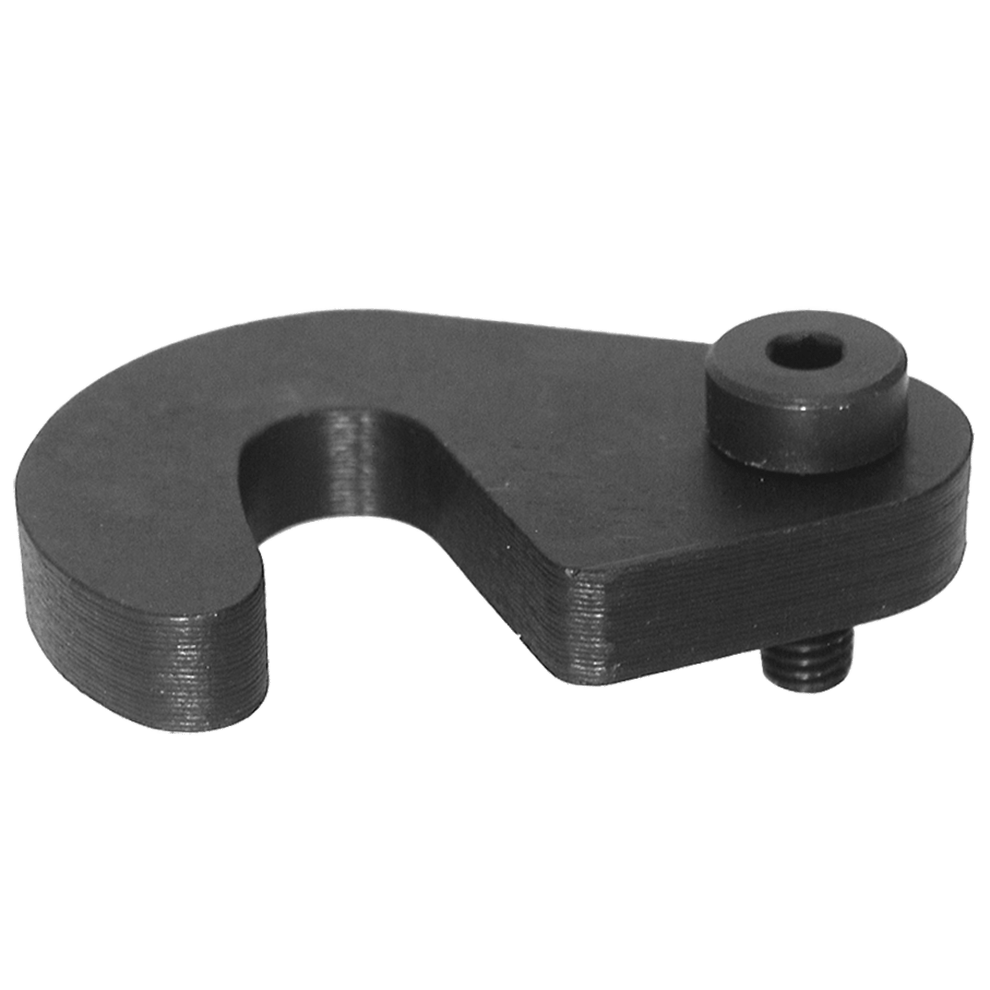

Swing C Washers Part # CL-1-SCW Carr Lane Mfg.®

Permanently attached C washer that swings out of the way for clear loading. Can be reversed to swing into position either clockwise or counterclockwise. Available for stud sizes 3/8 to 3/4" (M10 to M12 in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Washer	1018 Steel	Carburized-hardened	Black Oxide	✔	✔
Shoulder Screw	Alloy Steel	Heat Treated Rx 32-43	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Swing C Washers

Inch

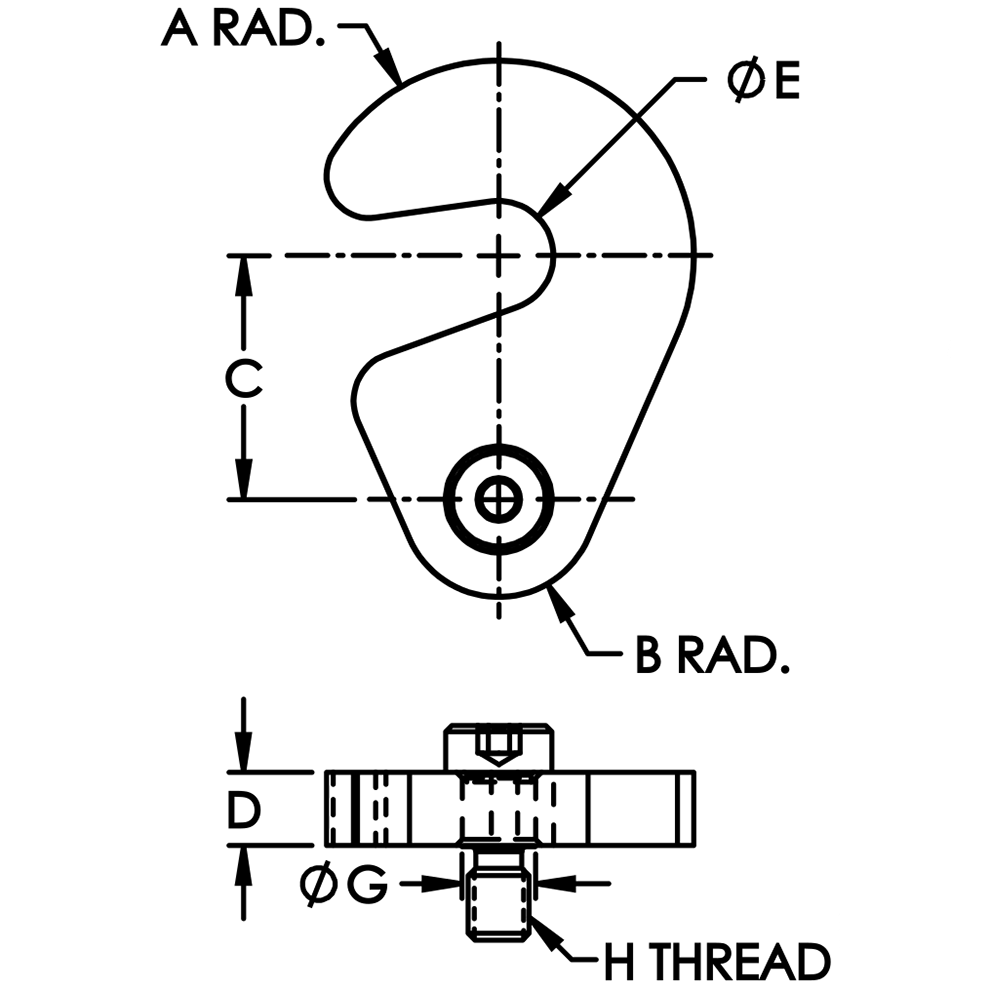

PART NO.	STUD SIZE	A	B	C	D	E DIA	G DIA	H THREAD	SHOULDER SCREW (INCLUDED)
CL-1-SCW	3/8	3/4	3/8	1	1/4	15/32	3/8	5/16-18	CL-24-SS
CL-2-SCW	1/2	1	1/2	1-1/4	3/8	9/16	3/8	5/16-18	CL-2-SS
CL-3-SCW	5/8	1-1/8	9/16	1-1/2	3/8	11/16	1/2	3/8-16	CL-3-SS
CL-4-SCW	3/4	1-1/4	5/8	1-3/4	1/2	27/32	1/2	3/8-16	CL-4-SS
