C Washers

Clamping Hardware

Save to My Project

What is this?

Product Information

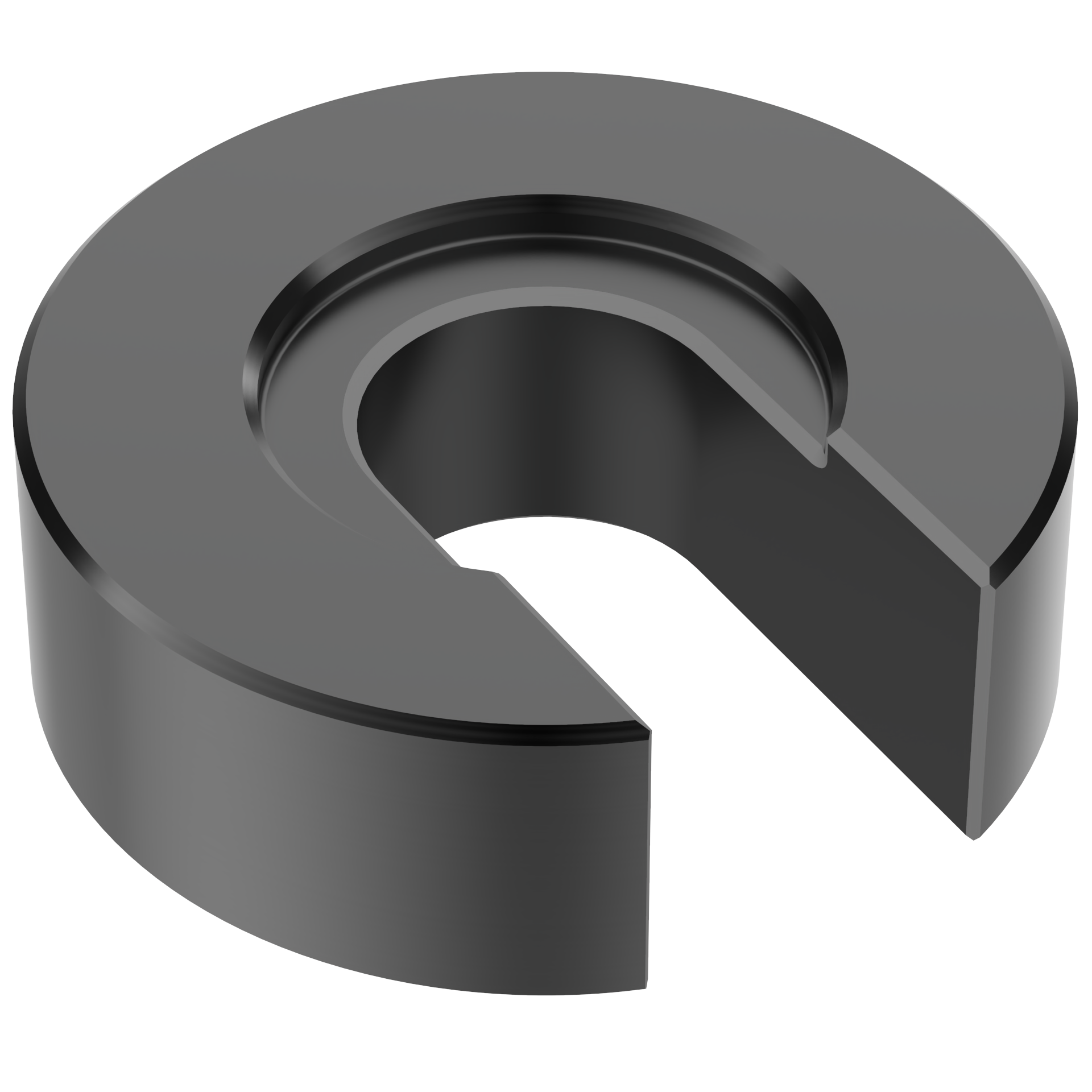

Washer that slides in and out of position for clear loading. Can be used with a nut, or by sliding it into a radial groove on a drawbar. Available in steel for stud sizes #10 to 1" (M5 to M24 in metric), and in stainless steel for stud sizes 1/4 and 3/8" (M6 and M10 in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

Steel
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 Steel	Carburized-Hardened	Black Oxide	✔	✔

Stainless Steel
MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
300-Series Stainless Steel	-	Passivated	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

C Washers

Steel

PART NO.	BOLT SIZE	A DIA	B	C	D DIA
CL-3-CW	1/4 or M6	3/4	1/4	17/64	13/32
CL-18-CW	1/4 or M6	1	1/4	17/64	13/32
CL-5-CW	5/16 or M8	1	3/16	21/64	1/2
CL-6-CW	3/8 or M10	1-1/4	3/8	13/32	23/32
CL-7-CW	3/8 or M10	1-1/2	3/8	13/32	23/32
CL-22-CW	3/8 or M10	1-3/4	1/4	13/32	23/32
CL-8-CW	1/2 or M12	1-7/8	3/8	17/32	29/32
CL-24-CW	1/2 or M12	2-1/4	3/8	17/32	29/32
CL-9-CW	5/8 or M16	2-1/8	3/8	21/32	1-3/32
CL-11-CW	3/4 or M18	2-1/2	7/16	25/32	1-9/32
CL-12-CW	1" or M24	2-1/2	7/16	1-1/32	1-21/32
