Fixture Studs

Clamping Hardware

Save to My Project

What is this?

Product Information

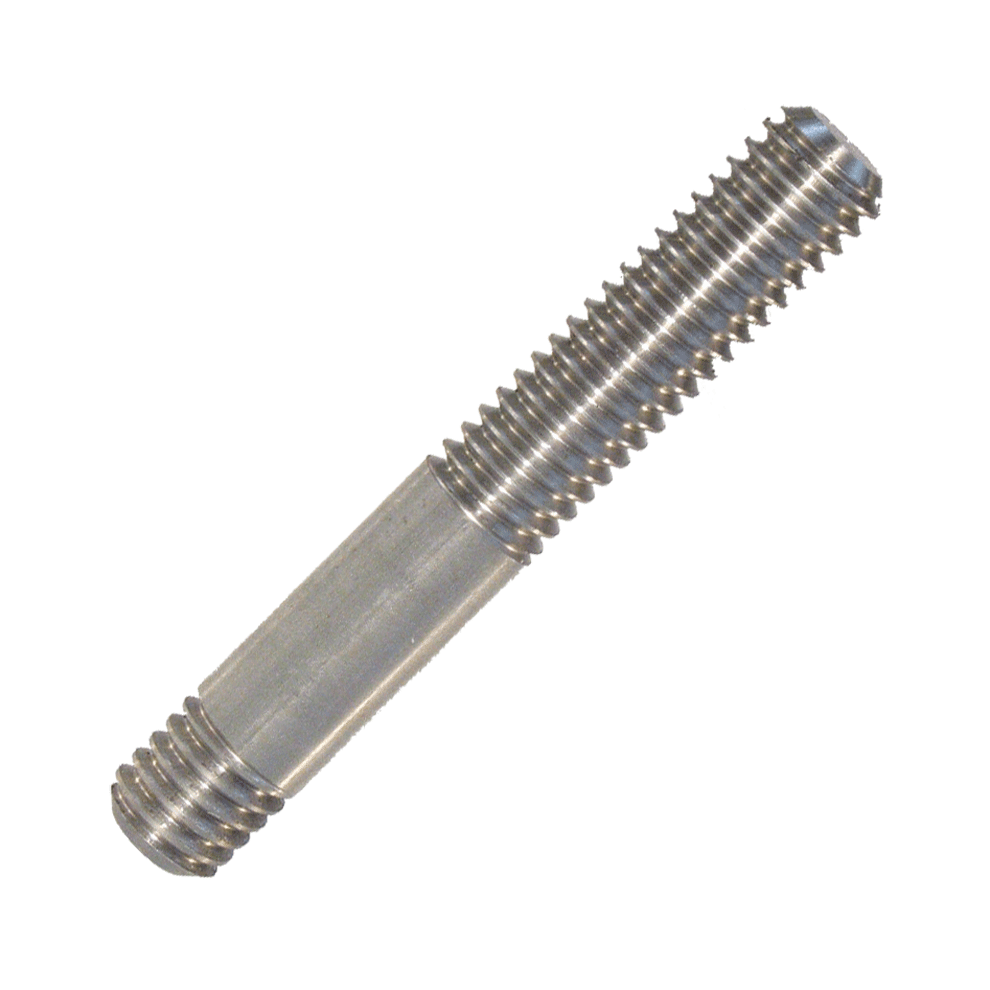

Fixture Studs Part # CL-11615 Carr Lane Mfg.®

Fixture Studs have a thread-locking interference thread at the bottom end to install permanently in a fixture plate. These small thread sizes are designed specifically for mini-size stainless clamp straps. Available in thread sizes from #10-32 to 3/8-16, each in a choice of several lengths. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Fixture Studs	300-Series Stainless Steel	-	Passivated	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Fixture Studs

Stainless Steel (Inch)

PART NO.	A THREAD	B	C	D
CL-11315-PACKOF2	#10-24	1-1/2	3/4	7/32
CL-11410	#10-32	1	1/2	7/32
CL-11415-PACKOF2	#10-32	1-1/2	3/4	7/32
CL-11420	#10-32	2	3/4	7/32
CL-11520	1/4-20	2	3/4	9/32
CL-11530	1/4-20	3	1	9/32
CL-11615	5/16-18	1-1/2	5/8	11/32
CL-11620	5/16-18	2	1	11/32
CL-11625	5/16-18	2-1/2	1-1/4	11/32
CL-11715	3/8-16	1-1/2	3/4	11/32
CL-11725	3/8-16	2-1/2	1-1/4	11/32
CL-11730	3/8-16	3	1-3/8	11/32
CL-11740	3/8-16	4	1-1/2	11/32
