Acorn Nuts

Clamping Hardware

Save to My Project

What is this?

Product Information

Acorn Nuts Part # CLM-10-AN Carr Lane Mfg.®

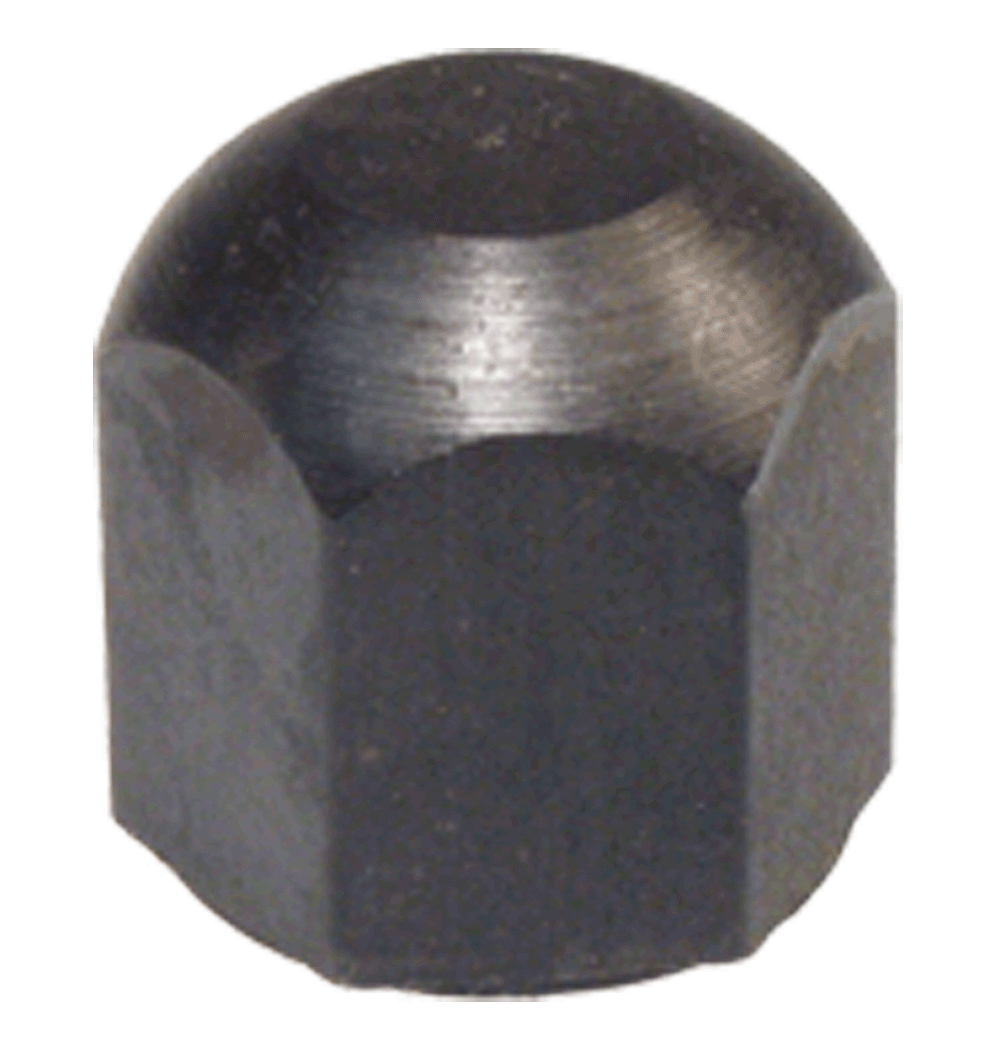

Tall heavy-hex nut with a closed end, machined from solid steel. Acorn Nuts cap off the end of a stud to prevent snagging or damage to the threads. Available in thread sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1215 Steel	Carburized-Hardens	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Acorn Nuts

Inch

PART NO.	A THREAD	B	C	D
CL-0-AN	1/4-20	1/2	3/8	1/2
CL-1-AN	5/16-18	5/8	13/32	5/8
CL-5-AN	3/8-16	3/4	7/16	3/4
CL-2-AN	1/2-13	7/8	9/16	15/16
CL-3-AN	5/8-11	1-1/16	13/16	1-3/16
CL-4-AN	3/4-10	1-1/4	1	1-3/8

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A THREAD	THREAD PITCH (mm)	B (mm)	C (mm)	D (mm)
CLM-6-AN	M6	1	10	10	15
CLM-8-AN	M8	1.25	13	10	15
CLM-10-AN	M10	1.5	17	10	20
CLM-12-AN	M12	1.75	19	15	25
CLM-16-AN	M16	2	24	20	30
CLM-20-AN	M20	2.5	30	25	35

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
