Clamping Kits (Standard Step Blocks) Part # CL-7-CK Carr Lane Mfg.®

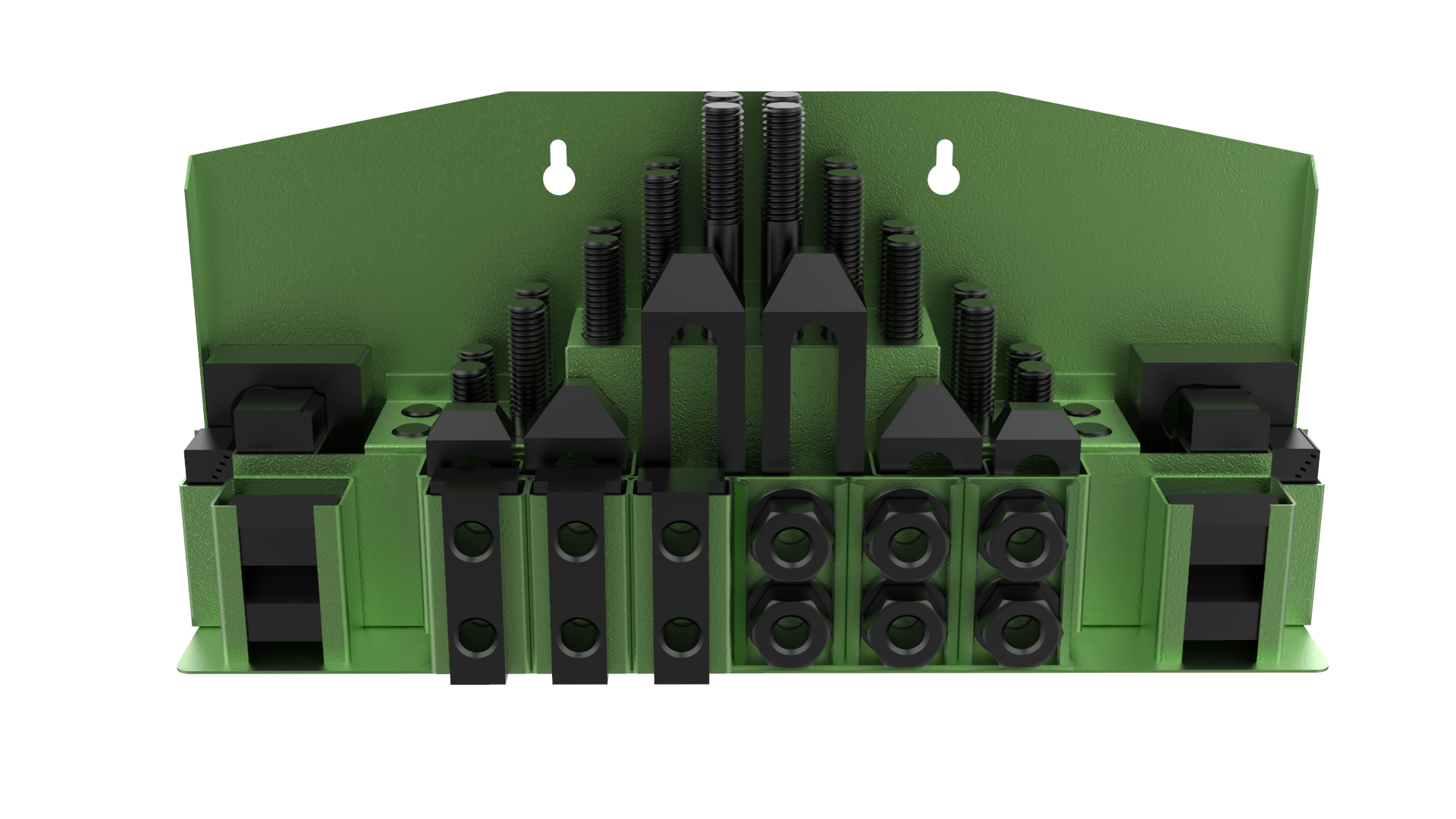

Economical Clamping Kit with a wide assortment of Step Blocks and Step Clamps. This 52-piece set also includes a complete range of stud lengths with matching T Nuts, Flange Nuts, and Coupling Nuts. Available to fit table-slot sizes from 7/16 to 13/16" (12 to 20mm in metric), in thread sizes from 3/8-16 to 5/8-11 (M10 to M16 in metric). Made in USA.

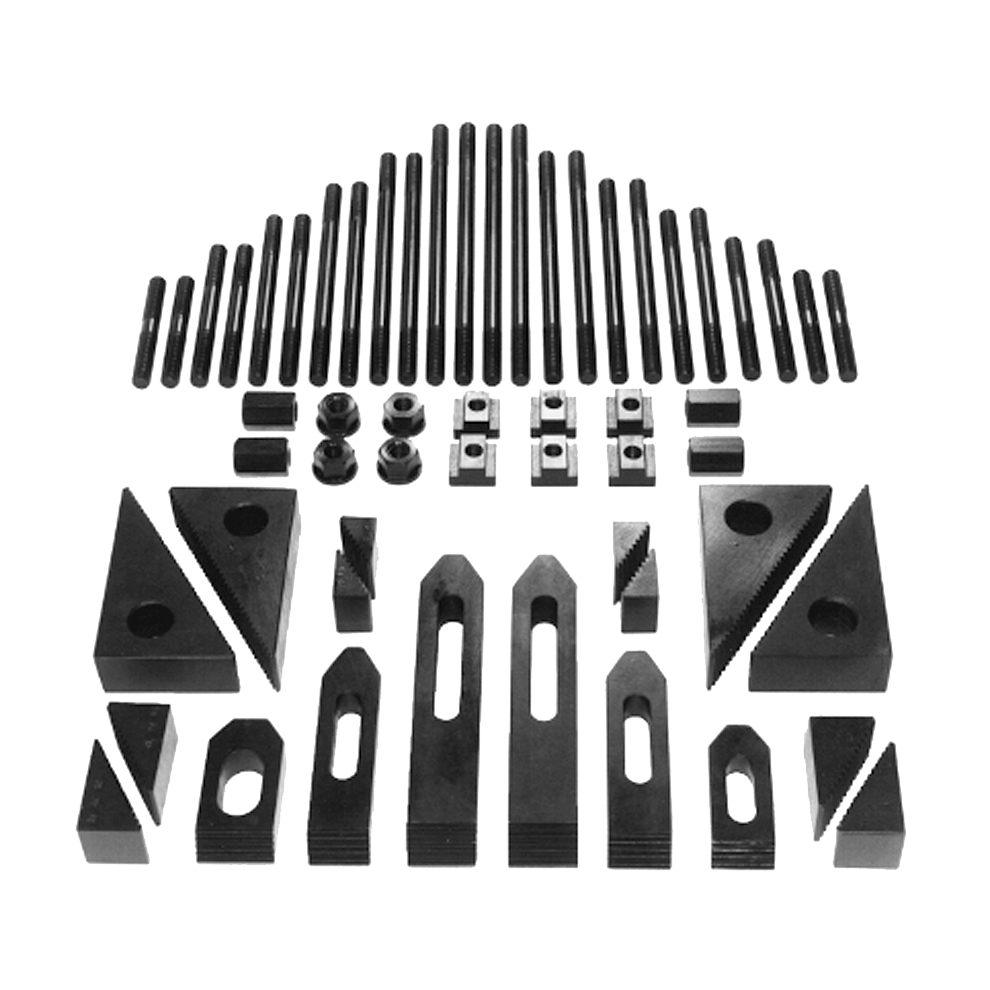

Each kit includes:

(6) Pairs of Step Blocks, two each in three different heights

(6) Step Clamps, two each in three different lengths

(6) T Nuts

(4) 3" Clamping Studs (80mm in metric)

(4) 4" Clamping Studs (95mm in metric)

(4) 5" Clamping Studs (125mm in metric)

(4) 6" Clamping Studs (150mm in metric)

(4) 7" Clamping Studs (175mm in metric)

(4) 8" Clamping Studs (200mm in metric)

(6) Flange Nuts

(4) Coupling Nuts

(1) Handy metal holder

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Step Blocks	Steel	-	-	✔	✔
Step Clamps	10L17 Steel	Carburized-Hardened	Black Oxide	✔	✔
T Nuts	Mild Steel	Carburized Hardened	Black Oxide	✔	✔
Clamping Studs	1144 Steel,115,000 psi min tensile strength, 100,000 psi min yield strength	-	Black Oxide	✔	✔
Flange Nuts and Coupling Nuts	1215 Steel	Carburized hardened	Black Oxide	✔	✔
Holder	Steel	-	Enamel Paint	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Clamping Kits (Standard Step Blocks)

Inch

QUANTITY	PART NO.	STUD SIZE	TABLE SLOT SIZE	T NUT & STUD SET (1)	STEP CLAMPS (2) EACH	STEP BLOCK PAIRS (2) EACH	HOLDER (1)
	CL-1-CK	3/8-16	7/16	CL-1-TNS	CL-32-STC CL-34-STC CL-36-STC	CL-10-BS CL-20-BS CL-30-BS	CL-1-CKMH
	CL-20-CK	3/8-16	12mm	CL-14-TNS	CL-32-STC CL-34-STC CL-36-STC	CL-10-BS CL-20-BS CL-30-BS	CL-1-CKMH
	CL-2-CK	3/8-16	1/2	CL-2-TNS	CL-32-STC CL-34-STC CL-36-STC	CL-10-BS CL-20-BS CL-30-BS	CL-1-CKMH
	CL-3-CK	3/8-16	9/16 or 14mm	CL-3-TNS	CL-32-STC CL-34-STC CL-36-STC	CL-10-BS CL-20-BS CL-30-BS	CL-1-CKMH
	CL-24-CK	3/8-16	5/8 or 16mm	CL-17-TNS	CL-32-STC CL-34-STC CL-36-STC	CL-10-BS CL-20-BS CL-30-BS	CL-2-CKMH
	CL-4-CK	1/2-13	9/16 or 14mm	CL-4-TNS	CL-42-STC CL-44-STC CL-46-STC	CL-10-BS CL-20-BS CL-30-BS	CL-2-CKMH
	CL-5-CK	1/2-13	5/8 or 16mm	CL-5-TNS	CL-42-STC CL-44-STC CL-46-STC	CL-10-BS CL-20-BS CL-30-BS	CL-2-CKMH
	CL-6-CK	1/2-13	11/16 or 18mm	CL-6-TNS	CL-42-STC CL-44-STC CL-46-STC	CL-10-BS CL-20-BS CL-30-BS	CL-2-CKMH
	CL-7-CK	5/8-11	11/16 or 18mm	CL-7-TNS	CL-52-STC CL-54-STC CL-56-STC	CL-10-BS CL-20-BS CL-30-BS	CL-3-CKMH
	CL-8-CK	5/8-11	3/4	CL-8-TNS	CL-52-STC CL-54-STC CL-56-STC	CL-10-BS CL-20-BS CL-30-BS	CL-3-CKMH
	CL-21-CK	5/8-11	20mm	CL-15-TNS	CL-52-STC CL-54-STC CL-56-STC	CL-10-BS CL-20-BS CL-30-BS	CL-3-CKMH
	CL-9-CK	5/8-11	13/16	CL-9-TNS	CL-52-STC CL-54-STC CL-56-STC	CL-10-BS CL-20-BS CL-30-BS	CL-3-CKMH
