Wide-Nose Clamp Straps (Stainless Steel)

Clamp Straps & Clamping Kits

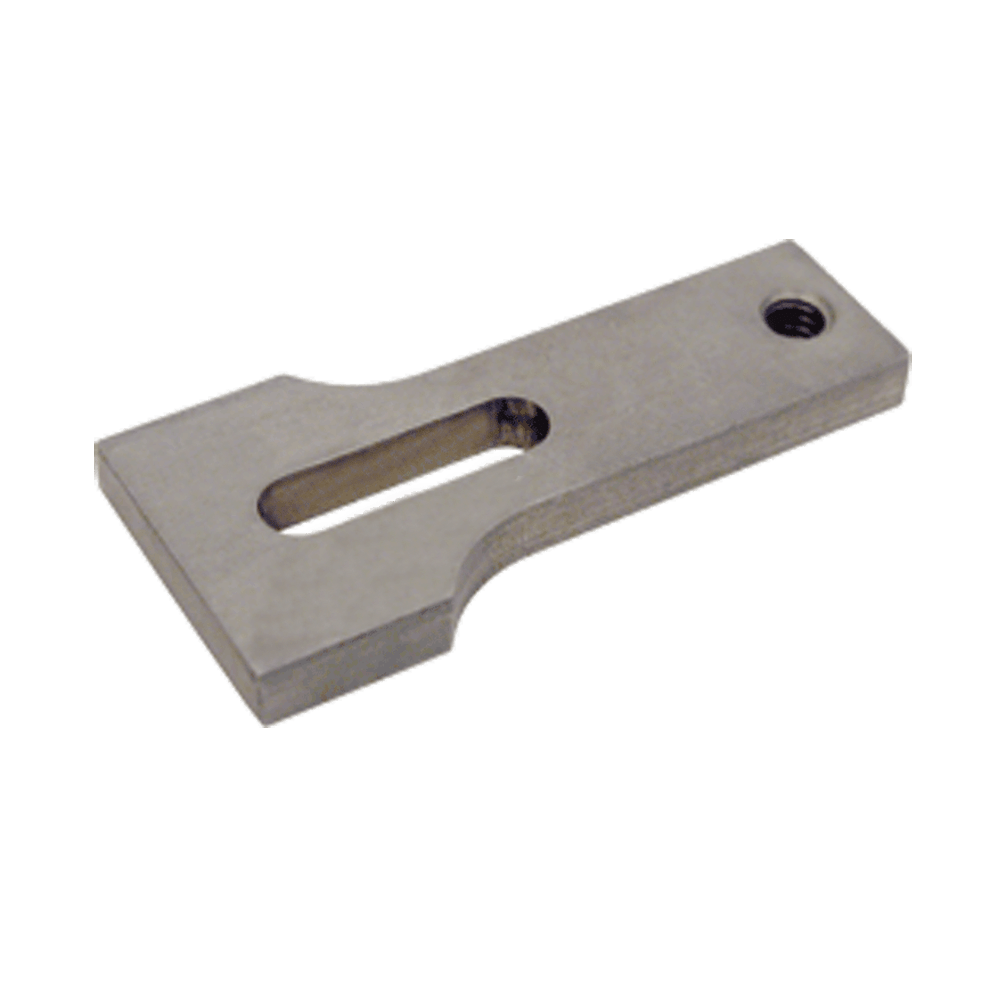

Clamp Strap Only (Inch)
QUANTITY PART NO. A
STUD
SIZE
B C D E F G H J K L
THREAD
CL-22227 1/4-20 1/4 1-1/4 2-3/4 1-5/16 13/16 3/4 3/4 9/32 1-3/16 1/4-20

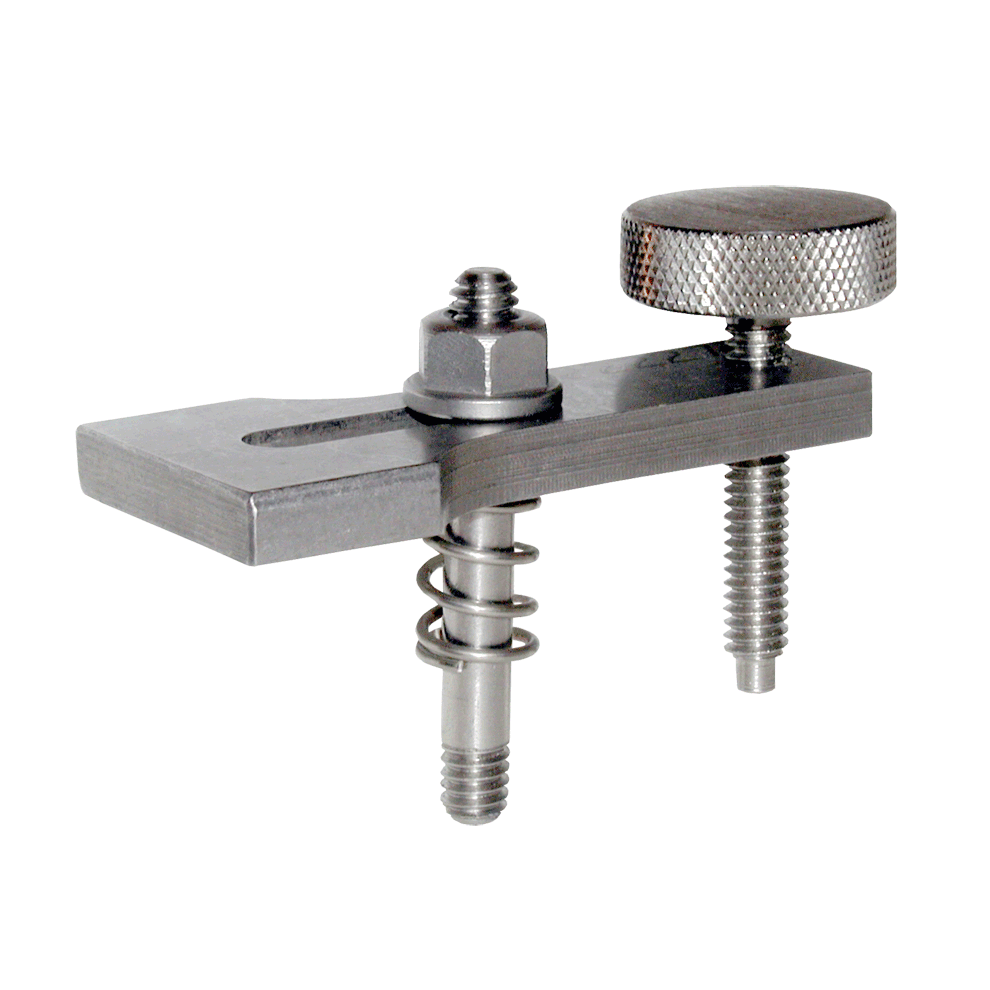

Assembly with Knurled-Head Screw (Inch)
QUANTITY PART NO. THREAD
SIZE
A B C E CLAMP
STRAP
KNURLED
HEAD
SCREW
CLAMP
SPRING
FLAT
WASHER
FIXTURE
STUD
FLANGE
NUT
JAM
NUT
CL-44227 1/4-20 2-3/4 1-1/4 1/4 1-3/16 CL-22227 CL-23515 CL-2440.7 CL-255 CL-11520 CL-125 CL-4-JN-S
Assembly with Clamp Rest (Inch)
QUANTITY PART NO. THREAD
SIZE
A B C E CLAMP
STRAP
CLAMP
REST
CLAMP
SPRING
FLAT
WASHER
FIXTURE
STUD
FLANGE
NUT
JAM
NUT
CL-44227-1 1/4-20 2-3/4 1-1/4 1/4 1-3/16 CL-22227 CL-13515 CL-2440.7 CL-255 CL-11520 CL-125 CL-4-JN-S

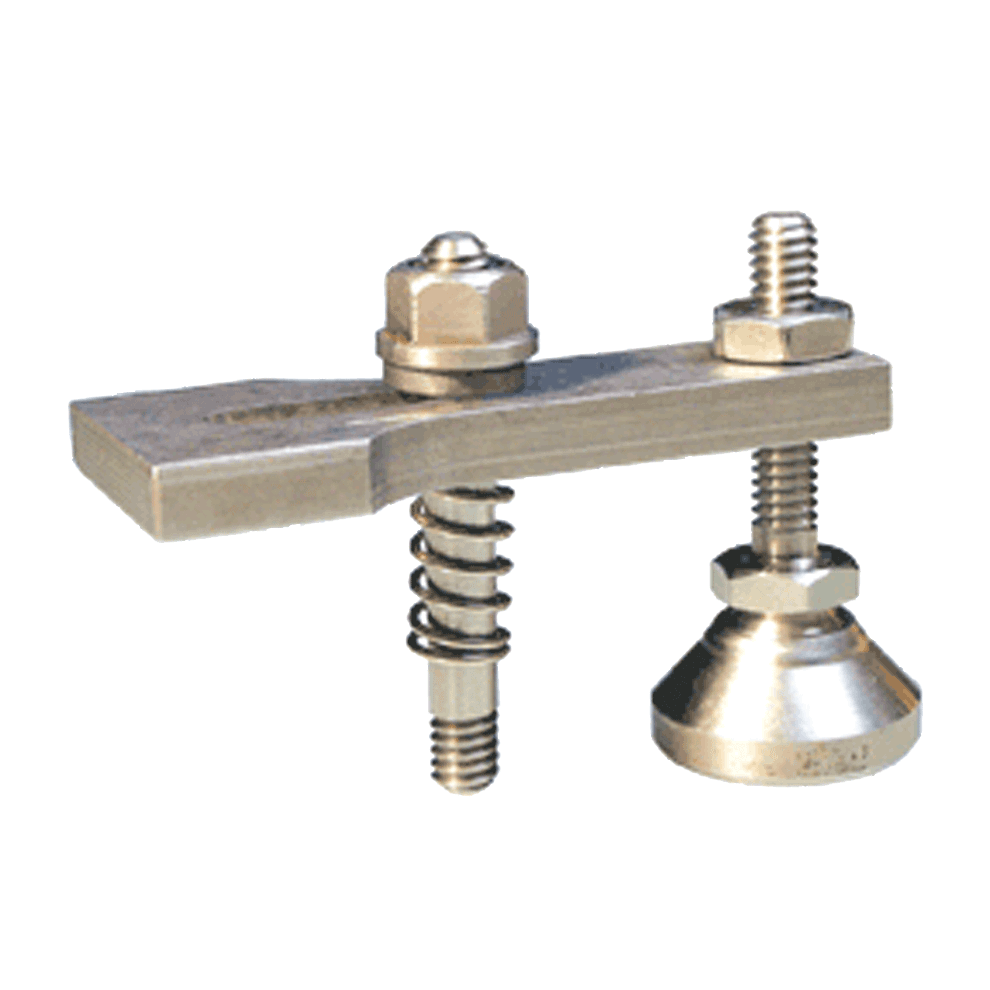

Assembly with Leveling Foot (Inch)
QUANTITY PART NO. THREAD
SIZE
A B C E CLAMP
STRAP
LEVELING
FOOT
CLAMP
SPRING
FLAT
WASHER
FIXTURE
STUD
FLANGE
NUT
CL-44227-2 1/4-20 2-3/4 1-1/4 1/4 1-3/16 CL-22227 CL-4-SLF-S CL-2440.7 CL-255 CL-11520 CL-125
