Tapped-Heel Clamp Straps (Steel)

Clamp Straps & Clamping Kits

 Save to My Project
What is this?

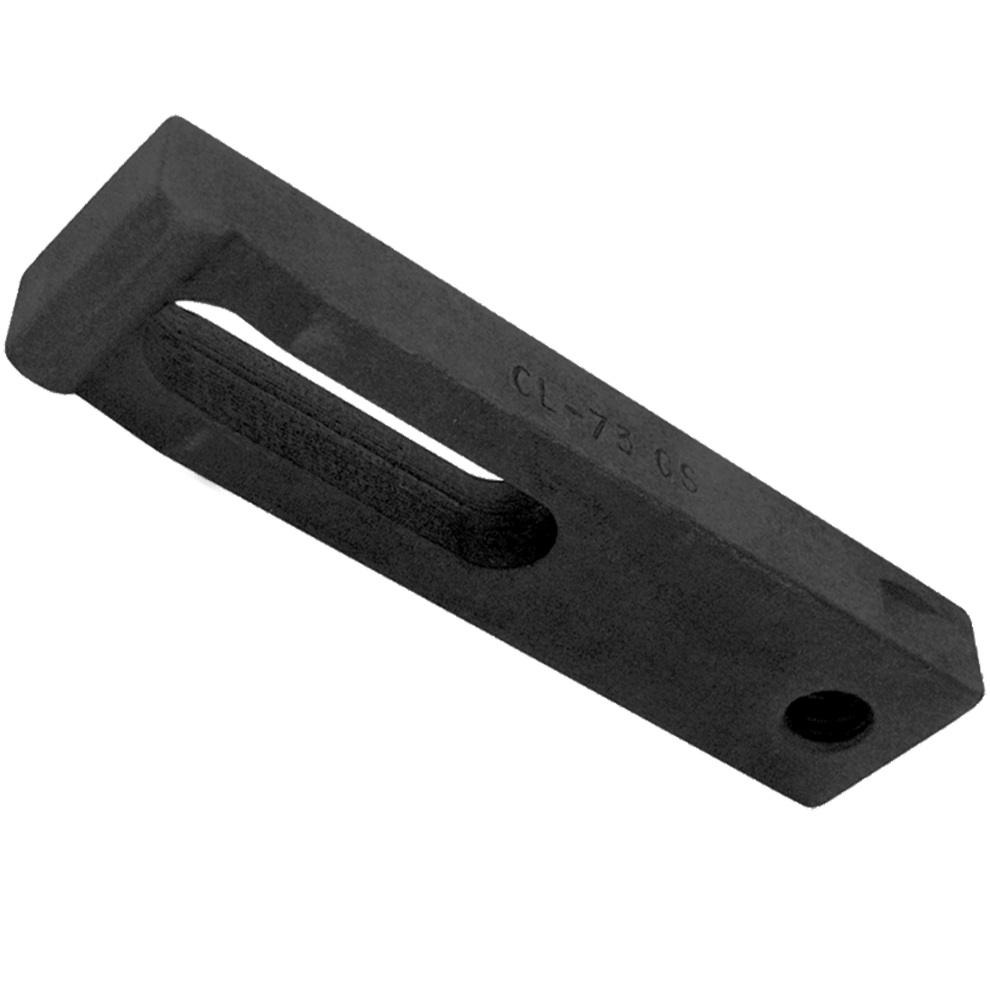

 Clamp Strap Only (Inch)
QUANTITY PART NO. A
STUD
SIZE		 B C D E F G H J K
THREAD
CL-61-CS 1/4-20 3/8 5/8 2 13/16 9/16 1/4 11/32 9/32 1/4-20
CL-62-CS 1/4-20 3/8 5/8 2-1/2 1-1/16 13/16 1/4 11/32 9/32 1/4-20
CL-63-CS 3/8-16 1/2 1-1/8 3 1-7/32 13/16 13/32 1/2 27/64 3/8-16
CL-65-CS 3/8-16 1/2 1-1/8 4 1-23/32 1-5/16 13/32 1/2 27/64 3/8-16
CL-67-CS 3/8-16 1/2 1-1/8 5 2-7/32 1-13/16 13/32 1/2 27/64 3/8-16
CL-69-CS 3/8-16 1/2 1-1/8 6 2-23/32 2-5/16 13/32 1/2 27/64 3/8-16
CL-70-CS 1/2-13 5/8 1-1/4 3-1/2 1-13/32 15/16 13/32 1/2 17/32 1/2-13
CL-71-CS 1/2-13 5/8 1-1/4 4 1-21/32 1-3/16 13/32 1/2 17/32 1/2-13
CL-72-CS 1/2-13 5/8 1-1/4 4-1/2 1-29/32 1-7/16 13/32 1/2 17/32 1/2-13
CL-73-CS 1/2-13 5/8 1-1/4 5 2-5/32 1-11/16 13/32 1/2 17/32 1/2-13
CL-74-CS 1/2-13 5/8 1-1/4 5-1/2 2-13/32 1-15/16 13/32 1/2 17/32 1/2-13
CL-75-CS 1/2-13 5/8 1-1/4 6 2-21/32 2-3/16 13/32 1/2 17/32 1/2-13
CL-81-CS 5/8-11 7/8 1-1/2 4 1-9/16 1 1/2 19/32 21/32 5/8-11
CL-77-CS 5/8-11 7/8 1-1/2 4-1/2 1-13/16 1-1/4 1/2 19/32 21/32 5/8-11
CL-83-CS 5/8-11 7/8 1-1/2 5 2-1/16 1-1/2 1/2 19/32 21/32 5/8-11
CL-85-CS 5/8-11 7/8 1-1/2 6 2-9/16 2 1/2 19/32 21/32 5/8-11
CL-86-CS 5/8-11 7/8 1-1/2 6-1/2 2-13/16 2-1/4 1/2 19/32 21/32 5/8-11
CL-88-CS 3/4-10 1 1-3/4 6 2-1/2 1-29/32 1/2 19/32 13/16 3/4-10
CL-90-CS 3/4-10 1 1-3/4 7 3 2-13/32 1/2 19/32 13/16 3/4-10
CL-92-CS 3/4-10 1 1-3/4 8 3-1/2 2-29/32 1/2 19/32 13/16 3/4-10
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

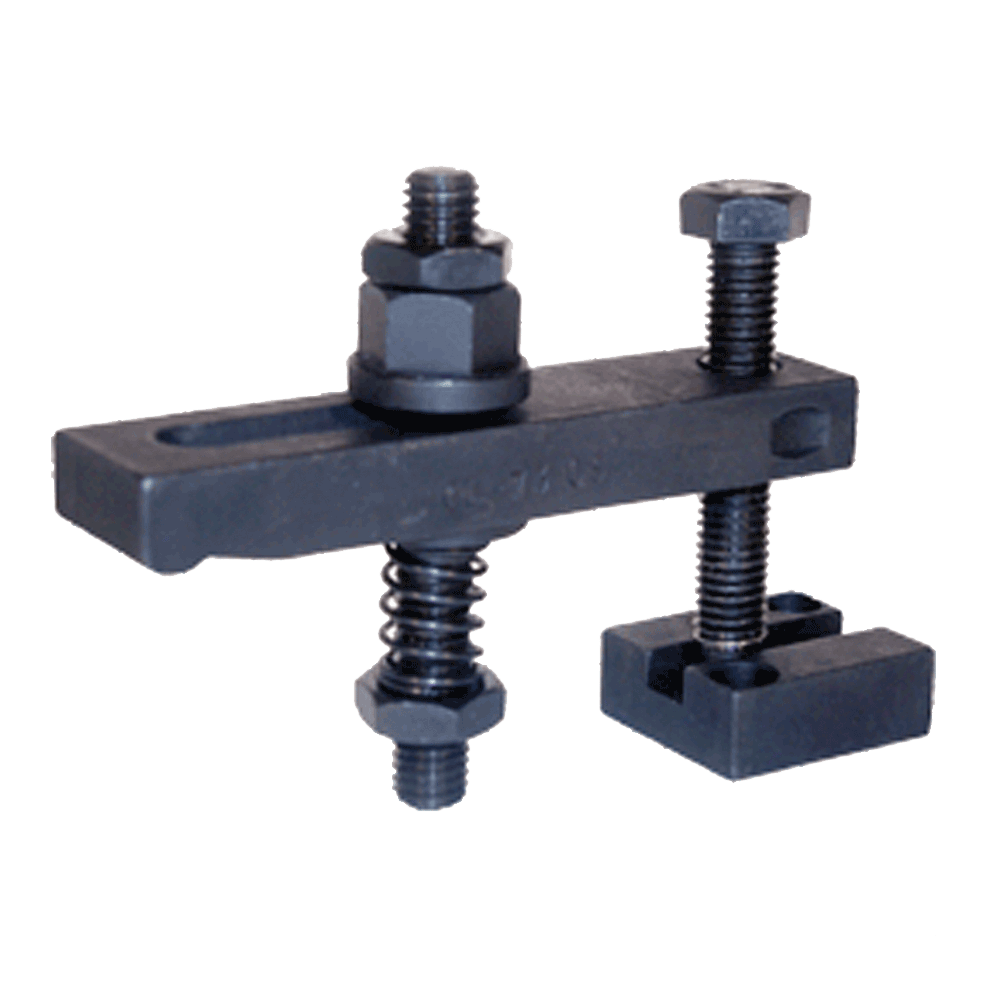

 Assembly with Hex-Head Clamping Screw (Inch)
QUANTITY PART NO. STUD
THREAD		 A B C E F
THREAD		 CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUTS		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 HEX-HEAD
CLAMPING
SCREW		 GUIDE
BLOCK
CL-1-THA-HH 1/4-20 2 5/8 3/8 11/16 #6-32 CL-61-CS CL-5-SPG CL-1/4-20x2.00-STUD (2) CL-4-JN CL-1-SNW CL-7-FW CL-1-THA-BOLT CL-2-GB
CL-2-THA-HH 1/4-20 2-1/2 5/8 3/8 15/16 #6-32 CL-62-CS CL-5-SPG CL-1/4-20x2.00-STUD (2) CL-4-JN CL-1-SNW CL-7-FW CL-1-THA-BOLT CL-2-GB
CL-3-THA-HH 3/8-16 3 1-1/8 1/2 1-1/32 #10-32 CL-63-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-BOLT CL-4-GB
CL-5-THA-HH 3/8-16 4 1-1/8 1/2 1-17/32 #10-32 CL-65-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-BOLT CL-4-GB
CL-7-THA-HH 3/8-16 5 1-1/8 1/2 2-1/32 #10-32 CL-67-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-BOLT CL-4-GB
CL-9-THA-HH 3/8-16 6 1-1/8 1/2 2-17/32 #10-32 CL-69-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-BOLT CL-4-GB
CL-10-THA-HH 1/2-13 3-1/2 1-1/4 5/8 1-5/32 1/4-20 CL-70-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-BOLT CL-6-GB
CL-11-THA-HH 1/2-13 4 1-1/4 5/8 1-13/32 1/4-20 CL-71-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-BOLT CL-6-GB
CL-12-THA-HH 1/2-13 4-1/2 1-1/4 5/8 1-21/32 1/4-20 CL-72-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-BOLT CL-6-GB
CL-13-THA-HH 1/2-13 5 1-1/4 5/8 1-29/32 1/4-20 CL-73-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-BOLT CL-6-GB
CL-14-THA-HH 1/2-13 5-1/2 1-1/4 5/8 2-5/32 1/4-20 CL-74-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-BOLT CL-6-GB
CL-15-THA-HH 1/2-13 6 1-1/4 5/8 2-13/32 1/4-20 CL-75-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-BOLT CL-6-GB
CL-21-THA-HH 5/8-11 4 1-1/2 7/8 1-1/4 1/4-20 CL-81-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-BOLT CL-8-GB
CL-17-THA-HH 5/8-11 4-1/2 1-1/2 7/8 1-1/2 1/4-20 CL-77-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-BOLT CL-8-GB
CL-23-THA-HH 5/8-11 5 1-1/2 7/8 1-3/4 1/4-20 CL-83-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-BOLT CL-8-GB
CL-25-THA-HH 5/8-11 6 1-1/2 7/8 2-1/4 1/4-20 CL-85-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-BOLT CL-8-GB
CL-26-THA-HH 5/8-11 6-1/2 1-1/2 7/8 2-1/2 1/4-20 CL-86-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-BOLT CL-8-GB
CL-28-THA-HH 3/4-10 6 1-3/4 1 2-1/8 1/4-20 CL-88-CS CL-13-SPG CL-3/4-10x5.00-STUD (2) CL-12-JN CL-5-SNW CL-4-FW CL-5-THA-BOLT CL-11-GB
CL-30-THA-HH 3/4-10 7 1-3/4 1 2-5/8 1/4-20 CL-90-CS CL-13-SPG CL-3/4-10x5.00-STUD (2) CL-12-JN CL-5-SNW CL-4-FW CL-5-THA-BOLT CL-11-GB
CL-32-THA-HH 3/4-10 8 1-3/4 1 3-1/8 1/4-20 CL-92-CS CL-13-SPG CL-3/4-10x5.00-STUD (2) CL-12-JN CL-5-SNW CL-4-FW CL-5-THA-BOLT CL-11-GB
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

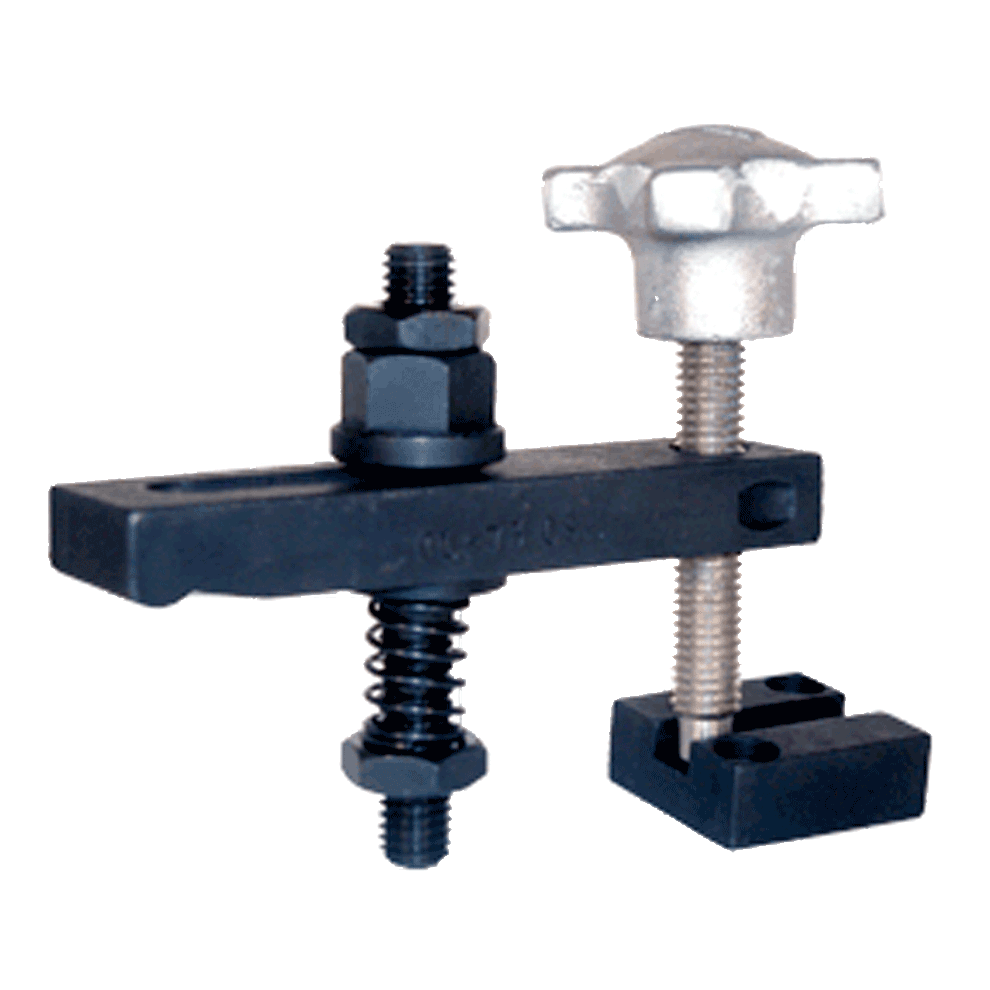

Assembly with Hand-Knob Clamping Screw (Inch)
QUANTITY PART NO. STUD
THREAD		 A B C E F CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUTS		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 HAND-KNOB
CLAMPING
SCREW		 GUIDE
BLOCK
CL-1-THA-HK 1/4-20 2 5/8 3/8 11/16 #6-32 CL-61-CS CL-5-SPG CL-1/4-20x2.00-STUD CL-4-JN CL-1-SNW CL-7-FW CL-1-THA-KNOB CL-20-GB
CL-2-THA-HK 1/4-20 2-1/2 5/8 3/8 15/16 #6-32 CL-62-CS CL-5-SPG CL-1/4-20x2.00-STUD CL-4-JN CL-1-SNW CL-7-FW CL-1-THA-KNOB CL-20-GB
CL-3-THA-HK 3/8-16 3 1-1/8 1/2 1-1/32 #10-32 CL-63-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-KNOB CL-20-GB
CL-5-THA-HK 3/8-16 4 1-1/8 1/2 1-17/32 #10-32 CL-65-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-KNOB CL-20-GB
CL-7-THA-HK 3/8-16 5 1-1/8 1/2 2-1/32 #10-32 CL-67-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-KNOB CL-20-GB
CL-9-THA-HK 3/8-16 6 1-1/8 1/2 2-17/32 #10-32 CL-69-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-2-THA-KNOB CL-20-GB
CL-10-THA-HK 1/2-13 3-1/2 1-1/4 5/8 1-5/32 1/4-20 CL-70-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-KNOB CL-60-GB
CL-11-THA-HK 1/2-13 4 1-1/4 5/8 1-13/32 1/4-20 CL-71-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-KNOB CL-60-GB
CL-12-THA-HK 1/2-13 4-1/2 1-1/4 5/8 1-21/32 1/4-20 CL-72-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-KNOB CL-60-GB
CL-13-THA-HK 1/2-13 5 1-1/4 5/8 1-29/32 1/4-20 CL-73-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-KNOB CL-60-GB
CL-14-THA-HK 1/2-13 5-1/2 1-1/4 5/8 2-5/32 1/4-20 CS-74-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-KNOB CL-60-GB
CL-15-THA-HK 1/2-13 6 1-1/4 5/8 2-13/32 1/4-20 CS-75-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-3-THA-KNOB CL-60-GB
CL-21-THA-HK 5/8-11 4 1-1/2 7/8 1-1/4 1/4-20 CL-81-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-KNOB CL-80-GB
CL-17-THA-HK 5/8-11 4-1/2 1-1/2 7/8 1-1/2 1/4-20 CL-77-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-KNOB CL-80-GB
CL-23-THA-HK 5/8-11 5 1-1/2 7/8 1-3/4 1/4-20 CL-83-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-KNOB CL-80-GB
CL-25-THA-HK 5/8-11 6 1-1/2 7/8 2-1/4 1/4-20 CL-85-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-KNOB CL-80-GB
CL-26-THA-HK 5/8-11 6-1/2 1-1/2 7/8 2-1/2 1/4-20 CL-86-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-4-THA-KNOB CL-80-GB
CL-28-THA-HK 3/4-10 6 1-3/4 1 2-1/8 1/4-20 CL-88-CS CL-13-SPG CL-3/4-10x5.00-STUD CL-12-JN CL-5-SNW CL-4-FW CL-5-THA-KNOB CL-110-GB
CL-30-THA-HK 3/4-10 7 1-3/4 1 2-5/8 1/4-20 CL-90-CS CL-13-SPG CL-3/4-10x5.00-STUD CL-12-JN CL-5-SNW CL-4-FW CL-5-THA-KNOB CL-110-GB
CL-32-THA-HK 3/4-10 8 1-3/4 1 3-1/8 1/4-20 CL-92-CS CL-13-SPG CL-3/4-10x5.00-STUD CL-12-JN CL-5-SNW CL-4-FW CL-5-THA-KNOB CL-110-GB
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

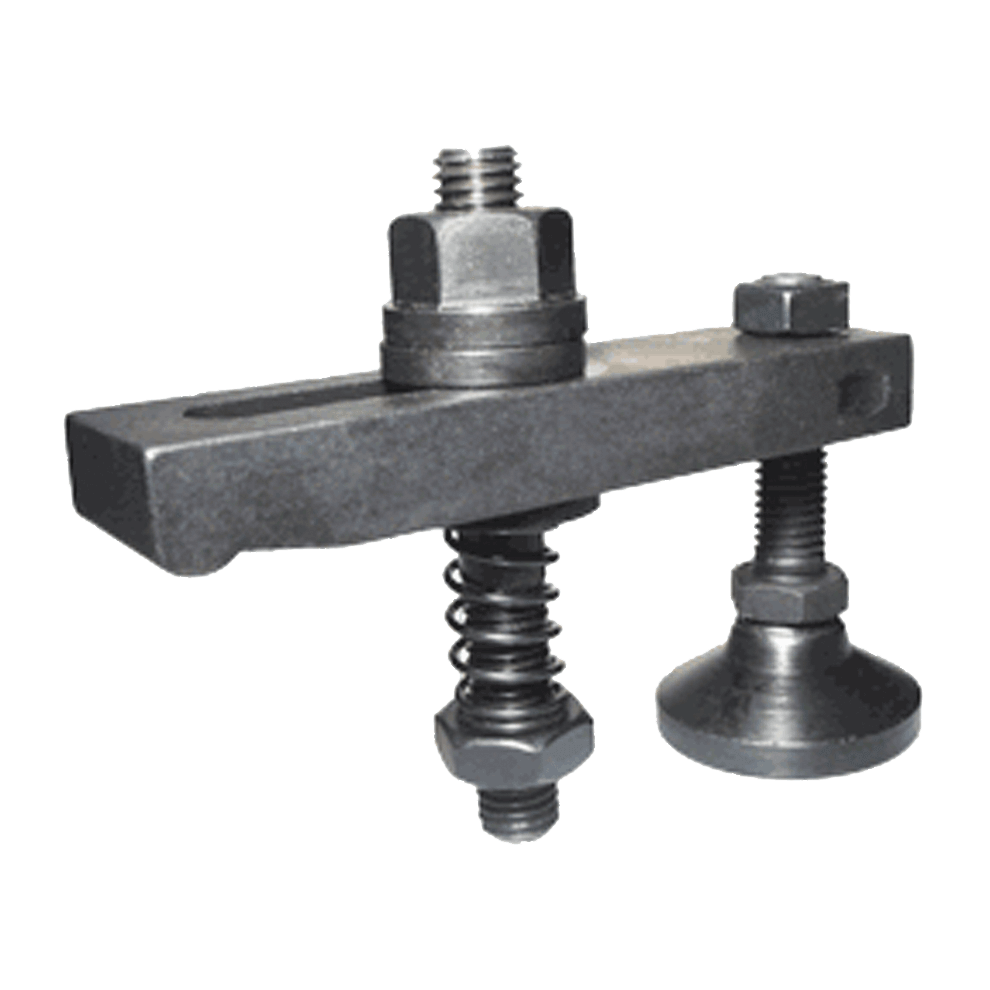

Assembly with Leveling Foot (Inch)
QUANTITY PART NO. STUD
THREAD		 A B C L CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUT		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 STUD
LEVELING
FOOT
CL-1-THA-LF 1/4-20 2 5/8 3/8 13/16 CL-61-CS CL-5-SPG CL-1/4-20x2.00-STUD CL-4-JN CL-1-SNW CL-7-FW CL-4-SLF-BO
CL-2-THA-LF 1/4-20 2-1/2 5/8 3/8 1-1/16 CL-62-CS CL-5-SPG CL-1/4-20x2.00-STUD CL-4-JN CL-1-SNW CL-7-FW CL-4-SLF-BO
CL-3-THA-LF 3/8-16 3 1-1/8 1/2 1-7/32 CL-63-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-6-SLF-BO
CL-5-THA-LF 3/8-16 4 1-1/8 1/2 1-23/32 CL-65-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-6-SLF-BO
CL-7-THA-LF 3/8-16 5 1-1/8 1/2 2-7/32 CL-67-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-6-SLF-BO
CL-9-THA-LF 3/8-16 6 1-1/8 1/2 2-23/32 CL-69-CS CL-7-SPG CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW CL-1-FW CL-6-SLF-BO
CL-10-THA-LF 1/2-13 3-1/2 1-1/4 5/8 1-13/32 CL-70-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-8-SLF-BO
CL-11-THA-LF 1/2-13 4 1-1/4 5/8 1-21/32 CL-71-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-8-SLF-BO
CL-12-THA-LF 1/2-13 4-1/2 1-1/4 5/8 1-29/32 CL-72-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-8-SLF-BO
CL-13-THA-LF 1/2-13 5 1-1/4 5/8 2-5/32 CL-73-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-8-SLF-BO
CL-14-THA-LF 1/2-13 5-1/2 1-1/4 5/8 2-13/32 CL-74-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-8-SLF-BO
CL-15-THA-LF 1/2-13 6 1-1/4 5/8 2-21/32 CL-75-CS CL-9-SPG CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW CL-2-FW CL-8-SLF-BO
CL-21-THA-LF 5/8-11 4 1-1/2 7/8 1-9/16 CL-81-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-10-SLF-BO
CL-17-THA-LF 5/8-11 4-1/2 1-1/2 7/8 1-13/16 CL-77-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-10-SLF-BO
CL-23-THA-LF 5/8-11 5 1-1/2 7/8 2-1/16 CL-83-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-10-SLF-BO
CL-25-THA-LF 5/8-11 6 1-1/2 7/8 2-9/16 CL-85-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-10-SLF-BO
CL-26-THA-LF 5/8-11 6-1/2 1-1/2 7/8 2-13/16 CL-86-CS CL-11-SPG CL-5/8-11x4.00-STUD CL-10-JN CL-4-SNW CL-3-FW CL-10-SLF-BO
CL-28-THA-LF 3/4-10 6 1-3/4 1 2-1/2 CL-88-CS CL-13-SPG CL-3/4-10x5.00-STUD CL-12-JN CL-5-SNW CL-4-FW CL-12-SLF-BO
CL-30-THA-LF 3/4-10 7 1-3/4 1 3 CL-90-CS CL-13-SPG CL-3/4-10x5.00-STUD CL-12-JN CL-5-SNW CL-4-FW CL-12-SLF-BO
CL-32-THA-LF 3/4-10 8 1-3/4 1 3-1/2 CL-92-CS CL-13-SPG CL-3/4-10x5.00-STUD CL-12-JN CL-5-SNW CL-4-FW CL-12-SLF-BO
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

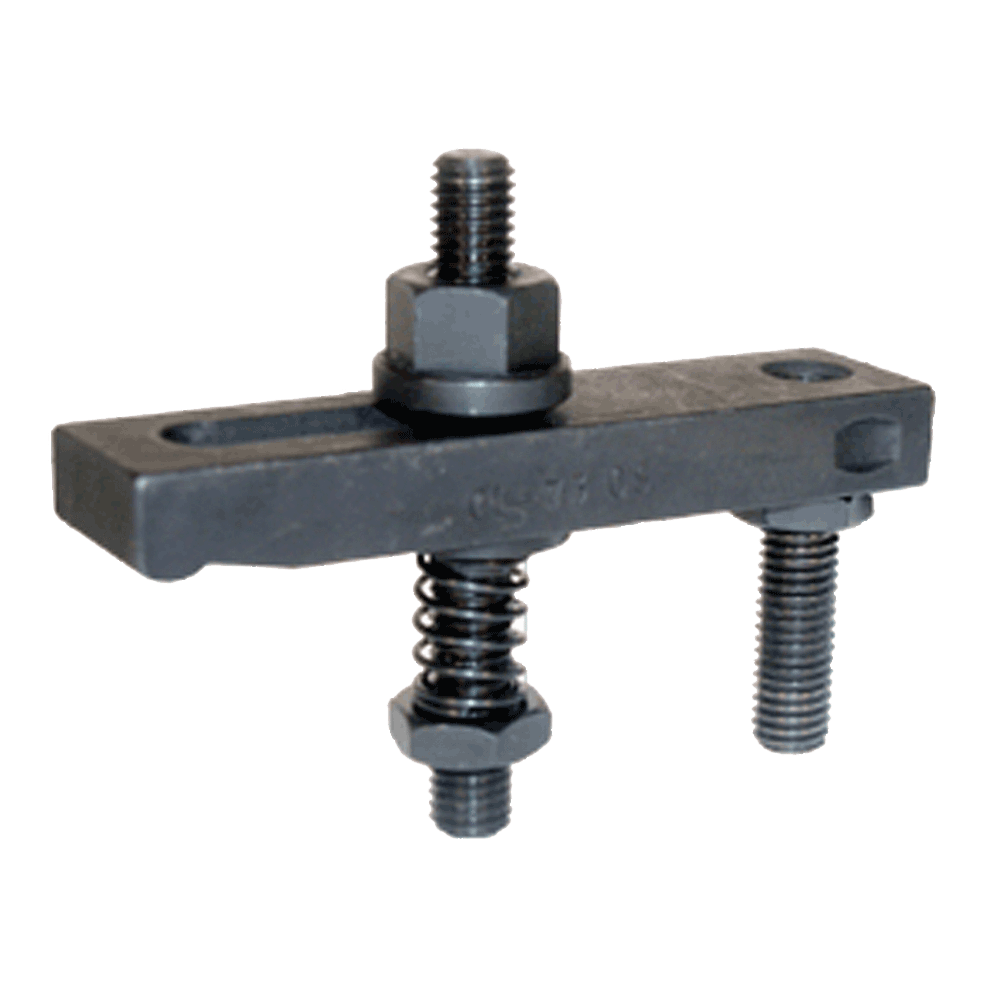

Assembly with Clamp Rest (Inch)
QUANTITY PART NO. STUD
THREAD		 A B C L CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUTS		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 CLAMP
REST
CL-1-THA-OP 1/4-20 2 5/8 3/8 13/16 CL-61-CS CL-5-SPG CL-1/4-20x2.00-STUD (2) CL-4-JN CL-1-SNW CL-7-FW CL-1/4-20x1.50-OPSS
CL-2-THA-OP 1/4-20 2-1/2 5/8 3/8 1-1/16 CL-62-CS CL-5-SPG CL-1/4-20x2.00-STUD (2) CL-4-JN CL-1-SNW CL-7-FW CL-1/4-20x1.50-OPSS
CL-3-THA-OP 3/8-16 3 1-1/8 1/2 1-7/32 CL-63-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-3/8-16x2.00-OPSS
CL-5-THA-OP 3/8-16 4 1-1/8 1/2 1-23/32 CL-65-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-3/8-16x2.00-OPSS
CL-7-THA-OP 3/8-16 5 1-1/8 1/2 2-7/32 CL-67-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-3/8-16x2.00-OPSS
CL-9-THA-OP 3/8-16 6 1-1/8 1/2 2-23/32 CL-69-CS CL-7-SPG CL-3/8-16x3.00-STUD (2) CL-6-JN CL-2-SNW CL-1-FW CL-3/8-16x2.00-OPSS
CL-10-THA-OP 1/2-13 3-1/2 1-1/4 5/8 1-13/32 CL-70-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-1/2-13x2.00-OPSS
CL-11-THA-OP 1/2-13 4 1-1/4 5/8 1-21/32 CL-71-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-1/2-13x2.00-OPSS
CL-12-THA-OP 1/2-13 4-1/2 1-1/4 5/8 1-29/32 CL-72-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-1/2-13x2.00-OPSS
CL-13-THA-OP 1/2-13 5 1-1/4 5/8 2-5/32 CL-73-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-1/2-13x2.00-OPSS
CL-14-THA-OP 1/2-13 5-1/2 1-1/4 5/8 2-13/32 CL-74-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-1/2-13x2.00-OPSS
CL-15-THA-OP 1/2-13 6 1-1/4 5/8 2-21/32 CL-75-CS CL-9-SPG CL-1/2-13x4.00-STUD (2) CL-8-JN CL-3-SNW CL-2-FW CL-1/2-13x2.00-OPSS
CL-21-THA-OP 5/8-11 4 1-1/2 7/8 1-9/16 CL-81-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-5/8-11x3.00-OPSS
CL-17-THA-OP 5/8-11 4-1/2 1-1/2 7/8 1-13/16 CL-77-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-5/8-11x3.00-OPSS
CL-23-THA-OP 5/8-11 5 1-1/2 7/8 2-1/16 CL-83-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-5/8-11x3.00-OPSS
CL-25-THA-OP 5/8-11 6 1-1/2 7/8 2-9/16 CL-85-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-5/8-11x3.00-OPSS
CL-26-THA-OP 5/8-11 6-1/2 1-1/2 7/8 2-13/16 CL-86-CS CL-11-SPG CL-5/8-11x4.00-STUD (2) CL-10-JN CL-4-SNW CL-3-FW CL-5/8-11x3.00-OPSS
CL-28-THA-OP 3/4-10 6 1-3/4 1 2-1/2 CL-88-CS CL-13-SPG CL-3/4-10x5.00-STUD (2) CL-12-JN CL-5-SNW CL-4-FW CL-3/4-10x3.00-OPSS
CL-30-THA-OP 3/4-10 7 1-3/4 1 3 CL-90-CS CL-13-SPG CL-3/4-10x5.00-STUD (2) CL-12-JN CL-5-SNW CL-4-FW CL-3/4-10x3.00-OPSS
CL-32-THA-OP 3/4-10 8 1-3/4 1 3-1/2 CL-92-CS CL-13-SPG CL-3/4-10x5.00-STUD (2) CL-12-JN CL-5-SNW CL-4-FW CL-3/4-10x3.00-OPSS
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
 Clamp Strap Only (Metric)
QUANTITY PART NO. A
STUD
SIZE		 THREAD
PITCH
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 F
(mm)		 G
(mm)		 H
(mm)		 J
(mm)		 K
THREAD		 THREAD
PITCH
(mm)
CLM-61-CS M6 1 9.5 16 51 20.5 14.5 6.5 8.5 7 M6 1
CLM-62-CS M6 1 9.5 16 63 27 20.5 6.5 8.5 7 M6 1
CLM-63-CS M10 1.5 12.5 28.5 76 31 20.5 10.5 12.5 10.5 M10 1.5
CLM-65-CS M10 1.5 12.5 28.5 101.5 43.5 33.5 10.5 12.5 10.5 M10 1.5
CLM-67-CS M10 1.5 12.5 28.5 127 56.5 46 10.5 12.5 10.5 M10 1.5
CLM-70-CS M12 1.75 16 32 89 35.5 24 10.5 12.5 13.5 M12 1.75
CLM-71-CS M12 1.75 16 32 101.5 42 30 10.5 12.5 13.5 M12 1.75
CLM-72-CS M12 1.75 16 32 114 48.5 36.5 10.5 12.5 13.5 M12 1.75
CLM-73-CS M12 1.75 16 32 127 55 43 10.5 12.5 13.5 M12 1.75
CLM-75-CS M12 1.75 16 32 162 67.5 55.5 10.5 12.5 13.5 M12 1.75
CLM-81-CS M16 2 22 38 101.5 39.5 25.5 12.5 15 16.5 M16 2
CLM-83-CS M16 2 22 38 127 52.5 38 12.5 15 16.5 M16 2
CLM-85-CS M16 2 22 38 152 65 51 12.5 15 16.5 M16 2
CLM-88-CS M20 2.5 25.5 44.5 152 63.5 48.5 12.5 15 20.5 M20 2.5
CLM-92-CS M20 2.5 25.5 44.5 203 89 74 12.5 15 20.5 M20 2.5
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
 Assembly with Hex-Head Clamping Screw (Metric)
QUANTITY PART NO. STUD
THREAD		 THREAD
PITCH
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 E
(mm)		 F
THREAD		 THREAD
PITCH
(mm)		 CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUTS		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 HEX-HEAD
CLAMPING
SCREW		 GUIDE
BLOCK
CLM-1-THA-HH M6 1 51 16 9.5 17.5 M4 .7 CLM-61-CS CL-5-SPG CLM-6x65-STUD (2) CLM-6-JN CLM-6-SNW CL-7-FW CLM-1-THA-BOLT CL-2-GB
CLM-2-THA-HH M6 1 65 16 9.5 24 M4 .7 CLM-62-CS CL-5-SPG CLM-6x65-STUD (2) CLM-6-JN CLM-6-SNW CL-7-FW CLM-1-THA-BOLT CL-2-GB
CLM-3-THA-HH M10 1.5 76 28.5 12.5 26 M5 .8 CLM-63-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-2-THA-BOLT CL-4-GB
CLM-5-THA-HH M10 1.5 101.5 28.5 12.5 39 M5 .8 CLM-65-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-2-THA-BOLT CL-4-GB
CLM-7-THA-HH M10 1.5 127 28.5 12.5 51.5 M5 .8 CLM-67-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-2-THA-BOLT CL-4-GB
CLM-10-THA-HH M12 1.75 89 32 16 29.5 M6 1 CLM-70-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-BOLT CL-6-GB
CLM-11-THA-HH M12 1.75 101.5 32 16 35.5 M6 1 CLM-71-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-BOLT CL-6-GB
CLM-12-THA-HH M12 1.75 114 32 16 42 M6 1 CLM-72-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-BOLT CL-6-GB
CLM-13-THA-HH M12 1.75 127 32 16 48.5 M6 1 CLM-73-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-BOLT CL-6-GB
CLM-15-THA-HH M12 1.75 152 32 16 61 M6 1 CLM-75-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-BOLT CL-6-GB
CLM-21-THA-HH M16 2 101.5 38 22 32 M6 1 CLM-81-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-4-THA-BOLT CL-8-GB
CLM-23-THA-HH M16 2 127 38 22 44.5 M6 1 CLM-83-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-4-THA-BOLT CL-8-GB
CLM-25-THA-HH M16 2 152 38 22 57 M6 1 CLM-85-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-4-THA-BOLT CL-8-GB
CLM-28-THA-HH M20 2.5 152 44.5 25.5 54 M6 1 CLM-88-CS CL-13-SPG CLM-20x125-STUD (2) CLM-20-JN CLM-20-SNW CLM-10-FW CLM-5-THA-BOLT CL-11-GB
CLM-32-THA-HH M20 2.5 203 44.5 25.5 79.5 M6 1 CLM-92-CS CL-13-SPG CLM-20x125-STUD (2) CLM-20-JN CLM-20-SNW CLM-10-FW CLM-5-THA-BOLT CL-11-GB
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Assembly with Hand-Knob Clamping Screw (Metric)
QUANTITY PART NO. STUD
THREAD		 THREAD
PITCH
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 E
(mm)		 F
THREAD		 THREAD
PITCH
(mm)		 CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUTS		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 HAND-KNOB
CLAMPING
SCREW		 GUIDE
BLOCK
CLM-1-THA-HK M6 1 51 16 9.5 17.5 M4 .7 CLM-61-CS CL-5-SPG CLM-6x65-STUD (2) CLM-6-JN CLM-6-SNW CL-7-FW CLM-1-THA-KNOB CL-20-GB
CLM-2-THA-HK M6 1 65 16 9.5 24 M4 .7 CLM-62-CS CL-5-SPG CLM-6x65-STUD (2) CLM-6-JN CLM-6-SNW CL-7-FW CLM-1-THA-KNOB CL-20-GB
CLM-3-THA-HK M10 1.5 76 28.5 12.5 26 M5 .8 CLM-63-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-2-THA-KNOB CL-40-GB
CLM-5-THA-HK M10 1.5 101.5 28.5 12.5 39 M5 .8 CLM-65-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-2-THA-KNOB CL-40-GB
CLM-7-THA-HK M10 1.5 127 28.5 12.5 51.5 M5 .8 CLM-67-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-2-THA-KNOB CL-40-GB
CLM-10-THA-HK M12 1.75 89 32 16 29.5 M6 1 CLM-70-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-KNOB CL-60-GB
CLM-11-THA-HK M12 1.75 101.5 32 16 35.5 M6 1 CLM-71-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-KNOB CL-60-GB
CLM-12-THA-HK M12 1.75 114 32 16 42 M6 1 CLM-72-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-KNOB CL-60-GB
CLM-13-THA-HK M12 1.75 127 32 16 48.5 M6 1 CLM-73-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-KNOB CL-60-GB
CLM-15-THA-HK M12 1.75 152 32 16 61 M6 1 CLM-75-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-3-THA-KNOB CL-60-GB
CLM-21-THA-HK M16 2 101.5 38 22 32 M6 1 CLM-81-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-4-THA-KNOB CL-80-GB
CLM-23-THA-HK M16 2 127 38 22 44.5 M6 1 CLM-83-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-4-THA-KNOB CL-80-GB
CLM-25-THA-HK M16 2 152 38 22 57 M6 1 CLM-85-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-4-THA-KNOB CL-80-GB
CLM-28-THA-HK M20 2.5 152 44.5 25.5 54 M6 1 CLM-88-CS CL-13-SPG CLM-20x125-STUD (2) CLM-20-JN CLM-20-SNW CLM-10-FW CLM-5-THA-KNOB CL-110-GB
CLM-32-THA-HK M20 2.5 203 44.5 25.5 79.5 M6 1 CLM-92-CS CL-13-SPG CLM-20x125-STUD (2) CLM-20-JN CLM-20-SNW CLM-10-FW CLM-5-THA-KNOB CL-110-GB
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Assembly with Leveling Foot (Metric)
QUANTITY PART NO. STUD
THREAD		 THREAD
PITCH
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 L
(mm)		 CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUT		 SPHERICAL
NUT &
WASHER		 FLAT
WASHER		 STUD
LEVELING
FOOT
CLM-3-THA-LF M10 1.5 76 28.5 12.5 27 CLM-63-CS CL-7-SPG CLM-10x80-STUD CLM-10-JN CLM-10-SNW CL-1-FW CLM-10-SLF-BO
CLM-5-THA-LF M10 1.5 101.5 28.5 12.5 43.5 CLM-65-CS CL-7-SPG CLM-10x80-STUD CLM-10-JN CLM-10-SNW CL-1-FW CLM-10-SLF-BO
CLM-7-THA-LF M10 1.5 127 28.5 12.5 56.5 CLM-67-CS CL-7-SPG CLM-10x80-STUD CLM-10-JN CLM-10-SNW CL-1-FW CLM-10-SLF-BO
CLM-10-THA-LF M12 1.75 89 32 16 35.5 CLM-70-CS CL-9-SPG CLM-12x95-STUD CLM-12-JN CLM-12-SNW CL-2-FW CLM-12-SLF-BO
CLM-11-THA-LF M12 1.75 101.5 32 16 42 CLM-71-CS CL-9-SPG CLM-12x95-STUD CLM-12-JN CLM-12-SNW CL-2-FW CLM-12-SLF-BO
CLM-12-THA-LF M12 1.75 114 32 16 48.5 CLM-72-CS CL-9-SPG CLM-12x95-STUD CLM-12-JN CLM-12-SNW CL-2-FW CLM-12-SLF-BO
CLM-13-THA-LF M12 1.75 127 32 16 55 CLM-73-CS CL-9-SPG CLM-12x95-STUD CLM-12-JN CLM-12-SNW CL-2-FW CLM-12-SLF-BO
CLM-15-THA-LF M12 1.75 152 32 16 67.5 CLM-75-CS CL-9-SPG CLM-12x95-STUD CLM-12-JN CLM-12-SNW CL-2-FW CLM-12-SLF-BO
CLM-21-THA-LF M16 2 101.5 38 22 39.5 CLM-81-CS CL-11-SPG CLM-16x110-STUD CLM-16-JN CLM-16-SNW CL-3-FW CLM-16-SLF-BO
CLM-23-THA-LF M16 2 127 38 22 52.5 CLM-83-CS CL-11-SPG CLM-16x110-STUD CLM-16-JN CLM-16-SNW CL-3-FW CLM-16-SLF-BO
CLM-25-THA-LF M16 2 152 38 22 65 CLM-85-CS CL-11-SPG CLM-16x110-STUD CLM-16-JN CLM-16-SNW CL-3-FW CLM-16-SLF-BO
CLM-28-THA-LF M20 2.5 152 44.5 25.5 63.5 CLM-88-CS CL-13-SPG CLM-20x125-STUD CLM-20-JN CLM-20-SNW CLM-10-FW CLM-20-SLF-BO
CLM-32-THA-LF M20 2.5 203 44.5 25.5 89 CLM-92-CS CL-13-SPG CLM-20x125-STUD CLM-20-JN CLM-20-SNW CLM-10-FW CLM-20-SLF-BO
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Assembly with Clamp Rest (Metric)
QUANTITY PART NO. STUD
THREAD		 THREAD
PITCH
(mm)		 A
(mm)		 B
(mm)		 C
(mm)		 L
(mm)		 CLAMP
STRAP		 CLAMP
SPRING		 CLAMPING
STUD		 JAM
NUTS		 SPHERICAL
NUT
WASHER		 FLAT
WASHER		 CLAMP
REST
CLM-1-THA-OP M6 1 51 16 9.5 20.5 CLM-61-CS CL-5-SPG CLM-6x65-STUD (2) CLM-6-JN CLM-6-SNW CL-7-FW CLM-6x40-OPSS
CLM-2-THA-OP M6 1 65 16 9.5 27 CLM-62-CS CL-5-SPG CLM-6x65-STUD (2) CLM-6-JN CLM-6-SNW CL-7-FW CLM-6x40-OPSS
CLM-3-THA-OP M10 1.5 76 28.5 12.5 27 CLM-63-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-10x50-OPSS
CLM-5-THA-OP M10 1.5 101.5 28.5 12.5 43.5 CLM-65-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-10x50-OPSS
CLM-7-THA-OP M10 1.5 127 28.5 12.5 56.5 CLM-67-CS CL-7-SPG CLM-10x80-STUD (2) CLM-10-JN CLM-10-SNW CL-1-FW CLM-10x50-OPSS
CLM-10-THA-OP M12 1.75 89 32 16 35.5 CLM-70-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-12x50-OPSS
CLM-11-THA-OP M12 1.75 101.5 32 16 42 CLM-71-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-12x50-OPSS
CLM-12-THA-OP M12 1.75 114 32 16 48.5 CLM-72-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-12x50-OPSS
CLM-13-THA-OP M12 1.75 127 32 16 55 CLM-73-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-12x50-OPSS
CLM-15-THA-OP M12 1.75 152 32 16 67.5 CLM-75-CS CL-9-SPG CLM-12x95-STUD (2) CLM-12-JN CLM-12-SNW CL-2-FW CLM-12x50-OPSS
CLM-21-THA-OP M16 2 101.5 38 22 39.5 CLM-81-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-16x75-OPSS
CLM-23-THA-OP M16 2 127 38 22 52.5 CLM-83-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-16x75-OPSS
CLM-25-THA-OP M16 2 152 38 22 65 CLM-85-CS CL-11-SPG CLM-16x110-STUD (2) CLM-16-JN CLM-16-SNW CL-3-FW CLM-16x75-OPSS
CLM-28-THA-OP M20 2.5 152 44.5 25.5 63.5 CLM-88-CS CL-13-SPG CLM-20x125-STUD (2) CLM-20-JN CLM-20-SNW CLM-10-FW CLM-20x75-OPSS
CLM-32-THA-OP M20 2.5 203 44.5 25.5 89 CLM-92-CS CL-13-SPG CLM-20x125-STUD (2) CLM-20-JN CLM-20-SNW CLM-10-FW CLM-20x75-OPSS
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Forgot Username
Cancel
Forgot Password
Cancel
Forgot Username
Cancel
Forgot Password
Cancel
