Tapped-Heel Clamp Straps (Stainless Steel)

Clamp Straps & Clamping Kits

Save to My Project

What is this?

Product Information

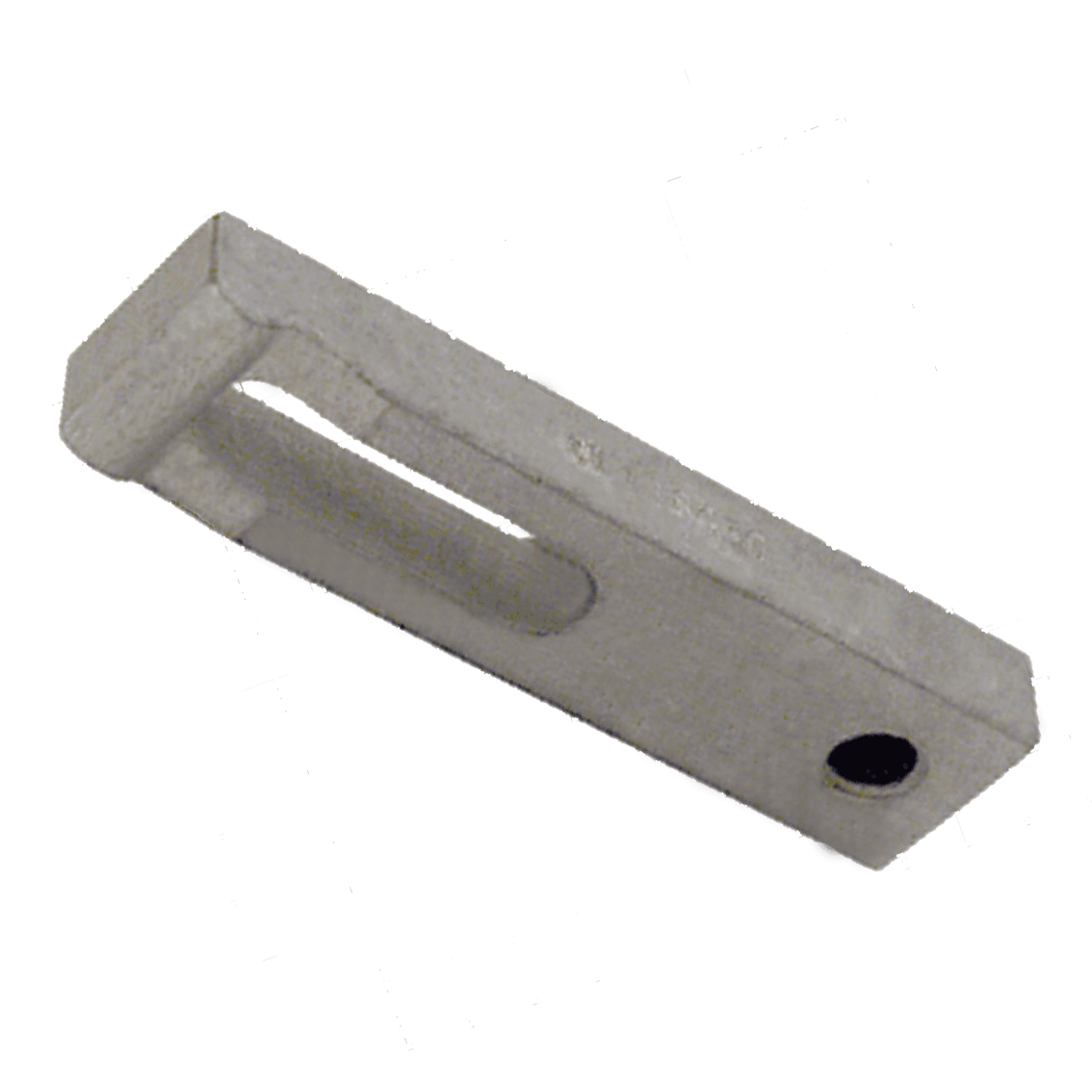

Tapped-Heel Clamp Straps (Stainless Steel) Part # CL-18220 Carr Lane Mfg.®

Mini-size stainless steel version of our Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. Available to fit stud sizes #10-32 to 3/8-16, each in a choice of strap lengths. Made in USA.

This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are:

- Assembly with Knurled-head Screw

-1 Assembly with Clamp Rest

-2 Assembly with Leveling Foot

Application Information

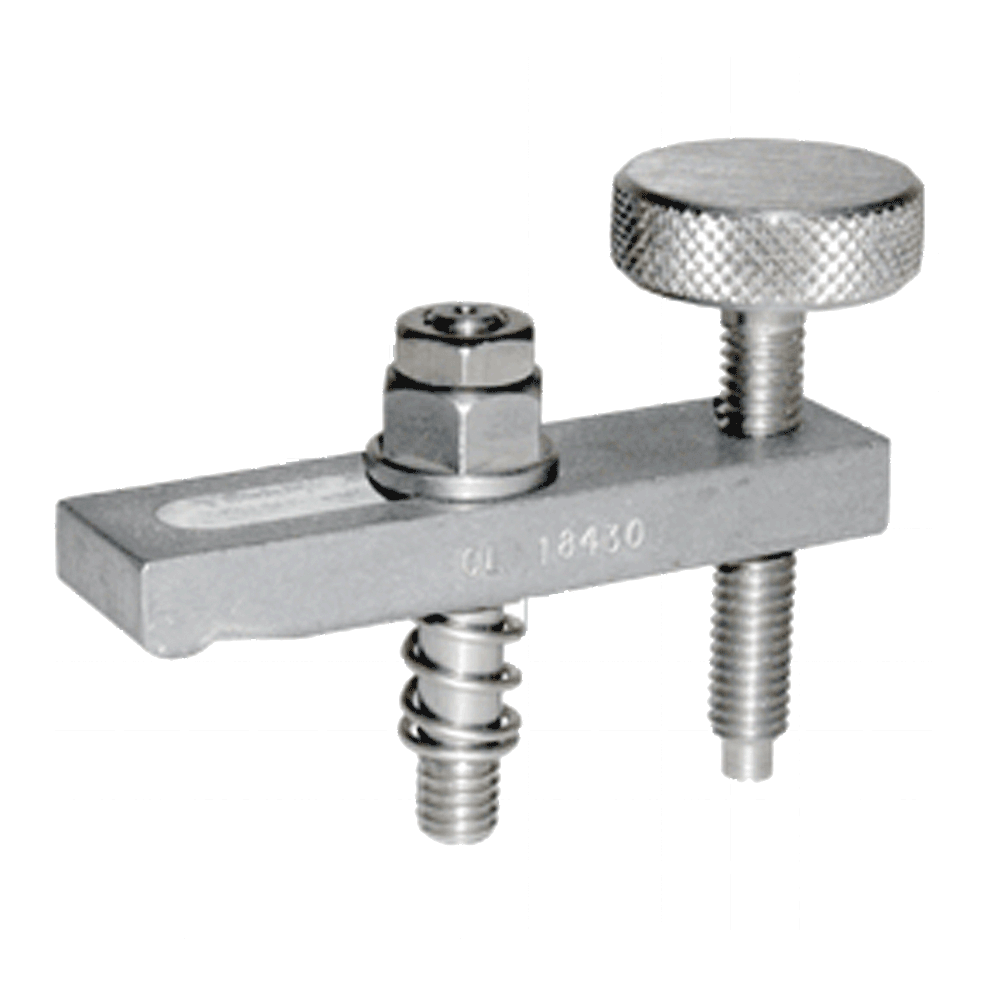

Assembly with Knurled-Head Screw

Diagram showcasing the application of Tapped Heel Clamp Straps Stainless Steel

This assembly includes a Tapped-Heel Clamp Strap plus the following items:

Knurled-Head Screw

Flange Nut

Fixture Stud

Clamp Spring

Flat Washer

Jam Nut

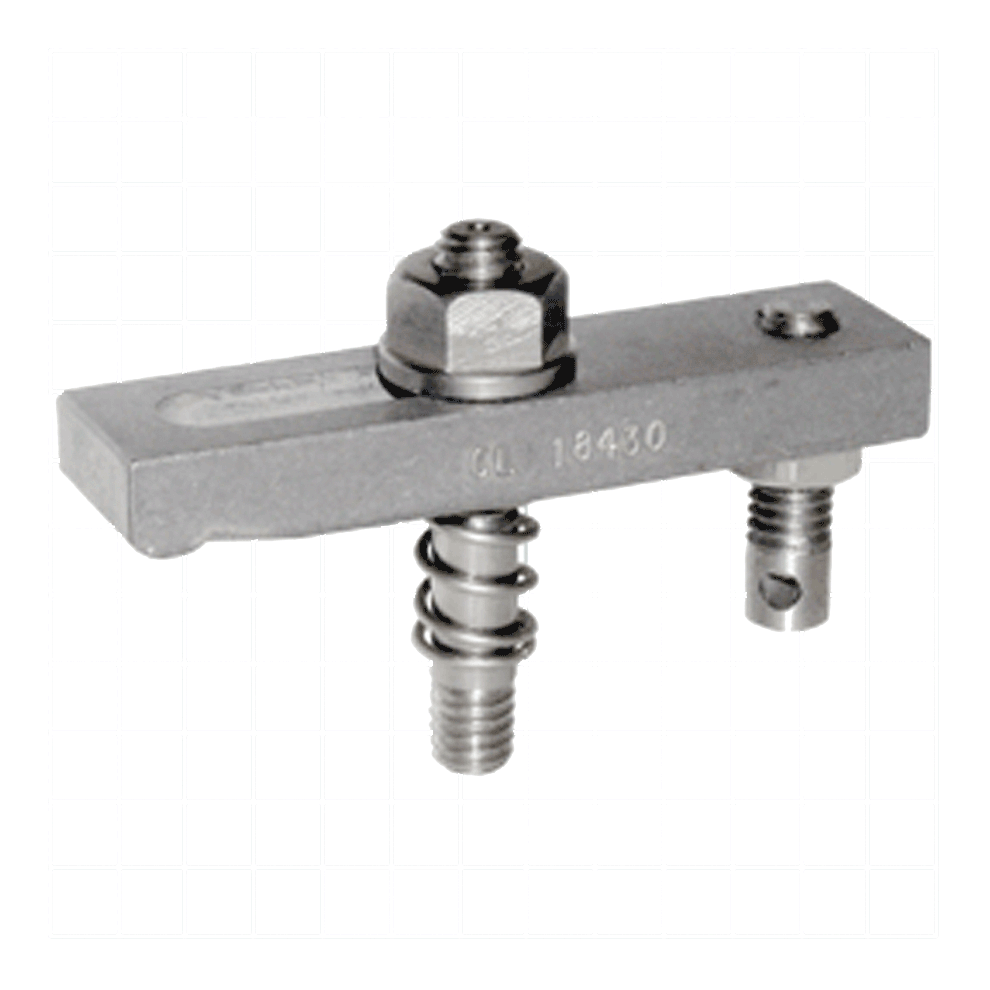

Assembly with Clamp Rest (-1)

Diagram showcasing the application of Tapped Heel Clamp Straps Stainless Steel

This assembly includes a Tapped-Heel Clamp Strap plus the following items:

Clamp Rest

Flange Nut

Fixture Stud

Clamp Spring

Flat Washer

Jam Nut

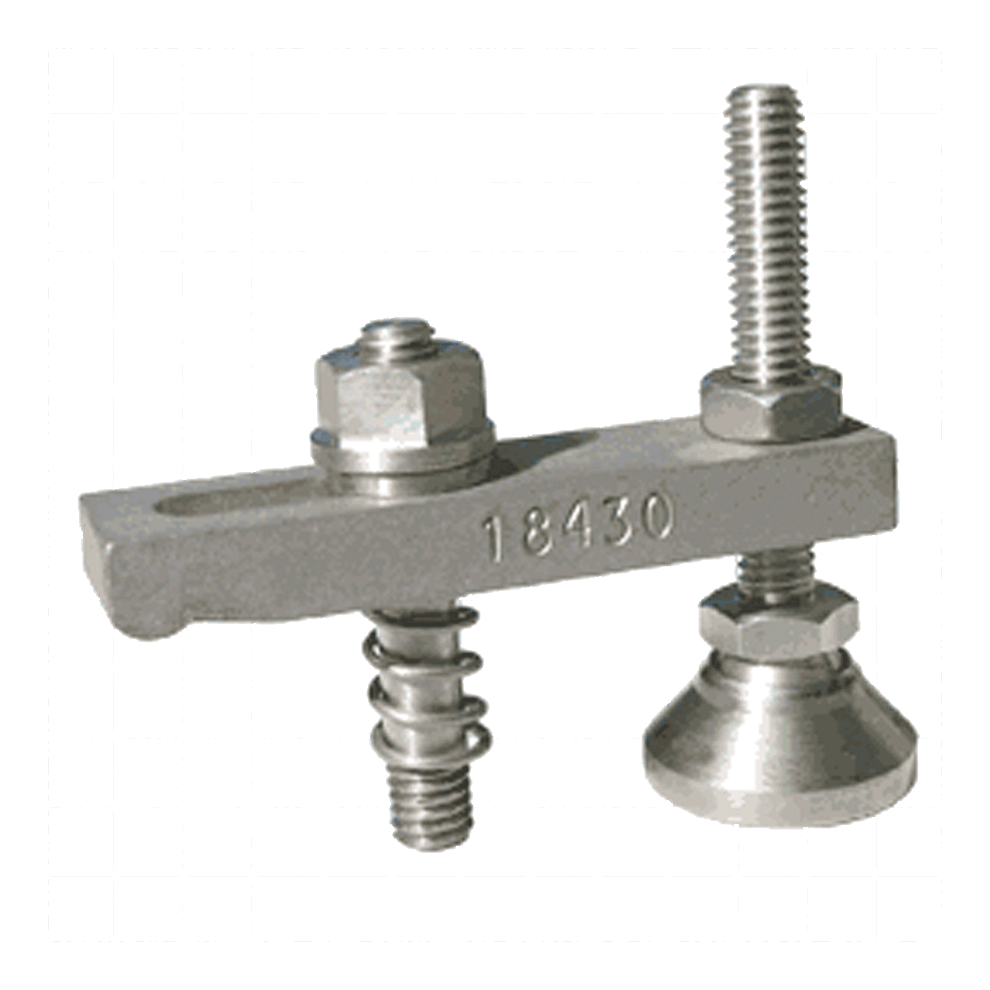

Assembly with Leveling Foot (-2)

Diagram showcasing the application of Tapped Heel Clamp Straps Stainless Steel

This assembly includes a Tapped-Heel Clamp Strap plus the following items:

Leveling Foot

Flange Nut

Fixture Stud

Clamp Spring

Flat Washer

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
300-Series Stainless Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Tapped-Heel Clamp Straps (Stainless Steel)

Clamp Strap Only (Inch)

QUANTITY	PART NO.	A STUD SIZE	B	C	D	E	F	G	H	J	K THREAD
	CL-18215	#10-32	1/4	1/2	1-1/2	19/32	13/32	3/16	5/16	7/32	#10-32
	CL-18220	#10-32	1/4	1/2	2	27/32	21/32	3/16	5/16	7/32	#10-32
	CL-18320	1/4-20	3/8	5/8	2	13/16	19/32	1/4	3/8	9/32	1/4-20
	CL-18325	1/4-20	3/8	5/8	2-1/2	1-1/16	27/32	1/4	3/8	9/32	1/4-20
	CL-18530	3/8-16	1/2	1	3	1-7/32	7/8	3/8	1/2	27/64	3/8-16
	CL-18540	3/8-16	1/2	1	4	1-23/32	1-3/8	3/8	1/2	27/64	3/8-16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Knurled-Head Screw (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	KNURLED HEAD SCREW	CLAMP SPRING	FLAT WASHER	FIXTURE STUD	FLANGE NUT	JAM NUT
	CL-3115	#10-32	1-1/2	1/2	1/4	19/32	CL-18215	CL-23212	CL-2430.7	CL-254	CL-11415	CL-124	CL-3-FJN-S
	CL-3120	#10-32	2	1/2	1/4	27/32	CL-18220	CL-23212	CL-2430.7	CL-254	CL-11415	CL-124	CL-3-FJN-S
	CL-3220	1/4-20	2	5/8	3/8	13/16	CL-18320	CL-23515	CL-2440.7	CL-255	CL-11520	CL-125	CL-4-JN-S
	CL-3225	1/4-20	2-1/2	5/8	3/8	1-1/16	CL-18325	CL-23515	CL-2440.7	CL-255	CL-11520	CL-125	CL-4-JN-S
	CL-3320	5/16-18	2	3/4	3/8	3/4	CL-18420	CL-23620	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3325	5/16-18	2-1/2	3/4	3/8	1	CL-18425	CL-23620	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3330	5/16-18	3	3/4	3/8	1-1/4	CL-18430	CL-23620	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3430	3/8-16	3	1	1/2	1-7/32	CL-18530	CL-23820	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S
	CL-3435	3/8-16	3-1/2	1	1/2	1-15/32	CL-18535	CL-23820	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S
	CL-3440	3/8-16	4	1	1/2	1-23/32	CL-18540	CL-23820	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Clamp Rest (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	FIXTURE STUD	FLANGE NUT	JAM NUT
	CL-3115-1	#10-32	1-1/2	1/2	1/4	19/32	CL-18215	CL-13410	CL-2430.7	CL-254	CL-11415	CL-124	CL-3-FJN-S
	CL-3120-1	#10-32	2	1/2	1/4	27/32	CL-18220	CL-13410	CL-2430.7	CL-254	CL-11415	CL-124	CL-3-FJN-S
	CL-3220-1	1/4-20	2	5/8	3/8	13/16	CL-18320	CL-13515	CL-2440.7	CL-255	CL-11520	CL-125	CL-4-JN-S
	CL-3225-1	1/4-20	2-1/2	5/8	3/8	1-1/16	CL-18325	CL-13515	CL-2440.7	CL-255	CL-11520	CL-125	CL-4-JN-S
	CL-3320-1	5/16-18	2	3/4	3/8	3/4	CL-18420	CL-13615	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3325-1	5/16-18	2-1/2	3/4	3/8	1	CL-18425	CL-13615	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3330-1	5/16-18	3	3/4	3/8	1-1/4	CL-18430	CL-13615	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3430-1	3/8-16	3	1	1/2	1-7/32	CL-18530	CL-13717	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S
	CL-3435-1	3/8-16	3-1/2	1	1/2	1-15/32	CL-18535	CL-13717	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S
	CL-3440-1	3/8-16	4	1	1/2	1-23/32	CL-18540	CL-13717	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Leveling Foot (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	LEVELING FOOT	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	FLANGE NUT	JAM NUT
	CL-3115-2	#10-32	1-1/2	1/2	1/4	19/32	CL-18215	CL-3-SLF-S	CL-2430.7	CL-254	CL-11415	CL-124	CL-3-FJN-S
	CL-3120-2	#10-32	2	1/2	1/4	27/32	CL-18220	CL-3-SLF-S	CL-2430.7	CL-254	CL-11415	CL-124	CL-3-FJN-S
	CL-3220-2	1/4-20	2	5/8	3/8	13/16	CL-18320	CL-4-SLF-S	CL-2440.7	CL-255	CL-11520	CL-125	CL-4-JN-S
	CL-3225-2	1/4-20	2-1/2	5/8	3/8	1-1/16	CL-18325	CL-4-SLF-S	CL-2440.7	CL-255	CL-11520	CL-125	CL-4-JN-S
	CL-3320-2	5/16-18	2	3/4	3/8	3/4	CL-18420	CL-5-SLF-S	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3325-2	5/16-18	2-1/2	3/4	3/8	1	CL-18425	CL-5-SLF-S	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3330-2	5/16-18	3	3/4	3/8	1-1/4	CL-18430	CL-5-SLF-S	CL-2450.7	CL-256	CL-11620	CL-126	CL-5-JN-S
	CL-3430-2	3/8-16	3	1	1/2	1-7/32	CL-18530	CL-6-SLF-S	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S
	CL-3435-2	3/8-16	3-1/2	1	1/2	1-15/32	CL-18535	CL-6-SLF-S	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S
	CL-3440-2	3/8-16	4	1	1/2	1-23/32	CL-18540	CL-6-SLF-S	CL-2461.0	CL-257	CL-11725	CL-127	CL-6-JN-S

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
