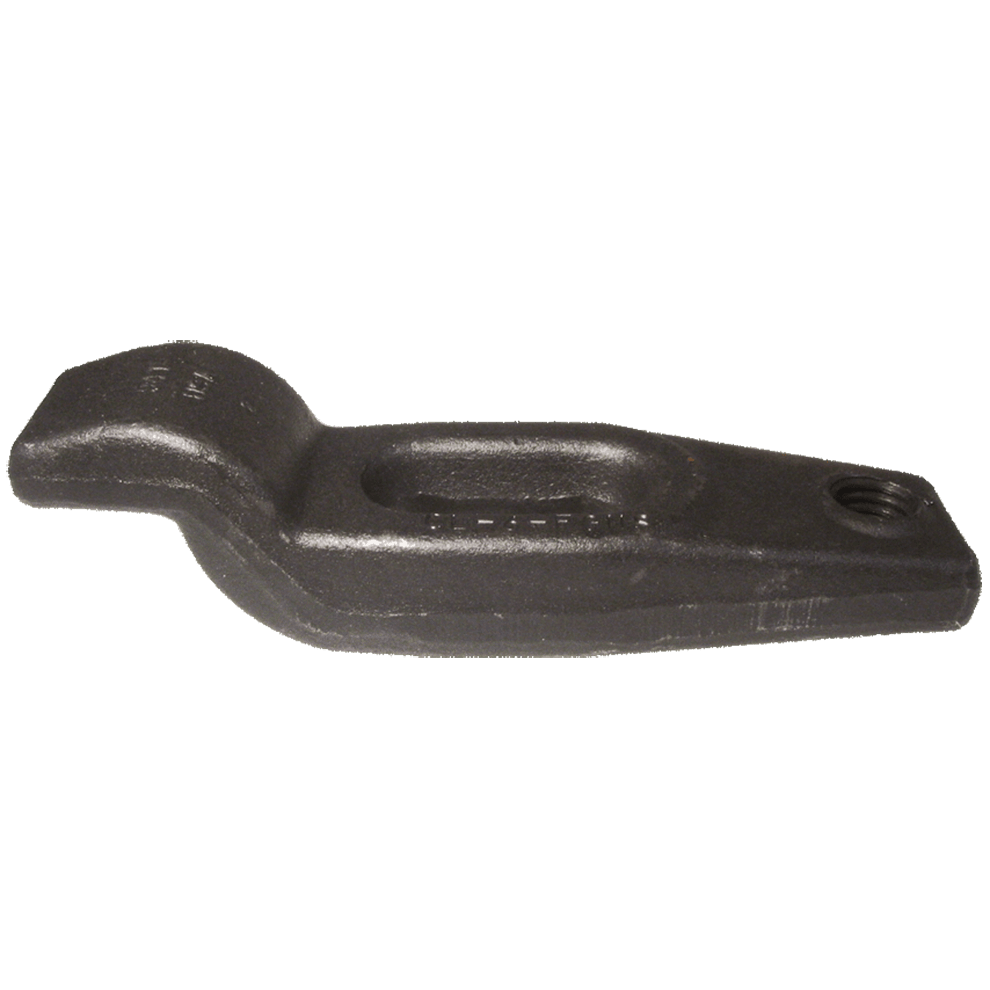

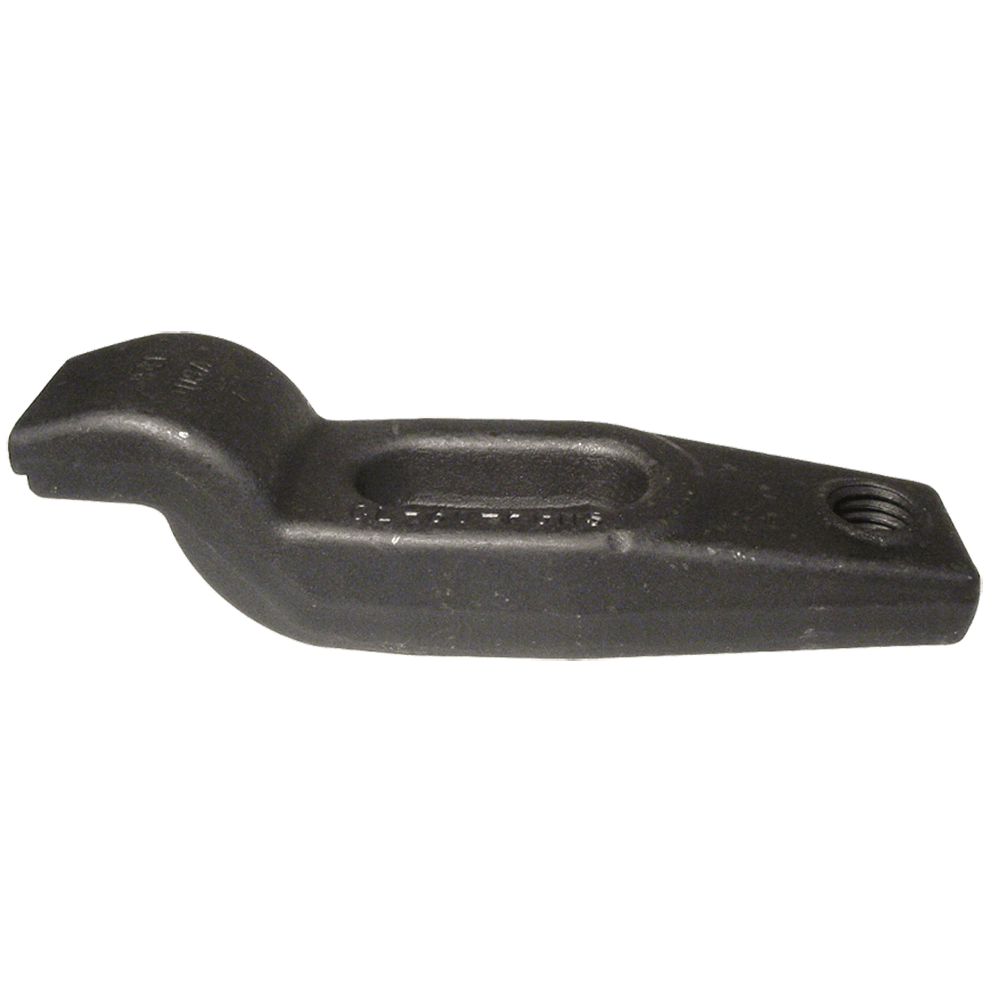

Forged Clamp Straps – Gooseneck

Clamp Straps & Clamping Kits

Plain Nose
QUANTITY PART NO. STUD
SIZE
A B C D E F G H J K L
CL-4-FGNS 5/8-11 4 1-31/32 3/16 1-3/16 1-3/4 11/16 1/2 3/4 3/4 1-7/16 ---
CL-6-FGNS 5/8-11 6 2-17/32 1 1-1/4 1-3/4 11/16 5/8 7/8 15/16 1-9/16 ---
CL-8-FGNS 3/4-10 8 3-9/32 1-5/8 1-9/16 2-1/4 13/16 1 1-1/8 1-1/8 2 ---
Locator Nose
QUANTITY PART NO. STUD
SIZE
A B C D E F G H J K L
CL-40-FGNS 5/8-11 4 1-31/32 3/16 1-3/16 1-3/4 11/16 1/2 3/4 3/4 1-7/16 .15
CL-60-FGNS 5/8-11 6 2-17/32 1 1-1/4 1-3/4 11/16 5/8 7/8 15/16 1-9/16 .25
CL-80-FGNS 3/4-10 8 3-9/32 1-5/8 1-9/16 2-1/4 13/16 1 1-1/8 1-1/8 2 .35
