Slotted-Heel Padded Clamp Straps (Steel)

Clamp Straps & Clamping Kits

 Save to My Project
What is this?

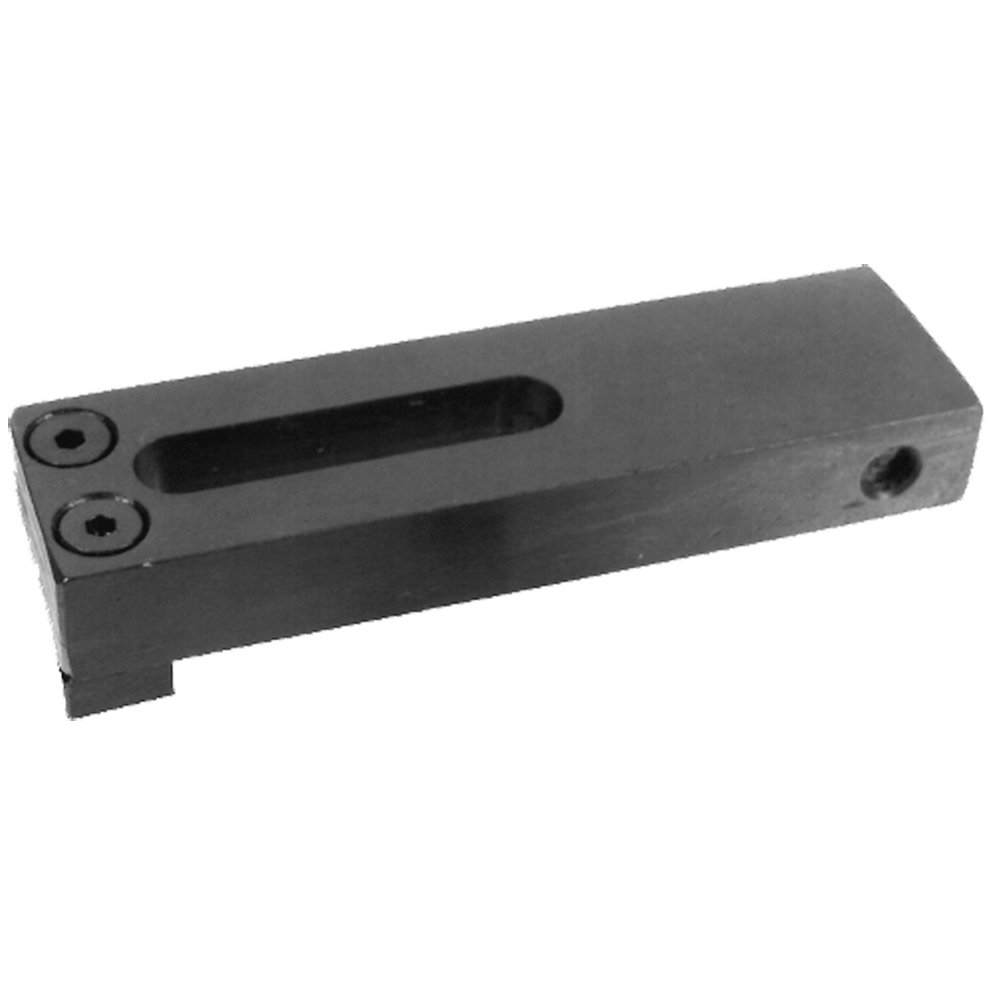

Clamp Strap Only, with Steel Pad
QUANTITY PART NO. A
STUD
SIZE		 B C D E F G H J K L M N
THREAD		 P Q
CL-165-CS 1/4-20 or M6 3/8 5/8 2 3/8 5/8 1/4 1/8 9/32 5/32 1/4 --- --- 11/32 9/64
CL-166-CS 3/8-16 or M10 5/8 1-1/4 3-1/2 11/16 1-1/8 1/2 1/4 27/64 9/32 3/8 1/2 5/16-18 5/8 1/4
CL-168-CS 3/8-16 or M10 5/8 1-1/4 4-1/2 11/16 1-5/8 1/2 1/4 27/64 9/32 3/8 1/2 5/16-18 5/8 1/4
CL-169-CS 1/2-13 or M12 3/4 1-1/2 4-1/2 7/8 1-1/4 5/8 3/8 17/32 9/32 3/8 1/2 5/16-18 3/4 5/16
CL-170A-CS 1/2-13 or M12 3/4 1-1/2 6 7/8 2 5/8 3/8 17/32 9/32 3/8 1/2 5/16-18 3/4 5/16
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

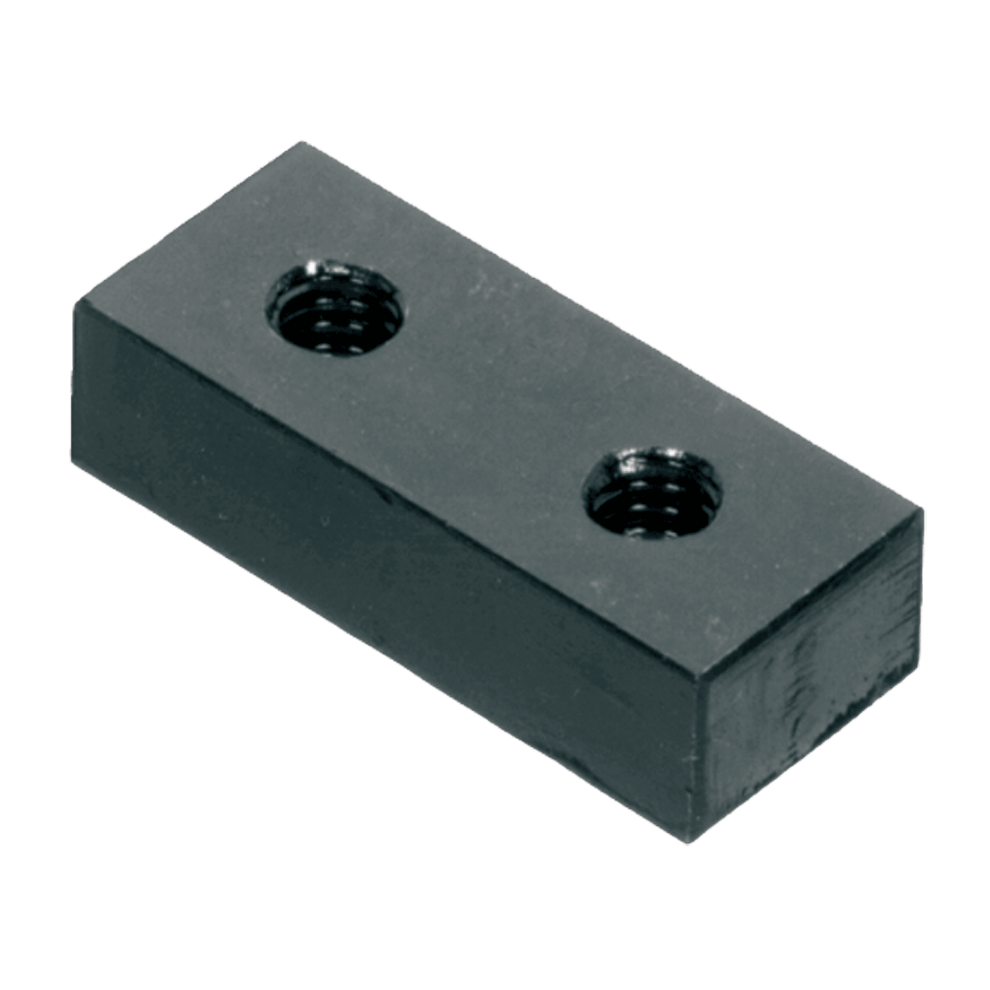

Replacement Pad – Steel
QUANTITY PART NO. STUD SIZE C G H P R
CL-40-CP 1/4-20 or M6 5/8 1/4 1/8 11/32 #5-40
CL-42-CP 3/8-16 or M10 1-1/4 1/2 1/4 5/8 #10-24
CL-43-CP 1/2-13 or M12 1-1/2 5/8 3/8 3/4 1/4-20
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Replacement Pad – Plastic
QUANTITY PART NO. STUD SIZE C G H P R
CL-20-CP 1/4-20 or M6 5/8 1/4 1/8 11/32 #5-40
CL-22-CP 3/8-16 or M10 1-1/4 1/2 1/4 5/8 #10-24
CL-23-CP 1/2-13 or M12 1-1/2 5/8 3/8 3/4 1/4-20
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Replacement Pad – Brass
QUANTITY PART NO. STUD SIZE C G H P R
CL-30-CP 1/4-20 or M6 5/8 1/4 1/8 11/32 #5-40
CL-32-CP 3/8-16 or M10 1-1/4 1/2 1/4 5/8 #10-24
CL-33-CP 1/2-13 or M12 1-1/2 5/8 3/8 3/4 1/4-20
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

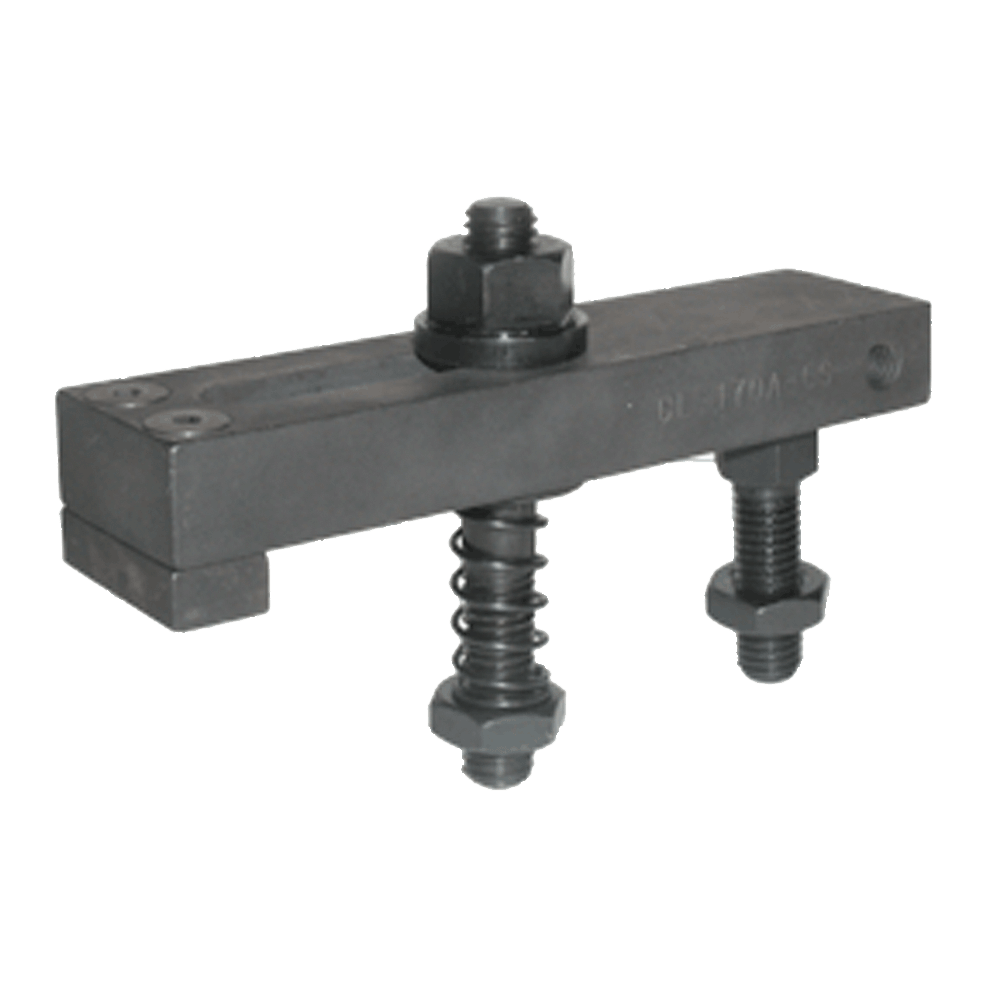

Assembly with Spherical Nut & Washer (Inch)
QUANTITY PART NO. A
THREAD		 D E F S CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 CLAMPING
STUD		 JAM
NUT		 SPHERICAL
NUT &
WASHER
CL-165-SHPA-1 1/4-20 2 3/8 5/8 7/8 CL-165-CS CL-1-CR CL-5-SPG CL-7-FW CL-1/4-20x2.50-STUD CL-4-JN CL-1-SNW
CL-166-SHPA-1 3/8-16 3-1/2 11/16 1-1/8 1-7/16 CL-166-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW
CL-168-SHPA-1 3/8-16 4-1/2 11/16 1-5/8 1-15/16 CL-168-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-2-SNW
CL-169-SHPA-1 1/2-13 4-1/2 7/8 1-1/4 2-1/8 CL-169-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW
CL-170A-SHPA-1 1/2-13 6 7/8 2 2-7/8 CL-170A-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-3-SNW
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

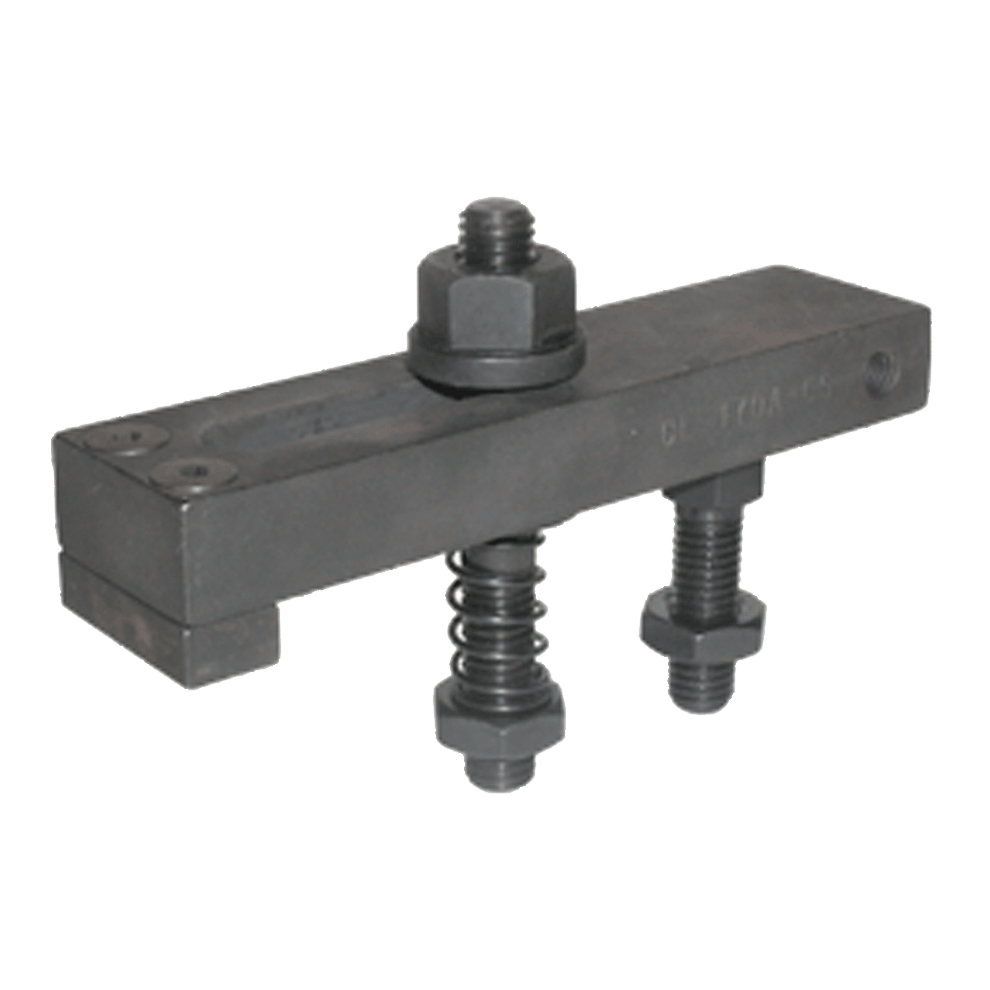

Assembly with Flange Nut (Inch)
QUANTITY PART NO. A
THREAD		 D E F S CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 CLAMPING
STUD		 JAM
NUT		 FLANGE
NUT
CL-165-SHPA-2 1/4-20 2 3/8 5/8 7/8 CL-165-CS CL-1-CR CL-5-SPG CL-7-FW CL-1/4-20x2.50-STUD CL-4-JN CL-1-FN
CL-166-SHPA-2 3/8-16 3-1/2 11/16 1-1/8 1-7/16 CL-166-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-2-FN
CL-168-SHPA-2 3/8-16 4-1/2 11/16 1-5/8 1-15/16 CL-168-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-2-FN
CL-169-SHPA-2 1/2-13 4-1/2 7/8 1-1/4 2-1/8 CL-169-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-3-FN
CL-170A-SHPA-2 1/2-13 6 7/8 2 2-7/8 CL-170A-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-3-FN
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

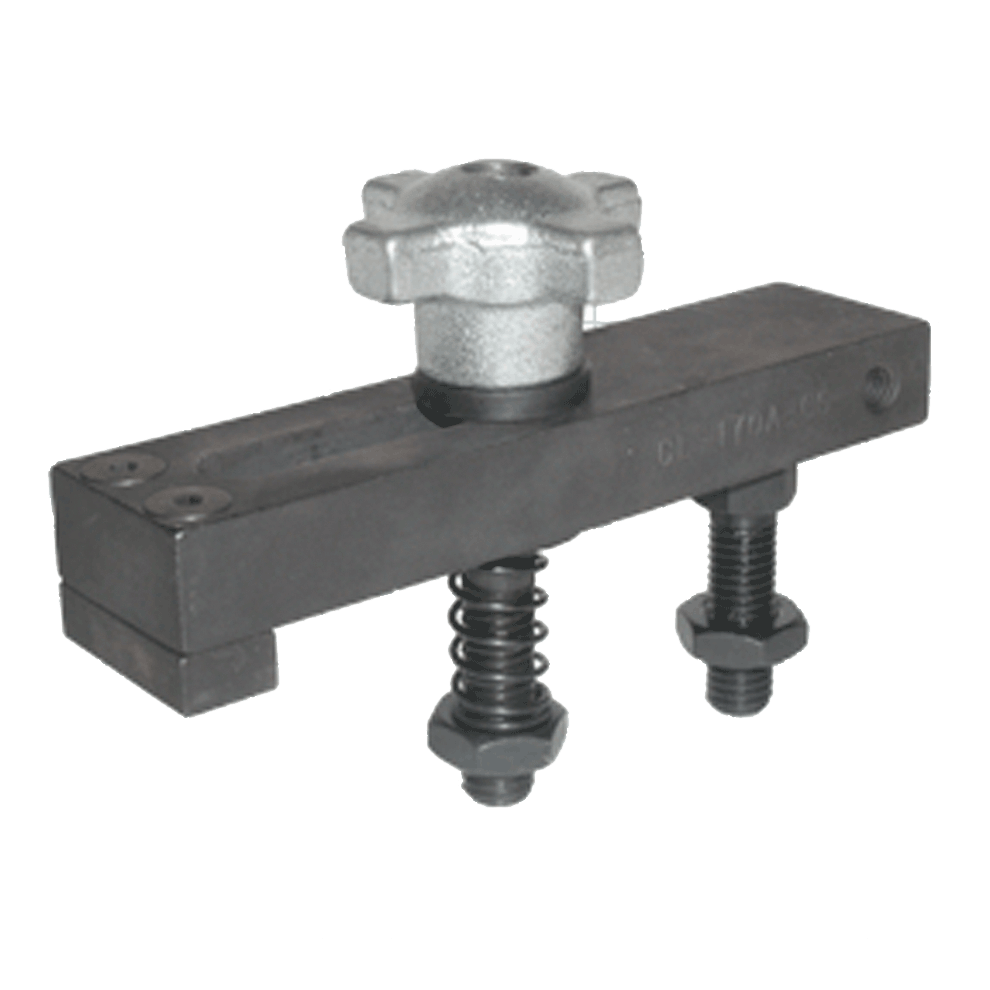

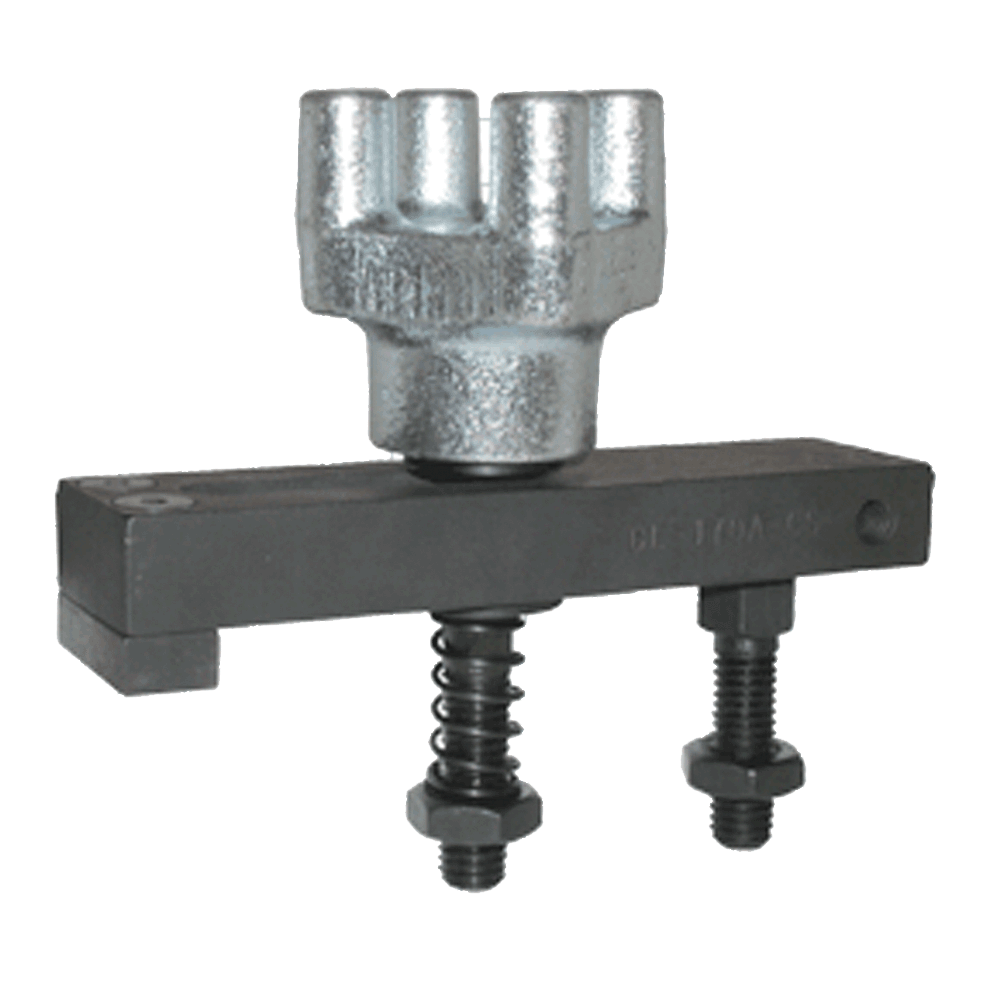

Assembly with Hand Knob & Spherical Washer (Inch)
QUANTITY PART NO. A
THREAD		 D E F S CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 CLAMPING
STUD		 JAM
NUT		 HAND
KNOB		 SPHERICAL
WASHER
CL-165-SHPA-4 1/4-20 2 3/8 5/8 7/8 CL-165-CS CL-1-CR CL-5-SPG CL-7-FW CL-1/4-20x2.50-STUD CL-4-JN CL-1-HK-2 CL-1-SW
CL-166-SHPA-4 3/8-16 3-1/2 11/16 1-1/8 1-7/16 CL-166-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-3-HK-4 CL-2-SW
CL-168-SHPA-4 3/8-16 4-1/2 11/16 1-5/8 1-15/16 CL-168-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-3-HK-4 CL-2-SW
CL-169-SHPA-4 1/2-13 4-1/2 7/8 1-1/4 2-1/8 CL-169-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-4-HK-4 CL-3-SW
CL-170A-SHPA-4 1/2-13 6 7/8 2 2-7/8 CL-170A-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-4-HK-4 CL-3-SW
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

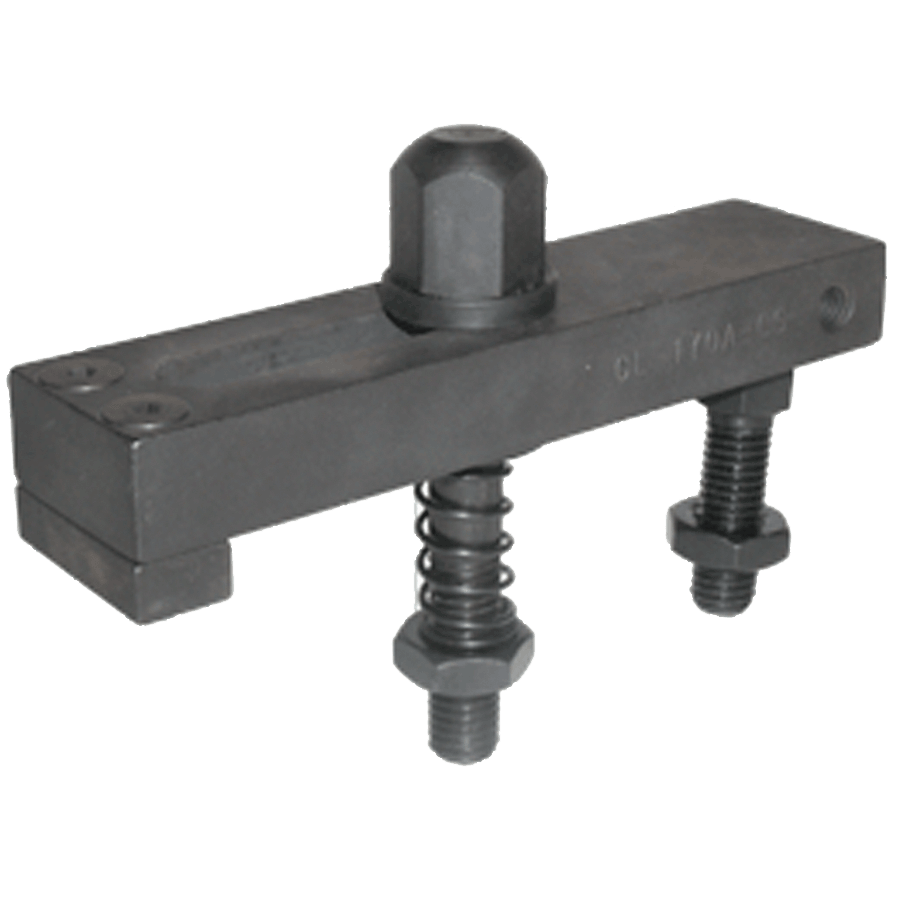

Assembly with Acorn Nut & Spherical Washer (Inch)
QUANTITY PART NO. A
THREAD		 D E F S CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 CLAMPING
STUD		 JAM
NUT		 ACORN
NUT		 SPHERICAL
WASHER
CL-165-SHPA-5 1/4-20 2 3/8 5/8 7/8 CL-165-CS CL-1-CR CL-5-SPG CL-7-FW CL-1/4-20x2.50-STUD CL-4-JN CL-0-AN CL-1-SW
CL-166-SHPA-5 3/8-16 3-1/2 11/16 1-1/8 1-7/16 CL-166-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-5-AN CL-2-SW
CL-168-SHPA-5 3/8-16 4-1/2 11/16 1-5/8 1-15/16 CL-168-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-5-AN CL-2-SW
CL-169-SHPA-5 1/2-13 4-1/2 7/8 1-1/4 2-1/8 CL-169-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-2-AN CL-3-SW
CL-170A-SHPA-5 1/2-13 6 7/8 2 2-7/8 CL-170A-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-2-AN CL-3-SW
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
Assembly with Bar Knob & Spherical Washer (Inch)
QUANTITY PART NO. A
THREAD		 D E F S CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 CLAMPING
STUD		 JAM
NUT		 BAR
KNOB		 SPHERICAL
WASHER
CL-166-SHPA-6 3/8-16 3-1/2 11/16 1-1/8 1-7/16 CL-166-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-2-BK CL-2-SW
CL-168-SHPA-6 3/8-16 4-1/2 11/16 1-5/8 1-15/16 CL-168-CS CL-2-CR CL-7-SPG CL-1-FW CL-3/8-16x3.00-STUD CL-6-JN CL-2-BK CL-2-SW
CL-169-SHPA-6 1/2-13 4-1/2 7/8 1-1/4 2-1/8 CL-169-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-9-BK CL-3-SW
CL-170A-SHPA-6 1/2-13 6 7/8 2 2-7/8 CL-170A-CS CL-4-CR CL-9-SPG CL-2-FW CL-1/2-13x4.00-STUD CL-8-JN CL-9-BK CL-3-SW
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

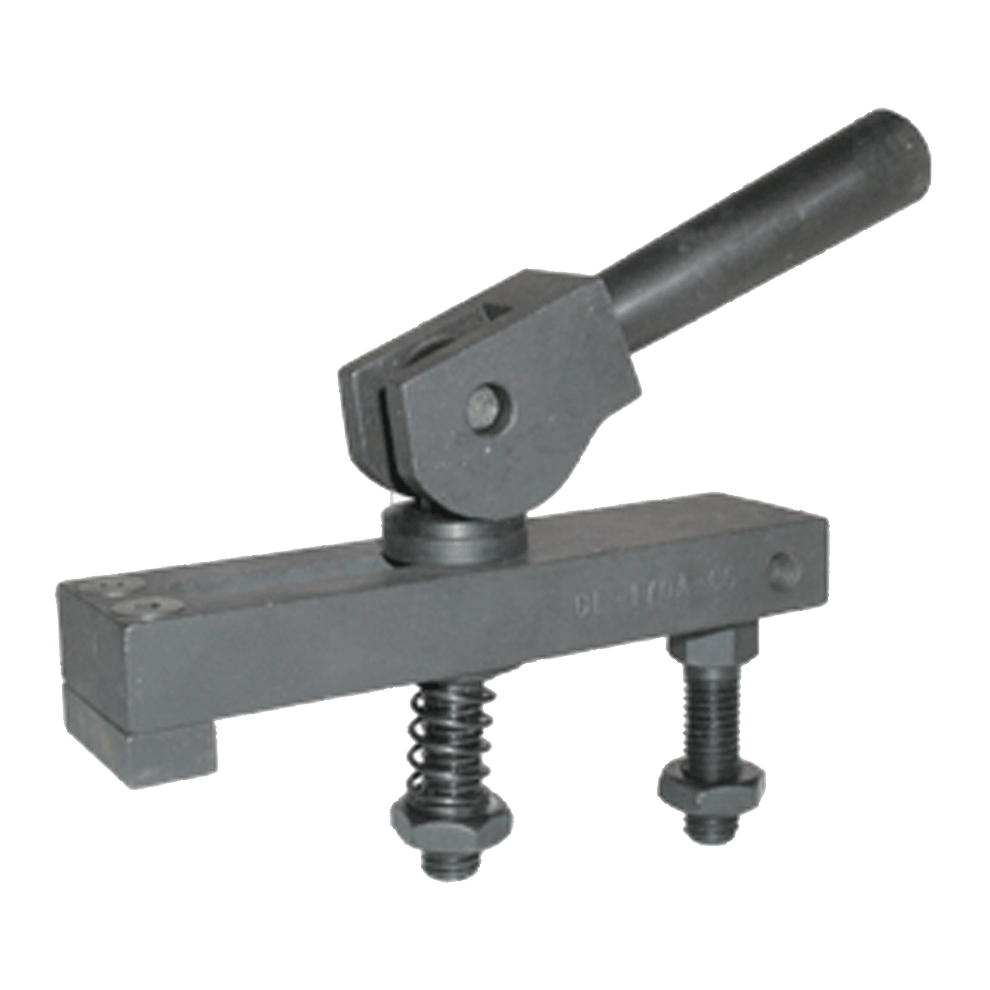

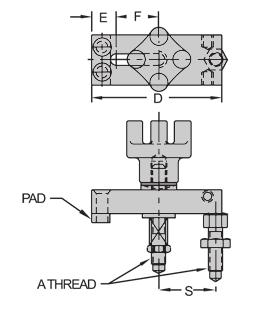

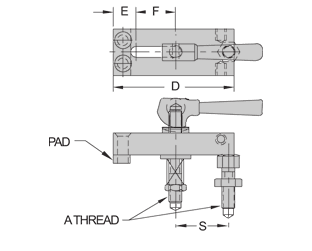

Assembly with Cam Handle & Spherical Washer (Inch)
QUANTITY PART NO. A
THREAD		 D E F S CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 EYE
BOLT		 CAM
HANDLE		 CLEVIS
PIN		 FLAT
WASHER		 SPHERICAL
WASHER		 JAM
NUT
CL-165-SHPA-7 1/4-20 2 3/8 5/8 7/8 CL-165-CS CL-1-CR CL-5-SPG CL-25-EB CL-11-CH CL-610-CLVP CL-7-FW CL-1-SW CL-4-JN
CL-166-SHPA-7 3/8-16 3-1/2 11/16 1-1/8 1-7/16 CL-166-CS CL-2-CR CL-7-SPG CL-38-EB CL-12-CH CL-1014-CLVP CL-1-FW CL-2-SW CL-6-JN
CL-168-SHPA-7 3/8-16 4-1/2 11/16 1-5/8 1-15/16 CL-168-CS CL-2-CR CL-7-SPG CL-38-EB CL-12-CH CL-1014-CLVP CL-1-FW CL-2-SW CL-6-JN
CL-169-SHPA-7 1/2-13 4-1/2 7/8 1-1/4 2-1/8 CL-169-CS CL-4-CR CL-9-SPG CL-50-EB CL-13-CH CL-1218-CLVP CL-2-FW CL-3-SW CL-8-JN
CL-170A-SHPA-7 1/2-13 6 7/8 2 2-7/8 CL-170A-CS CL-4-CR CL-9-SPG CL-50-EB CL-13-CH CL-1218-CLVP CL-2-FW CL-3-SW CL-8-JN
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product
