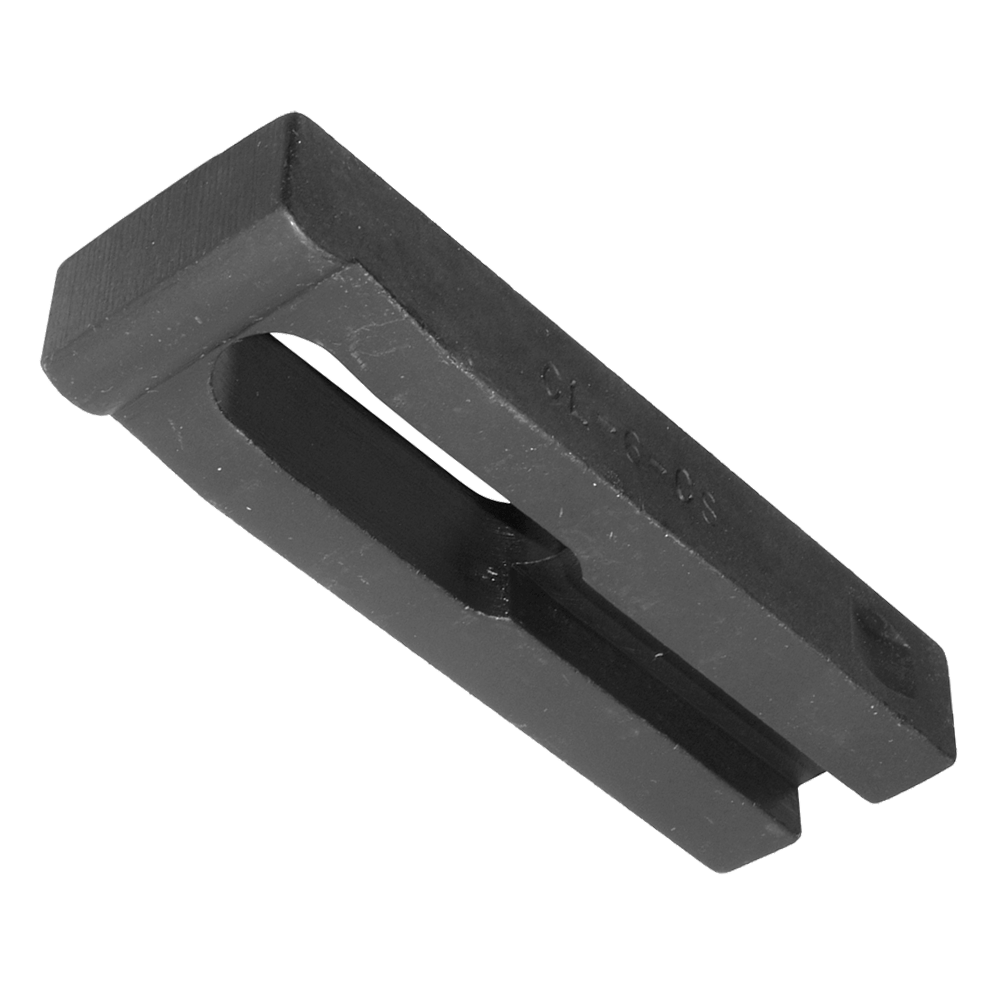

Slotted-Heel Clamp Straps (Steel)

Heavy-duty steel version of our Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Available to fit stud sizes 1/4-20 to 3/4-10 (M6 to M20 in metric), each in a choice of strap lengths. Made in USA.

This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are:

-1 Assembly with Spherical Nut & Washer

-2 Assembly with Flange Nut

-4 Assembly with Hand Knob & Spherical Washer

-5 Assembly with Acorn Nut & Spherical Washer

-6 Assembly with Bar Knob & Spherical Washer

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

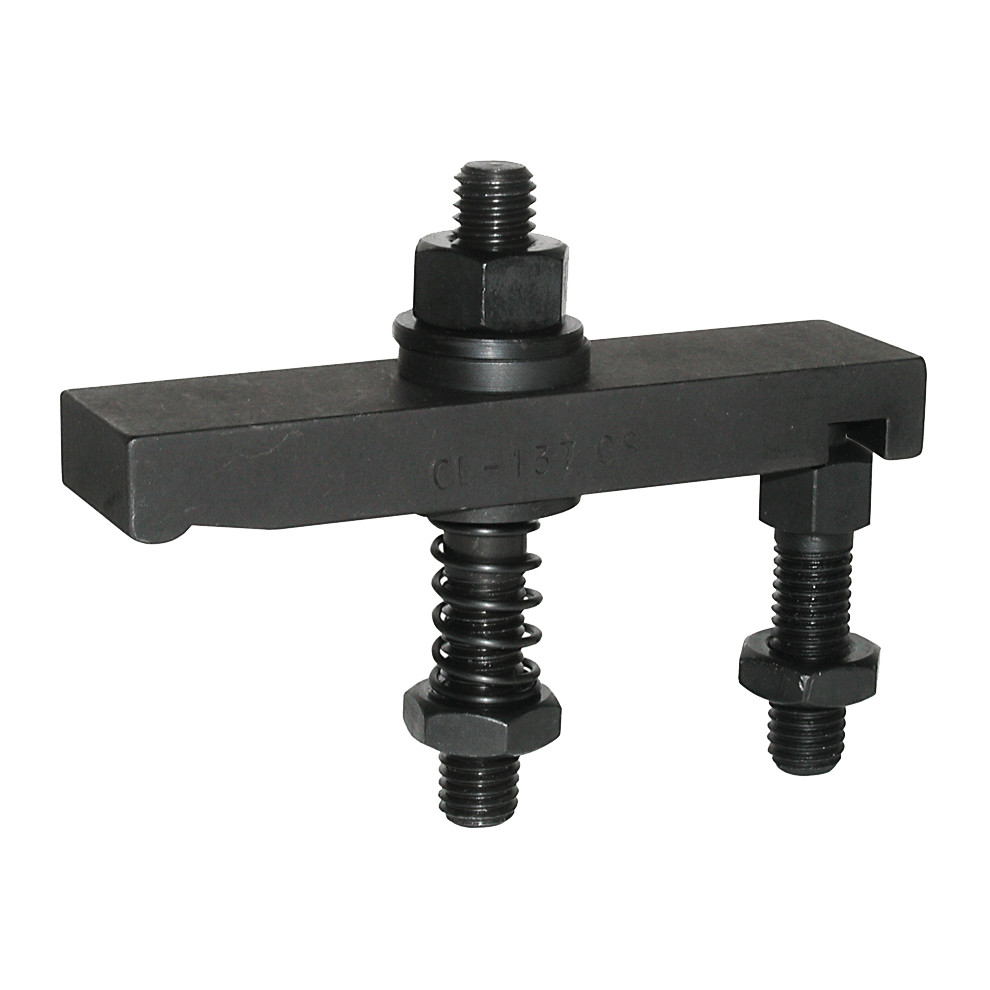

Assembly with Spherical Nut & Washer (-1)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Spherical Nut & Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

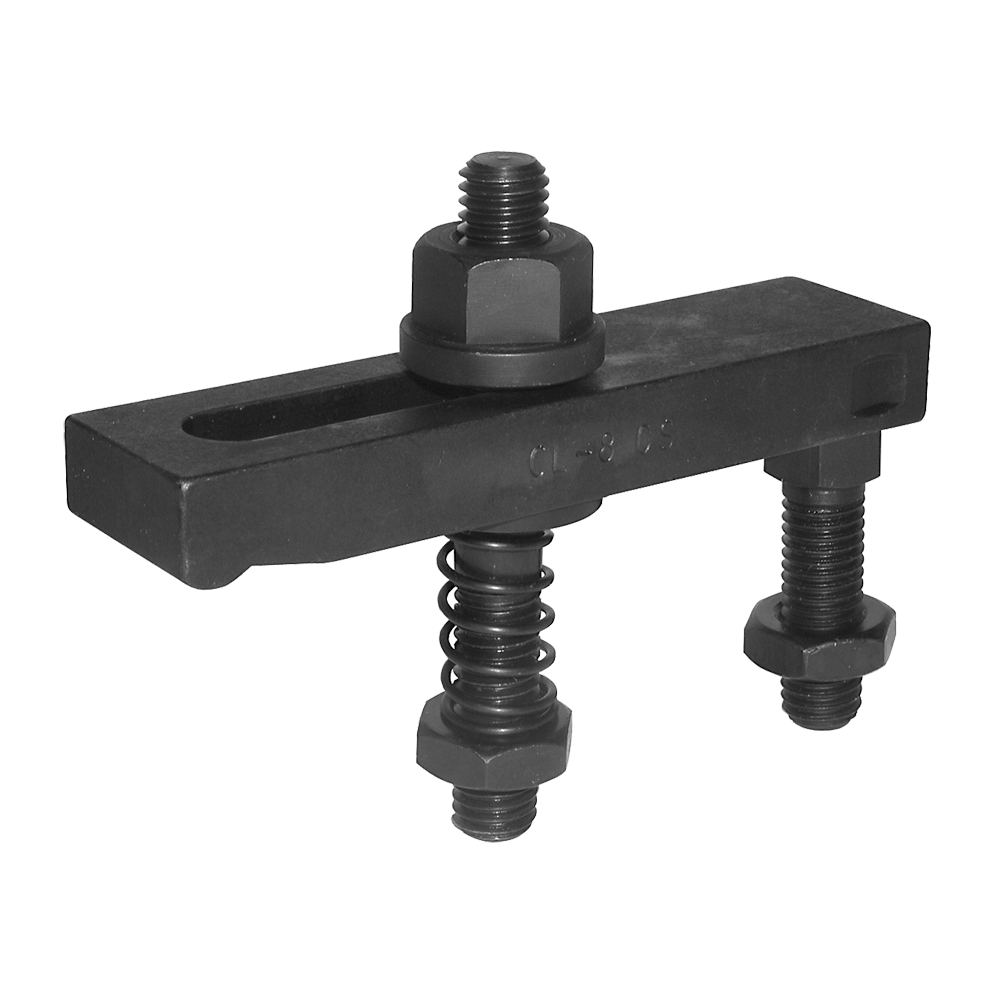

Assembly with Flange Nut (-2)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Flange Nut

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

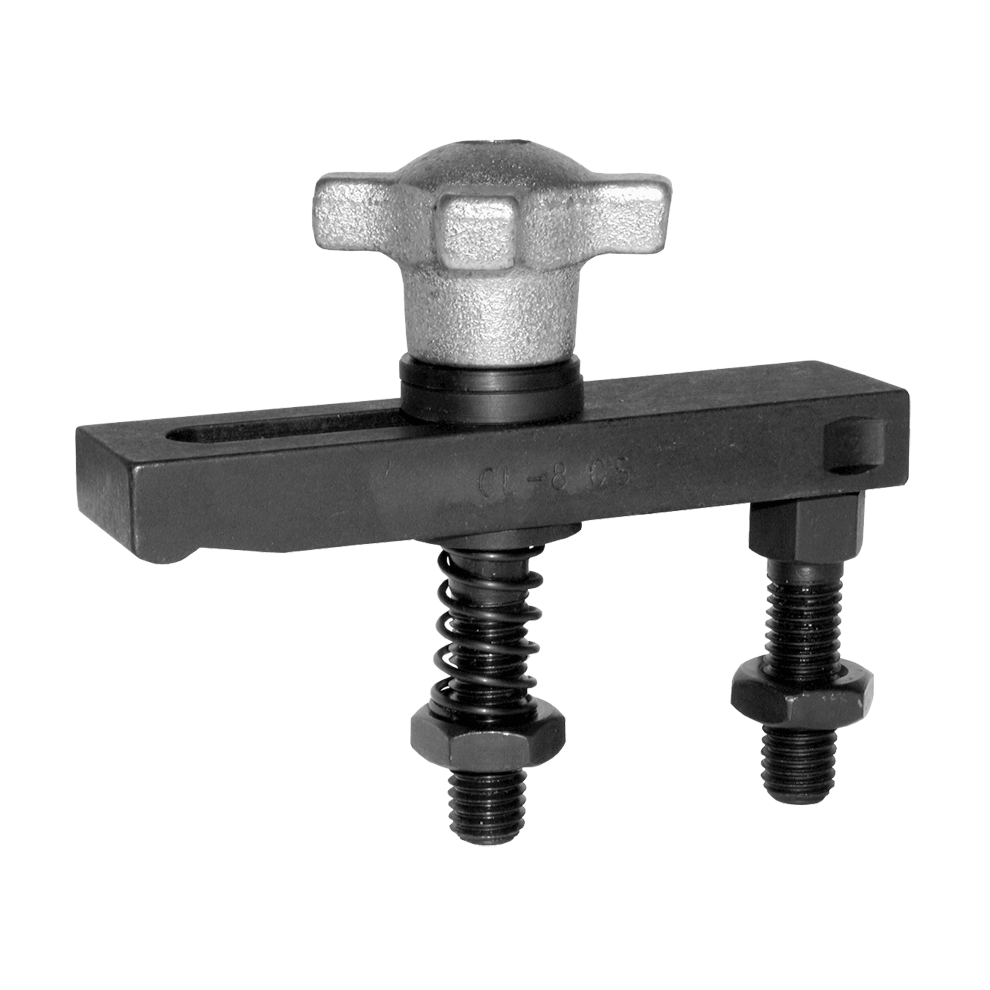

Assembly with Hand Knob & Spherical Washer (-4)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Hand Knob

Spherical Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

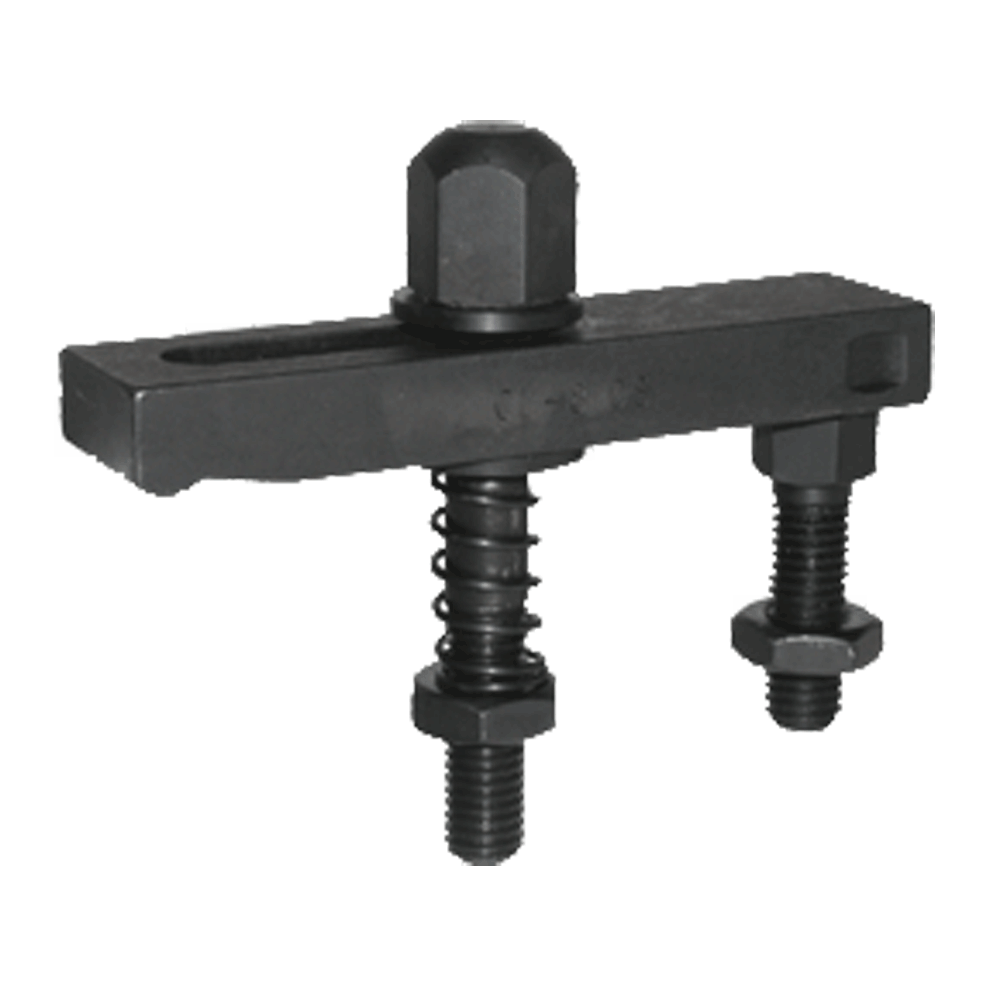

Assembly with Acorn Nut & Spherical Washer (-5)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Acorn Nut

Spherical Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

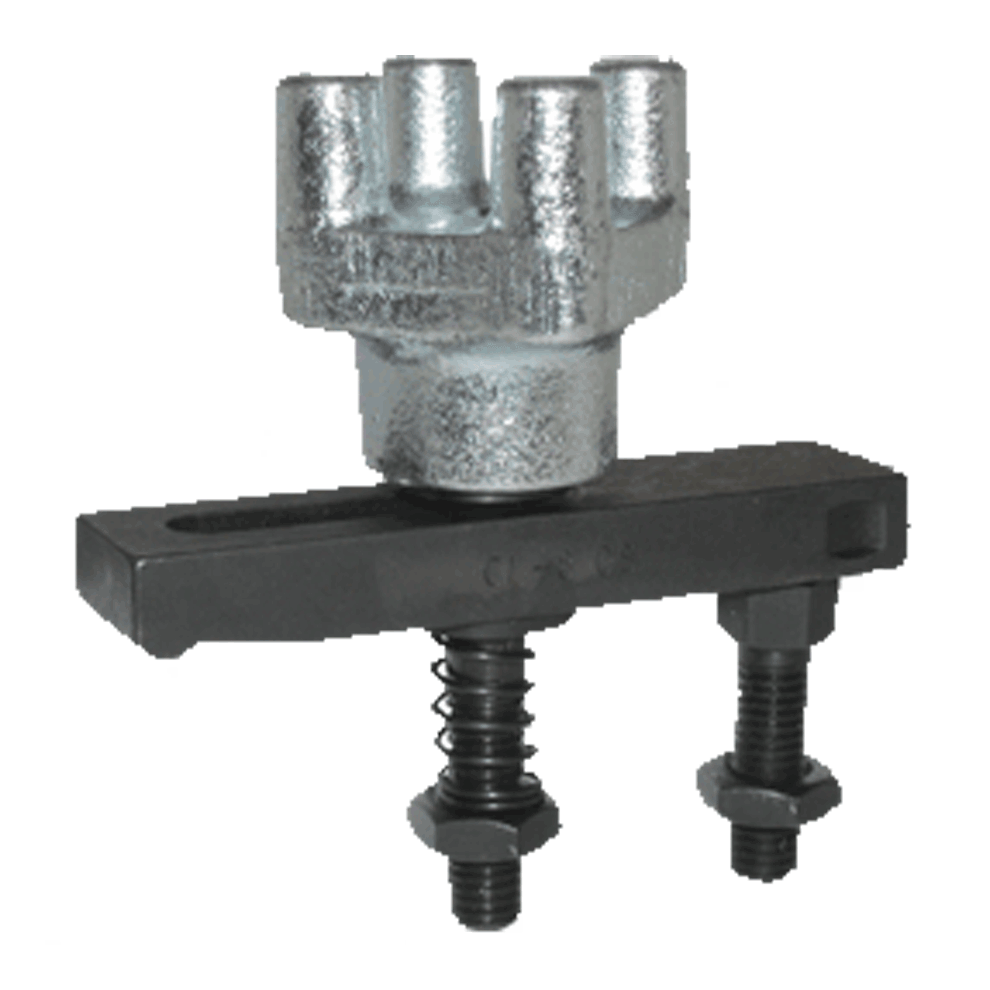

Assembly with Bar Knob & Spherical Washer (-6)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Bar Knob

Spherical Washer

Clamping Stud

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

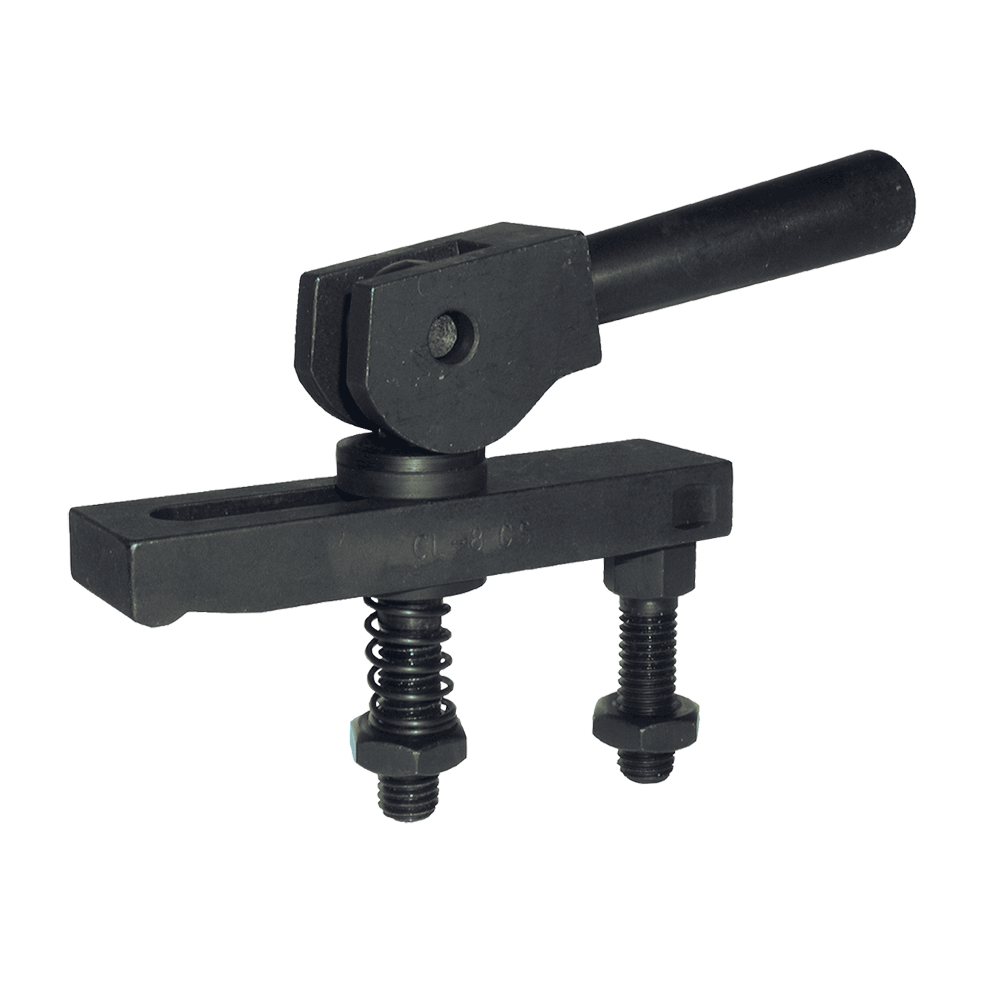

Assembly with Cam Handle & Spherical Washer

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following items:

Cam Handle

Spherical Washer

Eye Bolt

Clevis Pin

Clamp Spring

Flat Washer

Jam Nut

Clamp Rest

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1018 Steel	Carburized Hardened	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Other assembly components > See catalog information for each specific item

Slotted-Heel Clamp Straps (Steel)

Clamp Strap Only

QUANTITY	PART NO.	A STUD SIZE	B	C	D	E	F	G	H	J	K	L
	CL-0-CS	1/4-20 or M6	3/8	5/8	2	27/32	19/32	1/4	11/32	9/32	5/32	3/16
	CL-1-CS	1/4-20 or M6	3/8	5/8	2-1/2	1-3/32	13/16	1/4	11/32	9/32	5/32	3/16
	CL-1A-CS	5/16-18 or M8	1/2	3/4	2-1/2	27/32	1/2	5/16	7/16	11/32	7/32	1/4
	CL-1B-CS	5/16-18 or M8	1/2	3/4	3	1-11/32	1	5/16	7/16	11/32	7/32	1/4
	CL-2-CS	3/8-16 or M10	1/2	1-1/8	3	1-9/32	7/8	13/32	1/2	27/64	9/32	3/8
	CL-3A-CS	3/8-16 or M10	1/2	1-1/8	3-1/2	1-17/32	1-1/8	13/32	1/2	27/64	9/32	3/8
	CL-3-CS	3/8-16 or M10	1/2	1-1/8	4	1-25/32	1-3/8	13/32	1/2	27/64	9/32	3/8
	CL-4-CS	3/8-16 or M10	1/2	1-1/8	5	2-9/32	1-7/8	13/32	1/2	27/64	9/32	3/8
	CL-5-CS	3/8-16 or M10	1/2	1-1/8	6	2-25/32	2-3/8	13/32	1/2	27/64	9/32	3/8
	CL-6A-CS	1/2-13 or M12	5/8	1-1/4	3-1/2	1-1/2	1-1/32	13/32	1/2	17/32	9/32	3/8
	CL-6-CS	1/2-13 or M12	5/8	1-1/4	4	1-3/4	1-9/32	13/32	1/2	17/32	9/32	3/8
	CL-8-CS	1/2-13 or M12	5/8	1-1/4	5	2-1/4	1-25/32	13/32	1/2	17/32	9/32	3/8
	CL-10-CS	1/2-13 or M12	5/8	1-1/4	6	2-3/4	2-9/32	13/32	1/2	17/32	9/32	3/8
	CL-15A-CS	5/8-11 or M16	7/8	1-1/2	4	1-11/16	1-3/32	1/2	19/32	21/32	9/32	1/2
	CL-16-CS	5/8-11 or M16	7/8	1-1/2	5	2-3/16	1-19/32	1/2	19/32	21/32	9/32	1/2
	CL-18-CS	5/8-11 or M16	7/8	1-1/2	6	2-11/16	2-3/32	1/2	19/32	21/32	9/32	1/2
	CL-18A-CS	5/8-11 or M16	7/8	1-1/2	6-1/2	2-15/16	2-11/32	1/2	19/32	21/32	9/32	1/2
	CL-19-CS	3/4-10 or M20	1	1-3/4	6	2-5/8	2	1/2	19/32	13/16	5/16	1/2
	CL-21-CS	3/4-10 or M20	1	1-3/4	7	3-1/8	2-9/16	1/2	19/32	13/16	5/16	1/2
	CL-22A-CS	3/4-10 or M20	1	1-3/4	8	3-5/8	3-1/8	1/2	19/32	13/16	5/16	1/2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Spherical Nut & Washer (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	SPHERICAL NUT & WASHER
	CL-0-SHA-1	1/4-20	2	5/8	3/8	27/32	CL-0-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20x2.50 STUD	CL-4-JN	CL-1-SNW
	CL-1-SHA-1	1/4-20	2-1/2	5/8	3/8	1-3/32	CL-1-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20x2.50 STUD	CL-4-JN	CL-1-SNW
	CL-1A-SHA-1	5/16-18	2-1/2	3/4	1/2	1-1/4	CL-1A-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18x 3.00-STUD	CL-5-JN	CL-9-SNW
	CL-1B-SHA-1	5/16-18	3	3/4	1/2	1-11/32	CL-1B-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18x 3.00-STUD	CL-5-JN	CL-9-SNW
	CL-2-SHA-1	3/8-16	3	1-1/8	1/2	1-9/32	CL-2-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16x 3.00-STUD	CL-6-JN	CL-2-SNW
	CL-3-SHA-1	3/8-16	3-1/2	1-1/8	1/2	1-17/32	CL-3A-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16x 3.00-STUD	CL-6-JN	CL-2-SNW
	CL-4-SHA-1	3/8-16	4	1-1/8	1/2	1-25/32	CL-3-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16x 3.00-STUD	CL-6-JN	CL-2-SNW
	CL-6-SHA-1	3/8-16	5	1-1/8	1/2	2-9/32	CL-4-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16x 3.00-STUD	CL-6-JN	CL-2-SNW
	CL-8-SHA-1	3/8-16	6	1-1/8	1/2	2-25/32	CL-5-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16x 3.00-STUD	CL-6-JN	CL-2-SNW
	CL-9-SHA-1	1/2-13	3-1/2	1-1/4	5/8	1-1/2	CL-6A-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13x4.00-STUD	CL-8-JN	CL-3-SNW
	CL-10-SHA-1	1/2-13	4	1-1/4	5/8	1-3/4	CL-6-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13x4.00-STUD	CL-8-JN	CL-3-SNW
	CL-12-SHA-1	1/2-13	5	1-1/4	5/8	2-1/4	CL-8-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13x4.00-STUD	CL-8-JN	CL-3-SNW
	CL-14-SHA-1	1/2-13	6	1-1/4	5/8	2-3/4	CL-10-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13x4.00-STUD	CL-8-JN	CL-3-SNW
	CL-20-SHA-1	5/8-11	4	1-1/2	7/8	1-11/16	CL-15A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11x4.50-STUD	CL-10-JN	CL-4-SNW
	CL-22-SHA-1	5/8-11	5	1-1/2	7/8	2-3/16	CL-16-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11x4.50-STUD	CL-10-JN	CL-4-SNW
	CL-24-SHA-1	5/8-11	6	1-1/2	7/8	2-11/16	CL-18-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11x4.50-STUD	CL-10-JN	CL-4-SNW
	CL-25-SHA-1	5/8-11	6-1/2	1-1/2	7/8	2-15/16	CL-18A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11x4.50-STUD	CL-10-JN	CL-4-SNW
	CL-27-SHA-1	3/4-10	6	1-3/4	1	2-5/8	CL-19-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10x5.00-STUD	CL-12-JN	CL-5-SNW
	CL-29-SHA-1	3/4-10	7	1-3/4	1	3-1/8	CL-21-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10x5.00-STUD	CL-12-JN	CL-5-SNW
	CL-31-SHA-1	3/4-10	8	1-3/4	1	3-5/8	CL-22A-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10x5.00-STUD	CL-12-JN	CL-5-SNW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Flange Nut (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	FLANGE NUT
	CL-0-SHA-2	1/4-20	2	5/8	3/8	27/32	CL-0-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20 x 2.50-STUD	CL-4-JN	CL-1-FN
	CL-1-SHA-2	1/4-20	2-1/2	5/8	3/8	1-3/32	CL-1-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20 x 2.50-STUD	CL-4-JN	CL-1-FN
	CL-1A-SHA-2	5/16-18	2-1/2	3/4	1/2	1-1/4	CL-1A-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18 x 3.00-STUD	CL-5-JN	CL-9-FN
	CL-1B-SHA-2	5/16-18	3	3/4	1/2	1-11/32	CL-1B-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18 x 3.00-STUD	CL-5-JN	CL-9-FN
	CL-2-SHA-2	3/8-16	3	1-1/8	1/2	1-9/32	CL-2-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-FN
	CL-3-SHA-2	3/8-16	3-1/2	1-1/8	1/2	1-17/32	CL-3A-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-FN
	CL-4-SHA-2	3/8-16	4	1-1/8	1/2	1-25/32	CL-3-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-FN
	CL-6-SHA-2	3/8-16	5	1-1/8	1/2	2-9/32	CL-4-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-FN
	CL-8-SHA-2	3/8-16	6	1-1/8	1/2	2-25/32	CL-5-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-FN
	CL-9-SHA-2	1/2-13	3-1/2	1-1/4	5/8	1-1/2	CL-6A-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-3-FN
	CL-10-SHA-2	1/2-13	4	1-1/4	5/8	1-3/4	CL-6-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-3-FN
	CL-12-SHA-2	1/2-13	5	1-1/4	5/8	2-1/4	CL-8-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-3-FN
	CL-14-SHA-2	1/2-13	6	1-1/4	5/8	2-3/4	CL-10-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-3-FN
	CL-20-SHA-2	5/8-11	4	1-1/2	7/8	1-11/16	CL-15A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-4-FN
	CL-22-SHA-2	5/8-11	5	1-1/2	7/8	2-3/16	CL-16-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-4-FN
	CL-24-SHA-2	5/8-11	6	1-1/2	7/8	2-11/16	CL-18-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-4-FN
	CL-25-SHA-2	5/8-11	6-1/2	1-1/2	7/8	2-15/16	CL-18A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-4-FN
	CL-27-SHA-2	3/4-10	6	1-3/4	1	2-5/8	CL-19-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-5-FN
	CL-29-SHA-2	3/4-10	7	1-3/4	1	3-1/8	CL-21-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-5-FN
	CL-31-SHA-2	3/4-10	8	1-3/4	1	3-5/8	CL-22A-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-5-FN

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Hand Knob & Spherical Washer (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	HAND KNOB	SPHERICAL WASHER
	CL-0-SHA-4	1/4-20	2	5/8	3/8	27/32	CL-0-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20 x 2.50-STUD	CL-4-JN	CL-1-HK-2	CL-1-SW
	CL-1-SHA-4	1/4-20	2-1/2	5/8	3/8	1-3/32	CL-1-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20 x 2.50-STUD	CL-4-JN	CL-1-HK-2	CL-1-SW
	CL-1A-SHA-4	5/16-18	2-1/2	3/4	1/2	1-1/4	CL-1A-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18 x 3.00-STUD	CL-5-JN	CL-2-HK-2	CL-11-SW
	CL-1B-SHA-4	5/16-18	3	3/4	1/2	1-11/32	CL-1B-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18 x 3.00-STUD	CL-5-JN	CL-2-HK-2	CL-11-SW
	CL-2-SHA-4	3/8-16	3	1-1/8	1/2	1-9/32	CL-2-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-3-HK-4	CL-2-SW
	CL-3-SHA-4	3/8-16	3-1/2	1-1/8	1/2	1-17/32	CL-3A-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-3-HK-4	CL-2-SW
	CL-4-SHA-4	3/8-16	4	1-1/8	1/2	1-25/32	CL-3-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-3-HK-4	CL-2-SW
	CL-6-SHA-4	3/8-16	5	1-1/8	1/2	2-9/32	CL-4-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-3-HK-4	CL-2-SW
	CL-8-SHA-4	3/8-16	6	1-1/8	1/2	2-25/32	CL-5-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-3-HK-4	CL-2-SW
	CL-9-SHA-4	1/2-13	3-1/2	1-1/4	5/8	1-1/2	CL-6A-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-4-HK-4	CL-3-SW
	CL-10-SHA-4	1/2-13	4	1-1/4	5/8	1-3/4	CL-6-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-4-HK-4	CL-3-SW
	CL-12-SHA-4	1/2-13	5	1-1/4	5/8	2-1/4	CL-8-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-4-HK-4	CL-3-SW
	CL-14-SHA-4	1/2-13	6	1-1/4	5/8	2-3/4	CL-10-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-4-HK-4	CL-3-SW
	CL-20-SHA-4	5/8-11	4	1-1/2	7/8	1-11/16	CL-15A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-10-HK-10	CL-4-SW
	CL-22-SHA-4	5/8-11	5	1-1/2	7/8	2-3/16	CL-16-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-10-HK-10	CL-4-SW
	CL-24-SHA-4	5/8-11	6	1-1/2	7/8	2-11/16	CL-18-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-10-HK-10	CL-4-SW
	CL-25-SHA-4	5/8-11	6-1/2	1-1/2	7/8	2-15/16	CL-18A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-10-HK-10	CL-4-SW
	CL-27-SHA-4	3/4-10	6	1-3/4	1	2-5/8	CL-19-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-6-HK-6	CL-5-SW
	CL-29-SHA-4	3/4-10	7	1-3/4	1	3-1/8	CL-21-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-6-HK-6	CL-5-SW
	CL-31-SHA-4	3/4-10	8	1-3/4	1	3-5/8	CL-22A-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-6-HK-6	CL-5-SW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Acorn Nut & Spherical Washer (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	ACORN NUT	SPHERICAL WASHER
	CL-0-SHA-5	1/4-20	2	5/8	3/8	27/32	CL-0-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20 x 2.50-STUD	CL-4-JN	CL-0-AN	CL-1-SW
	CL-1-SHA-5	1/4-20	2-1/2	5/8	3/8	1-3/32	CL-1-CS	CL-1-CR	CL-5-SPG	CL-7-FW	CL-1/4-20 x 2.50-STUD	CL-4-JN	CL-0-AN	CL-1-SW
	CL-1A-SHA-5	5/16-18	2-1/2	3/4	1/2	1-1/4	CL-1A-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18 x 3.00-STUD	CL-5-JN	CL-1-AN	CL-11-SW
	CL-1B-SHA-5	5/16-18	3	3/4	1/2	1-11/32	CL-1B-CS	CL-1A-CR	CL-6-SPG	CL-14-FW	CL-5/16-18 x 3.00-STUD	CL-5-JN	CL-1-AN	CL-11-SW
	CL-2-SHA-5	3/8-16	3	1-1/8	1/2	1-9/32	CL-2-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-5-AN	CL-2-SW
	CL-3-SHA-5	3/8-16	3-1/2	1-1/8	1/2	1-17/32	CL-3A-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-5-AN	CL-2-SW
	CL-4-SHA-5	3/8-16	4	1-1/8	1/2	1-25/32	CL-3-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-5-AN	CL-2-SW
	CL-6-SHA-5	3/8-16	5	1-1/8	1/2	2-9/32	CL-4-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-5-AN	CL-2-SW
	CL-8-SHA-5	3/8-16	6	1-1/8	1/2	2-25/32	CL-5-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-5-AN	CL-2-SW
	CL-9-SHA-5	1/2-13	3-1/2	1-1/4	5/8	1-1/2	CL-6A-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-2-AN	CL-3-SW
	CL-10-SHA-5	1/2-13	4	1-1/4	5/8	1-3/4	CL-6-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-2-AN	CL-3-SW
	CL-12-SHA-5	1/2-13	5	1-1/4	5/8	2-1/4	CL-8-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-2-AN	CL-3-SW
	CL-14-SHA-5	1/2-13	6	1-1/4	5/8	2-3/4	CL-10-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-2-AN	CL-3-SW
	CL-20-SHA-5	5/8-11	4	1-1/2	7/8	1-11/16	CL-15A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-3-AN	CL-4-SW
	CL-22-SHA-5	5/8-11	5	1-1/2	7/8	2-3/16	CL-16-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-3-AN	CL-4-SW
	CL-24-SHA-5	5/8-11	6	1-1/2	7/8	2-11/16	CL-18-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-3-AN	CL-4-SW
	CL-25-SHA-5	5/8-11	6-1/2	1-1/2	7/8	2-15/16	CL-18A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-3-AN	CL-4-SW
	CL-27-SHA-5	3/4-10	6	1-3/4	1	2-5/8	CL-19-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-4-AN	CL-5-SW
	CL-29-SHA-5	3/4-10	7	1-3/4	1	3-1/8	CL-21-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-4-AN	CL-5-SW
	CL-31-SHA-5	3/4-10	8	1-3/4	1	3-5/8	CL-22A-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-4-AN	CL-5-SW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Bar Knob & Spherical Washer (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	BAR KNOB	SPHERICAL WASHER
	CL-2-SHA-6	3/8-16	3	1-1/8	1/2	1-9/32	CL-2-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-BK	CL-2-SW
	CL-3-SHA-6	3/8-16	3-1/2	1-1/8	1/2	1-17/32	CL-3A-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-BK	CL-2-SW
	CL-4-SHA-6	3/8-16	4	1-1/8	1/2	1-25/32	CL-3-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-BK	CL-2-SW
	CL-6-SHA-6	3/8-16	5	1-1/8	1/2	2-9/32	CL-4-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-BK	CL-2-SW
	CL-8-SHA-6	3/8-16	6	1-1/8	1/2	2-25/32	CL-5-CS	CL-2-CR	CL-7-SPG	CL-1-FW	CL-3/8-16 x 3.00-STUD	CL-6-JN	CL-2-BK	CL-2-SW
	CL-9-SHA-6	1/2-13	3-1/2	1-1/4	5/8	1-1/2	CL-6A-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-9-BK	CL-3-SW
	CL-10-SHA-6	1/2-13	4	1-1/4	5/8	1-3/4	CL-6-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-9-BK	CL-3-SW
	CL-12-SHA-6	1/2-13	5	1-1/4	5/8	2-1/4	CL-8-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-9-BK	CL-3-SW
	CL-14-SHA-6	1/2-13	6	1-1/4	5/8	2-3/4	CL-10-CS	CL-4-CR	CL-9-SPG	CL-2-FW	CL-1/2-13 x 4.00-STUD	CL-8-JN	CL-9-BK	CL-3-SW
	CL-20-SHA-6	5/8-11	4	1-1/2	7/8	1-11/16	CL-15A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-11-BK	CL-4-SW
	CL-22-SHA-6	5/8-11	5	1-1/2	7/8	2-3/16	CL-16-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-11-BK	CL-4-SW
	CL-24-SHA-6	5/8-11	6	1-1/2	7/8	2-11/16	CL-18-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-11-BK	CL-4-SW
	CL-25-SHA-6	5/8-11	6-1/2	1-1/2	7/8	2-15/16	CL-18A-CS	CL-6-CR	CL-11-SPG	CL-3-FW	CL-5/8-11 x 4.50-STUD	CL-10-JN	CL-11-BK	CL-4-SW
	CL-27-SHA-6	3/4-10	6	1-3/4	1	2-5/8	CL-19-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-16-BK	CL-5-SW
	CL-29-SHA-6	3/4-10	7	1-3/4	1	3-1/8	CL-21-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-16-BK	CL-5-SW
	CL-31-SHA-6	3/4-10	8	1-3/4	1	3-5/8	CL-22A-CS	CL-8-CR	CL-13-SPG	CL-4-FW	CL-3/4-10 x 5.00-STUD	CL-12-JN	CL-16-BK	CL-5-SW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Cam Handle & Spherical Washer (Inch)

QUANTITY	PART NO.	THREAD SIZE	A	B	C	E	CLAMP STRAP	CLAMP REST	CLAMP SPRING	EYE BOLT	CAM HANDLE	CLEVIS PIN	FLAT WASHER	SPHERICAL WASHER	JAM NUT
	CL-0-SCA	1/4-20	2	5/8	3/8	27/32	CL-0-CS	CL-1-CR	CL-5-SPG	CL-25-EB	CL-11-CH	CL-610-CLVP	CL-7-FW	CL-1-SW	CL-4-JN
	CL-1-SCA	1/4-20	2-1/2	5/8	3/8	1-3/32	CL-1-CS	CL-1-CR	CL-5-SPG	CL-25-EB	CL-11-CH	CL-610-CLVP	CL-7-FW	CL-1-SW	CL-4-JN
	CL-1A-SCA	5/16-18	2-1/2	3/4	1/2	1-1/4	CL-1A-CS	CL-1A-CR	CL-6-SPG	CL-31-EB	CL-11A-CH	CL-810-CLVP	CL-14-FW	CL-11-SW	CL-5-JN
	CL-1B-SCA	5/16-18	3	3/4	1/2	1-11/32	CL-1B-CS	CL-1A-CR	CL-6-SPG	CL-31-EB	CL-11A-CH	CL-810-CLVP	CL-14-FW	CL-11-SW	CL-5-JN
	CL-2-SCA	3/8-16	3	1-1/8	1/2	1-9/32	CL-2-CS	CL-2-CR	CL-7-SPG	CL-38-EB	CL-12-CH	CL-1014-CLVP	CL-1-FW	CL-2-SW	CL-6-JN
	CL-2A-SCA	3/8-16	3-1/2	1-1/8	1/2	1-17/32	CL-3A-CS	CL-2-CR	CL-7-SPG	CL-38-EB	CL-12-CH	CL-1014-CLVP	CL-1-FW	CL-2-SW	CL-6-JN
	CL-3-SCA	3/8-16	4	1-1/8	1/2	1-25/32	CL-3-CS	CL-2-CR	CL-7-SPG	CL-38-EB	CL-12-CH	CL-1014-CLVP	CL-1-FW	CL-2-SW	CL-6-JN
	CL-4-SCA	3/8-16	5	1-1/8	1/2	2-9/32	CL-4-CS	CL-2-CR	CL-7-SPG	CL-38-EB	CL-12-CH	CL-1014-CLVP	CL-1-FW	CL-2-SW	CL-6-JN
	CL-5-SCA	3/8-16	6	1-1/8	1/2	2-25/32	CL-5-CS	CL-2-CR	CL-7-SPG	CL-38-EB	CL-12-CH	CL-1014-CLVP	CL-1-FW	CL-2-SW	CL-6-JN
	CL-6A-SCA	1/2-13	3-1/2	1-1/4	5/8	1-1/2	CL-6A-CS	CL-4-CR	CL-9-SPG	CL-50-EB	CL-13-CH	CL-1218-CLVP	CL-2-FW	CL-3-SW	CL-8-JN
	CL-6-SCA	1/2-13	4	1-1/4	5/8	1-3/4	CL-6-CS	CL-4-CR	CL-9-SPG	CL-50-EB	CL-13-CH	CL-1218-CLVP	CL-2-FW	CL-3-SW	CL-8-JN
	CL-8-SCA	1/2-13	5	1-1/4	5/8	2-1/4	CL-8-CS	CL-4-CR	CL-9-SPG	CL-50-EB	CL-13-CH	CL-1218-CLVP	CL-2-FW	CL-3-SW	CL-8-JN
	CL-9A-SCA	1/2-13	6	1-1/4	5/8	2-3/4	CL-10-CS	CL-4-CR	CL-9-SPG	CL-50-EB	CL-13-CH	CL-1218-CLVP	CL-2-FW	CL-3-SW	CL-8-JN
	CL-17-SCA	5/8-11	4	1-1/2	7/8	1-11/16	CL-15A-CS	CL-6-CR	CL-11-SPG	CL-62-EB	CL-14-CH	CL-2020-CLVP	CL-3-FW	CL-4-SW	CL-10-JN
	CL-19-SCA	5/8-11	5	1-1/2	7/8	2-3/16	CL-16-CS	CL-6-CR	CL-11-SPG	CL-62-EB	CL-14-CH	CL-2020-CLVP	CL-3-FW	CL-4-SW	CL-10-JN
	CL-21-SCA	5/8-11	6	1-1/2	7/8	2-11/16	CL-18-CS	CL-6-CR	CL-11-SPG	CL-62-EB	CL-14-CH	CL-2020-CLVP	CL-3-FW	CL-4-SW	CL-10-JN
	CL-22-SCA	5/8-11	6-1/2	1-1/2	7/8	2-15/16	CL-18A-CS	CL-6-CR	CL-11-SPG	CL-62-EB	CL-14-CH	CL-2020-CLVP	CL-3-FW	CL-4-SW	CL-10-JN
	CL-24-SCA	3/4-10	6	1-3/4	1	2-5/8	CL-19-CS	CL-8-CR	CL-13-SPG	CL-75-EB	CL-15-CH	CL-2024-CLVP	CL-4-FW	CL-5-SW	CL-12-JN
	CL-26-SCA	3/4-10	7	1-3/4	1	3-1/8	CL-21-CS	CL-8-CR	CL-13-SPG	CL-75-EB	CL-15-CH	CL-2024-CLVP	CL-4-FW	CL-5-SW	CL-12-JN
	CL-28-SCA	3/4-10	8	1-3/4	1	3-5/8	CL-22A-CS	CL-8-CR	CL-13-SPG	CL-75-EB	CL-15-CH	CL-2024-CLVP	CL-4-FW	CL-5-SW	CL-12-JN

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Spherical Nut & Washer (Metric)

QUANTITY	PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C (mm)	E (mm)	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	SPHERICAL NUT & WASHER
	CLM-0-SHA-1	M6	1	51	16	9.5	21.5	CL-0-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-6-SNW
	CLM-1-SHA-1	M6	1	63.5	16	9.5	28	CL-1-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-6-SNW
	CLM-1A-SHA-1	M8	1.25	63.5	19	12.5	32	CL-1A-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-8-SNW
	CLM-1B-SHA-1	M8	1.25	76	19	12.5	34	CL-1B-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-8-SNW
	CLM-2-SHA-1	M10	1.5	76	28.5	12.5	32.5	CL-2-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-SNW
	CLM-3-SHA-1	M10	1.5	89	28.5	12.5	39	CL-3A-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-SNW
	CLM-4-SHA-1	M10	1.5	101.5	28.5	12.5	45	CL-3-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-SNW
	CLM-6-SHA-1	M10	1.5	127	28.5	12.5	58	CL-4-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-SNW
	CLM-8-SHA-1	M10	1.5	152	28.5	12.5	70.5	CL-5-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-SNW
	CLM-9-SHA-1	M12	1.75	89	32	16	38	CL-6A-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-SNW
	CLM-10-SHA-1	M12	1.75	101.5	32	16	44.5	CL-6-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-SNW
	CLM-12-SHA-1	M12	1.75	127	32	16	57	CL-8-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-SNW
	CLM-14-SHA-1	M12	1.75	152	32	16	70	CL-10-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-SNW
	CLM-20-SHA-1	M16	2	101.5	38	22	43	CL-15A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-SNW
	CLM-22-SHA-1	M16	2	127	38	22	55.5	CL-16-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-SNW
	CLM-24-SHA-1	M16	2	152	38	22	68.5	CL-18-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-SNW
	CLM-25-SHA-1	M16	2	165	38	22	75	CL-18A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-SNW
	CLM-27-SHA-1	M20	2.5	152	44.5	25.5	66.5	CL-19-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-SNW
	CLM-29-SHA-1	M20	2.5	178	44.5	25.5	79.5	CL-21-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-SNW
	CLM-31-SHA-1	M20	2.5	203	44.5	25.5	92	CL-22A-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-SNW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Flange Nut (Metric)

QUANTITY	PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C (mm)	E (mm)	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	FLANGE NUT
	CLM-0-SHA-2	M6	1	51	16	9.5	21.5	CL-0-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-6-FN
	CLM-1-SHA-2	M6	1	63.5	16	9.5	28	CL-1-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-6-FN
	CLM-1A-SHA-2	M8	1.25	63.5	19	12.5	32	CL-1A-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-8-FN
	CLM-1B-SHA-2	M8	1.25	76	19	12.5	34	CL-1B-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-8-FN
	CLM-2-SHA-2	M10	1.5	76	28.5	12.5	32.5	CL-2-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-FN
	CLM-3-SHA-2	M10	1.5	89	28.5	12.5	39	CL-3A-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-FN
	CLM-4-SHA-2	M10	1.5	101.5	28.5	12.5	45	CL-3-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-FN
	CLM-6-SHA-2	M10	1.5	127	28.5	12.5	58	CL-4-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-FN
	CLM-8-SHA-2	M10	1.5	152	28.5	12.5	70.5	CL-5-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-FN
	CLM-9-SHA-2	M12	1.75	89	32	16	38	CL-6A-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-FN
	CLM-10-SHA-2	M12	1.75	101.5	32	16	44.5	CL-6-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-FN
	CLM-12-SHA-2	M12	1.75	127	32	16	57	CL-8-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-FN
	CLM-14-SHA-2	M12	1.75	152	32	16	70	CL-10-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-FN
	CLM-20-SHA-2	M16	2	101.5	38	22	43	CL-15A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-FN
	CLM-22-SHA-2	M16	2	127	38	22	55.5	CL-16-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-FN
	CLM-24-SHA-2	M16	2	152	38	22	68.5	CL-18-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-FN
	CLM-25-SHA-2	M16	2	165	38	22	75	CL-18A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-FN
	CLM-27-SHA-2	M20	2.5	152	44.5	25.5	66.5	CL-19-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-FN
	CLM-29-SHA-2	M20	2.5	178	44.5	25.5	79.5	CL-21-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-FN
	CLM-31-SHA-2	M20	2.5	203	44.5	25.5	92	CL-22A-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-FN

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Hand Knob & Spherical Washer (Metric)

QUANTITY	PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C (mm)	E (mm)	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	HAND KNOB	SPHERICAL WASHER
	CLM-0-SHA-4	M6	1	51	16	9.5	21.5	CL-0-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-1-HK-2	CL-1-SW
	CLM-1-SHA-4	M6	1	63.5	16	9.5	28	CL-1-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-1-HK-2	CL-1-SW
	CLM-1A-SHA-4	M8	1.25	63.5	19	12.5	32	CL-1A-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-2-HK-2	CL-11-SW
	CLM-1B-SHA-4	M8	1.25	76	19	12.5	34	CL-1B-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-2-HK-2	CL-11-SW
	CLM-2-SHA-4	M10	1.5	76	28.5	12.5	32.5	CL-2-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-3-HK-4	CL-2-SW
	CLM-3-SHA-4	M10	1.5	89	28.5	12.5	39	CL-3A-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-3-HK-4	CL-2-SW
	CLM-4-SHA-4	M10	1.5	101.5	28.5	12.5	45	CL-3-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-3-HK-4	CL-2-SW
	CLM-6-SHA-4	M10	1.5	127	28.5	12.5	58	CL-4-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-3-HK-4	CL-2-SW
	CLM-8-SHA-4	M10	1.5	152	28.5	12.5	70.5	CL-5-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-3-HK-4	CL-2-SW
	CLM-9-SHA-4	M12	1.75	89	32	16	38	CL-6A-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-4-HK-4	CL-3-SW
	CLM-10-SHA-4	M12	1.75	101.5	32	16	44.5	CL-6-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-4-HK-4	CL-3-SW
	CLM-12-SHA-4	M12	1.75	127	32	16	57	CL-8-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-4-HK-4	CL-3-SW
	CLM-14-SHA-4	M12	1.75	152	32	16	70	CL-10-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-4-HK-4	CL-3-SW
	CLM-20-SHA-4	M16	2	101.5	38	22	43	CL-15A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-10-HK-10	CL-4-SW
	CLM-22-SHA-4	M16	2	127	38	22	55.5	CL-16-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-10-HK-10	CL-4-SW
	CLM-24-SHA-4	M16	2	152	38	22	68.5	CL-18-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-10-HK-10	CL-4-SW
	CLM-25-SHA-4	M16	2	165	38	22	75	CL-18A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-10-HK-10	CL-4-SW
	CLM-27-SHA-4	M20	2.5	152	44.5	25.5	66.5	CL-19-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-6-HK-6	CLM-20-SW
	CLM-29-SHA-4	M20	2.5	178	44.5	25.5	79.5	CL-21-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-6-HK-6	CLM-20-SW
	CLM-31-SHA-4	M20	2.5	203	44.5	25.5	92	CL-22A-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-6-HK-6	CLM-20-SW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Acorn Nut & Spherical Washer (Metric)

QUANTITY	PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C (mm)	E (mm)	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	ACORN NUT	SPHERICAL WASHER
	CLM-0-SHA-5	M6	1	51	16	9.5	21.5	CL-0-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-6-AN	CL-1-SW
	CLM-1-SHA-5	M6	1	63.5	16	9.5	28	CL-1-CS	CLM-1-CR	CL-5-SPG	CL-7-FW	CLM-6 x 65-STUD	CLM-6-JN	CLM-6-AN	CL-1-SW
	CLM-1A-SHA-5	M8	1.25	63.5	19	12.5	32	CL-1A-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-8-AN	CL-11-SW
	CLM-1B-SHA-5	M8	1.25	76	19	12.5	34	CL-1B-CS	CLM-1A-CR	CL-6-SPG	CL-14-FW	CLM-8 x 80-STUD	CLM-8-JN	CLM-8-AN	CL-11-SW
	CLM-2-SHA-5	M10	1.5	76	28.5	12.5	32.5	CL-2-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-AN	CL-2-SW
	CLM-3-SHA-5	M10	1.5	89	28.5	12.5	39	CL-3A-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-AN	CL-2-SW
	CLM-4-SHA-5	M10	1.5	101.5	28.5	12.5	45	CL-3-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-AN	CL-2-SW
	CLM-6-SHA-5	M10	1.5	127	28.5	12.5	58	CL-4-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-AN	CL-2-SW
	CLM-8-SHA-5	M10	1.5	152	28.5	12.5	70.5	CL-5-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-10-AN	CL-2-SW
	CLM-9-SHA-5	M12	1.75	89	32	16	38	CL-6A-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-AN	CL-3-SW
	CLM-10-SHA-5	M12	1.75	101.5	32	16	44.5	CL-6-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-AN	CL-3-SW
	CLM-12-SHA-5	M12	1.75	127	32	16	57	CL-8-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-AN	CL-3-SW
	CLM-14-SHA-5	M12	1.75	152	32	16	70	CL-10-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-12-AN	CL-3-SW
	CLM-20-SHA-5	M16	2	101.5	38	22	43	CL-15A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-AN	CL-4-SW
	CLM-22-SHA-5	M16	2	127	38	22	55.5	CL-16-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-AN	CL-4-SW
	CLM-24-SHA-5	M16	2	152	38	22	68.5	CL-18-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-AN	CL-4-SW
	CLM-25-SHA-5	M16	2	165	38	22	75	CL-18A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-16-AN	CL-4-SW
	CLM-27-SHA-5	M20	2.5	152	44.5	25.5	66.5	CL-19-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-AN	CL-20-SW
	CLM-29-SHA-5	M20	2.5	178	44.5	25.5	79.5	CL-21-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-AN	CL-20-SW
	CLM-31-SHA-5	M20	2.5	203	44.5	25.5	92	CL-22A-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-20-AN	CL-20-SW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Bar Knob & Spherical Washer (Metric)

QUANTITY	PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C (mm)	E (mm)	CLAMP STRAP	CLAMP REST	CLAMP SPRING	FLAT WASHER	CLAMPING STUD	JAM NUT	BAR KNOB	SPHERICAL WASHER
	CLM-2-SHA-6	M10	1.5	76	28.5	12.5	32.5	CL-2-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-2-BK	CL-2-SW
	CLM-3-SHA-6	M10	1.5	89	28.5	12.5	39	CL-3A-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-2-BK	CL-2-SW
	CLM-4-SHA-6	M10	1.5	101.5	28.5	12.5	45	CL-3-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-2-BK	CL-2-SW
	CLM-6-SHA-6	M10	1.5	127	28.5	12.5	58	CL-4-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-2-BK	CL-2-SW
	CLM-8-SHA-6	M10	1.5	152	28.5	12.5	70.5	CL-5-CS	CLM-2-CR	CL-7-SPG	CL-1-FW	CLM-10 x 80-STUD	CLM-10-JN	CLM-2-BK	CL-2-SW
	CLM-9-SHA-6	M12	1.75	89	32	16	38	CL-6A-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-9-BK	CL-3-SW
	CLM-10-SHA-6	M12	1.75	101.5	32	16	44.5	CL-6-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-9-BK	CL-3-SW
	CLM-12-SHA-6	M12	1.75	127	32	16	57	CL-8-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-9-BK	CL-3-SW
	CLM-14-SHA-6	M12	1.75	152	32	16	70	CL-10-CS	CLM-4-CR	CL-9-SPG	CL-2-FW	CLM-12 x 95-STUD	CLM-12-JN	CLM-9-BK	CL-3-SW
	CLM-20-SHA-6	M16	2	101.5	38	22	43	CL-15A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-11-BK	CL-4-SW
	CLM-22-SHA-6	M16	2	127	38	22	55.5	CL-16-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-11-BK	CL-4-SW
	CLM-24-SHA-6	M16	2	152	38	22	68.5	CL-18-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-11-BK	CL-4-SW
	CLM-25-SHA-6	M16	2	165	38	22	75	CL-18A-CS	CLM-5-CR	CL-11-SPG	CL-3-FW	CLM-16 x 110-STUD	CLM-16-JN	CLM-11-BK	CL-4-SW
	CLM-27-SHA-6	M20	2.5	152	44.5	25.5	66.5	CL-19-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-16-BK	CLM-20-SW
	CLM-29-SHA-6	M20	2.5	178	44.5	25.5	79.5	CL-21-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-16-BK	CLM-20-SW
	CLM-31-SHA-6	M20	2.5	203	44.5	25.5	92	CL-22A-CS	CLM-8-CR	CL-13-SPG	CLM-10-FW	CLM-20 x 125-STUD	CLM-20-JN	CLM-16-BK	CLM-20-SW

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Assembly with Cam Handle & Spherical Washer (Metric)

QUANTITY	PART NO.	THREAD SIZE	THREAD PITCH (mm)	A (mm)	B (mm)	C (mm)	E (mm)	CLAMP STRAP	CLAMP REST	CLAMP SPRING	EYE BOLT	CAM HANDLE	CLEVIS PIN	FLAT WASHER	SPHERICAL WASHER	JAM NUT
	CLM-0-SCA	M6	1	51	16	9.5	21.5	CL-0-CS	CLM-1-CR	CL-5-SPG	CLM-26A-EB	CLM-11-CH	CLM-616-CLVP	CL-7-FW	CL-1-SW	CLM-6-JN
	CLM-1-SCA	M6	1	63.5	16	9.5	28	CL-1-CS	CLM-1-CR	CL-5-SPG	CLM-26A-EB	CLM-11-CH	CLM-616-CLVP	CL-7-FW	CL-1-SW	CLM-6-JN
	CLM-2-SCA	M10	1.5	76	28.5	12.5	32.5	CL-2-CS	CLM-2-CR	CL-7-SPG	CLM-40-EB	CLM-12-CH	CLM-1023-CLVP	CL-1-FW	CL-2-SW	CLM-10-JN
	CLM-2A-SCA	M10	1.5	89	28.5	12.5	39	CL-3A-CS	CLM-2-CR	CL-7-SPG	CLM-40-EB	CLM-12-CH	CLM-1023-CLVP	CL-1-FW	CL-2-SW	CLM-10-JN
	CLM-3-SCA	M10	1.5	101.5	28.5	12.5	45	CL-3-CS	CLM-2-CR	CL-7-SPG	CLM-40-EB	CLM-12-CH	CLM-1023-CLVP	CL-1-FW	CL-2-SW	CLM-10-JN
	CLM-4-SCA	M10	1.5	127	28.5	12.5	58	CL-4-CS	CLM-2-CR	CL-7-SPG	CLM-40-EB	CLM-12-CH	CLM-1023-CLVP	CL-1-FW	CL-2-SW	CLM-10-JN
	CLM-5-SCA	M10	1.5	152	28.5	12.5	70.5	CL-5-CS	CLM-2-CR	CL-7-SPG	CLM-40-EB	CLM-12-CH	CLM-1023-CLVP	CL-1-FW	CL-2-SW	CLM-10-JN
	CLM-6A-SCA	M12	1.75	89	32	16	38	CL-6A-CS	CLM-4-CR	CL-9-SPG	CLM-51A-EB	CLM-13-CH	CLM-1229-CLVP	CL-2-FW	CL-3-SW	CLM-12-JN
	CLM-6-SCA	M12	1.75	101.5	32	16	44.5	CL-6-CS	CLM-4-CR	CL-9-SPG	CLM-51A-EB	CLM-13-CH	CLM-1229-CLVP	CL-2-FW	CL-3-SW	CLM-12-JN
	CLM-8-SCA	M12	1.75	127	32	16	57	CL-8-CS	CLM-4-CR	CL-9-SPG	CLM-51A-EB	CLM-13-CH	CLM-1229-CLVP	CL-2-FW	CL-3-SW	CLM-12-JN
	CLM-9A-SCA	M12	1.75	152	32	16	70	CL-10-CS	CLM-4-CR	CL-9-SPG	CLM-51A-EB	CLM-13-CH	CLM-1229-CLVP	CL-2-FW	CL-3-SW	CLM-12-JN
	CLM-17-SCA	M16	2	101.5	38	22	43	CL-15A-CS	CLM-5-CR	CL-11-SPG	CLM-62-EB	CLM-14-CH	CLM-1632-CLVP	CL-3-FW	CL-4-SW	CLM-16-JN
	CLM-19-SCA	M16	2	127	38	22	55.5	CL-16-CS	CLM-5-CR	CL-11-SPG	CLM-62-EB	CLM-14-CH	CLM-1632-CLVP	CL-3-FW	CL-4-SW	CLM-16-JN
	CLM-21-SCA	M16	2	152	38	22	68.5	CL-18-CS	CLM-5-CR	CL-11-SPG	CLM-62-EB	CLM-14-CH	CLM-1632-CLVP	CL-3-FW	CL-4-SW	CLM-16-JN
	CLM-22-SCA	M16	2	165	38	22	75	CL-18A-CS	CLM-5-CR	CL-11-SPG	CLM-62-EB	CLM-14-CH	CLM-1632-CLVP	CL-3-FW	CL-4-SW	CLM-16-JN
	CLM-24-SCA	M20	2.5	152	44.5	25.5	66.5	CL-19-CS	CLM-8-CR	CL-13-SPG	CLM-76A-EB	CLM-15-CH	CLM-2038-CLVP	CLM-10-FW	CLM-20-SW	CLM-20-JN
	CLM-26-SCA	M20	2.5	178	44.5	25.5	79.5	CL-21-CS	CLM-8-CR	CL-13-SPG	CLM-76A-EB	CLM-15-CH	CLM-2038-CLVP	CLM-10-FW	CLM-20-SW	CLM-20-JN
	CLM-28-SCA	M20	2.5	203	44.5	25.5	92	CL-22A-CS	CLM-8-CR	CL-13-SPG	CLM-76A-EB	CLM-15-CH	CLM-2038-CLVP	CLM-10-FW	CLM-20-SW	CLM-20-JN

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to Slotted-Heel Clamp Straps (Steel)

High-Rise Clamps – Slotted Heel

High-Rise Clamps – Slotted Heel

Was this page helpful?

Catalog Feedback

Name

Email

Comments

I would like to receive occasional news and product updates from Carr Lane Manufacturing.
