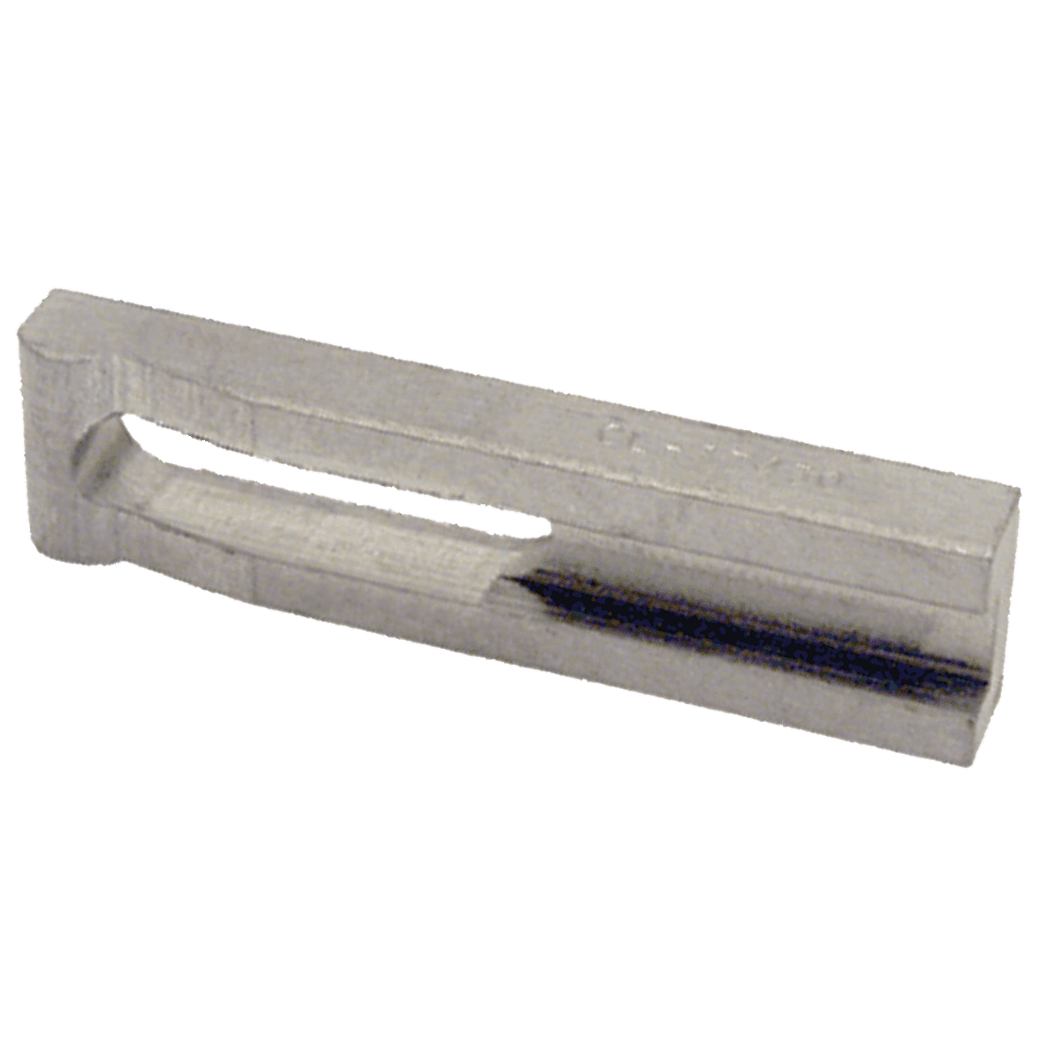

Slotted-Heel Clamp Straps (Stainless Steel)

Clamp Straps & Clamping Kits

 Save to My Project
What is this?

Clamp Strap Only
QUANTITY PART NO. A
STUD
SIZE		 B C D E F G H J K L
CL-17215 #10-32 1/4 1/2 1-1/2 21/32 15/32 3/16 5/16 7/32 3/32 7/32
CL-17220 #10-32 1/4 1/2 2 29/32 23/32 3/16 5/16 7/32 3/32 7/32
CL-17320 1/4-20 3/8 5/8 2 7/8 11/16 1/4 3/8 9/32 1/8 9/32
CL-17325 1/4-20 3/8 5/8 2-1/2 1-1/8 15/16 1/4 3/8 9/32 1/8 9/32
CL-17420 5/16-18 3/8 3/4 2 27/32 19/32 5/16 7/16 11/32 5/32 11/32
CL-17430 5/16-18 3/8 3/4 3 1-11/32 1-3/32 5/16 7/16 11/32 5/32 11/32
CL-17530 3/8-16 1/2 1 3 1-5/16 1 3/8 1/2 13/32 3/16 13/32
CL-17540 3/8-16 1/2 1 4 1-13/16 1-1/2 3/8 1/2 13/32 3/16 13/32
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

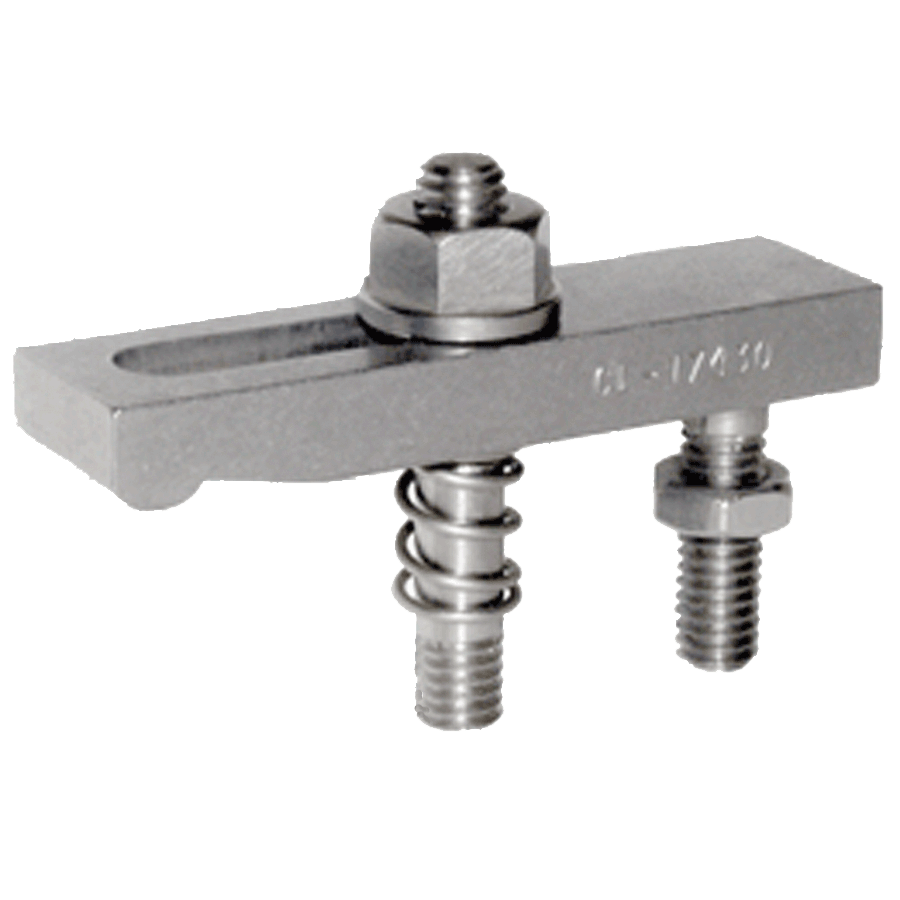

Assembly with Flange Nut (Inch)
QUANTITY PART NO. THREAD
SIZE		 A B C E CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 FIXTURE
STUD		 JAM
NUT		 FLANGE
NUT
CL-2715-1 #10-32 1-1/2 1/2 1/4 21/32 CL-17215 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-124
CL-2720-1 #10-32 2 1/2 1/4 29/32 CL-17220 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-124
CL-2820-1 1/4-20 2 5/8 3/8 7/8 CL-17320 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-JN-S CL-125
CL-2825-1 1/4-20 2-1/2 5/8 3/8 1-1/8 CL-17325 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-JN-S CL-125
CL-2920-1 5/16-18 2 3/4 3/8 27/32 CL-17420 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-126
CL-2925-1 5/16-18 2-1/2 3/4 3/8 1-3/32 CL-17425 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-126
CL-2930-1 5/16-18 3 3/4 3/8 1-11/32 CL-17430 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-126
CL-3030-1 3/8-16 3 1 1/2 1-5/16 CL-17530 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-JN-S CL-127
CL-3040-1 3/8-16 4 1 1/2 1-13/16 CL-17540 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-JN-S CL-127
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

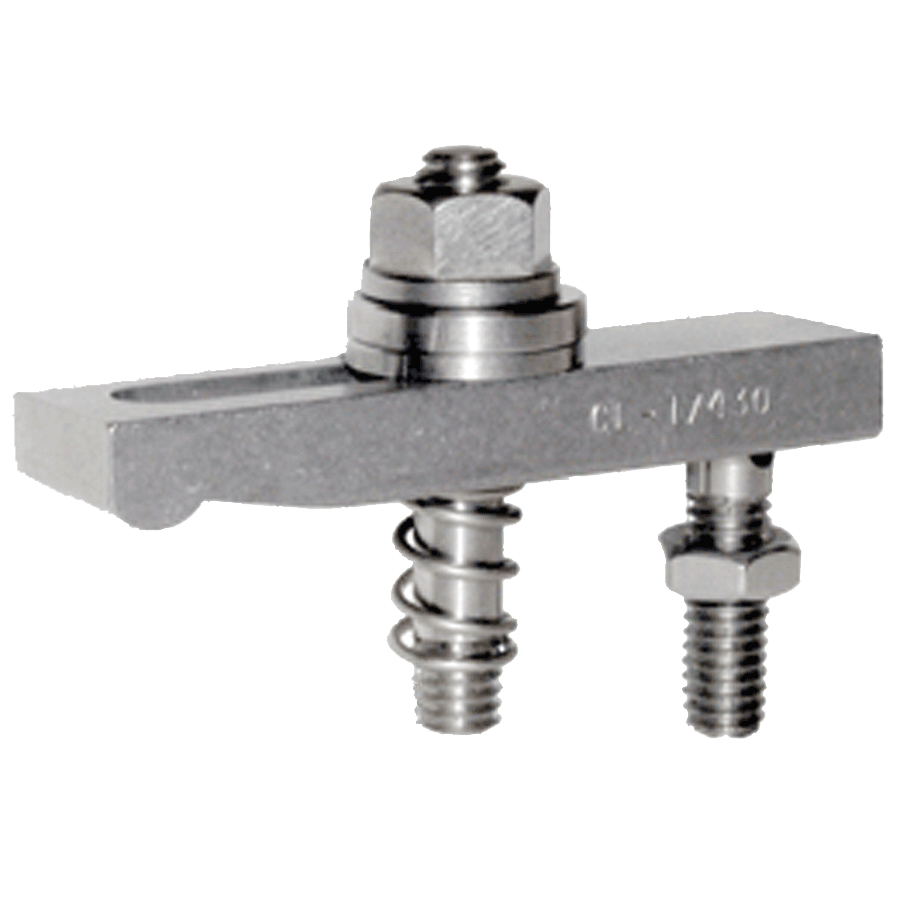

Assembly with Spherical Nut & Washer (Inch)
QUANTITY PART NO. THREAD
SIZE		 A B C E CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 FIXTURE
STUD		 JAM
NUT		 SPHERICAL
NUT &
WASHER
CL-2715-2 #10-32 1-1/2 1/2 1/4 21/32 CL-17215 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-124 plus CL-144
CL-2720-2 #10-32 2 1/2 1/4 29/32 CL-17220 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-124 plus CL-144
CL-2820-2 1/4-20 2 5/8 3/8 7/8 CL-17320 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-FJN-S CL-1-SNW-S
CL-2825-2 1/4-20 2-1/2 5/8 3/8 1-1/8 CL-17325 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-FJN-S CL-1-SNW-S
CL-2920-2 5/16-18 2 3/4 3/8 27/32 CL-17420 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-FJN-S CL-9-SNW-S
CL-2925-2 5/16-18 2-1/2 3/4 3/8 1-3/32 CL-17425 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-FJN-S CL-9-SNW-S
CL-2930-2 5/16-18 3 3/4 3/8 1-11/32 CL-17430 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-FJN-S CL-9-SNW-S
CL-3030-2 3/8-16 3 1 1/2 1-5/16 CL-17530 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-FJN-S CL-2-SNW-S
CL-3040-2 3/8-16 4 1 1/2 1-13/16 CL-17540 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-FJN-S CL-2-SNW-S
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

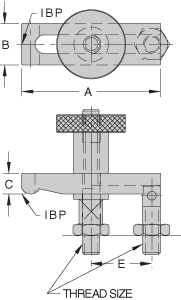

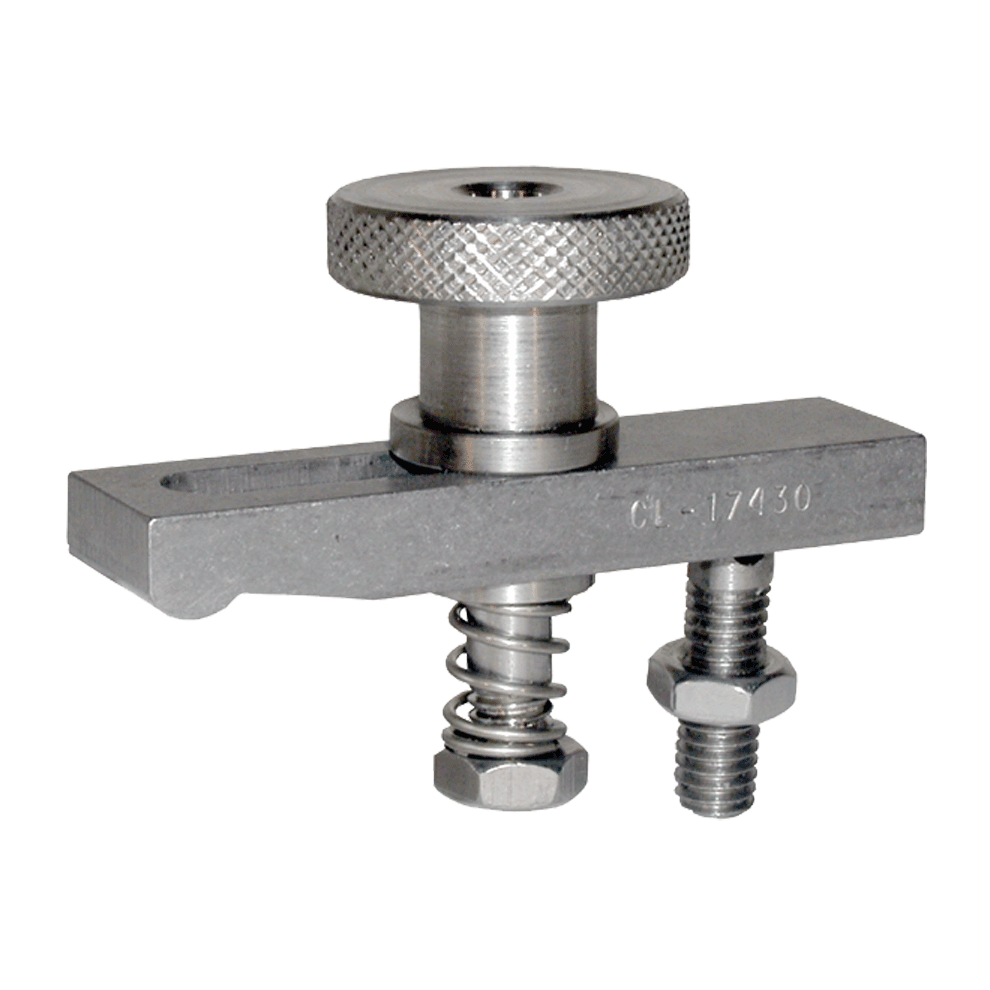

Assembly with Knurled Knob (Inch)
QUANTITY PART NO. THREAD
SIZE		 A B C E CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 FIXTURE
STUD		 JAM
NUT		 KNURLED
KNOB
CL-2715-3 #10-32 1-1/2 1/2 1/4 21/32 CL-17215 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-16412
CL-2720-3 #10-32 2 1/2 1/4 29/32 CL-17220 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-16412
CL-2820-3 1/4-20 2 5/8 3/8 7/8 CL-17320 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-JN-S CL-16513
CL-2825-3 1/4-20 2-1/2 5/8 3/8 1-1/8 CL-17325 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-JN-S CL-16513
CL-2920-3 5/16-18 2 3/4 3/8 27/32 CL-17420 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-16625
CL-2925-3 5/16-18 2-1/2 3/4 3/8 1-3/32 CL-17425 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-16625
CL-2930-3 5/16-18 3 3/4 3/8 1-11/32 CL-17430 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-16625
CL-3030-3 3/8-16 3 1 1/2 1-5/16 CL-17530 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-JN-S CL-16725
CL-3040-3 3/8-16 4 1 1/2 1-13/16 CL-17540 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-JN-S CL-16725
Check Price & Availability
Legend:
  • Get More Information
  • Download CAD Model
  • New Product
  • E Exclusive Product

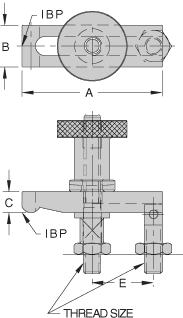

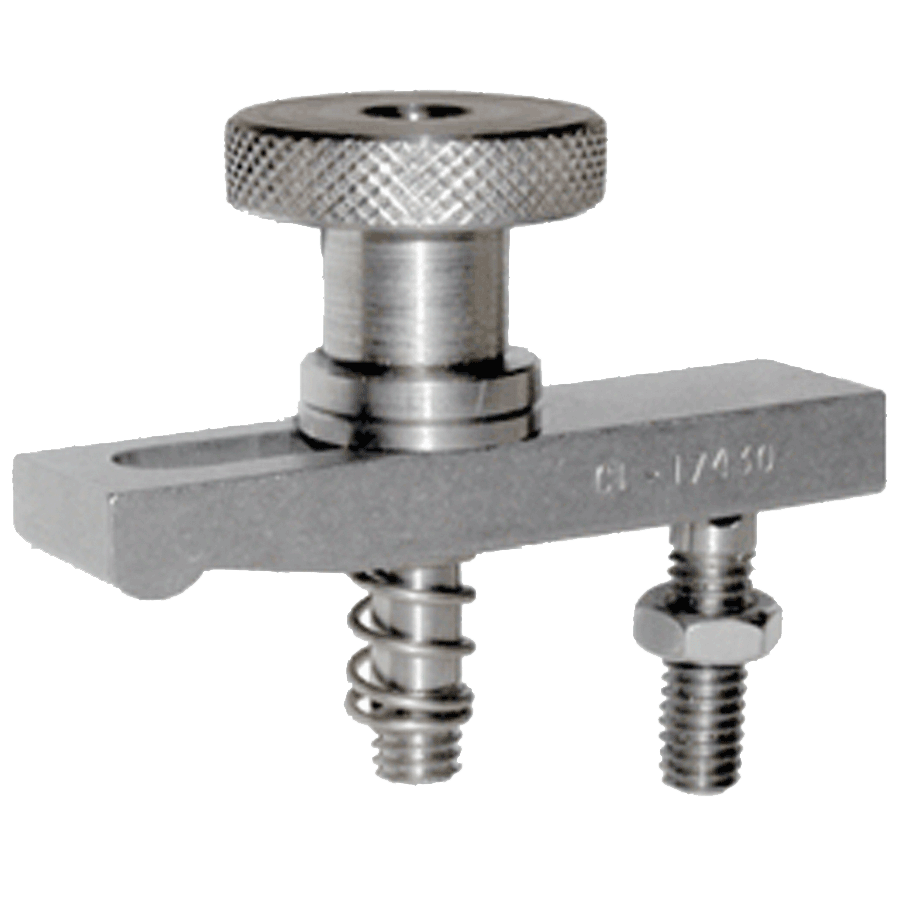

Assembly with Knurled Knob & Spherical Washer (Inch)
QUANTITY PART NO. THREAD
SIZE		 A B C E CLAMP
STRAP		 CLAMP
REST		 CLAMP
SPRING		 FLAT
WASHER		 FIXTURE
STUD		 JAM
NUT		 KNURLED
KNOB		 SPHERICAL
WASHER
CL-2715-4 #10-32 1-1/2 1/2 1/4 21/32 CL-17215 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-16412 CL-144
CL-2720-4 #10-32 2 1/2 1/4 29/32 CL-17220 CL-13410 CL-2430.7 CL-254 CL-11415 CL-3-FJN-S CL-16412 CL-144
CL-2820-4 1/4-20 2 5/8 3/8 7/8 CL-17320 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-JN-S CL-16513 CL-145
CL-2825-4 1/4-20 2-1/2 5/8 3/8 1-1/8 CL-17325 CL-13515 CL-2440.7 CL-255 CL-11520 CL-4-JN-S CL-16513 CL-145
CL-2920-4 5/16-18 2 3/4 3/8 27/32 CL-17420 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-16625 CL-146
CL-2925-4 5/16-18 2-1/2 3/4 3/8 1-3/32 CL-17425 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-16625 CL-146
CL-2930-4 5/16-18 3 3/4 3/8 1-11/32 CL-17430 CL-13615 CL-2450.7 CL-256 CL-11620 CL-5-JN-S CL-16625 CL-146
CL-3030-4 3/8-16 3 1 1/2 1-5/16 CL-17530 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-JN-S CL-16725 CL-147
CL-3040-4 3/8-16 4 1 1/2 1-13/16 CL-17540 CL-13717 CL-2461.0 CL-257 CL-11725 CL-6-JN-S CL-16725 CL-147
Check Price & Availability
