High-Rise-Clamp Spacer Blocks

Clamp Straps & Clamping Kits

Save to My Project

What is this?

Product Information

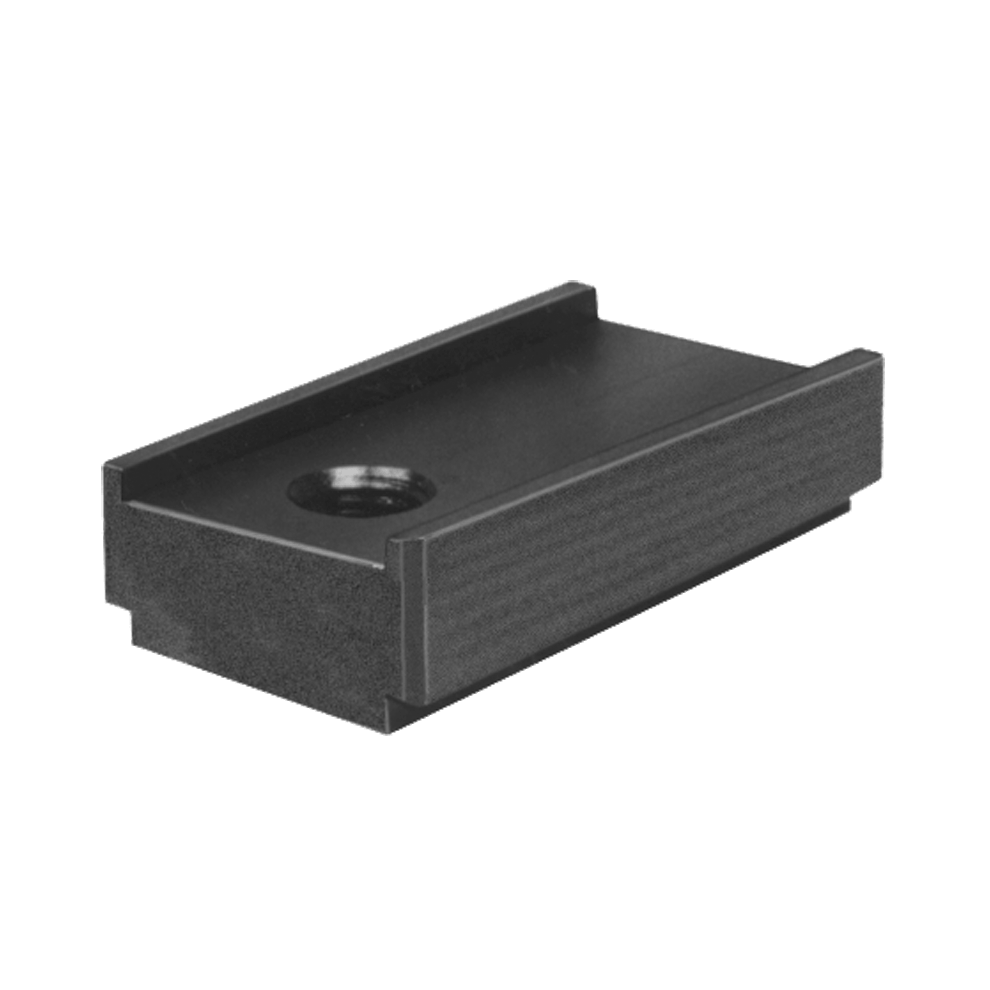

High-Rise-Clamp Spacer Blocks Part # CL-MF50-2351 Carr Lane Mfg.®

Spacer Blocks are a shorter version of our Narrow Riser Blocks, also used to raise up High-Rise Clamps, but only by a small amount. Modular design allows stacking Narrow Riser Blocks and Spacer Blocks for additional height. Interlocking channels ensure that clamps and risers remain properly aligned when stacked up. Available for 5/16-18, 1/2-13, and 5/8-11 thread sizes.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Mounting

Fasten High-Rise Clamp through the Spacer Block with a longer Hex-Head Cap Screw (see Related Products below to order).

Material

MATERIAL	HEAT TREAT	FINISH
Mild Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

High-Rise-Clamp Spacer Blocks

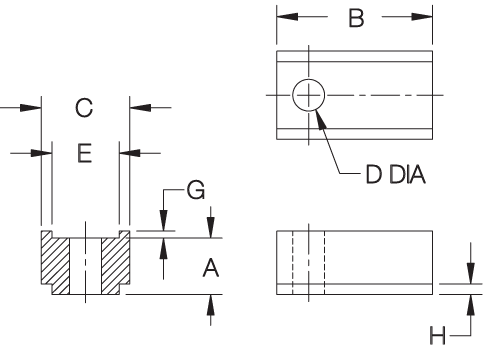

PART NO.	MODULAR SYSTEM SIZE	STUD SIZE	A	B	C	D DIA	E	G	H
CL-MF25-2351	MINI	5/16-18	1/2	1-5/8	1	11/32	13/16	1/16	3/32
CL-MF40-2351	STANDARD	1/2-13	1	2-3/4	1-9/16	17/32	1-3/16	1/8	3/16
CL-MF50-2351	HEAVY	5/8-11	1	3-9/16	2	11/16	1-9/16	1/8	3/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Products Related to High-Rise-Clamp Spacer Blocks

Hex-Head Cap Screws (Heavy)

Hex-Head Cap Screws (Mini)

Hex-Head Cap Screws (Standard)
