High-Rise-Clamp Riser Blocks

Clamp Straps & Clamping Kits

Save to My Project

What is this?

Product Information

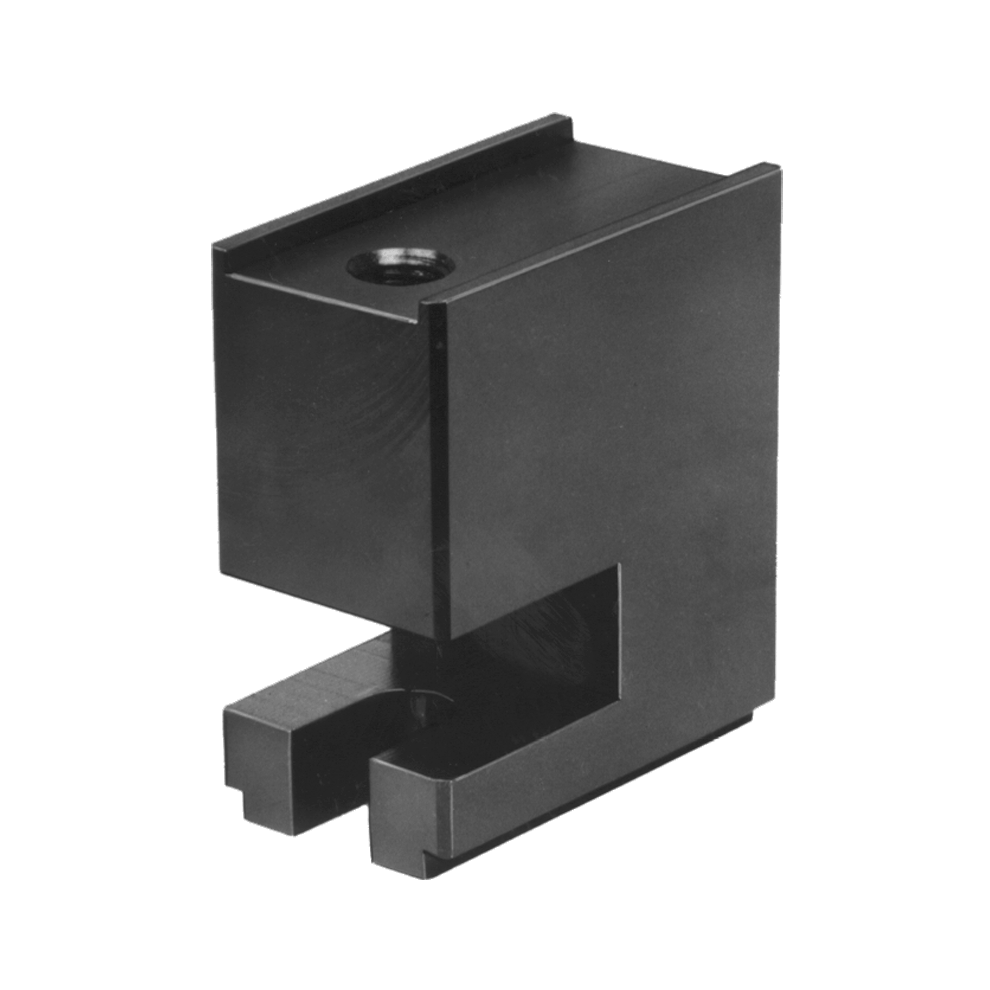

These riser blocks are used to raise up High-Rise Clamps to reach tall workpieces. Modular design allows stacking Narrow Riser Blocks and Spacer Blocks for additional height. Interlocking channels ensure that clamps and risers remain properly aligned when stacked up. Available in 5/16-18, 1/2-13, and 5/8-11 thread sizes.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Mounting

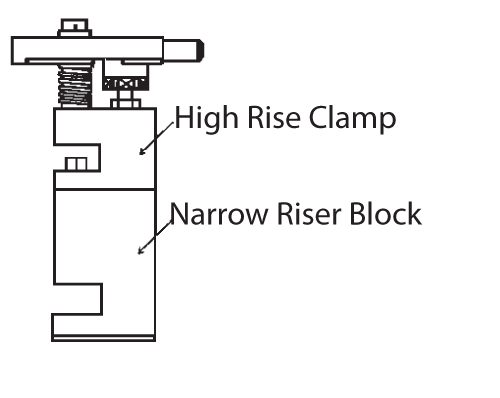

Fasten a High-Rise Clamp to the tapped hole on top of the Narrow Riser Block with a Hex-Head Cap Screw. Fasten riser block to the fixture also with a Hex-Head Cap Screw (see table below to order).

Material

MATERIAL	HEAT TREAT	FINISH
Mild Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

High-Rise-Clamp Riser Blocks

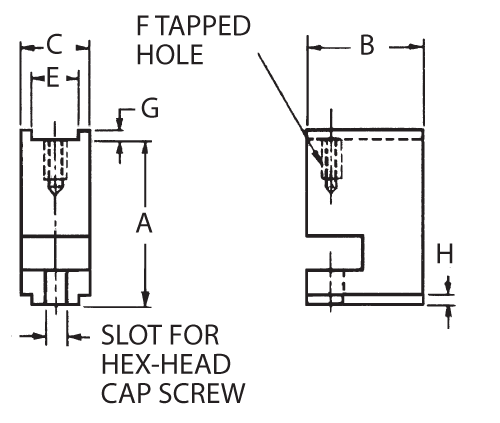

PART NO.	MODULAR SYSTEM SIZE	STUD SIZE	A	B	C	E	F THREAD	G	H
CL-MF25-2301	MINI	5/16-18	1	1-5/8	1	13/16	5/16-18	1/16	3/32
CL-MF40-2301	STANDARD	1/2-13	3	2-3/4	1-9/16	1-3/16	1/2-13	1/8	3/16
CL-MF50-2301	HEAVY	5/8-11	3	3-9/16	2	1-9/16	5/8-11	1/8	3/16

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Required Mounting Screws

PART NO.	THREAD SIZE	FITS RISER BLOCK	QTY REQUIRED
CL-MF25-4312	5/16-18	CL-MF25-2301	1
CL-MF40-4311	1/2-13	CL-MF40-2301	1
CL-MF50-4311	5/8-11	CL-MF50-2301	1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
