Cast Aluminum Adjustable Clamps

Clamp Straps & Clamping Kits

Save to My Project

What is this?

Product Information

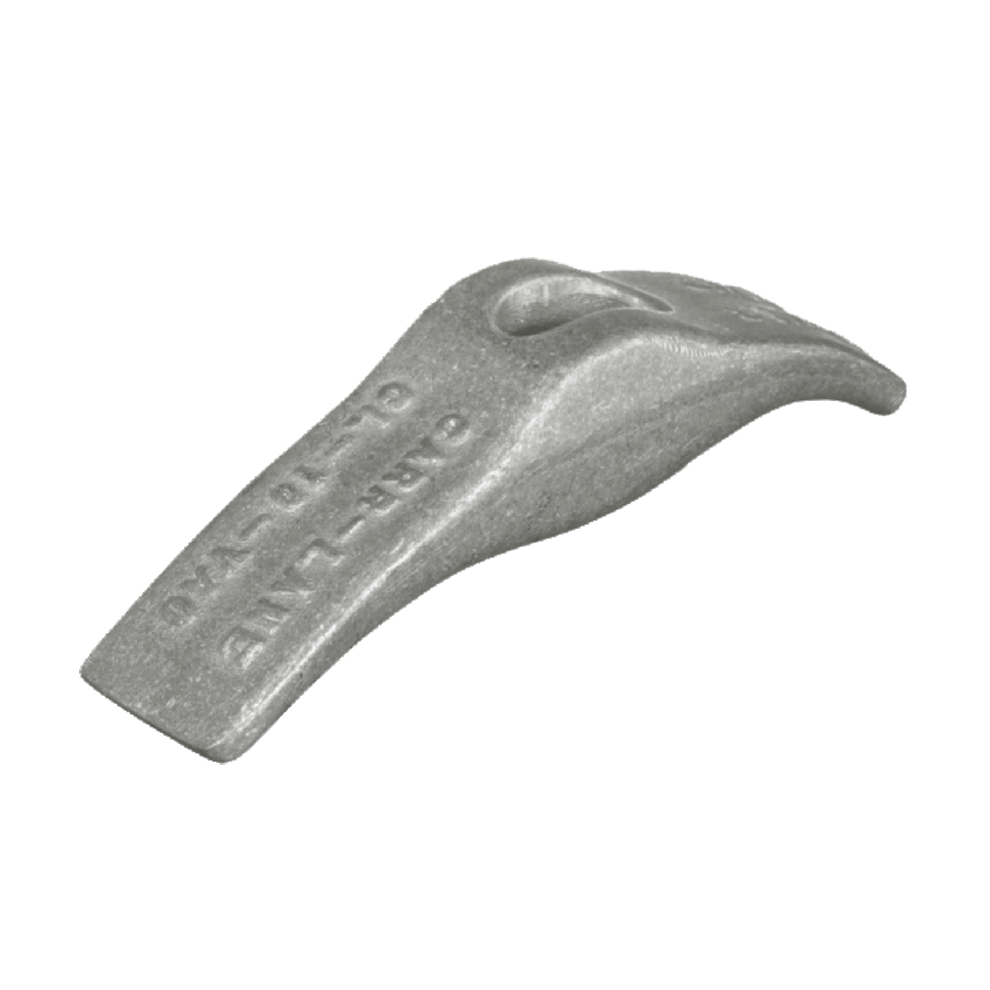

Cast Aluminum Adjustable Clamps Part # CL-10-VAC Carr Lane Mfg.®

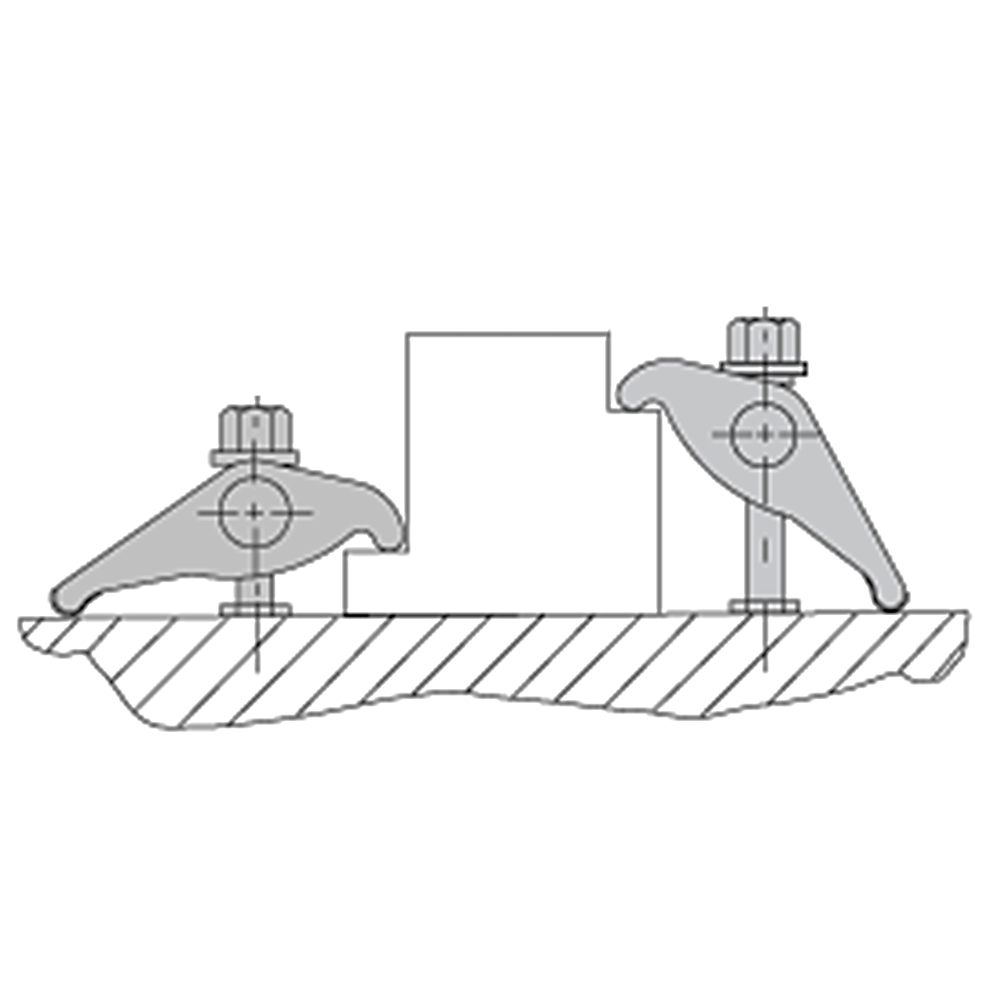

Simple, economical aluminum clamp for medium-force clamping. Provides instant height adjustment without blocks or shims. Soft aluminum material protects both the workpiece and the machine table from damage. Turn clamp 90° in either direction for loading clearance. Available in two clamp sizes, to fit stud sizes 3/8-16 and 1/2-13 (M10 and M12 in metric). Made in USA.

For a complete clamp assembly, order the following additional items separately:

Fully Threaded Stud

Flange Nut

Jam Nut

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Tenzaloy aluminum alloy	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Cast Aluminum Adjustable Clamps

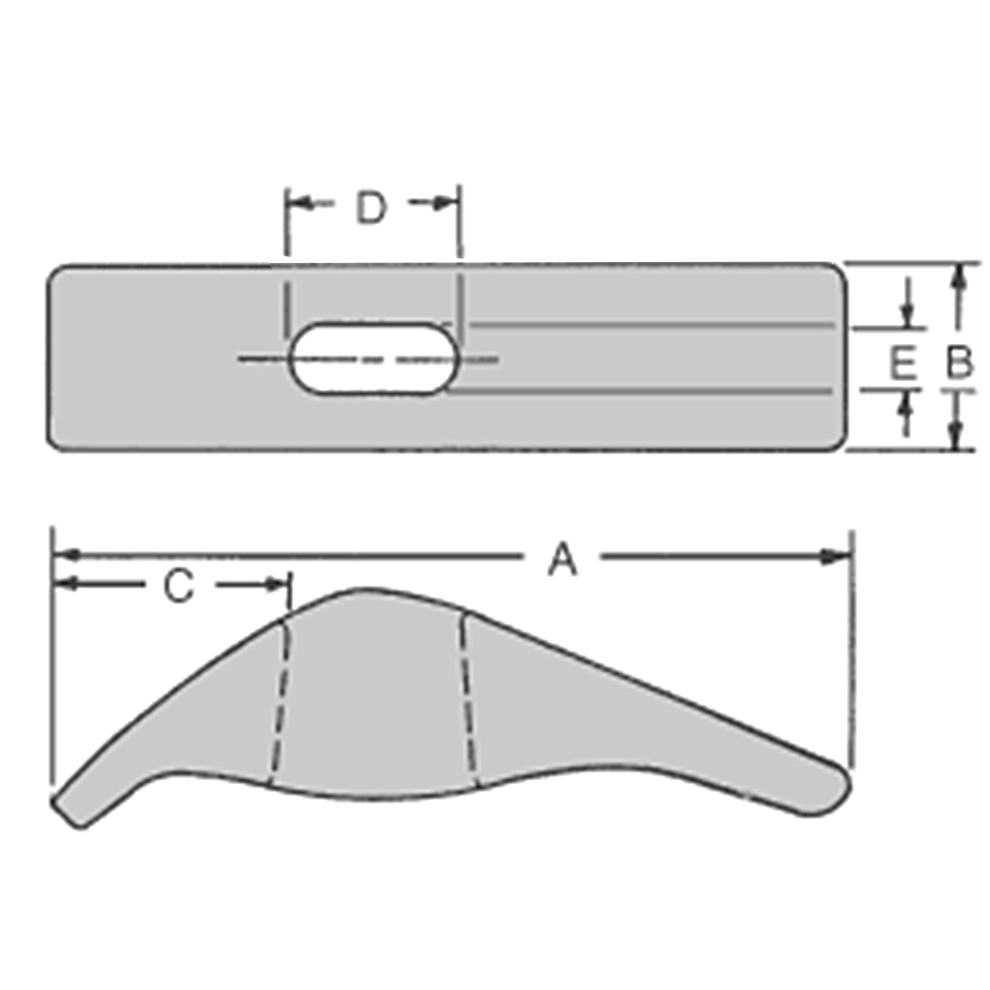

QUANTITY	PART NO.	STUD SIZE	CLAMPING RANGE	A	B	C	D	E
	CL-8-VAC	3/8 or M10	O to 2"	4-7/8	1-1/4	1-3/8	1	13/32
	CL-10-VAC	1/2 or M12	O to 2-1/2"	5-1/2	1-1/2	1-1/2	1-1/8	17/32
