Carr Lock® System Kit (500 x 1000mm) Version 00

Carr Lock System

Product Information

Carr Lock® System Kit (500 x 1000mm) Version 00

CL-5001000-00-CLSK

Carr Lock® System Kits include everything you need to set up an efficient quick-change fixturing system. The system's foundation is a Carr Lock® Subplate – a precision-machined steel plate with Carr Lock® Receiver Bushings installed in a standard pattern. Carr Lock® System Kits also include one or more Carr Lock® Fixture Plates, plus all required Carr Lock® Clamps and mounting accessories (Sure-Lock™ Fixture Keys, T Nuts, Socket-Head Cap Screws, and a Preset Torque Wrench). Made in USA.

This System Kit includes (1) 500 x 1000mm Carr Lock® Subplate, (2) 14 x 14 Carr Lock® Fixture Plates, and (8) 20mm Carr Lock® Clamps. See Related Products below for detailed information about these plates and all supplied accessories.

Application Information

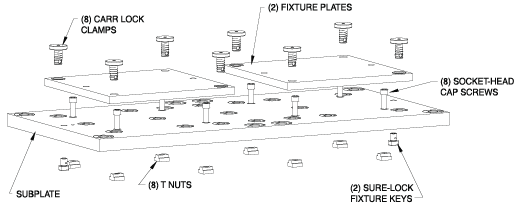

Subplate with (2) 14 x 14 Fixture Plates

Subplate with (1) 14 x 14 Fixture Plate

Videos

Carr Lock® Clamping System Overview With a CNC Machinist

Go lean with the Carr Lock® System & change from job to job in seconds. Carr Lane CNC Production Supervisor Nick Burton discusses the Carr Lock® System

Accuracy

The Carr Lock® System is extremely accurate. All Receiver-Bushing installation holes are located +/-.0002" from their primary reference hole. Clamping repeatability is +/-.0005", while bushing concentricity is .0002" TIR. The resulting x/y-axis repeatability of a mounted fixture plate is +/-.0028" considering all tolerance accumulation.

Mounting (Subplate)

Two locating holes for Sure-Lock™ Fixture Keys are provided for alignment with a slotted machine table. Fasten to the machine using the four, six, or eight mounting slots provided, with Socket-Head Cap Screws and T Nuts to match the machine table.

Mounting (Fixture Plate)

To fasten the Carr Lock® Fixture Plate to a subplate, begin by inserting a Carr Lock® Clamp into each of the four corner holes. Next, fully tighten the clamps one at a time – first the clamp in the primary liner bushing, then the clamp in the secondary liner bushing, then the clamps in the clearance holes.

Design Considerations & Safety Precautions

Never use a subplate that extends beyond the machine table on which it is mounted.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Subplate	Carbon Steel	-	-	✔	✔
Fixture Plates	MIC-6 precision-machined cast aluminum	-	-	✔	✔
Reciever Bushing	4340 Steel	Heat Treated Rc 50-54	Black Oxide	✔	✔
Liner Bushing	1144 Steel	Heat Treated Rc 58-64	Black Oxide	✔	✔
Clamp Body	4340 Steel	Heat Treated Rc 40-45	Black Oxide	✔	✔
Balls	440C Stainless	-	-	✔	✔
Clamp Screw	Carbon Steel	-	Black Oxide	✔	✔
O-Ring	Viton	-	-	✔	✔
