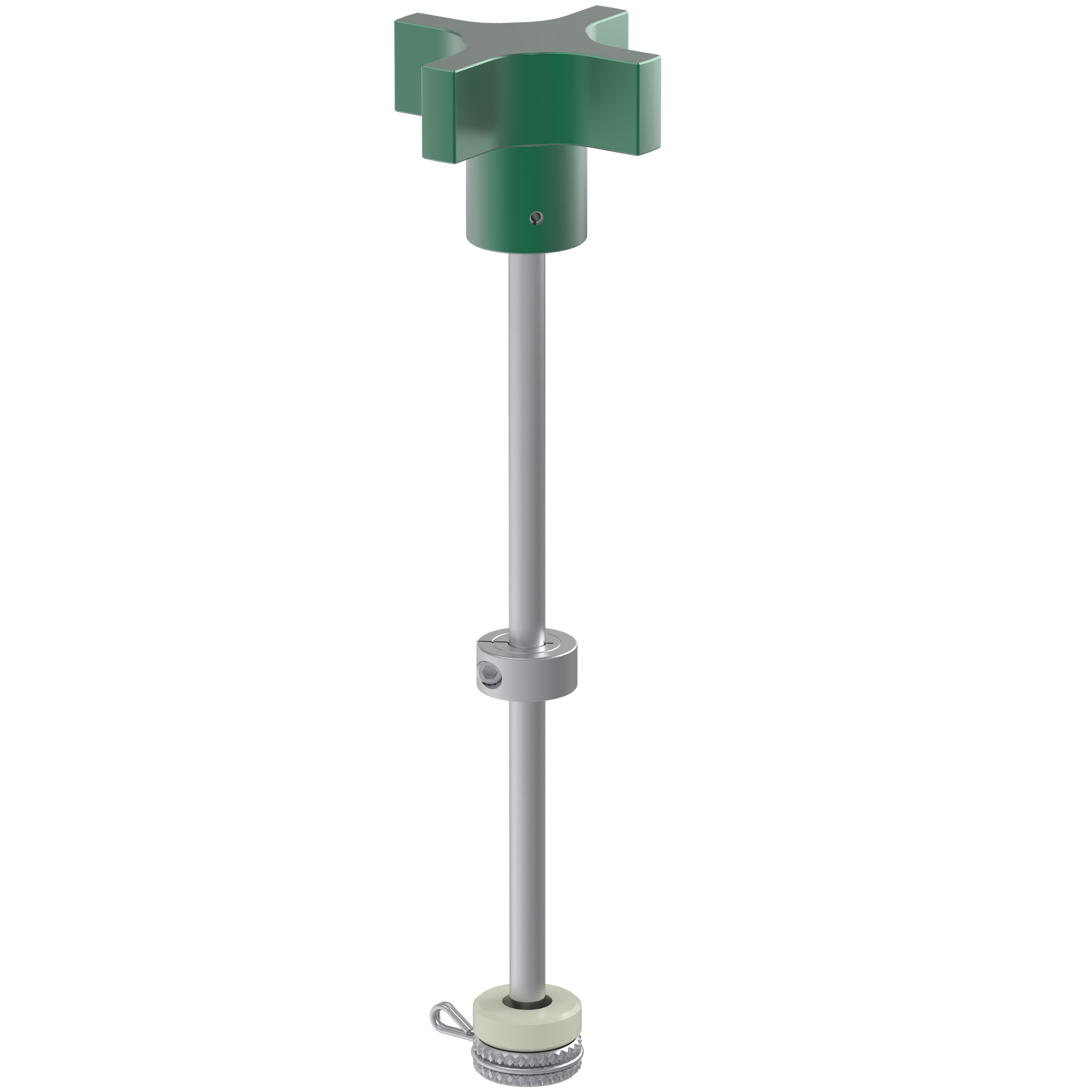

Captive Pin with Swivel Tooling Nut

Captive & Clamping Pins

Inch

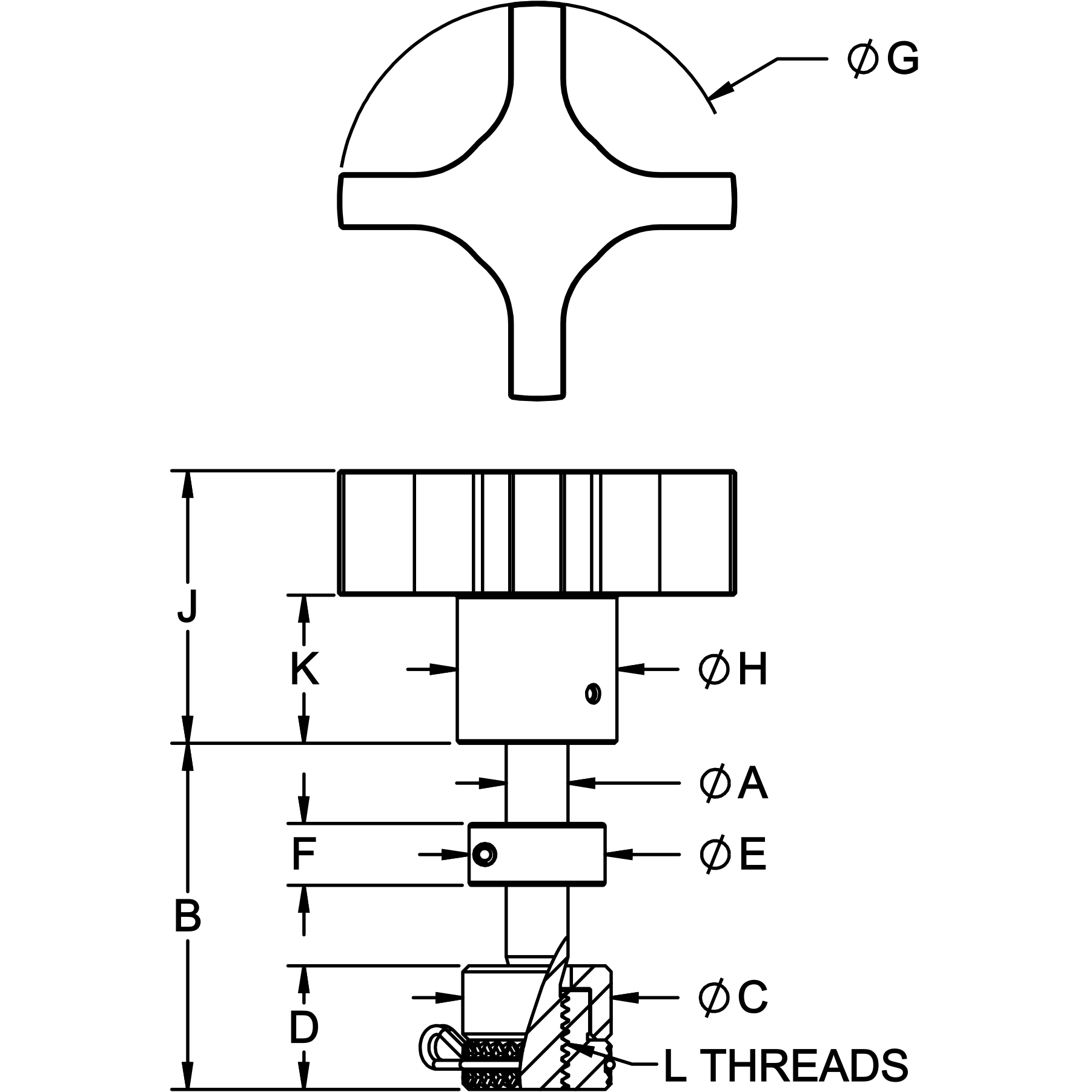

QUANTITY PART NO. A
DIA
NOMINAL
A
DIA
ACTUAL
+0/-.0005
B
±1/8
C
DIA
D E
DIA
F G
DIA
H
DIA
J K L
CL-4-STPNK-HT-S-6.00 1/4 .2490 6.00 .75 1/2 11/16 5/16 2 13/16 1.38 .75 1/4-20
CL-5-STPNK-HT-S-6.00 5/16 .3115 6.00 1.00 1/2 11/16 5/16 2 13/16 1.38 .75 5/16-18
CL-6-STPNK-HT-S-6.00 3/8 .3740 6.00 .75 3/4 7/8 3/8 2-1/2 1 1.50 .79 3/8-16
CL-8-STPNK-HT-S-6.00 1/2 .4990 6.00 1.00 3/4 1-1/8 13/32 2-1/2 1 1.50 .79 1/2-13
Metric
QUANTITY PART NO. A
DIA
NOMINAL
(mm)
A
DIA
ACTUAL
+0/-.013
(mm)
B
±3.2
(mm)
C
DIA
(mm)
D
(mm)
E
DIA
(mm)
F
(mm)
G
DIA
(mm)
H
DIA
(mm)
J
(mm)
K
(mm)
L
THREAD
THREAD
PITCH
CLM-6-STPNK-HT-S-150 6 5.975 150 19.1 12.7 19 9 51 20.5 35 19 M6 1
CLM-8-STPNK-HT-S-150 8 7.975 150 19.1 12.7 25 9 51 20.5 35 19 M8 1.25
CLM-10-STPNK-HT-S-150 10 9.975 150 25.4 19.1 25 9 63.5 25.5 38 20 M10 1.5
CLM-12-STPNK-HT-S-150 12 11.975 150 25.4 19.1 29 11 63.5 25.5 38 20 M12 1.75
