Cable Tabs (Teardrop)

Ball Lock Pins & Quick-Release Pins

Save to My Project

What is this?

Product Information

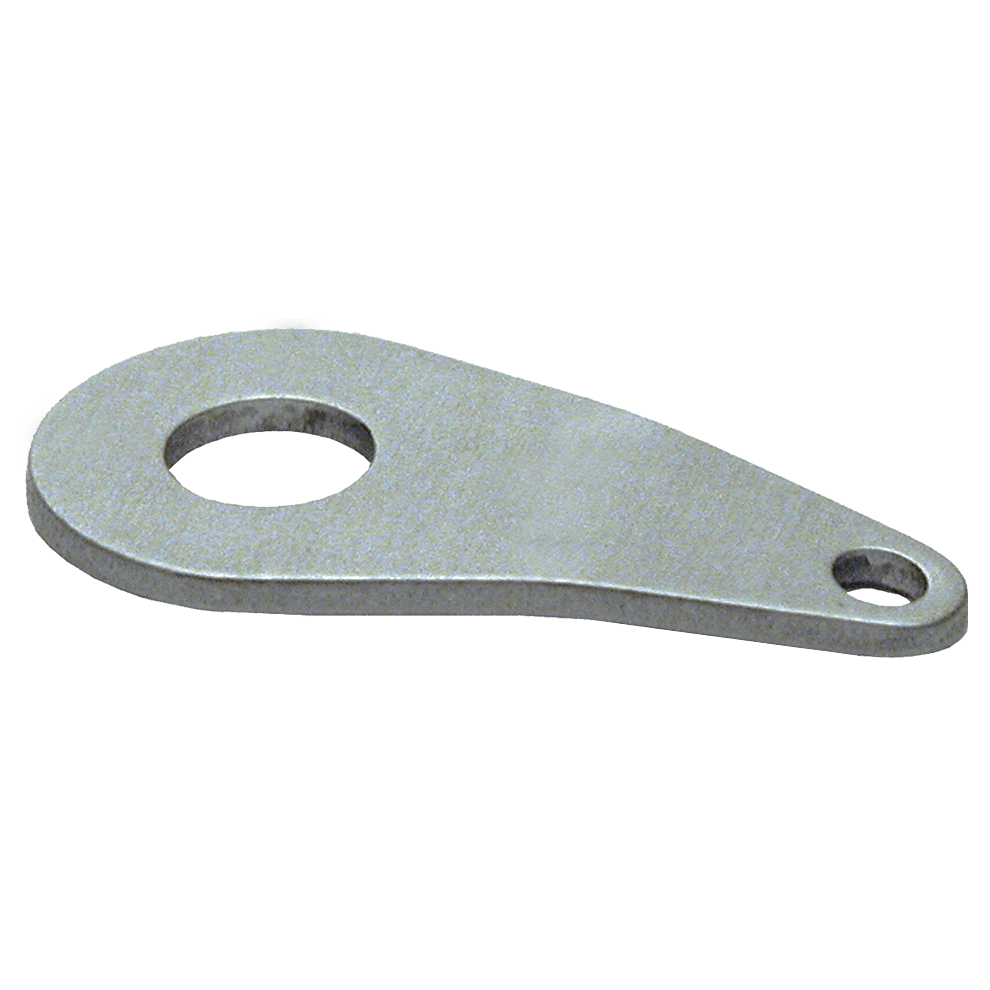

Cable Tabs (Teardrop) Part # CL-.281-TAB-A Carr Lane Mfg.®

Cable Tabs can be attached to the looped end of our nylon-coated cable to allow fastening that cable end with a screw. These tabs can be used with cable sizes #1, #2, and #3. Choice of two shapes, teardrop (shown here) and rectangular. Available in aluminum and stainless steel.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

Aluminum:

6061 aluminum alloy, clear anodized. DFARS and RoHS compliant.

Stainless Steel:

300-series stainless, passivated. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Cable Tabs (Teardrop)

Aluminum

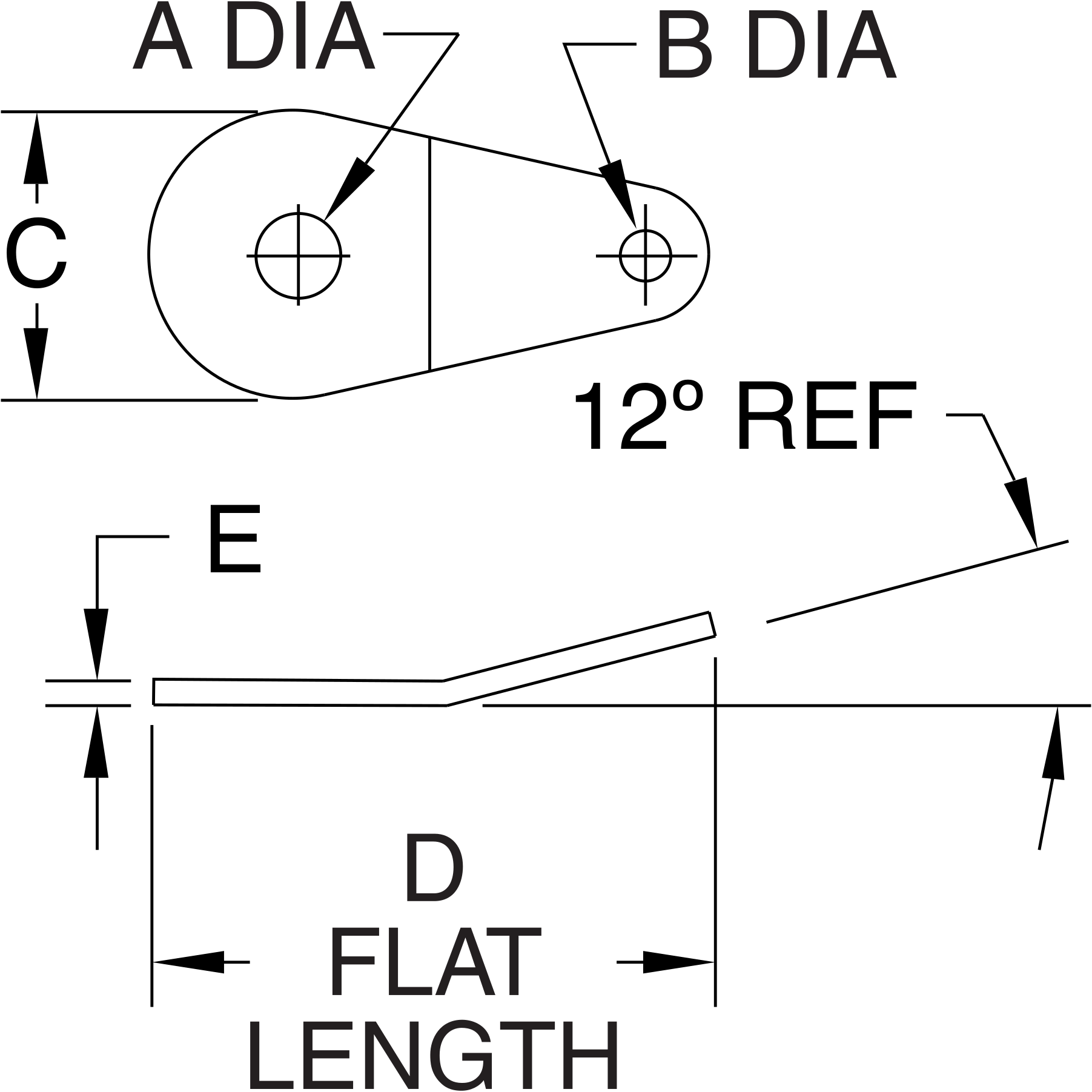

PART NO.	FITS CABLE	A DIA	A SCREW SIZE	B DIA	C	D	E
CL-.129-TAB-A	Sizes 1 to 3	.13	#5 (or M3)	.13	.69	1.31	.06
CL-.194-TAB-A	Sizes 1 to 3	.20	#10 (or M4)	.13	.69	1.31	.06
CL-.281-TAB-A	Sizes 1 to 3	.28	1/4 (or M6)	.13	.69	1.31	.06

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Stainless Steel

PART NO.	FITS CABLE	A DIA	A SCREW SIZE	B DIA	C	D	E
CL-.129-TAB-S	Sizes 1 to 3	.13	#5 (or M3)	.13	.69	1.31	.06
CL-.194-TAB-S	Sizes 1 to 3	.20	#10 (or M4)	.13	.69	1.31	.06
CL-.281-TAB-S	Sizes 1 to 3	.28	1/4 (or M6)	.13	.69	1.31	.06
