Cable Assemblies – Type 4 (Cable Ring Left End / Loop Right End)

Ball Lock Pins & Quick-Release Pins

Save to My Project

What is this?

Product Information

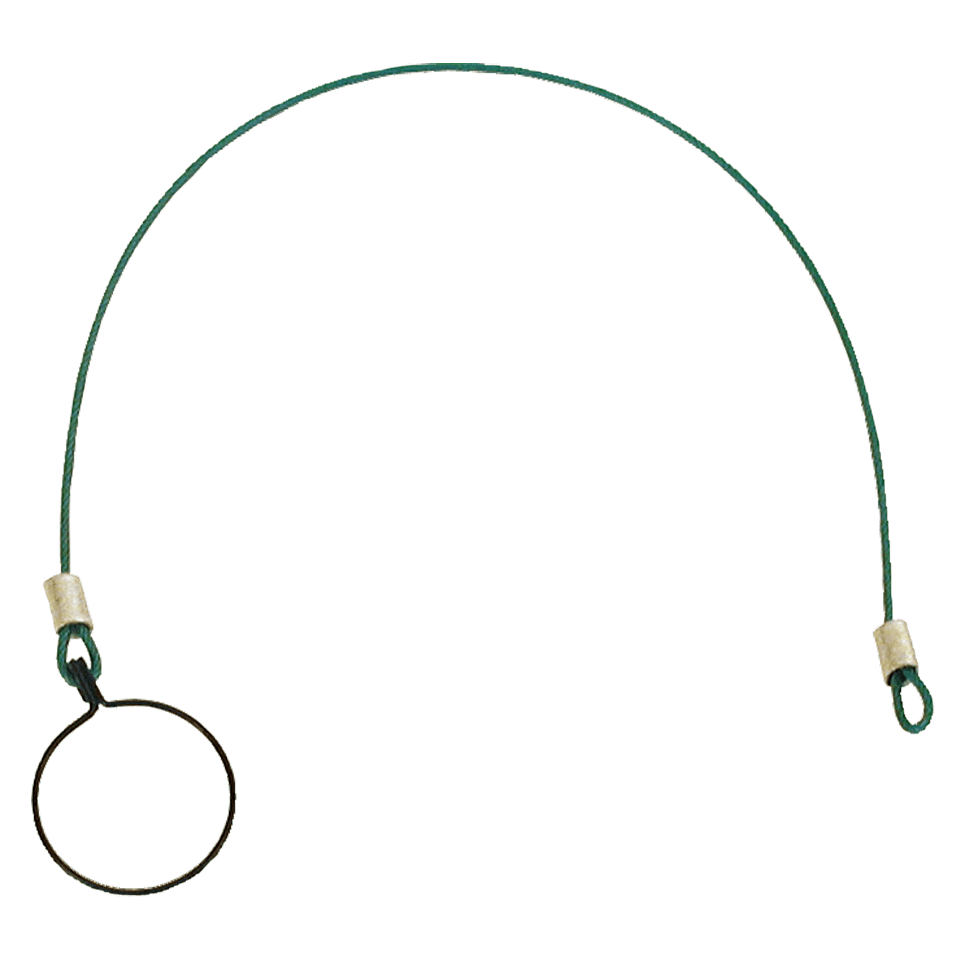

Workholding Cable Assemblies – Type 4 (Cable Ring Left End / Loop Right End)

Cable Assemblies are ideal for attaching removable alignment pins and other tooling components. High-strength stranded wire cable with a green nylon coating. Type 4 assemblies (shown here) have a Cable Ring at the left end and a loop at the right end. This type of assembly is available in #1, #2, and #3 cable diameters, in steel and stainless steel. Made in USA.

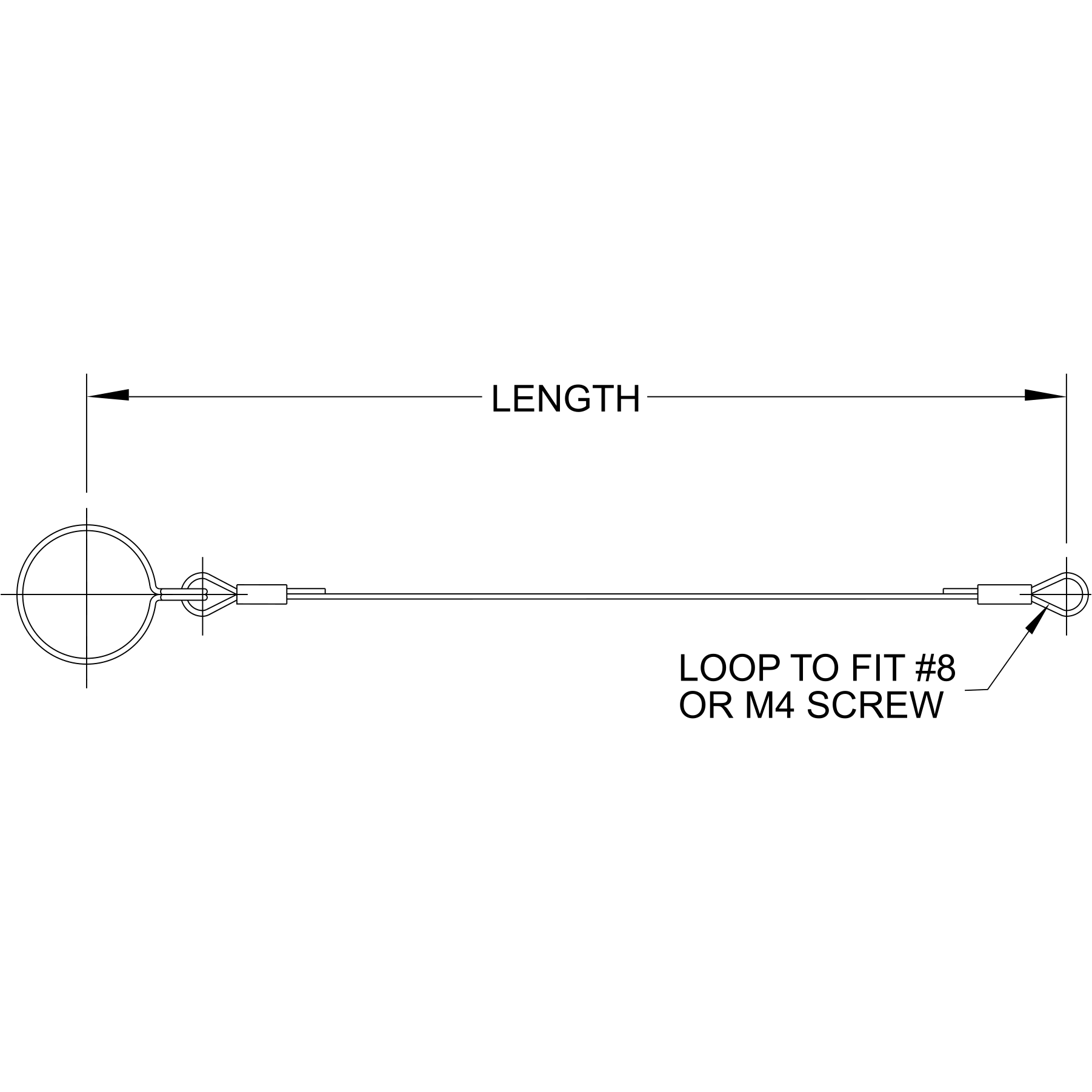

Specify cable-assembly length in inches to one decimal place, from 3.0" minimum to 144.9" maximum. Finished-assembly length tolerance is +/-1/4" up to 24" long. Example part number for a Type 4 steel cable assembly using size #2 cable, 12" long:

CL-42-KA-12.0-x

To complete the part number, also specify Cable Ring size, by adding the number 8 for Cable Ring CL-8-KR (1/2" diameter).

CL-42-KA-12.0-8

Use the Part Configurator link at the top of this page to order any KA or SKA cable assembly.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Optional Uncrimped End

To order Cable Assemblies with an uncrimped ferrule (for installation), add a suffix to the part number:

-L For uncrimped left end

-R For uncrimped right end

-LR For both ends uncrimped

Safety Precautions

Do not use these Cable Assemblies for lifting or high-tension applications.

Material

Steel:

Cable > Galvanized steel stranded wire, nylon coated. Ferrules > Copper, electro tin plated. Cable Ring > Spring steel, black oxide finish. DFARS and RoHS compliant.

Stainless Steel:

Cable > Stainless steel stranded wire, nylon coated. Ferrules > Copper, electro tin plated. Cable Ring > 300-series stainless. RoHS compliant.

Click here for detailed material and finish specifications.
