Double-Acting Ball Lock Pins (L Handle)

Ball Lock Pins & Quick-Release Pins

Product Information

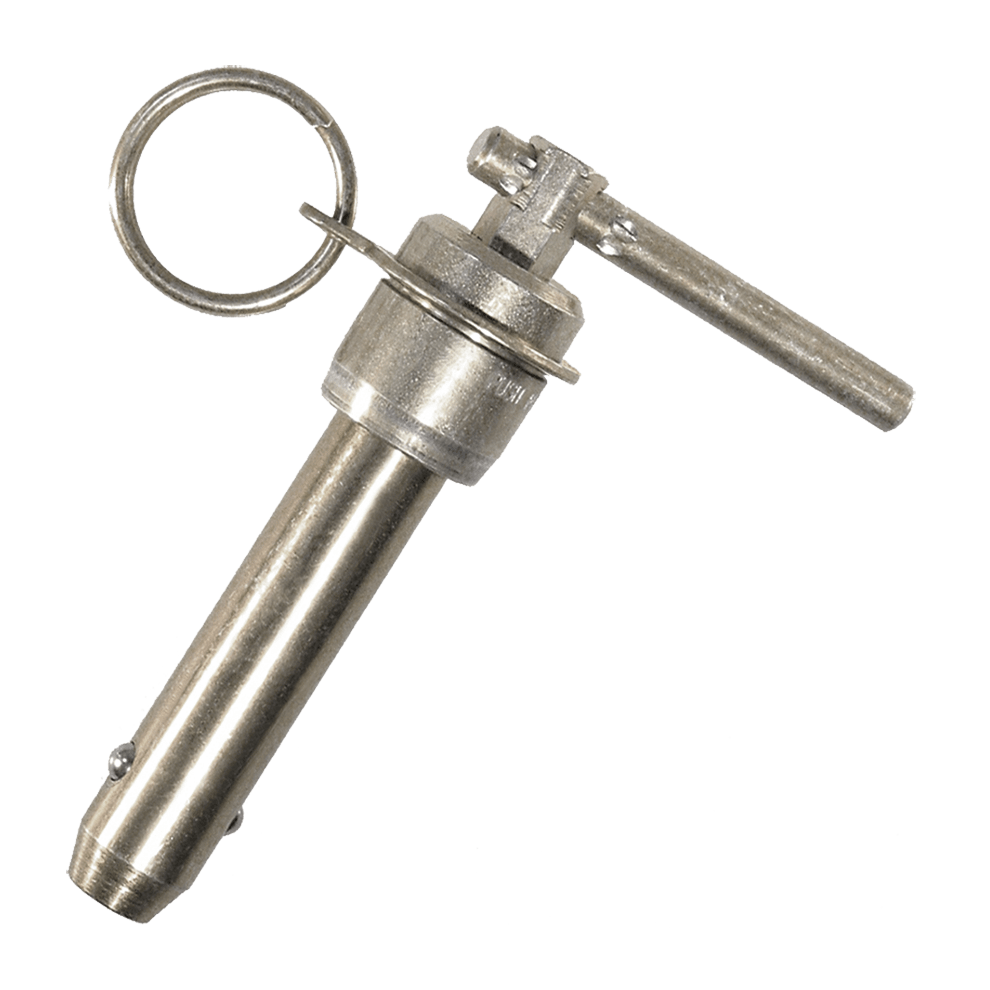

L Handle

Double-Acting Ball Lock Pins are positive locking until released by either pushing or pulling the center spindle, which is connected to the handle. Pushing on the handle releases the balls and inserts the pin in one motion. Pulling on the handle releases the balls and removes the pin in one motion. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank and positive locking. The L-handle version shown here is one of three available handle styles. Made in USA.

Available in pin diameters from 3/16 to 1" (5 to 20mm in metric), in stainless steel only. All Double-Acting Ball Lock Pins are made to order, available with grip lengths up to 12” (300mm) and other special features. The Part Configurator link at the top of this page can be used for any Double-Acting Ball Lock Pin, either standard or special.

Technical Information

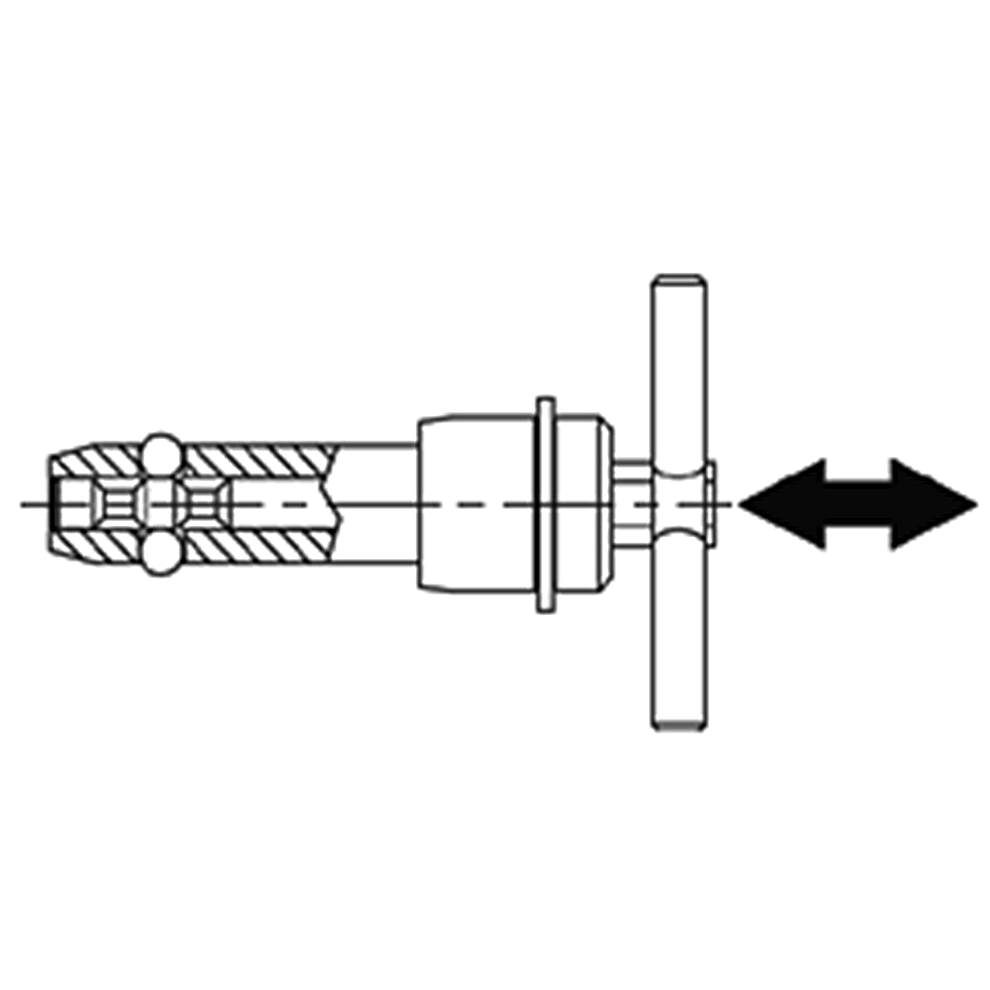

Double-Acting Ball Lock Pins are positive locking until released by either pushing or pulling the center spindle, which is connected to the handle. Pushing on the handle releases the balls and inserts the pin in one motion. Pulling on the handle releases the balls and removes the pin in one motion.

Optional Drive Out

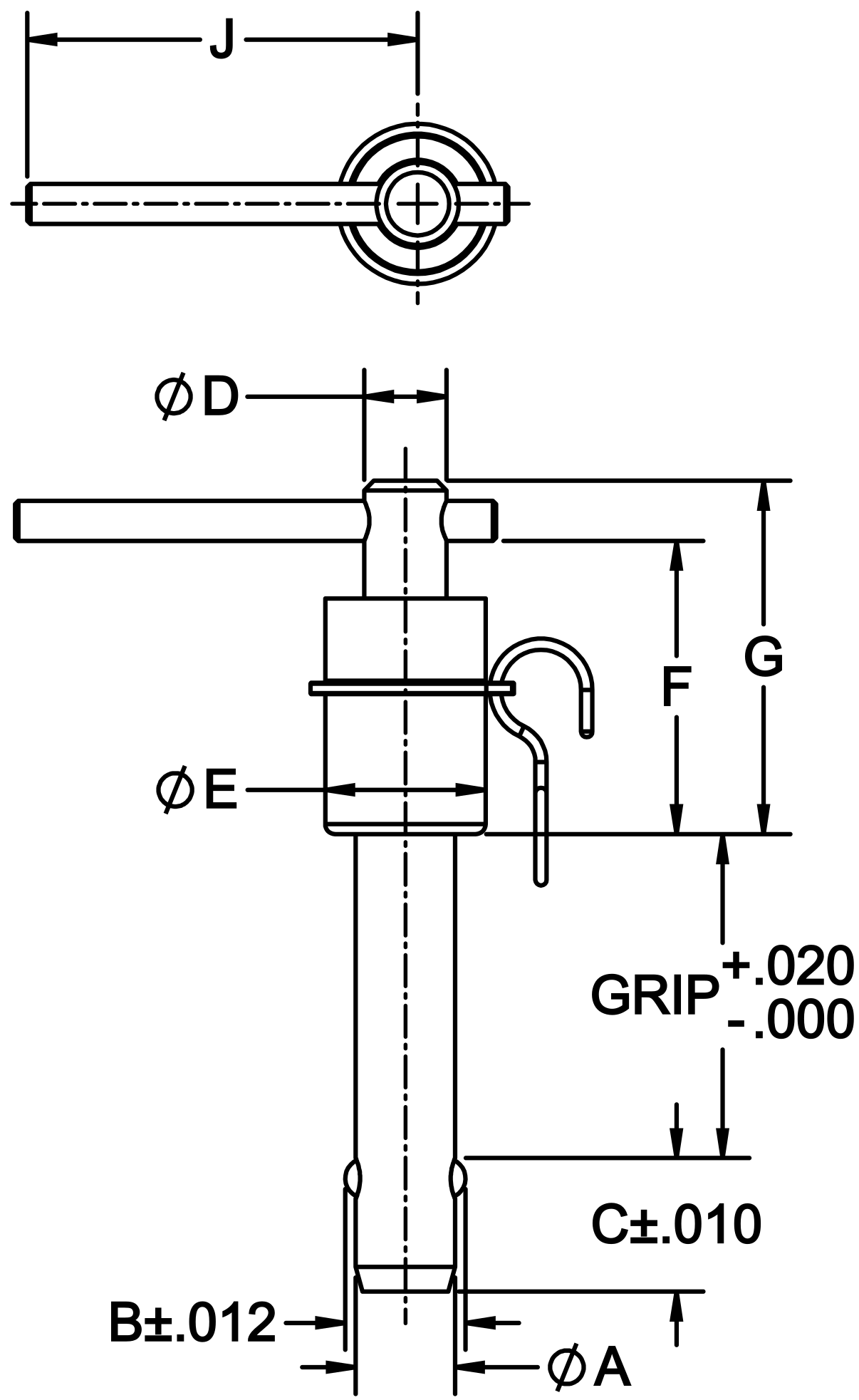

Double-acting pins are available with a "Drive-out" option, where the center spindle extends slightly beyond the shank end (see M dimension). This allows removing a pin under slight shear load by tapping the end with a hammer (releasing the balls at the same time). Add "-D" to the part number:

CL-4-BPDL-1.50-S-D

Optional 4 Ball

Pins are optionally available with four balls instead of two, for more-distributed ball-pullout force. Add "-4BALL" to the part number:

CL-4-BPDL-1.50-S-4BALL

Optional Cable

Diagram showcasing the application of Double Acting Ball Lock Pins L Handle

To order pins with a standard cable assembly attached (Cable Assembly CL-82-KA-12.0 — #2 cable size, 12.0" long, with a terminal at the free end for a #10 or M5 attachment screw), add "-C" to the part number:

CL-4-BPDL-1.50-S-C

Material

Steel (Discontinued):

Shank > 4130 steel, heat treated Rc 36-40, zinc or cadmium plated. Spindle > 4130 steel, cadmium plated, or 17-4PH stainless. Head, button, and handle > Carbon steel, zinc or cadmium plated. Spring and ring > 17-7PH/302 stainless, or music wire. Balls > 440C stainless. Note: alternative materials listed here are manufacturing options, not customer options. DFARS and RoHS compliant.

Stainless Steel:

Shank > 17-4PH stainless, heat treated Rc 40 min. Spindle > 17-4PH stainless. Head, button, and handle > 300-series stainless. Spring and ring > 17-7PH/302 stainless. Balls > 440C stainless. Note: alternative materials listed here are manufacturing options, not customer options. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.
