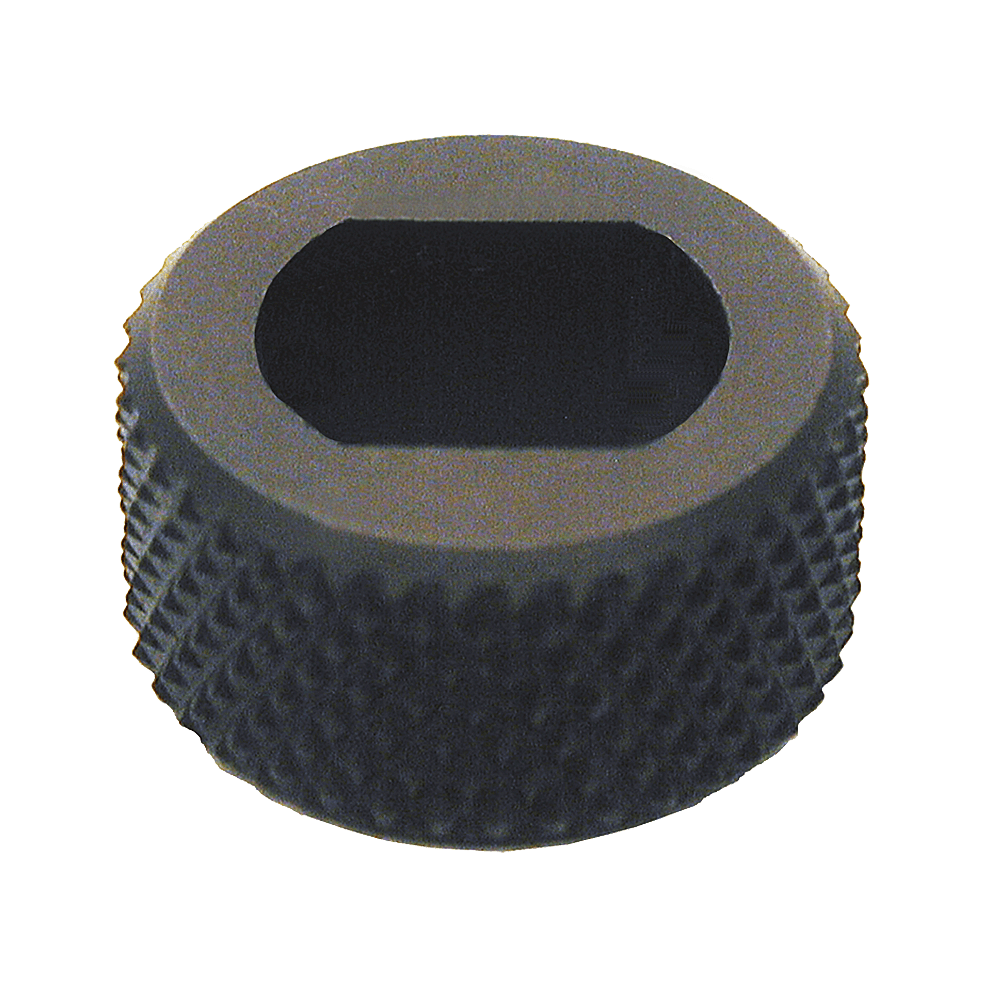

Knurled Slotted Locator Bushings Part # CL-30-SLLB Carr Lane Mfg.®

Knurled design for embedding in plastic tooling. Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction. Available for pin diameters from 3/16 to 1/2". Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

A standard knurled DG bushing (for primary location) and a knurled Slotted Locator Bushing (for secondary location) are used with L Pins to align two holes without binding.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Tool Steel	Rc 58-62	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Knurled Slotted Locator Bushings

Inch

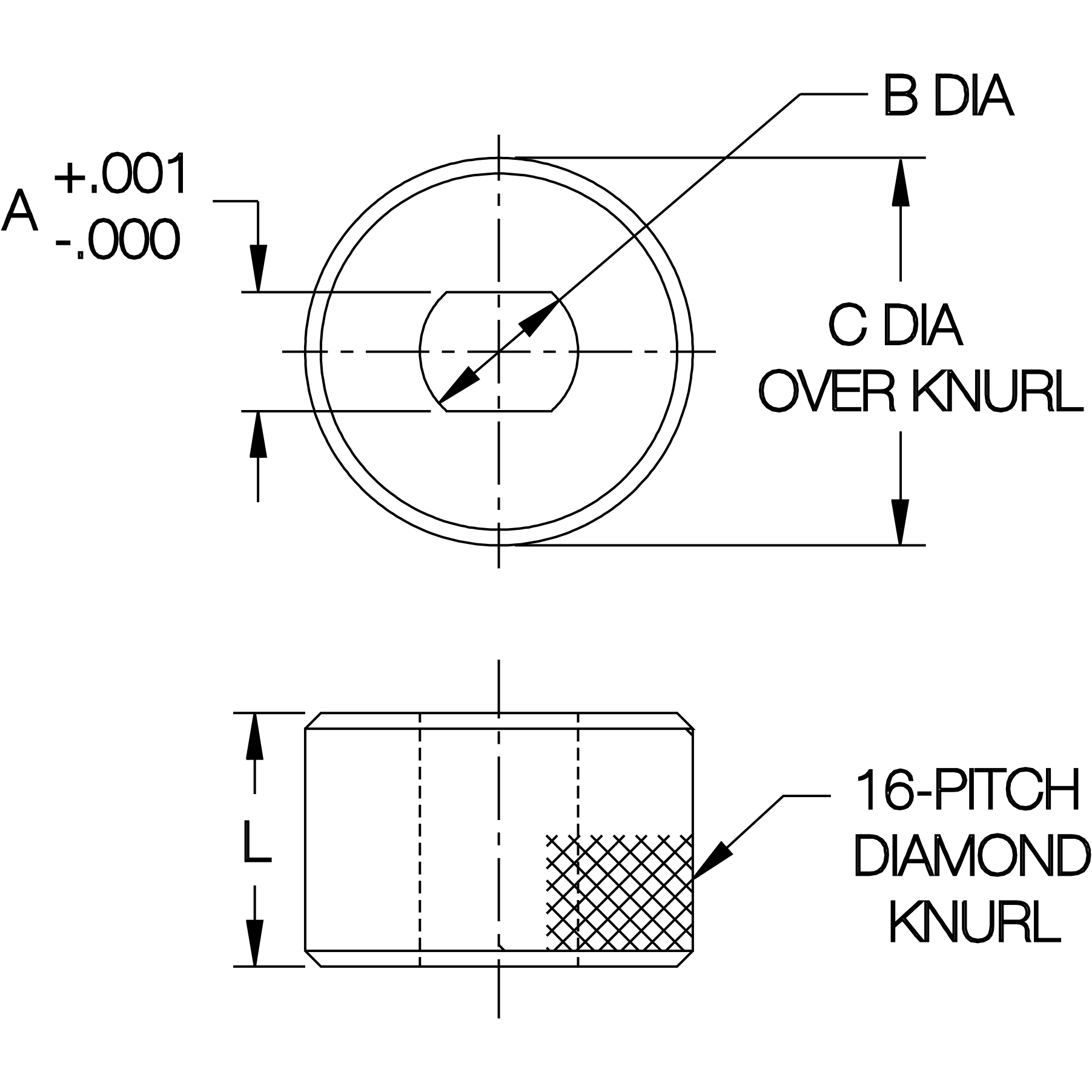

PART NO.	PIN DIA	A	B DIA	C DIA	L
CL-30-SLLB	3/16	.188	.312	.565	1/2
CL-40-SLLB	1/4	.250	.375	.640	1/2
CL-50-SLLB	5/16	.313	.437	.765	1/2
CL-60-SLLB	3/8	.375	.500	.890	1/2
CL-80-SLLB	1/2	.500	.625	1.015	1/2
