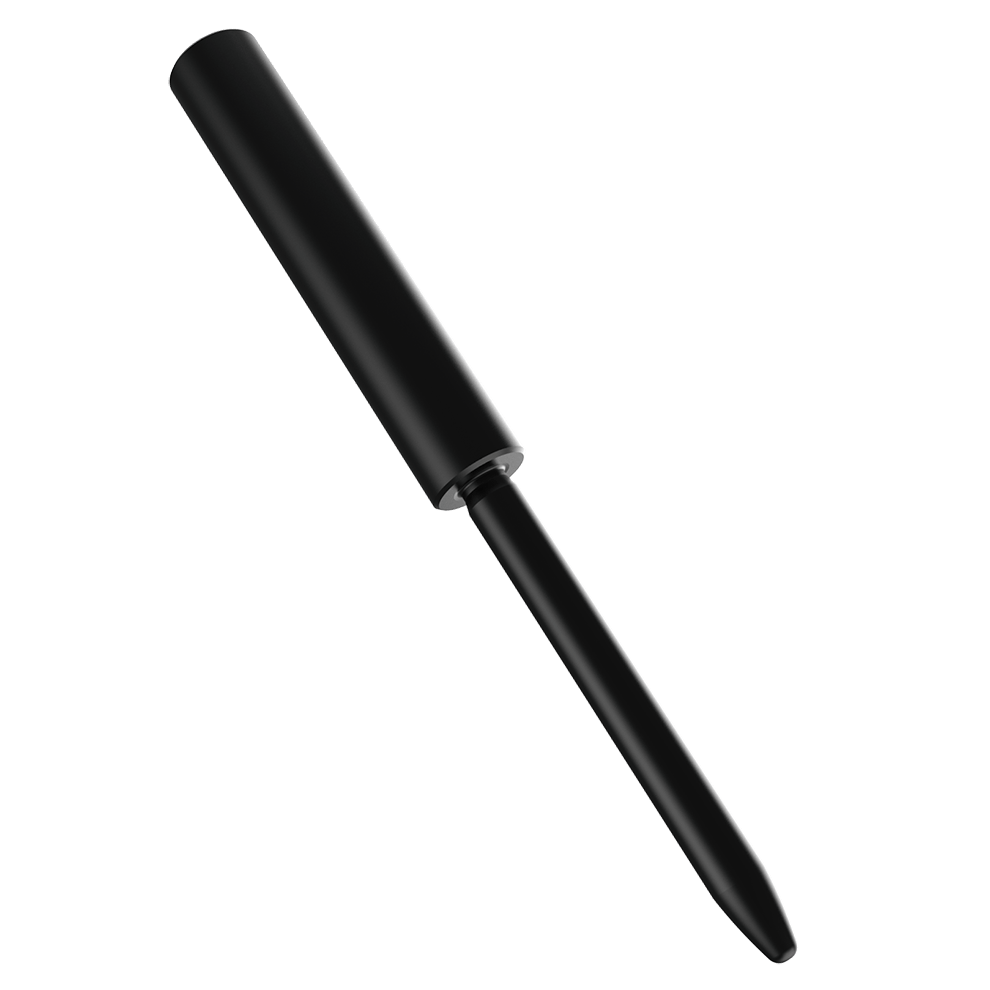

Shoulder Potting Pins

Alignment Pins

Save to My Project

What is this?

Product Information

Shoulder Potting Pins are removable alignment pins used for positioning components to be potted in carbon-fiber composites. The precision-ground pin body and the handle are made from one solid piece of high-carbon steel. The handle is tapered to allow the use of a pulling tool for removal. Carr Lane Shoulder Potting Pins feature an all-in-one design to help improve accuracy and integrate seamlessly with your tooling requirements. Shoulder Potting Pins are available in pin diameters from 1/8 to 1/2". All Carr Lane shoulder potting pins are proudly designed and built in the USA

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
1144 Steel	-	Black Oxide	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

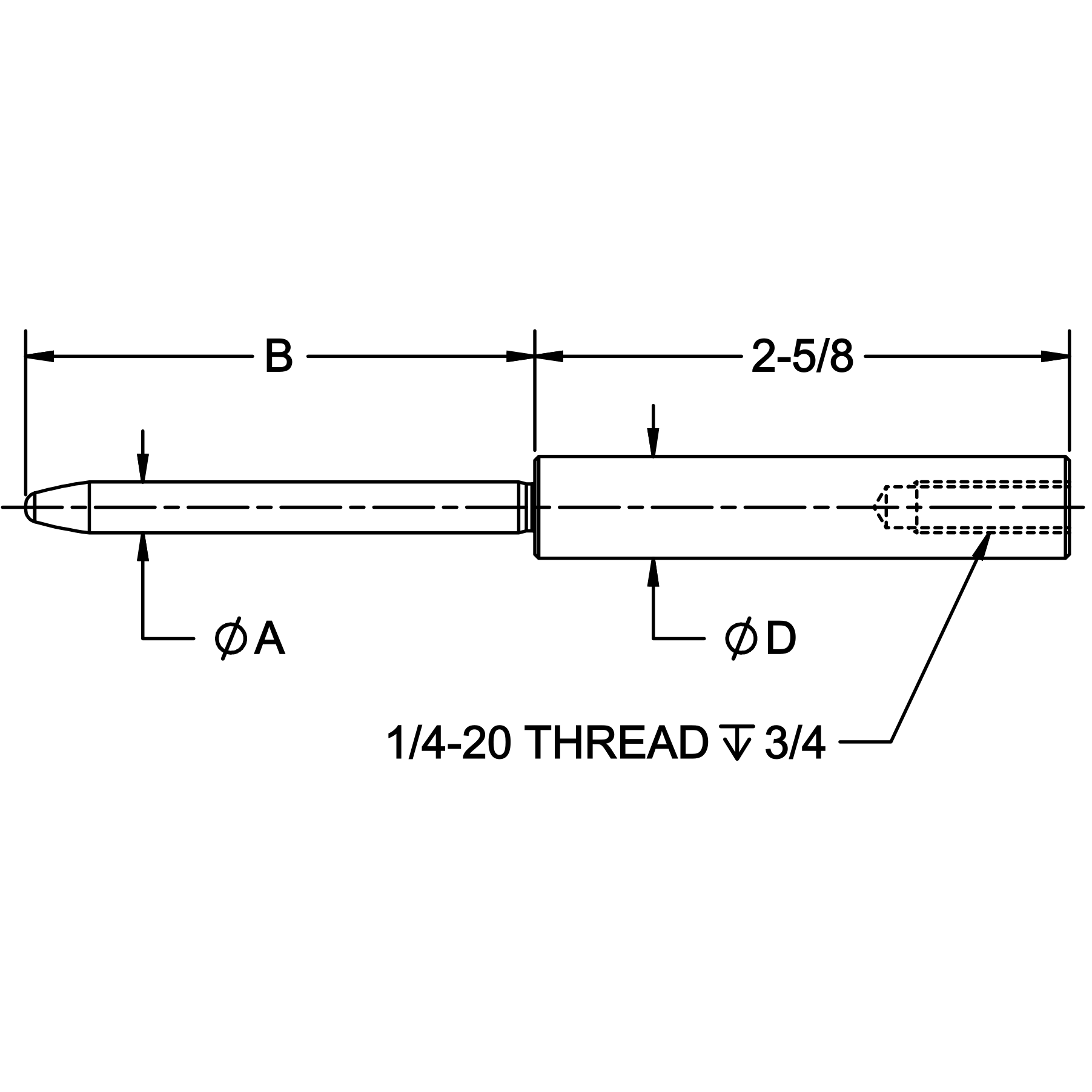

Shoulder Potting Pins

Inch

PART NO.	A DIA NOMINAL	A DIA ACTUAL	B	C	D DIA	E THREAD	H
CL-225-SPP	1/8	.1250	2.50	2-5/8	1/2	1/4-20	3/4
CL-425-SPP	1/4	.2500	2.50	2-5/8	1/2	1/4-20	3/4
CL-525-SPP	5/16	.3125	2.50	2-5/8	5/8	1/4-20	3/4
CL-640-SPP	3/8	.3750	4.00	2-5/8	5/8	1/4-20	3/4
CL-840-SPP	1/2	.5000	4.00	2-5/8	3/4	1/4-20	3/4
