Locking L Pins

Alignment Pins

Product Information

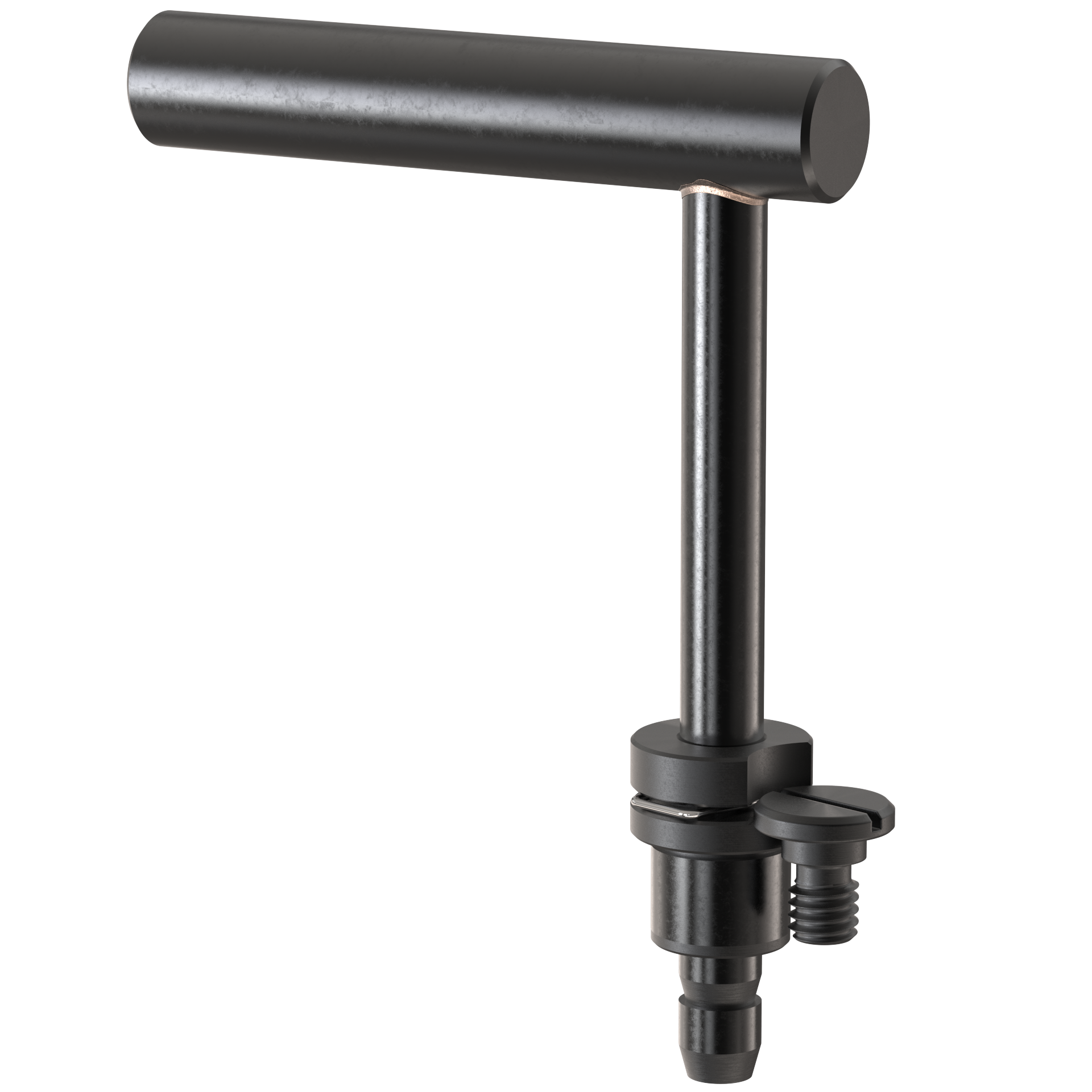

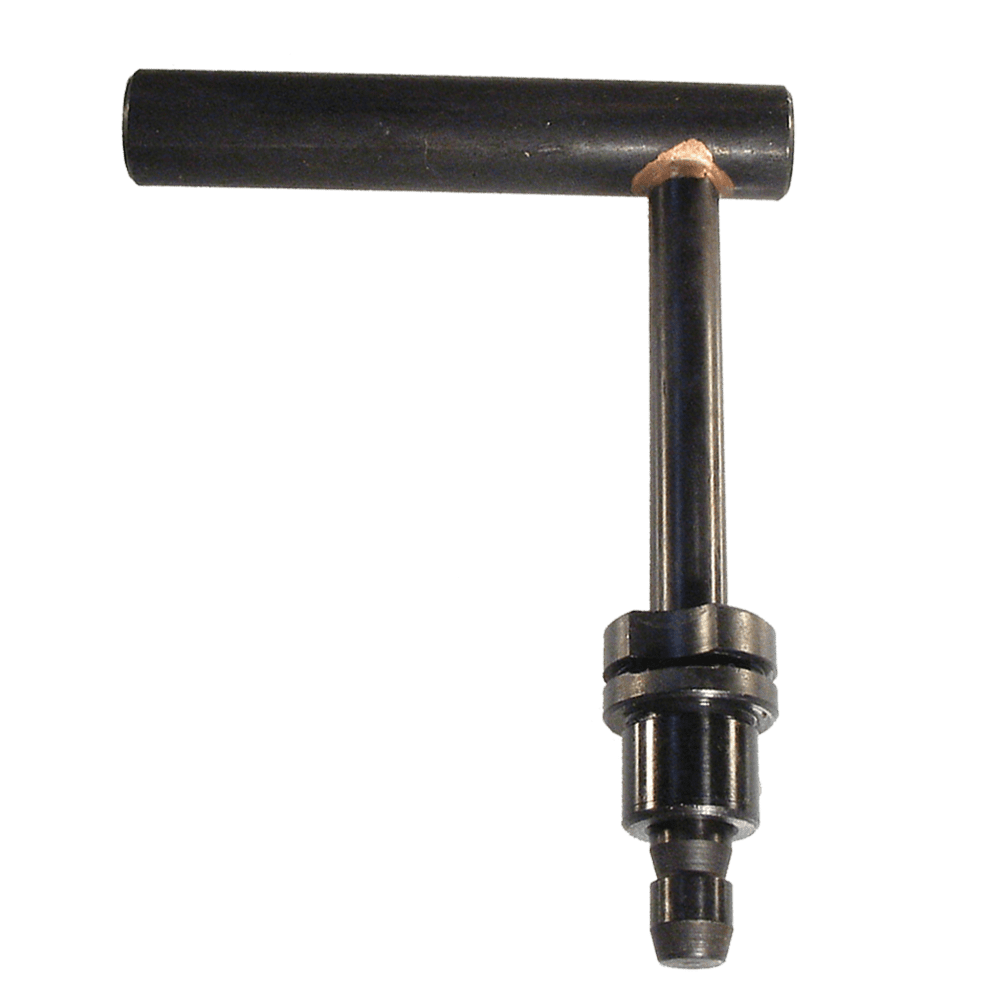

Similar to a standard L Pin, except that the pin body is positively retained in a locking bushing. In fully retracted position, the bushing's spring clip snaps into the pin's radial groove. This holds the pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions, an advantage especially if the fixture is turned upside down. Available in pin diameters from 3/16 to 1/2" (6 to 12mm in metric), most in a choice of several pin lengths. Patent No. 3,471,186. Made in USA.

The complete assemblies listed below include a Locking L Pin, Locking-Pin Bushing, and Lockscrew. Choice of standard or long bushing in most sizes, for installation in thinner or thicker plates. Locking-Pin Bushings are designed to press fit in a standard reamed hole, and can be further secured with the included Lockscrew to positively hold the bushing in place.

Application Information

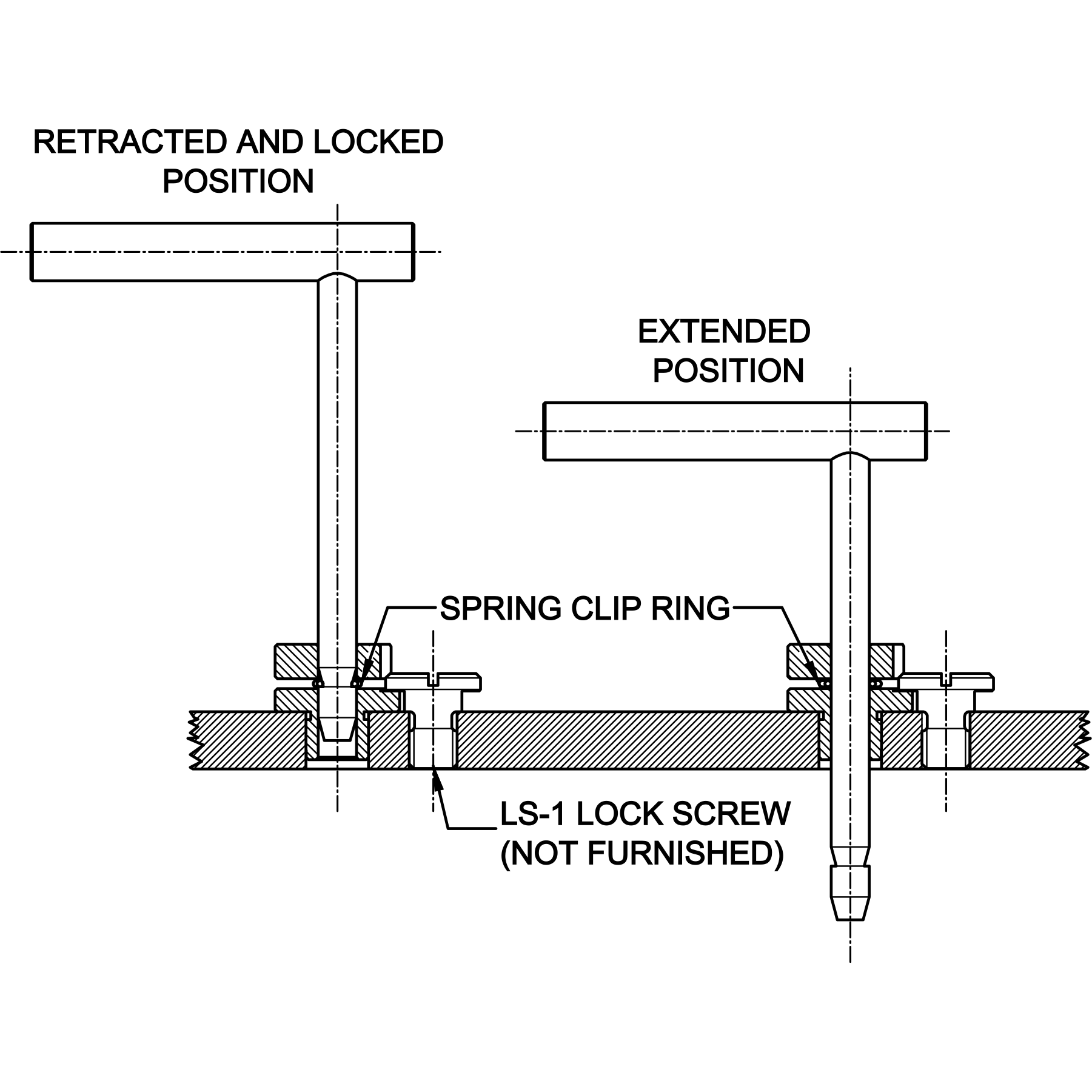

In fully retracted position, the bushing's spring clip holds the L Pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Pin	1215 Steel	Carburized-hardened	Black Oxide
Handle	1215 Steel	-	Black Oxide
Locking Bushing	1144 Steel	Carburized-hardened	Black Oxide
Retainer Clip	Stainless Steel	-	N/A

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Locking L Pins

Complete Assembly (Inch)

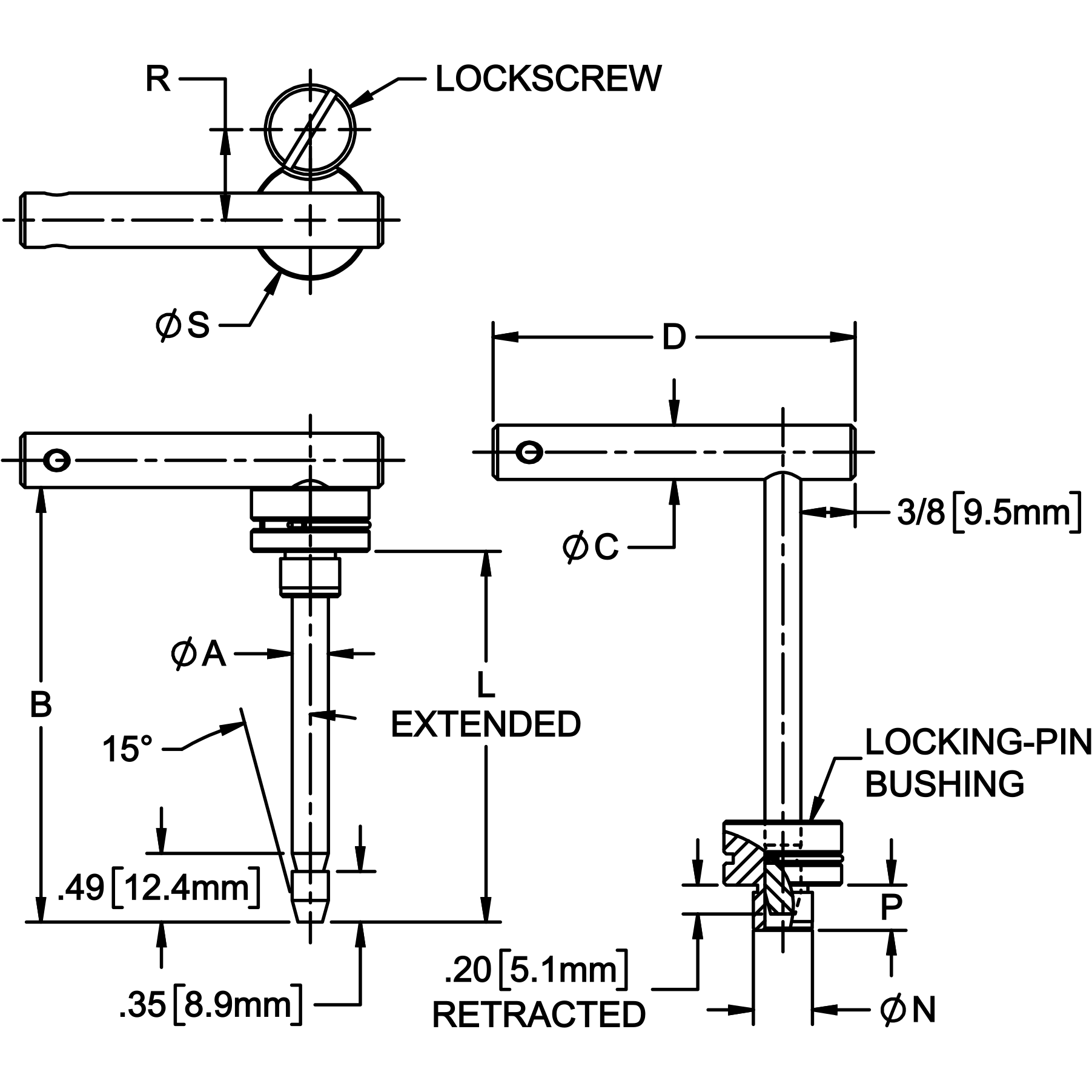

PART NO.	A DIA NOMINAL	A DIA ACTUAL +0/-.0005	B PIN LENGTH	P BUSHING LENGTH UNDER HEAD	P	C DIA	D	L	N DIA NOMINAL	N DIA ACTUAL +0/-.0003	R +.03/-.01	S	L PIN (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
CL-1A-LLP-B	3/16	.1865	1-1/2	Standard	.31	5/16	2-1/2	1	13/32	.4078	.62	13/16	CL-1A-LLP	CL-3-LPB	LS-1
CL-1-LLP-B	3/16	.1865	3	Standard	.31	5/16	2-1/2	2-1/2	13/32	.4078	.62	13/16	CL-1-LLP	CL-3-LPB	LS-1
CL-38-LLP-B	1/4	.2490	2	Standard	.31	3/8	2-1/2	1-1/2	13/32	.4078	.62	13/16	CL-38-LLP	CL-4-LPB	LS-1
CL-38-LLP-B-2	1/4	.2490	2	Long	.50	3/8	2-1/2	1-1/2	13/32	.4078	.62	13/16	CL-38-LLP	CL-4A-LPB	LS-1
CL-5-LLP-B	1/4	.2490	3	Standard	.31	3/8	2-1/2	2-1/2	13/32	.4078	.62	13/16	CL-5-LLP	CL-4-LPB	LS-1
CL-5-LLP-B-2	1/4	.2490	3	Long	.50	3/8	2-1/2	2-1/2	13/32	.4078	.62	13/16	CL-5-LLP	CL-4A-LPB	LS-1
CL-25-LLP-B	1/4	.2490	4	Standard	.31	3/8	2-1/2	3-1/2	13/32	.4078	.62	13/16	CL-25-LLP	CL-4-LPB	LS-1
CL-25-LLP-B-2	1/4	.2490	4	Long	.50	3/8	2-1/2	3-1/2	13/32	.4078	.62	13/16	CL-25-LLP	CL-4A-LPB	LS-1
CL-39-LLP-B-1	5/16	.3115	2	Standard	.31	5/8	3	1-1/2	1/2	.5017	.62	13/16	CL-39-LLP	CL-5-LPB	LS-1
CL-39-LLP-B	5/16	.3115	2	Medium	.37	5/8	3	1-1/2	1/2	.5017	.62	13/16	CL-39-LLP	CL-5A-LPB	LS-1
CL-39-LLP-B-3	5/16	.3115	2	Long	.50	5/8	3	1-1/2	1/2	.5017	.62	13/16	CL-39-LLP	CL-5B-LPB	LS-1
CL-7-LLP-B-1	5/16	.3115	3-1/2	Standard	.31	5/8	3	3	1/2	.5017	.62	13/16	CL-7-LLP	CL-5-LPB	LS-1
CL-7-LLP-B	5/16	.3115	3-1/2	Medium	.37	5/8	3	3	1/2	.5017	.62	13/16	CL-7-LLP	CL-5A-LPB	LS-1
CL-7-LLP-B-3	5/16	.3115	3-1/2	Long	.50	5/8	3	3	1/2	.5017	.62	13/16	CL-7-LLP	CL-5B-LPB	LS-1
CL-8-LLP-B-1	5/16	.3115	6	Standard	.31	5/8	3	5-1/2	1/2	.5017	.62	13/16	CL-8-LLP	CL-5-LPB	LS-1
CL-8-LLP-B	5/16	.3115	6	Medium	.37	5/8	3	5-1/2	1/2	.5017	.62	13/16	CL-8-LLP	CL-5A-LPB	LS-1
CL-8-LLP-B-3	5/16	.3115	6	Long	.50	5/8	3	5-1/2	1/2	.5017	.62	13/16	CL-8-LLP	CL-5B-LPB	LS-1
CL-40A-LLP-B-1	3/8	.3740	2	Standard	.31	5/8	3-1/2	1-1/2	5/8	.6267	.62	13/16	CL-40A-LLP	CL-6-LPB	LS-1
CL-40A-LLP-B	3/8	.3740	2	Long	.50	5/8	3-1/2	1-1/2	5/8	.6267	.62	13/16	CL-40A-LLP	CL-6A-LPB	LS-1
CL-9-LLP-B-1	3/8	.3740	4	Standard	.31	5/8	3-1/2	3-1/2	5/8	.6267	.62	13/16	CL-9-LLP	CL-6-LPB	LS-1
CL-9-LLP-B	3/8	.3740	4	Long	.50	5/8	3-1/2	3-1/2	5/8	.6267	.62	13/16	CL-9-LLP	CL-6A-LPB	LS-1
CL-10-LLP-B-1	3/8	.3740	6	Standard	.31	5/8	3-1/2	5-1/2	5/8	.6267	.62	13/16	CL-10-LLP	CL-6-LPB	LS-1
CL-10-LLP-B	3/8	.3740	6	Long	.50	5/8	3-1/2	5-1/2	5/8	.6267	.62	13/16	CL-10-LLP	CL-6A-LPB	LS-1
CL-13A-LLP-B-1	1/2	.4990	2	Standard	.50	5/8	3-1/2	1-1/2	3/4	.7518	.75	1-1/16	CL-13A-LLP	CL-8-LPB	LS-1
CL-13A-LLP-B	1/2	.4990	2	Long	.75	5/8	3-1/2	1-1/2	3/4	.7518	.75	1-1/16	CL-13A-LLP	CL-8A-LPB	LS-1
CL-13-LLP-B-1	1/2	.4990	4	Standard	.50	5/8	3-1/2	3-1/2	3/4	.7518	.75	1-1/16	CL-13-LLP	CL-8-LPB	LS-1
CL-13-LLP-B	1/2	.4990	4	Long	.75	5/8	3-1/2	3-1/2	3/4	.7518	.75	1-1/16	CL-13-LLP	CL-8A-LPB	LS-1
CL-14-LLP-B-1	1/2	.4990	6	Standard	.50	5/8	3-1/2	5-1/2	3/4	.7518	.75	1-1/16	CL-14-LLP	CL-8-LPB	LS-1
CL-14-LLP-B	1/2	.4990	6	Long	.75	5/8	3-1/2	5-1/2	3/4	.7518	.75	1-1/16	CL-14-LLP	CL-8A-LPB	LS-1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

L Pin Only (Inch)

PART NO.	A DIA NOMINAL	A DIA ACTUAL +0/-.0005	B PIN LENGTH	C DIA	D
CL-1A-LLP	3/16	.1865	1-1/2	5/16	2-1/2
CL-1-LLP	3/16	.1865	3	5/16	2-1/2
CL-38-LLP	1/4	.2490	2	3/8	2-1/2
CL-5-LLP	1/4	.2490	3	3/8	2-1/2
CL-25-LLP	1/4	.2490	4	3/8	2-1/2
CL-39-LLP	5/16	.3115	2	5/8	3
CL-7-LLP	5/16	.3115	3-1/2	5/8	3
CL-8-LLP	5/16	.3115	6	5/8	3
CL-40A-LLP	3/8	.3740	2	5/8	3-1/2
CL-9-LLP	3/8	.3740	4	5/8	3-1/2
CL-10-LLP	3/8	.3740	6	5/8	3-1/2
CL-13A-LLP	1/2	.4990	2	5/8	3-1/2
CL-13-LLP	1/2	.4990	4	5/8	3-1/2
CL-14-LLP	1/2	.4990	6	5/8	3-1/2

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Complete Assembly (Metric)

PART NO.	A DIA NOMINAL (mm)	A DIA ACTUAL +0/-.013 (mm)	B PIN LENGTH (mm)	P BUSHING LENGTH UNDER HEAD	P (mm)	C DIA (mm)	D (mm)	L (mm)	N DIA NOMINAL (mm)	N DIA ACTUAL +0/-.008 (mm)	R +.8/-.3 (mm)	S (mm)	L PIN (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
CLM-6-LLP-B	6	5.975	76	Standard	8	9.5	63.5	63.5	10	10.038	16	22	CLM-6-LLP	CLM-6-LPB	LSM-3
CLM-8-LLP-B	8	7.975	76	Standard	10	11	76	63.5	13	13.043	16	22	CLM-8-LLP	CLM-8-LPB	LSM-3
CLM-10-LLP-B	10	9.975	76	Standard	12	12.5	63.5	63.5	16	16.043	16	22	CLM-10-LLP	CLM-10-LPB	LSM-3
CLM-12-LLP-B	12	11.975	102	Standard	18	16	89	89	20	20.046	18	26	CLM-12-LLP	CLM-12-LPB	LSM-3
