Captive Locking Knob Pin

Alignment Pins

Product Information

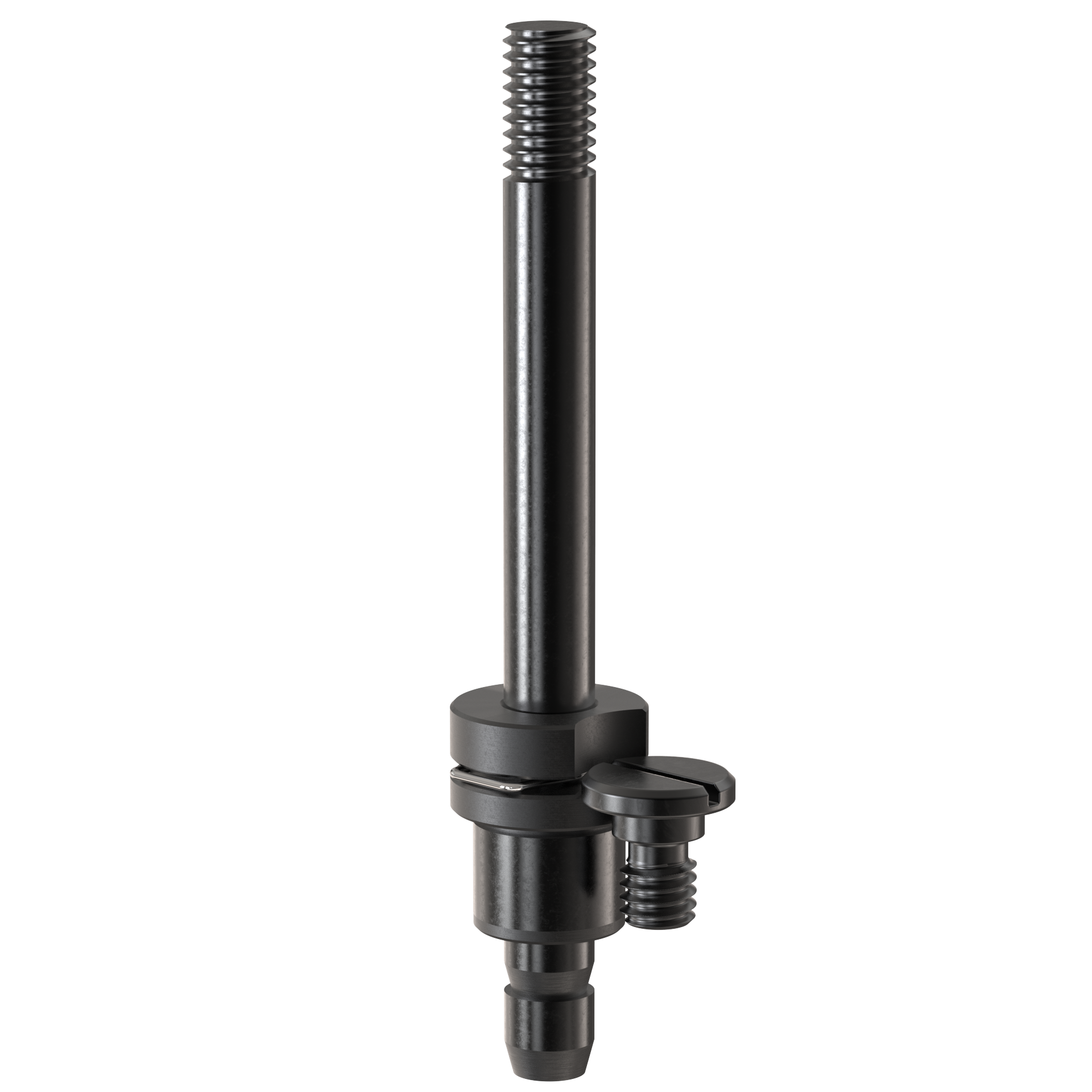

Similar to a Locking L or T Pin, this pin instead has a threaded end for a knob. In the fully retracted position, the bushing's spring clip snaps into the pin's radial groove. This holds the pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions, an advantage especially if the fixture is turned upside down. Available in pin diameters from 3/16 to 1/2" (6 to 12mm in metric), most in a choice of several pin lengths. Made in USA.

The complete assemblies listed below include a Locking Knob Pin, Locking-Pin Bushing, and Lockscrew. Choice of standard or long bushing in most sizes, for installation in thinner or thicker plates. Locking-Pin Bushings are designed to press fit in a standard reamed hole and can be further secured with the included Lockscrew to positively hold the bushing in place.

Application Information

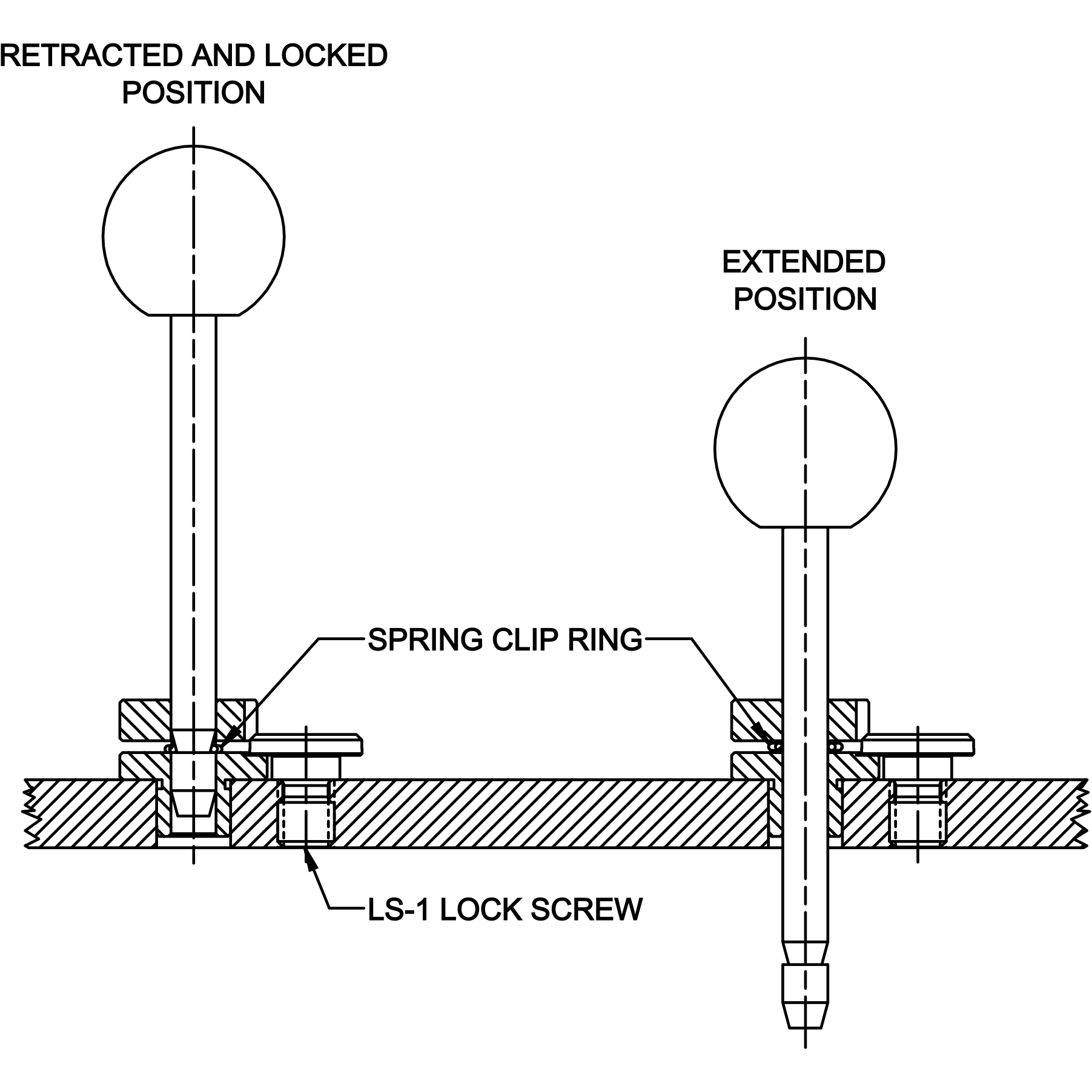

In fully retracted position, the bushing's spring clip holds the Threaded Pin fully retracted by spring force and positively prevents removal. Spring pressure also holds the pin in intermediate extended positions.

Enhanced Alignment with Retractable Stab Pin: Quick-Release Solution for Precision Applications

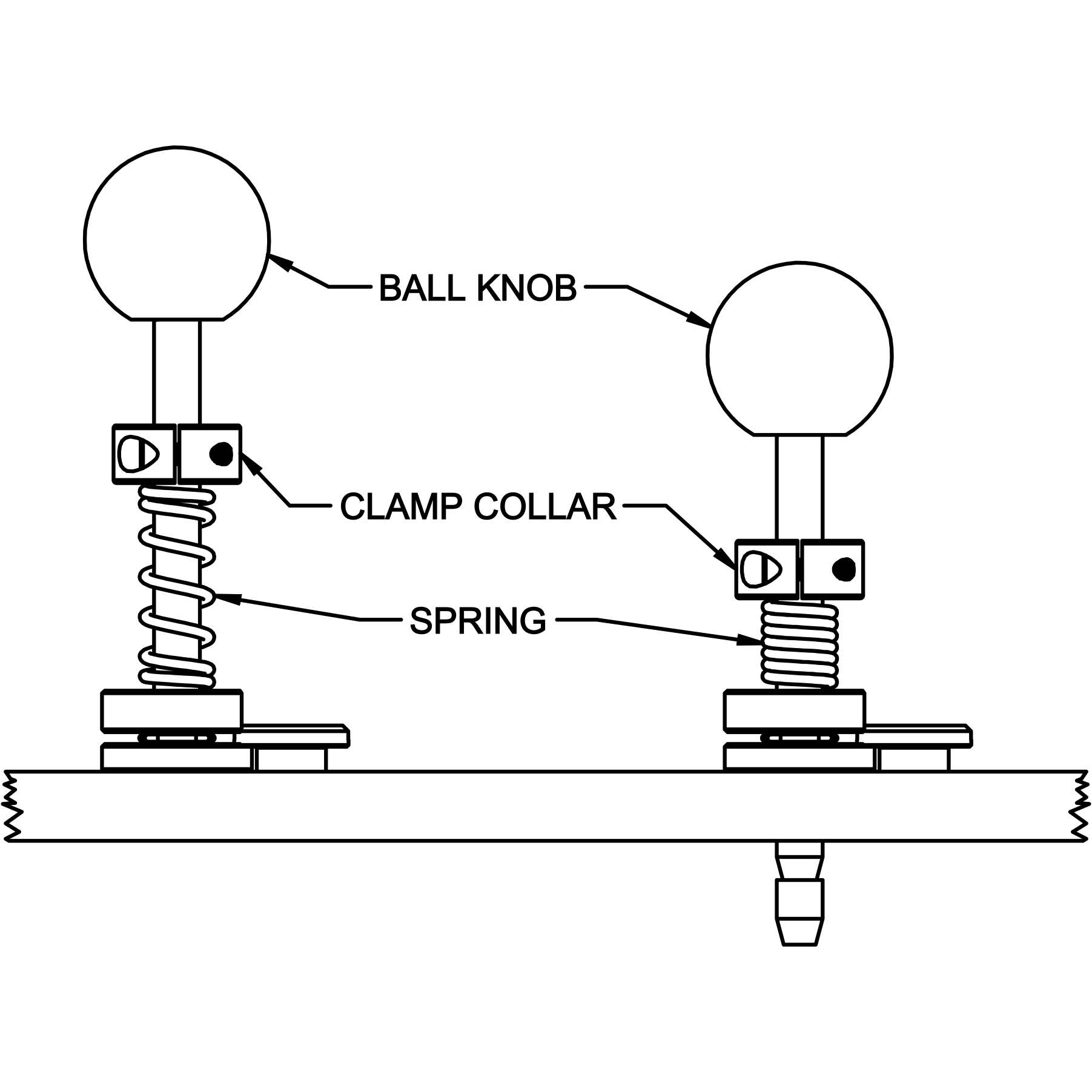

Adding a collar to the shaft of the Captive Locking Knob Pin and inserting a spring between the collar and the bushing, users can transform this alignment pin into a 'stab pin.' This modification provides a positive retraction force, allowing the pin to retract swiftly after alignment or positioning tasks. This quick in-and-out function makes the pin ideal for applications where parts need to be accurately aligned or verified and then immediately released, enhancing both efficiency and usability in dynamic setups.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Pin	1215 Steel	Carburized-hardened	Black Oxide
Locking Bushing	1144 Steel	Carburized-hardened	Black Oxide
Retainer Clip	Stainless Steel	-	N/A

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Captive Locking Knob Pin

Complete Assembly (Inch)

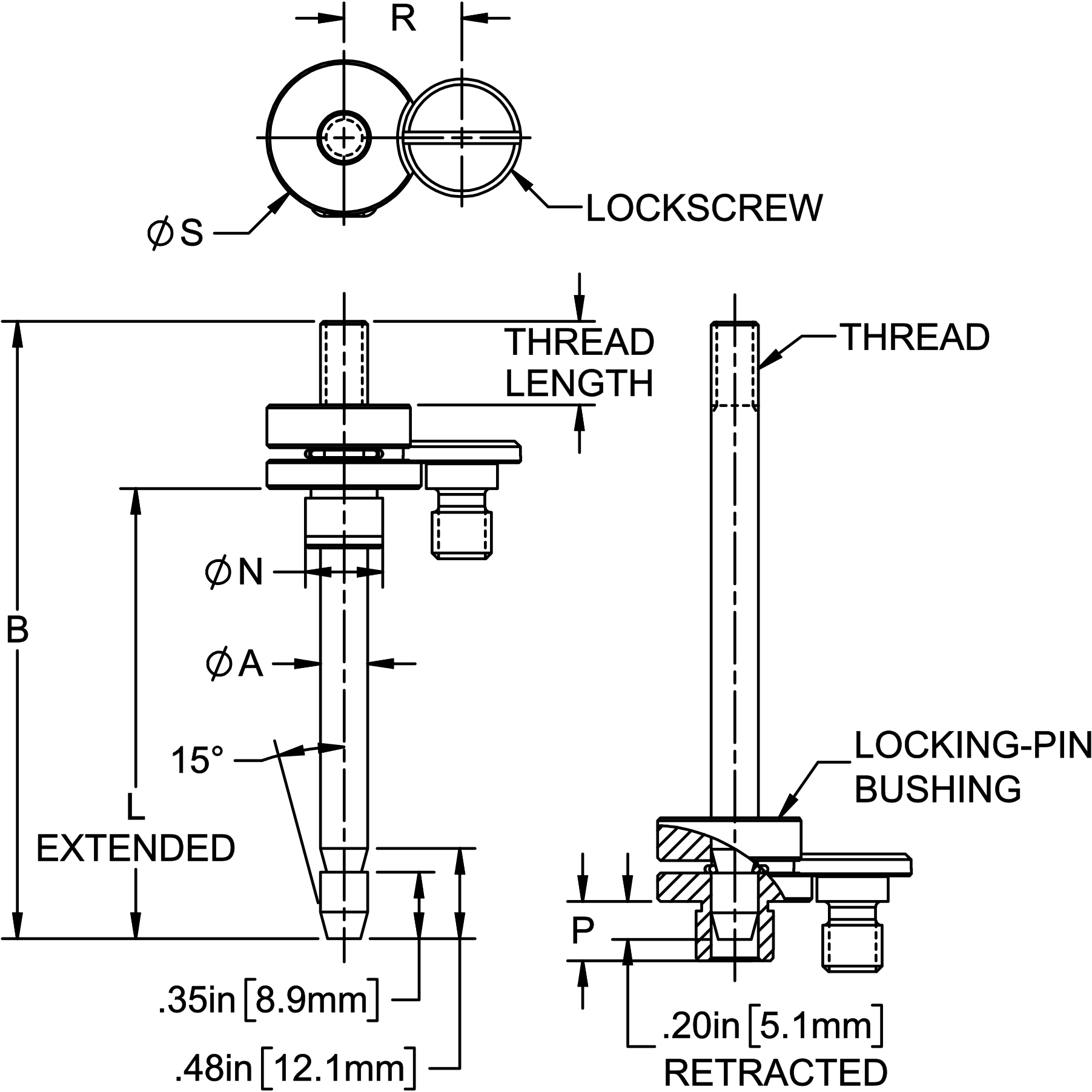

PART NO.	A DIA NOMINAL	A DIA ACTUAL +0/-.0005	B PIN LENGTH	THREAD	THREAD LENGTH	L	N DIA NOMINAL	N DIA ACTUAL +0/-.0003	P BUSHING LENGTH UNDER HEAD	P	R +.03/-.01	S	KNOB PIN (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
CL-1A-LKP-B	3/16	.1865	1-23/32	#10-32	5/16	31/32	13/32	.4078	Standard	.31	.62	13/16	CL-1A-LKP	CL-3-LPB	LS-1
CL-1-LKP-B	3/16	.1865	3-7/32	#10-32	5/16	2-15/32	13/32	.4078	Standard	.31	.62	13/16	CL-1-LKP	CL-3-LPB	LS-1
CL-38-LKP-B	1/4	.2490	2-1/4	1/4-20	7/16	1-3/8	13/32	.4078	Standard	.31	.62	13/16	CL-38-LKP	CL-4-LPB	LS-1
CL-38-LKP-B-2	1/4	.2490	2-1/4	1/4-20	7/16	1-3/8	13/32	.4078	Long	.50	.62	13/16	CL-38-LKP	CL-4A-LPB	LS-1
CL-5-LKP-B	1/4	.2490	3-1/4	1/4-20	7/16	2-3/8	13/32	.4078	Standard	.31	.62	13/16	CL-5-LKP	CL-4-LPB	LS-1
CL-5-LKP-B-2	1/4	.2490	3-1/4	1/4-20	7/16	2-3/8	13/32	.4078	Long	.50	.62	13/16	CL-5-LKP	CL-4A-LPB	LS-1
CL-25-LKP-B	1/4	.2490	4-1/4	1/4-20	7/16	3-3/8	13/32	.4078	Standard	.31	.62	13/16	CL-25-LKP	CL-4-LPB	LS-1
CL-25-LKP-B-2	1/4	.2490	4-1/4	1/4-20	7/16	3-3/8	13/32	.4078	Long	.50	.62	13/16	CL-25-LKP	CL-4A-LPB	LS-1
CL-39-LKP-B-1	5/16	.3115	2-5/16	5/16-18	15/32	1-13/32	1/2	.5017	Standard	.31	.62	13/16	CL-39-LKP	CL-5-LPB	LS-1
CL-39-LKP-B	5/16	.3115	2-5/16	5/16-18	15/32	1-13/32	1/2	.5017	Medium	.37	.62	13/16	CL-39-LKP	CL-5A-LPB	LS-1
CL-39-LKP-B-3	5/16	.3115	2-5/16	5/16-18	15/32	1-13/32	1/2	.5017	Long	.50	.62	13/16	CL-39-LKP	CL-5B-LPB	LS-1
CL-7-LKP-B-1	5/16	.3115	3-13/16	5/16-18	15/32	2-29/32	1/2	.5017	Standard	.31	.62	13/16	CL-7-LKP	CL-5-LPB	LS-1
CL-7-LKP-B	5/16	.3115	3-13/16	5/16-18	15/32	2-29/32	1/2	.5017	Medium	.37	.62	13/16	CL-7-LKP	CL-5A-LPB	LS-1
CL-7-LKP-B-3	5/16	.3115	3-13/16	5/16-18	15/32	2-29/32	1/2	.5017	Long	.50	.62	13/16	CL-7-LKP	CL-5B-LPB	LS-1
CL-8-LKP-B-1	5/16	.3115	6-5/16	5/16-18	15/32	5-13/32	1/2	.5017	Standard	.31	.62	13/16	CL-8-LKP	CL-5-LPB	LS-1
CL-8-LKP-B	5/16	.3115	6-5/16	5/16-18	15/32	5-13/32	1/2	.5017	Medium	.37	.62	13/16	CL-8-LKP	CL-5A-LPB	LS-1
CL-8-LKP-B-3	5/16	.3115	6-5/16	5/16-18	15/32	5-13/32	1/2	.5017	Long	.50	.62	13/16	CL-8-LKP	CL-5B-LPB	LS-1
CL-40A-LKP-B-1	3/8	.3740	2-11/32	3/8-16	9/16	1-11/32	5/8	.6267	Standard	.31	.62	13/16	CL-40A-LKP	CL-6-LPB	LS-1
CL-40A-LKP-B	3/8	.3740	2-11/32	3/8-16	9/16	1-11/32	5/8	.6267	Long	.50	.62	13/16	CL-40A-LKP	CL-6A-LPB	LS-1
CL-9-LKP-B-1	3/8	.3740	4-11/32	3/8-16	9/16	3-11/32	5/8	.6267	Standard	.31	.62	13/16	CL-9-LKP	CL-6-LPB	LS-1
CL-9-LKP-B	3/8	.3740	4-11/32	3/8-16	9/16	3-11/32	5/8	.6267	Long	.50	.62	13/16	CL-9-LKP	CL-6A-LPB	LS-1
CL-10-LKP-B-1	3/8	.3740	6-11/32	3/8-16	9/16	5-11/32	5/8	.6267	Standard	.31	.62	13/16	CL-10-LKP	CL-6-LPB	LS-1
CL-10-LKP-B	3/8	.3740	6-11/32	3/8-16	9/16	5-11/32	5/8	.6267	Long	.50	.62	13/16	CL-10-LKP	CL-6A-LPB	LS-1
CL-13A-LKP-B-1	1/2	.4990	2-7/16	1/2-13	3/4	1-1/4	3/4	.7518	Standard	.50	.75	1-1/16	CL-13A-LKP	CL-8-LPB	LS-1
CL-13A-LKP-B	1/2	.4990	2-7/16	1/2-13	3/4	1-1/4	3/4	.7518	Long	.75	.75	1-1/16	CL-13A-LKP	CL-8A-LPB	LS-1
CL-13-LKP-B-1	1/2	.4990	4-7/16	1/2-13	3/4	3-1/4	3/4	.7518	Standard	.50	.75	1-1/16	CL-13-LKP	CL-8-LPB	LS-1
CL-13-LKP-B	1/2	.4990	4-7/16	1/2-13	3/4	3-1/4	3/4	.7518	Long	.75	.75	1-1/16	CL-13-LKP	CL-8A-LPB	LS-1
CL-14-LKP-B-1	1/2	.4990	6-7/16	1/2-13	3/4	5-1/4	3/4	.7518	Standard	.50	.75	1-1/16	CL-14-LKP	CL-8-LPB	LS-1
CL-14-LKP-B	1/2	.4990	6-7/16	1/2-13	3/4	5-1/4	3/4	.7518	Long	.75	.75	1-1/16	CL-14-LKP	CL-8A-LPB	LS-1

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Threaded Pin Only (Inch)

PART NO.	A DIA NOMINAL	A DIA ACTUAL +0/-.0005	B PIN LENGTH	THREAD	THREAD LENGTH
CL-1A-LKP	3/16	.1865	1-23/32	#10-32	5/16
CL-1-LKP	3/16	.1865	3-7/32	#10-32	5/16
CL-38-LKP	1/4	.2490	2-1/4	1/4-20	7/16
CL-5-LKP	1/4	.2490	3-1/4	1/4-20	7/16
CL-25-LKP	1/4	.2490	4-1/4	1/4-20	7/16
CL-39-LKP	5/16	.3115	2-5/16	5/16-18	15/32
CL-7-LKP	5/16	.3115	3-13/16	5/16-18	15/32
CL-8-LKP	5/16	.3115	6-5/16	5/16-18	15/32
CL-40A-LKP	3/8	.3740	2-11/32	3/8-16	9/16
CL-9-LKP	3/8	.3740	4-11/32	3/8-16	9/16
CL-10-LKP	3/8	.3740	6-11/32	3/8-16	9/16
CL-13A-LKP	1/2	.4990	2-7/16	1/2-13	3/4
CL-13-LKP	1/2	.4990	4-7/16	1/2-13	3/4
CL-14-LKP	1/2	.4990	6-7/16	1/2-13	3/4

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Complete Assembly (Metric)

PART NO.	A DIA NOMINAL (mm)	A DIA ACTUAL +0/-.013 (mm)	B PIN LENGTH (mm)	THREAD	THREAD LENGTH (mm)	L (mm)	N DIA NOMINAL (mm)	N DIA ACTUAL +0/-.008 (mm)	P BUSHING LENGTH UNDER HEAD	P (mm)	R +.8/-.3 (mm)	S (mm)	KNOB PIN (INCLUDED)	BUSHING (INCLUDED)	LOCKSCREW (INCLUDED)
CLM-6-LKP-B	6	5.975	82.6	M6 x 1	11.2	59.4	10	10.038	Standard	8	16	22	CLM-6-LKP	CLM-6-LPB	LSM-3
CLM-8-LKP-B	8	7.975	84.1	M8 x 1.25	12.7	59.4	13	13.043	Standard	10	16	22	CLM-8-LKP	CLM-8-LPB	LSM-3
CLM-10-LKP-B	10	9.975	84.8	M10 x 1.5	15	57.9	16	16.043	Standard	12	16	22	CLM-10-LKP	CLM-10-LPB	LSM-3
CLM-12-LKP-B	12	11.975	112.8	M12 x 1.75	18	82.8	20	20.046	Standard	18	18	26	CLM-12-LKP	CLM-12-LPB	LSM-3
